Radio Status Control Harness - Chrysler 2013-2023 — AXRSCH-CH5
Key features
- For select Chrysler 2013-2023
- Designed for amplified or non-amplified vehicles
- Note: Backup camera not retained on Jeep JL/JT
- Allows a visual of HVAC and gauges on the aftermarket radio screen
- Allows adjustment of HVAC functions through the aftermarket radio screen
- Requires the AXRSC radio status control interface
Radio Status Control Harness - Chrysler 2013-2023 — AXRSCH-CH5 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep key factory controls and functions available as you move to a compatible aftermarket radio with the AXRSCH-CH5 radio status control harness. It is designed for select 2013–2023 Chrysler applications and select aftermarket radios, in amplified and non-amplified vehicles.
Use the aftermarket radio screen to view vehicle information and adjust supported HVAC functions, while retaining other listed factory features through the interface.
Key Features & Benefits
- Factory-feature retention: Keep supported vehicle functions available with an aftermarket radio.
- On-screen vehicle information: View HVAC status and gauges on the radio screen.
- Steering-wheel controls: Retain the vehicle’s audio controls for convenient access.
- Chimes and settings: Keep safety chimes and OE personalization adjustments.
- Vehicle-specific connections: The included harnesses and T-harnesses support the plug-and-play installation design.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AXRSCH-CH5 |
| Product type | Radio status control interface harness |
| Vehicle application | Chrysler 2013–2023; designed for select vehicles |
| Radio compatibility | Designed for select aftermarket radios; AXRSC radio status control interface required |
| Vehicle audio system | Designed for amplified or non-amplified vehicles |
| Accessory power | 12-volt, 10-amp |
| Retained functions and outputs | Retains R.A.P. (Retained Accessory Power), factory backup camera, steering-wheel audio controls, auto stop/start override, and OE personalization settings; provides NAV outputs for parking brake, reverse, and speed sense |
| HVAC and gauges | Displays HVAC and gauges on the aftermarket radio screen; allows HVAC adjustments through the screen |
| Zone support | Works in single- and dual-zone vehicles |
| Safety chimes | Retained through an included off-board speaker |
| Installation | Plug-and-play |
| Warranty | 1 year |

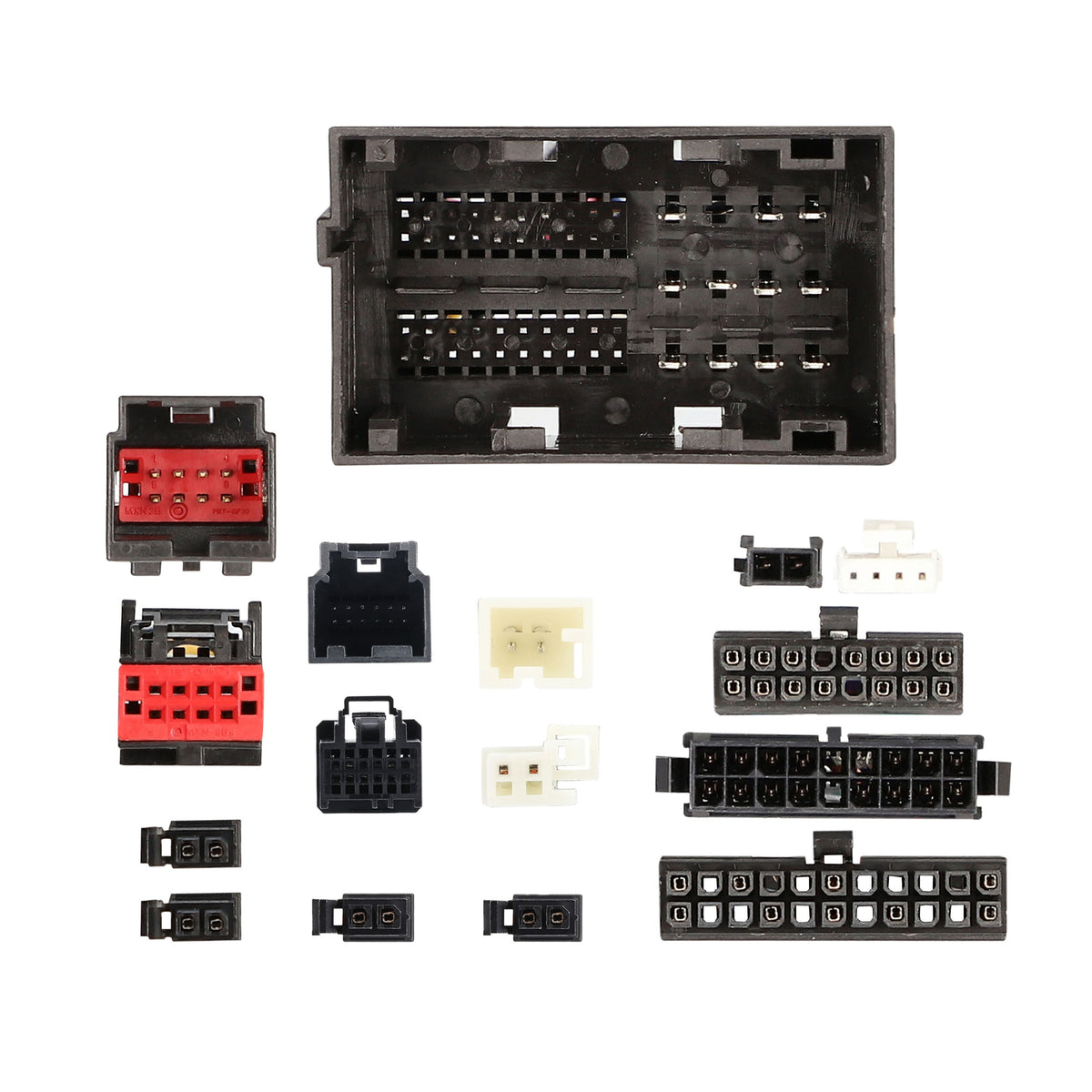

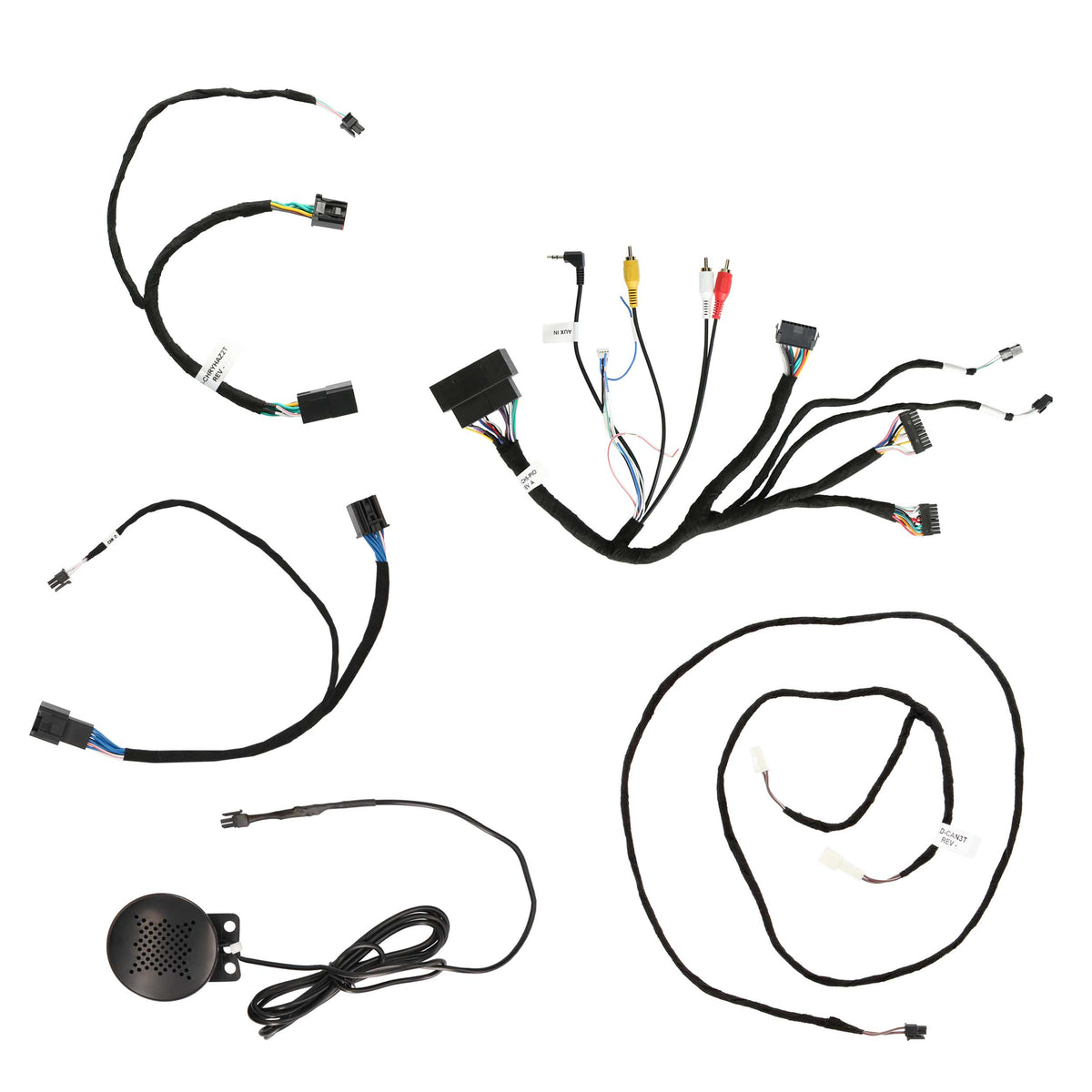

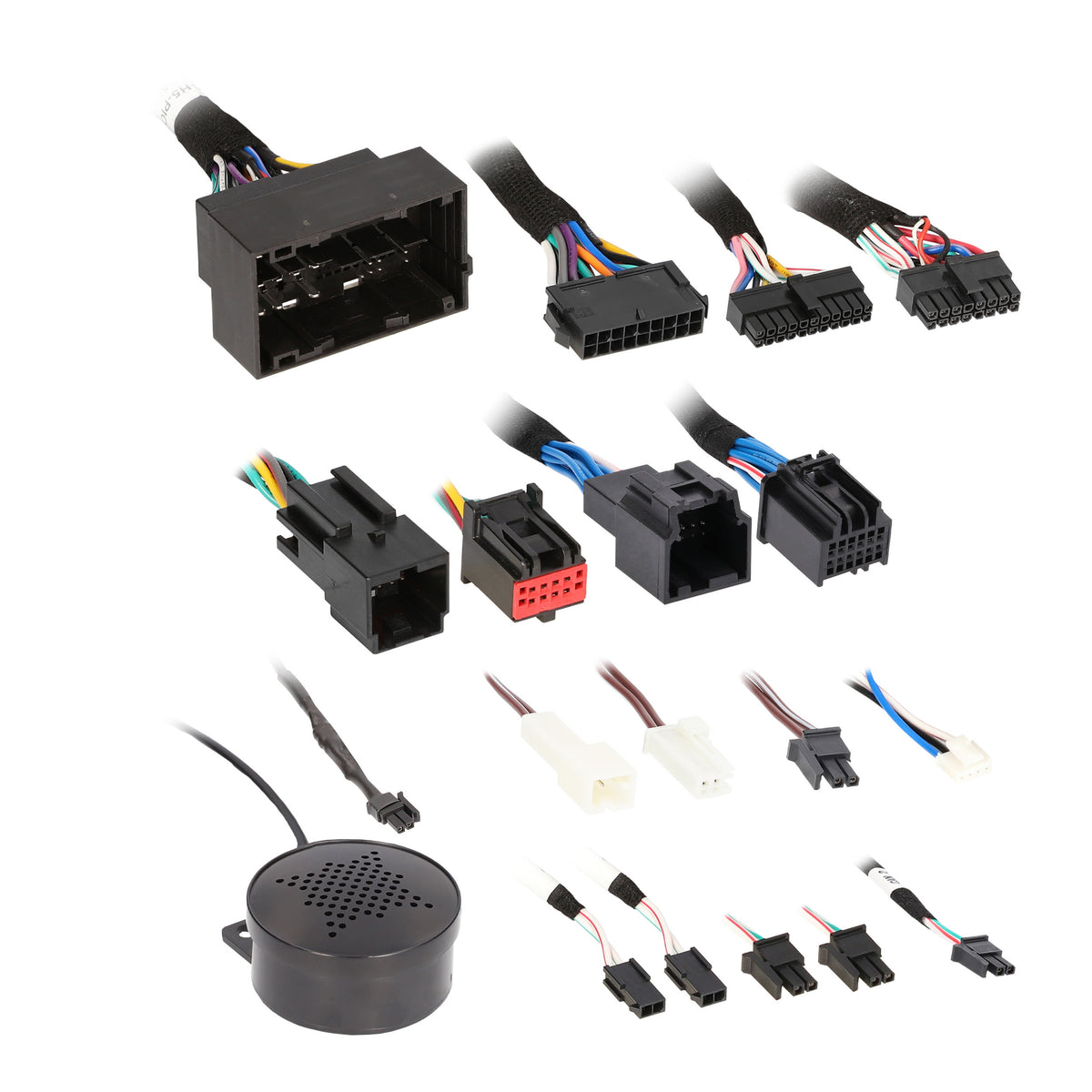

| Included items | Vehicle-specific harness, vehicle-specific T-harness, CAN T-harness, external speaker, and step-by-step instructions |
| Additional harness information | Radio-specific accessory harnesses are available for purchase to pair with this harness for a complete plug-and-play installation |
| Backup camera exception | Backup camera is not retained on Jeep JL/JT |
Why Choose This Product?
Replacing a factory radio can affect more than audio playback. The AXRSCH-CH5 is designed to retain a range of listed factory features, including HVAC screen functions, safety chimes, and steering-wheel audio controls.
Its stated support for both amplified and non-amplified vehicles, as well as single- and dual-zone systems, helps identify the kinds of factory setups it is designed to accommodate.
Installation & Compatibility Notes
This harness is for select Chrysler 2013–2023 applications and select aftermarket radios. The required AXRSC radio status control interface is identified as a requirement. Radio-specific accessory harnesses are available separately for pairing with this harness.
The included vehicle-specific harnesses, external speaker, and step-by-step instructions support the stated plug-and-play installation. The factory backup camera is not retained on Jeep JL/JT.
Frequently Asked Questions
Does the AXRSCH-CH5 retain the factory backup camera?
It retains the factory backup camera, except on Jeep JL/JT applications.
What does the aftermarket radio display?
It allows HVAC information and gauges to appear on the aftermarket radio screen, and supports HVAC adjustments through that screen.
Are the radio-specific accessory harnesses included?
No. They are available for purchase separately to pair with this harness for a complete plug-and-play installation.
What is included with the harness?
The package includes a vehicle-specific harness, vehicle-specific T-harness, CAN T-harness, external speaker, and step-by-step instructions.
Which aftermarket radios can I use?
The harness is designed for select aftermarket radios and requires the AXRSC radio status control interface. Check that your radio and vehicle application match these requirements.
