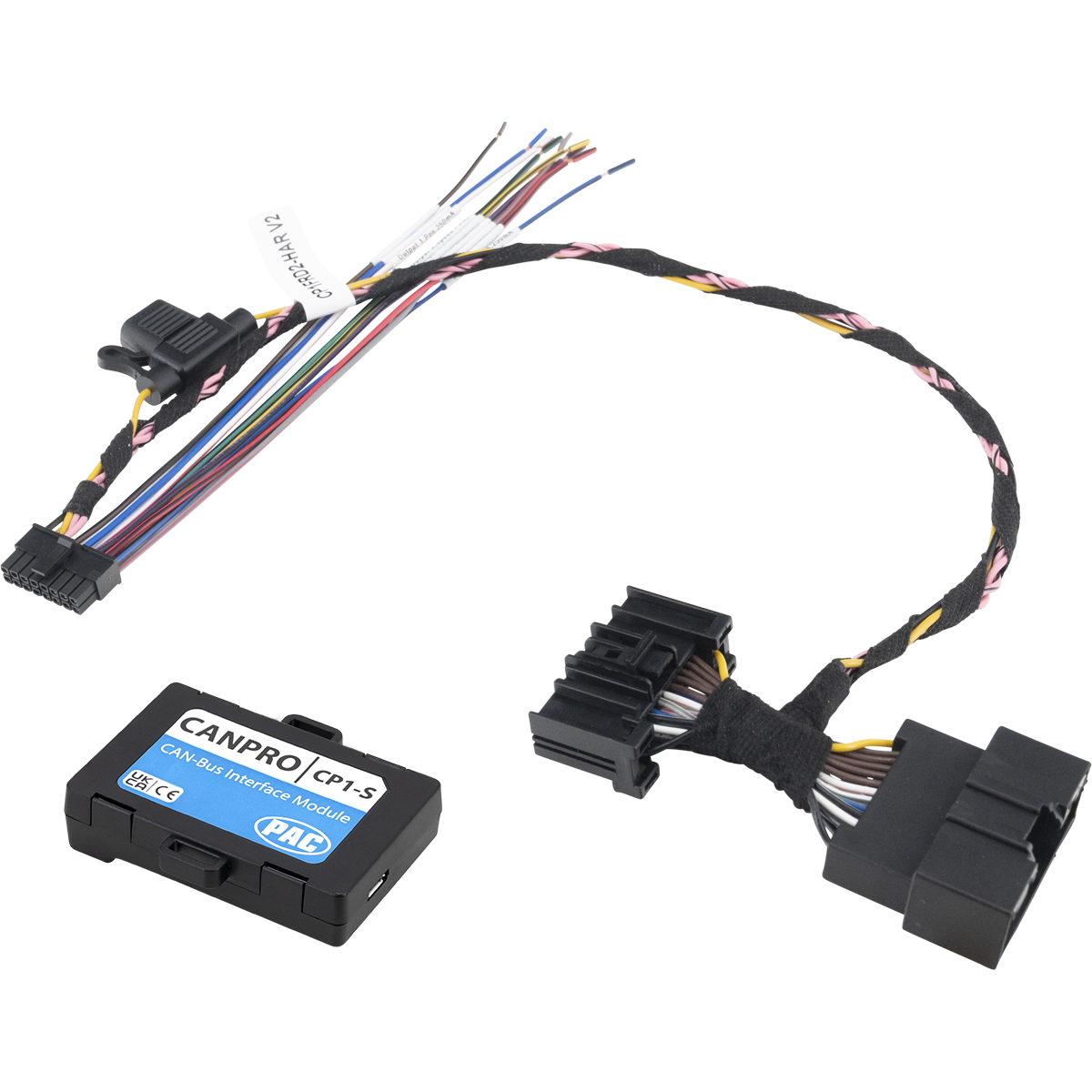

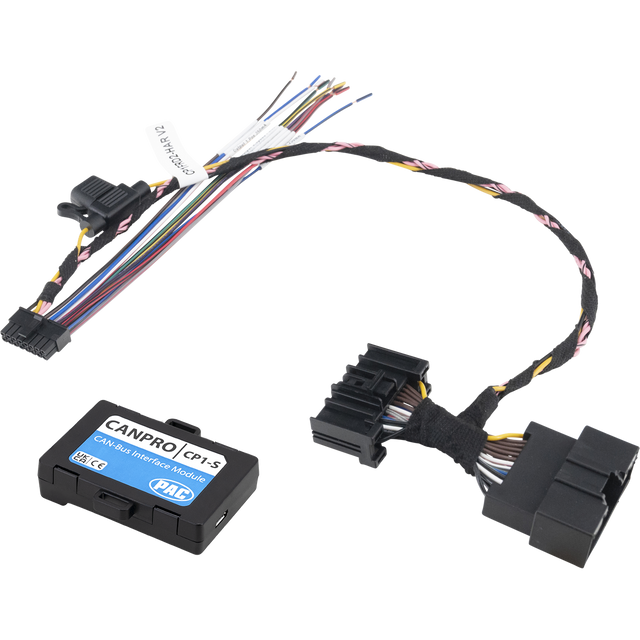

PAC CP1-S-FRD2 — CANPRO interface W/ P&P harness for Select Ford Vehicles 24-Pin Connector at OBD2 Gateway Module

Product Overview

Add useful trigger signals to an aftermarket installation with the PAC CP1-S-FRD2 CANPRO interface. It connects to the CAN-Bus network in select Ford vehicles and includes a pre-configured plug-and-play harness for the 24-pin connector at the OBD2 Gateway Module.

Use its analog outputs for aftermarket applications such as radar detector installation, camera activation, or sound system upgrades.

Key Features & Benefits

• CAN-Bus connection: Provides vehicle signals as analog outputs for supported aftermarket uses.
• Pre-configured harness: The included plug-and-play harness is designed for select vehicles, simplifying installation.
• Factory wiring: The harness helps keep the factory wiring intact.
• Multiple trigger signals: Outputs include power, lighting, speed, reverse, ignition, turn signal, high beam, and parking brake signals.

Technical Specifications

• Model: PAC CP1-S-FRD2
• Product type: CANPRO interface with plug-and-play harness
• Vehicle application: Select Ford vehicles
• Connector location: 24-pin connector at the OBD2 Gateway Module
• Connection: Vehicle CAN-Bus network
• Output type: Analog signal outputs
• Signals: Constant power, accessory power, illumination, speed pulse, reverse, ignition, left turn signal, right turn signal, high beams, and parking brake

Why Choose This Product?

The CP1-S-FRD2 brings several vehicle signals together for aftermarket equipment that needs them. Its pre-configured harness is intended to simplify the connection while keeping factory wiring intact, making it a practical option for supported Ford installations.

Installation & Compatibility Notes

This interface is for select Ford vehicles and uses a 24-pin connector at the OBD2 Gateway Module. Before purchase or installation, confirm that your vehicle has the specified connector and matches the product’s vehicle application. The harness is pre-configured for select vehicles.

Frequently Asked Questions

What does the PAC CP1-S-FRD2 do?

It connects to the vehicle CAN-Bus and provides analog outputs for signals such as ignition, reverse, illumination, and speed pulse.

Which vehicles does this interface fit?

It is designed for select Ford vehicles. Confirm your vehicle’s 24-pin connector at the OBD2 Gateway Module before choosing it.

What is included with the interface?

The product includes a pre-configured plug-and-play harness for select vehicles.

What aftermarket equipment can use its signals?

Examples include radar detectors, camera activation, and sound system upgrades. The required signal depends on your equipment and installation.
