Resilient Sounds Single 10" Gold Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 1.25 ft³
- Compatible woofer size: 10 inches
- Woofer mounting capacity: 1
- Port tuning: 34 Hz
- Port area (total): 18.05 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 10" Gold Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 10" Gold Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

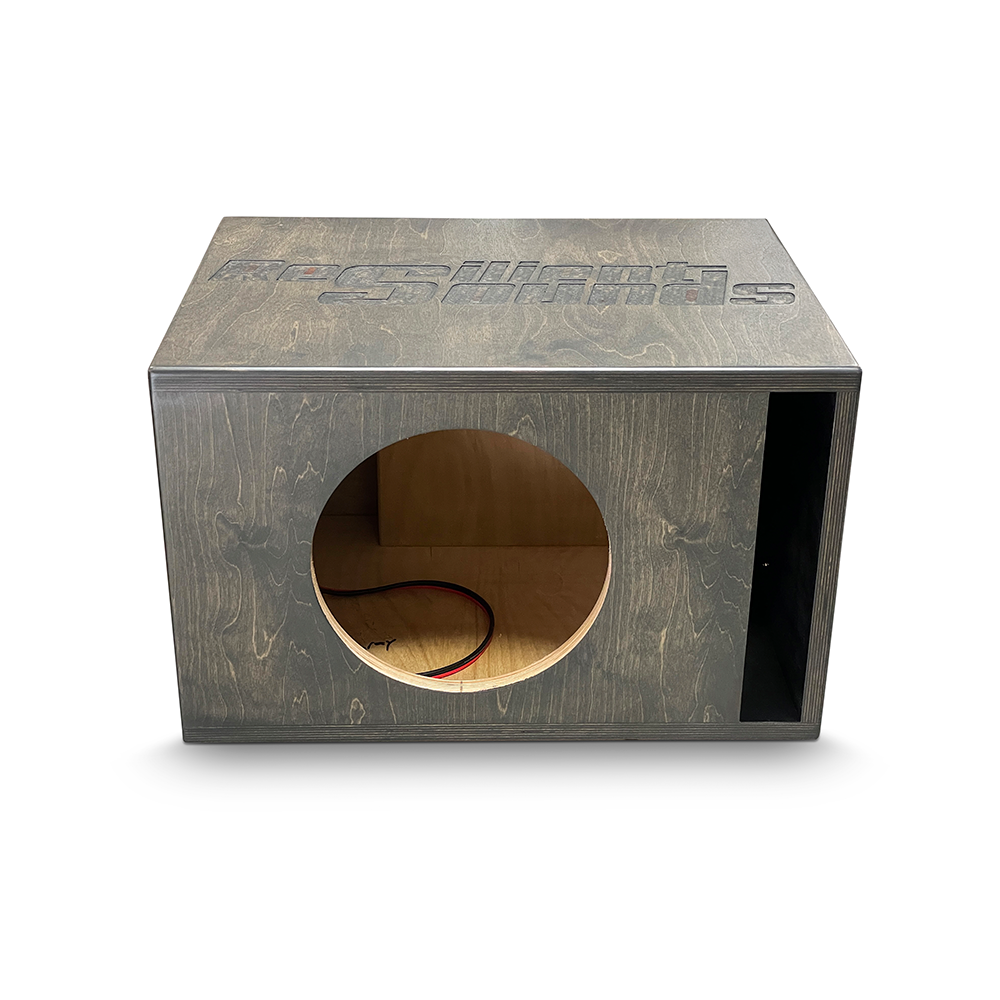

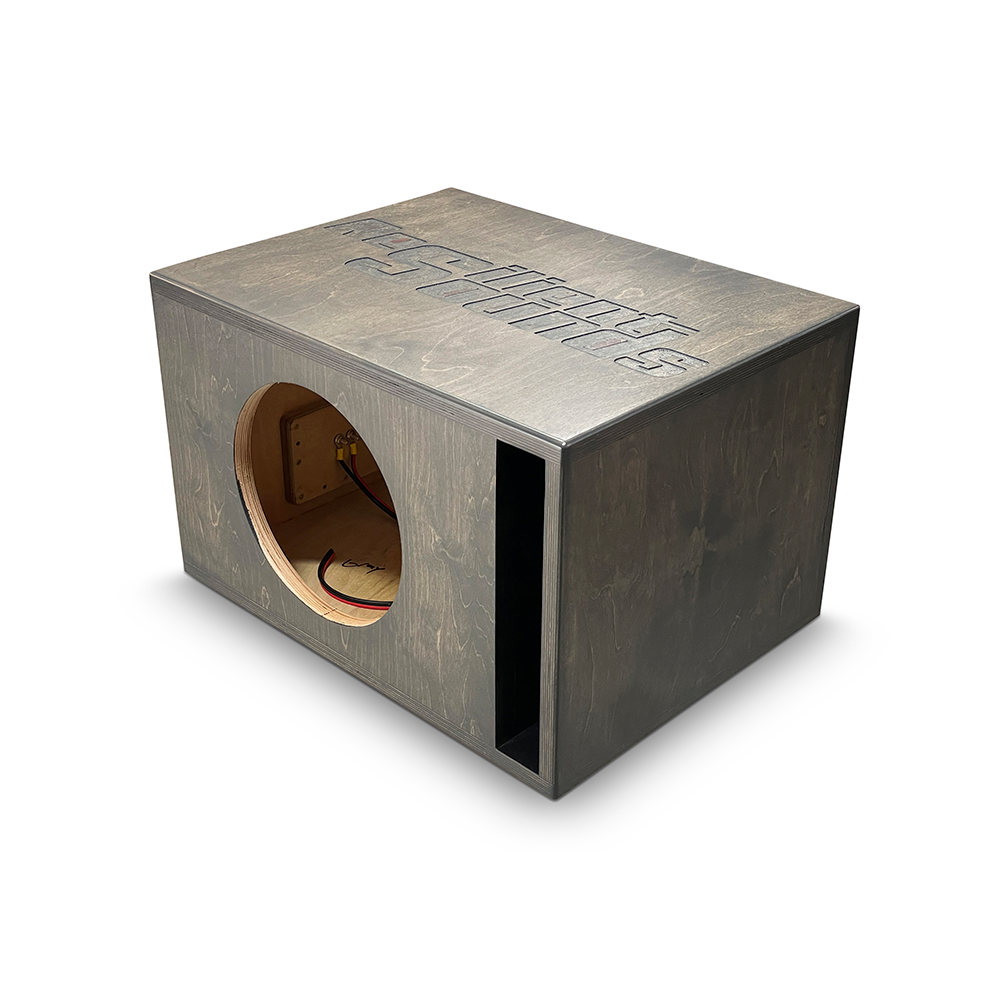

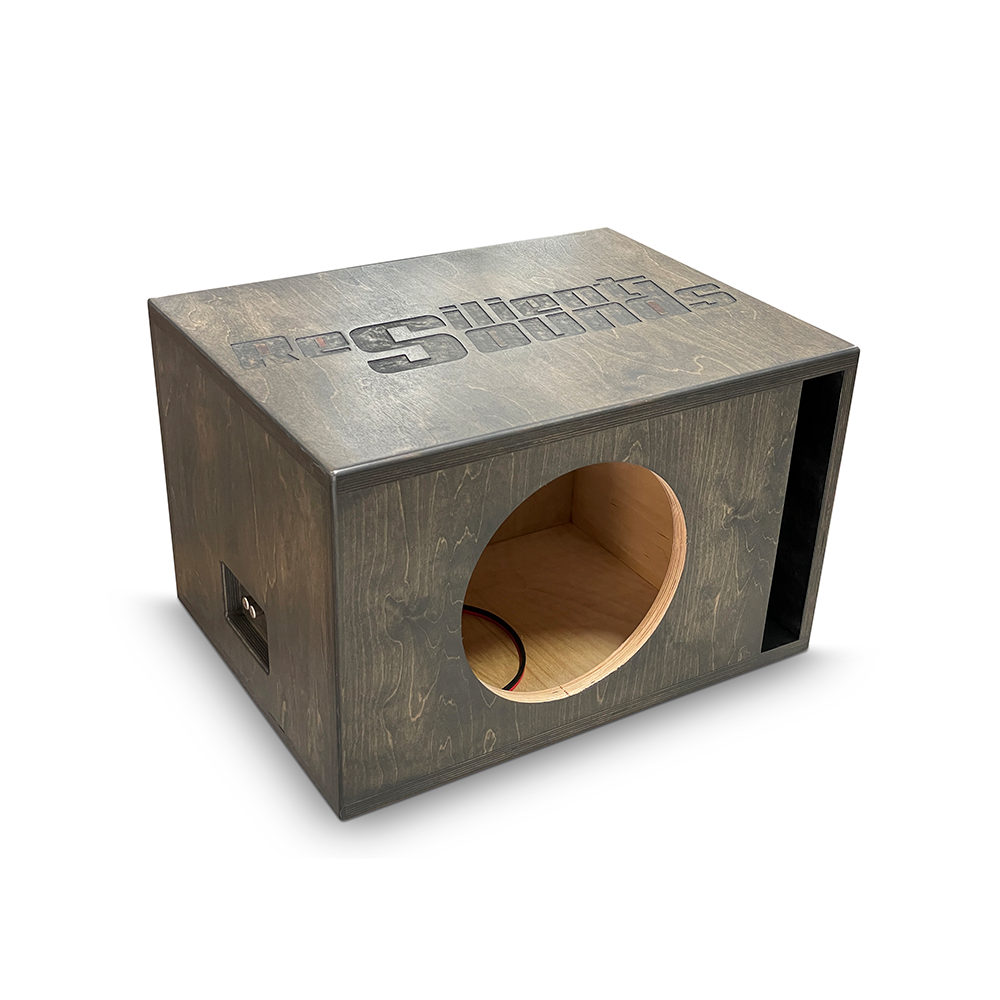

Give a Resilient Sounds Gold 10" subwoofer a purpose-built home with this single 10" ported enclosure. Its 1.25 cu ft volume and 34 Hz tuning are designed to support deep bass in a compact enclosure.
Key Features & Benefits
- Ported design: An 18.05 sq in port area supports airflow at higher output.
- Rigid construction: 3/4" Russian Baltic Birch walls and a thick front baffle help limit enclosure flex.

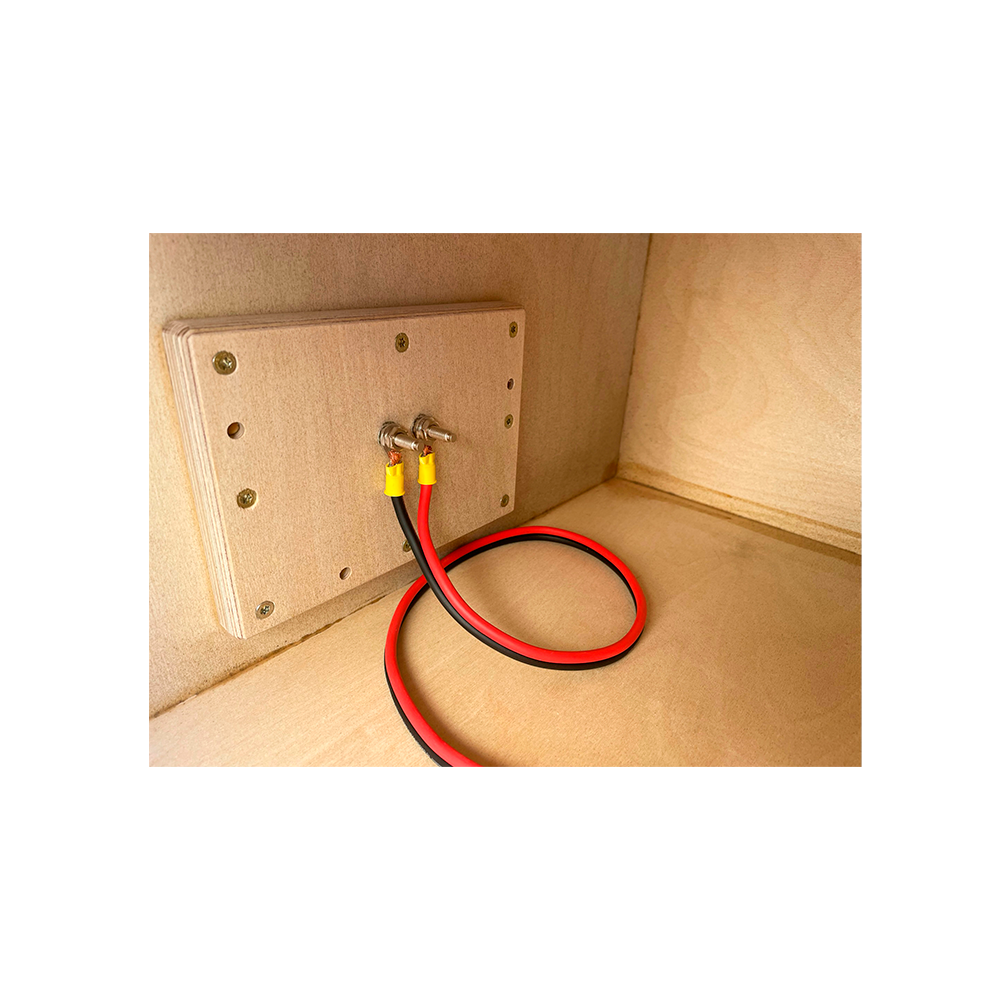

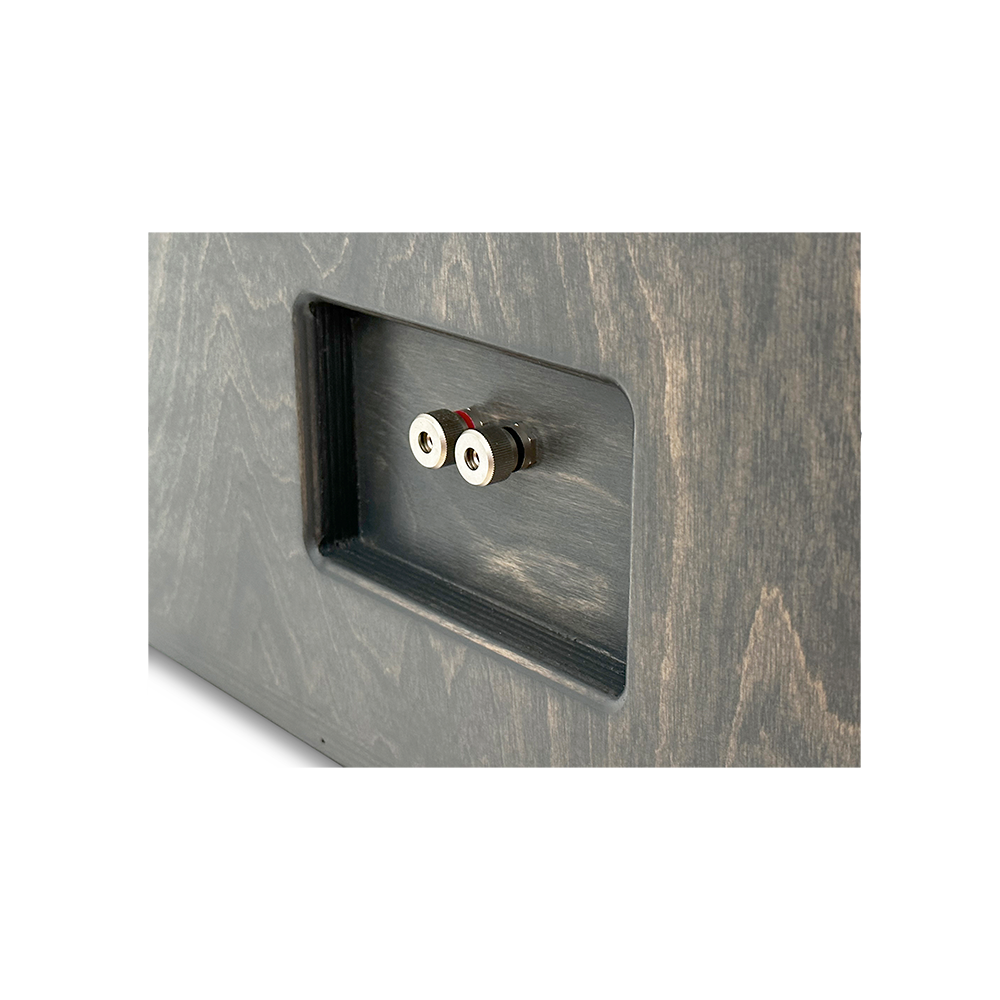

- Ready-to-connect wiring: Pre-wired 10ga OFC and a metal binding post simplify the subwoofer connection.
- Finished exterior: Carbon gray stain and a polyurethane topcoat give the enclosure a clean appearance.
- Handcrafted details: Fully glued construction with Titebond III and no visible exterior screws creates a clean finish.
Technical Specifications
| Net volume | 1.25 cubic feet |
|---|---|
| Tuning | 34 Hz |
| Port area | 18.05 sq in |
| Port size | 11.497" x 1.57" |
| Cutout | 9.3" |
| Construction | 3/4" (18mm) Russian Baltic Birch, 13 ply |
| Front baffle | 1" (24mm), 17 ply |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power handling | Up to 1750W RMS |
| Dimensions | Height 13.0", Width 20.5", Depth 16.0" |
| Craftsmanship | Handcrafted in the USA; zero visible exterior screws; fully glued with Titebond III |
| Lead time | Built to order; ships in 2–3 weeks |
Why Choose This Product?
This enclosure is engineered specifically for the Resilient Sounds Gold 10" subwoofer. Its defined volume, tuning, and port dimensions make it a focused option for a Gold 10" car audio build.
The carbon gray finish and screw-free exterior suit installations where the enclosure remains visible, while the compact dimensions help you plan its placement in your vehicle.
Installation & Compatibility Notes
Check the enclosure dimensions and 9.3" cutout against your available space and subwoofer before purchase. The enclosure is designed for the Resilient Sounds Gold 10" subwoofer.
Built-to-order production has a stated shipping timeline of 2–3 weeks.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is engineered specifically for the Resilient Sounds Gold 10" subwoofer.
What are the enclosure’s tuning and net volume?
It has a net volume of 1.25 cubic feet and is tuned to 34 Hz.
What space should I allow for installation?
Plan for a height of 13.0", width of 20.5", and depth of 16.0". Check these measurements against your vehicle’s available space.
What does the enclosure include for wiring?
It is pre-wired with 10ga OFC and has a metal binding post. Confirm your subwoofer’s connection requirements before installation.
