Rockford Fosgate  |  SKU: TMS69BL14

Saddlebag Kit for 2014+ Harley-Davidson® (Gen-1)

$709.99
Shipping calculated at checkout.

Description

Retrofit kit allows addition of rear speakers on your existing factory bag lids and plug directly into a Rockford Fosgate front audio kit that utilizes the Power T400X4ad, TM400X4ad, or M5-800X4 4-channel amplifiers. Eliminates need to paint and color match. See Specifications tab for compatible motorcycles. You will need to flash your factory radio to use this kit. Ready to flash? Here's a list of dealers that can flash your radio. Not designed for factory amplifiers.

Click to watch video TMS69BL14 & TMS69BL9813 Installation

Patented - Rockford Corporation

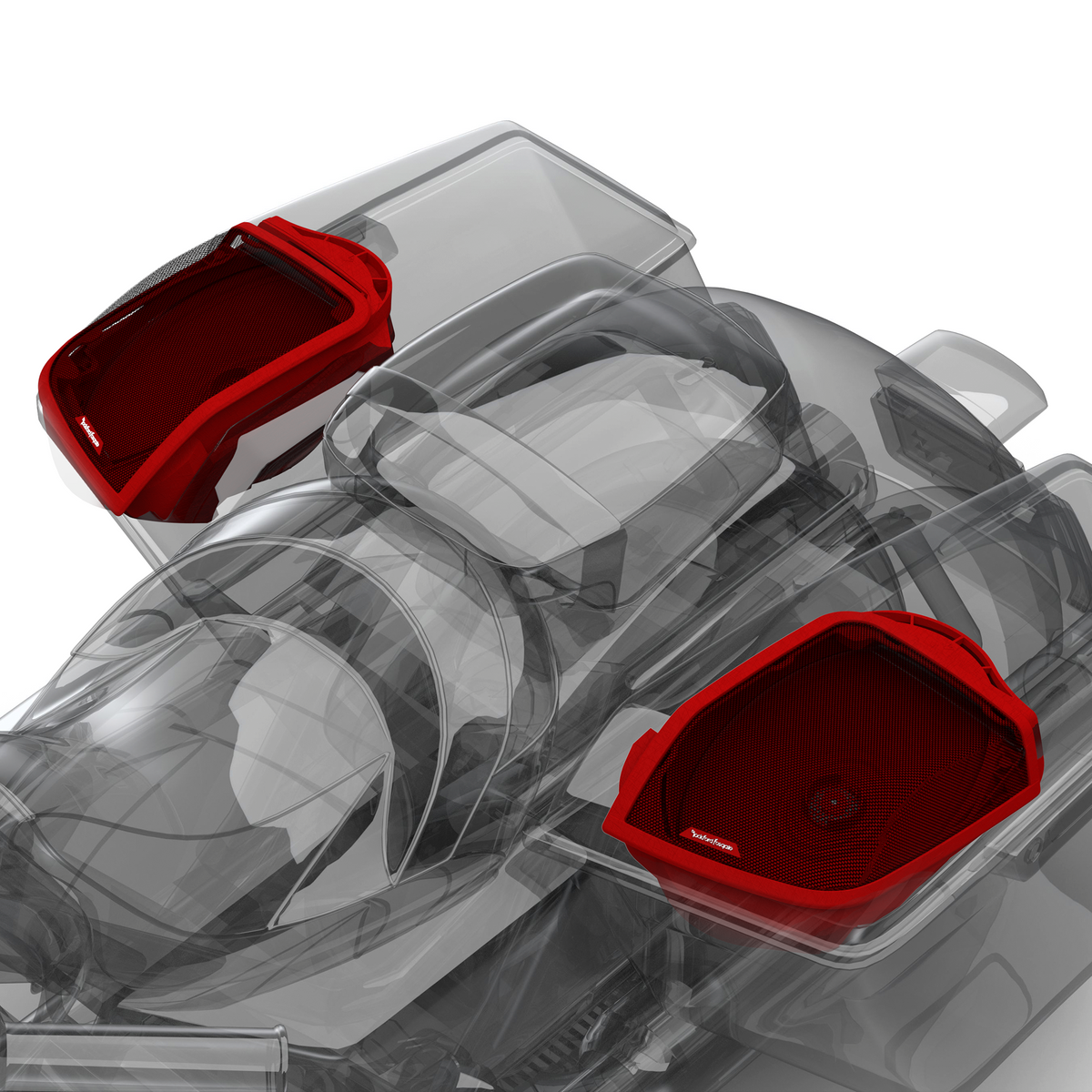

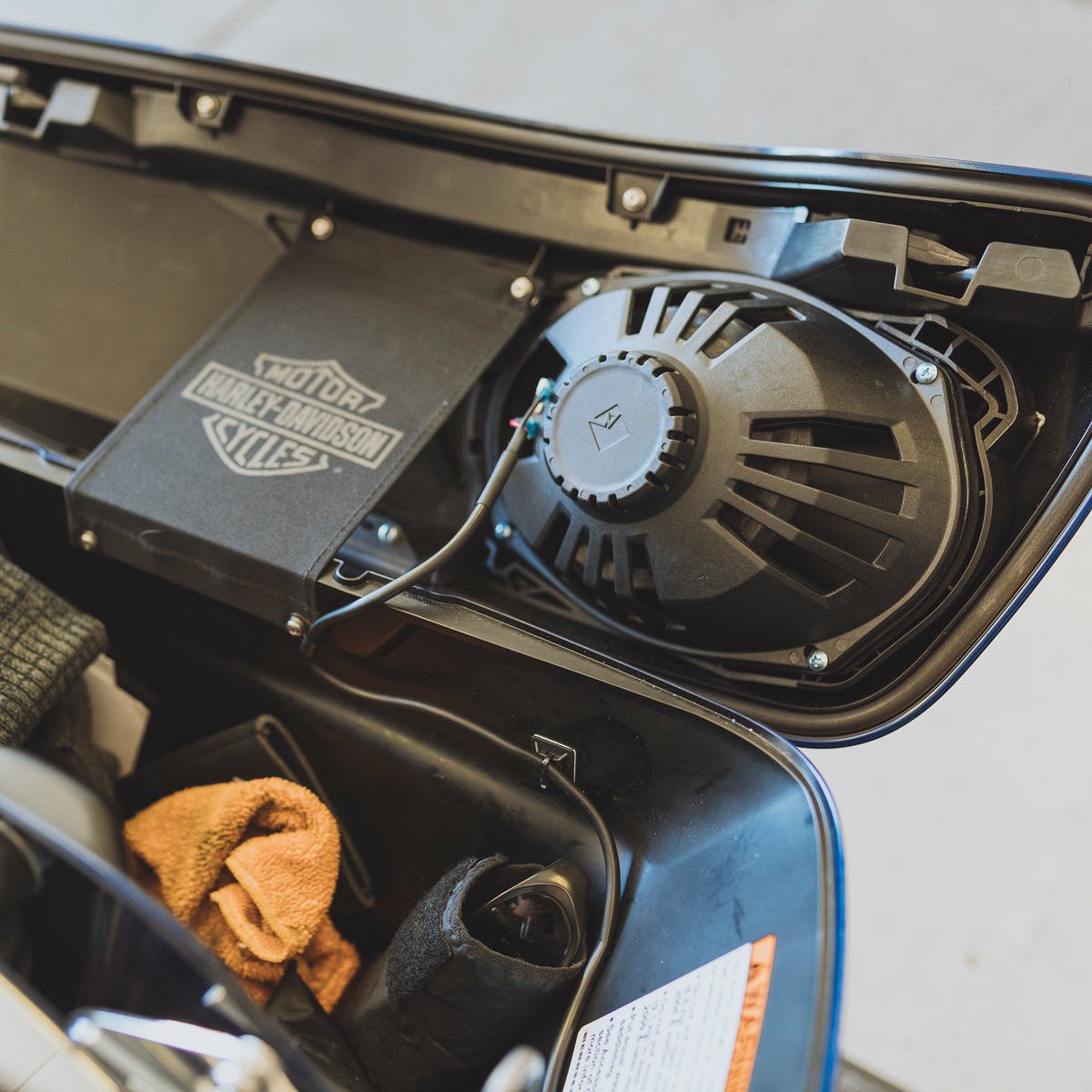

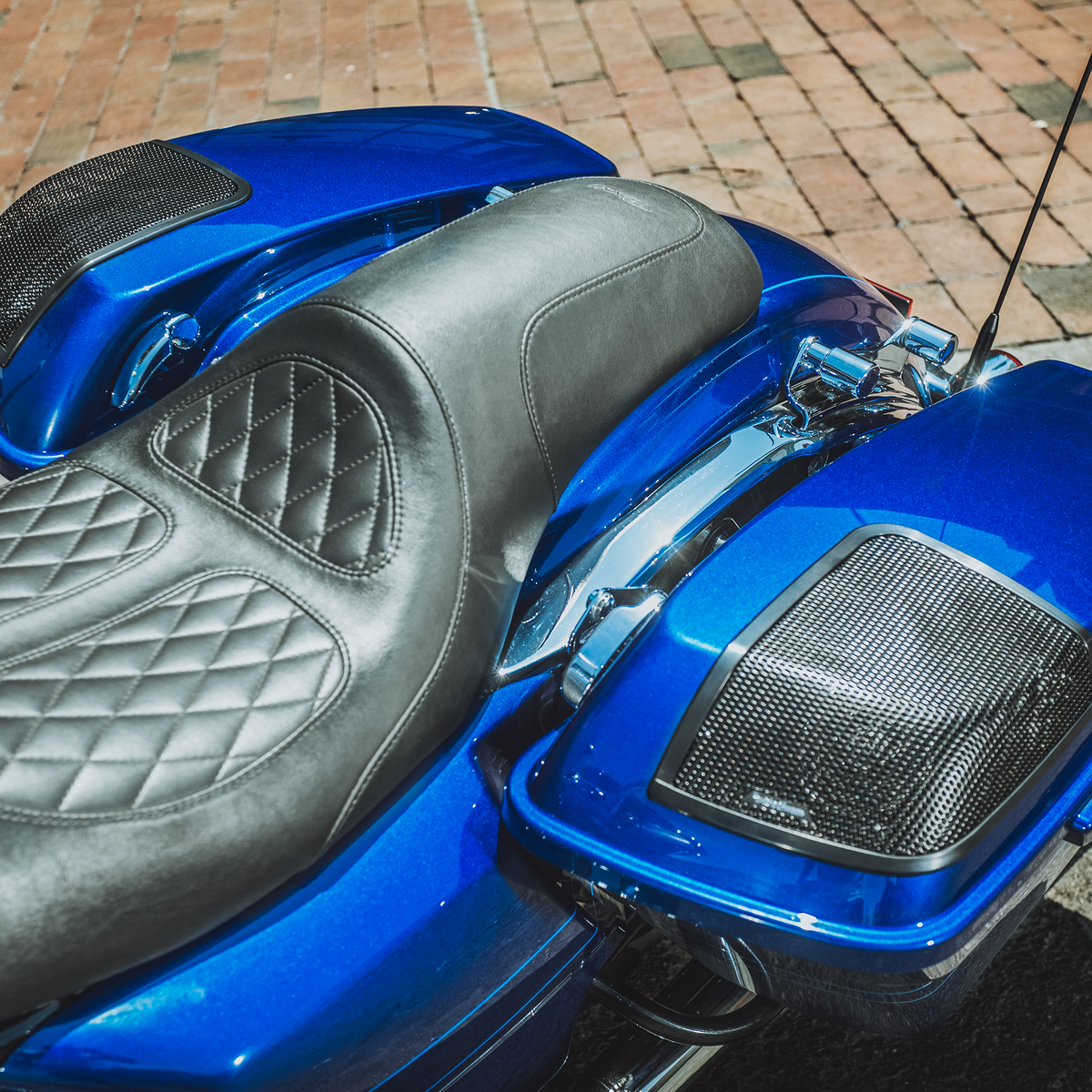

If you need more than just two speakers and want to really feel your music while riding then check out our add-on bag lid audio solution. Centered around our TMS69 6x9" speaker this kit is designed to work with your existing factory bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier.  Not designed for factory amplifiers.


Harley-Davidson®, Road Glide, and Street Glide® are registered trademarks of Harley-Davidson Motor Company

FEATURES AT A GLANCE

  • Includes custom cut-out templates
  • Factory Harley-Davidson® Boom!™ Box radios (4.3, 6.5GT, and GTS) must be flashed to use kit
  • Sandwich clamping gasket design for environmental seal
  • Includes all Installation Hardware and Accessories
  • Direct connect wiring harness to Rockford Fosgate amplifiers

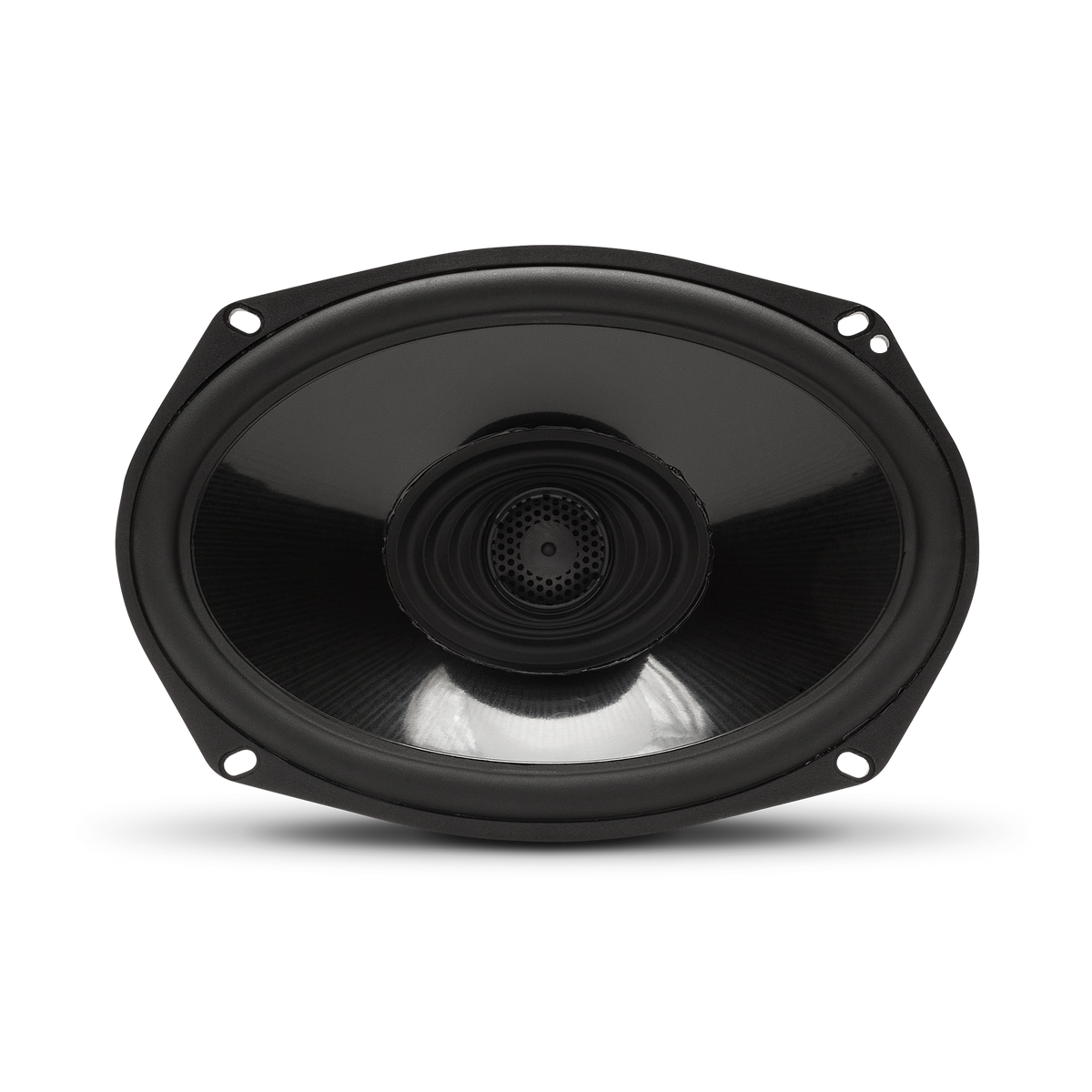

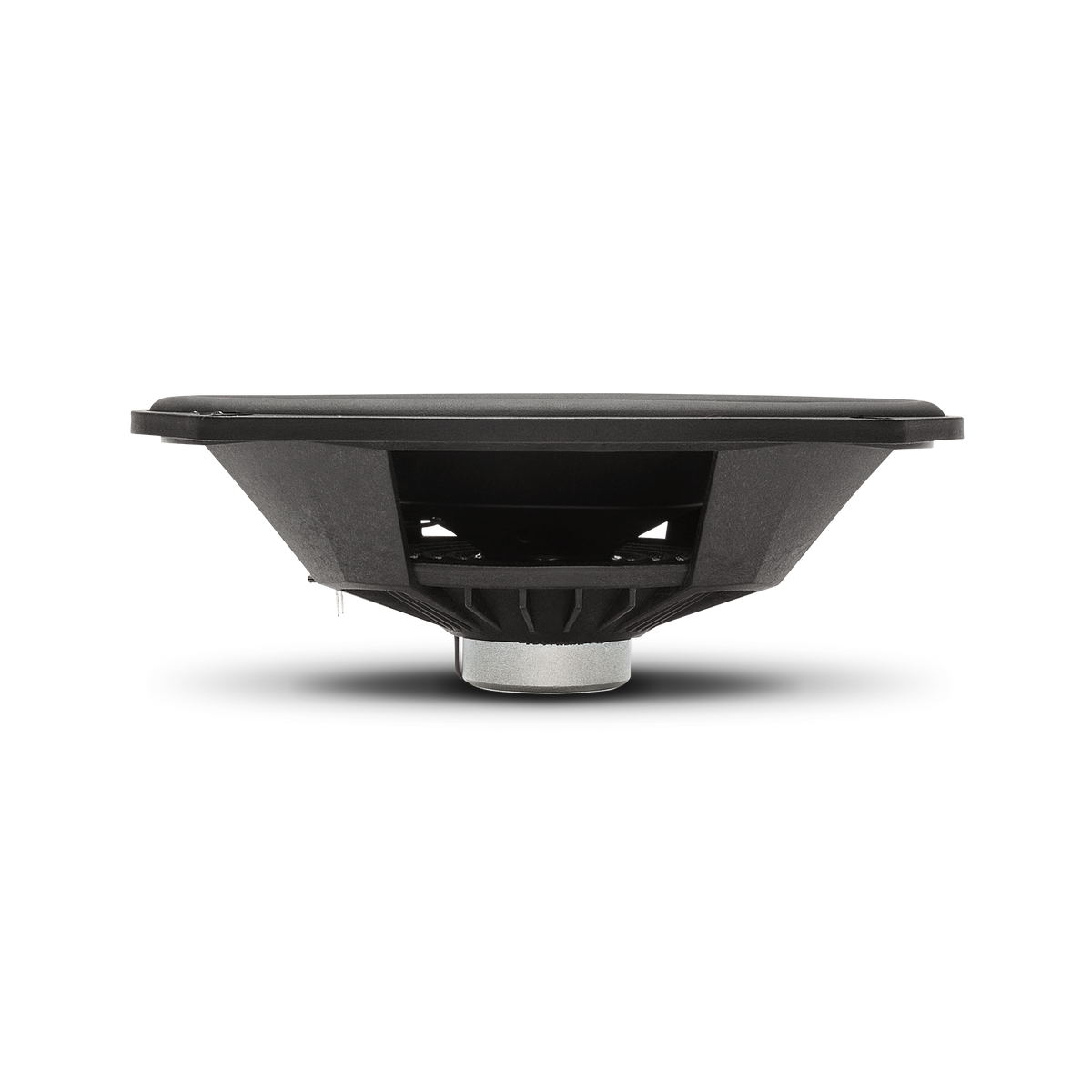

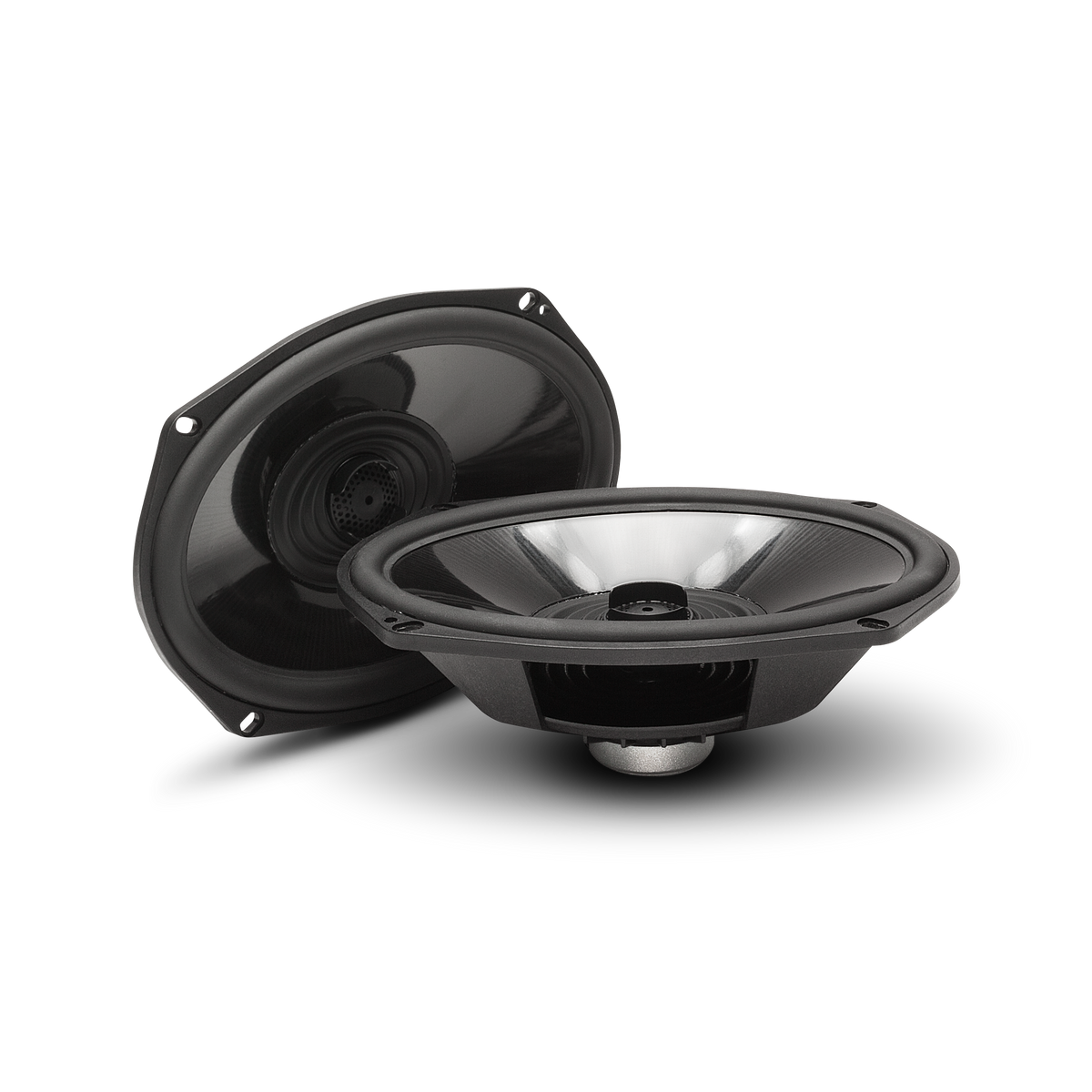

  • TMS69: 6x9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter
  • Designed for use with existing 2014+ Rockford Fosgate Stage kits

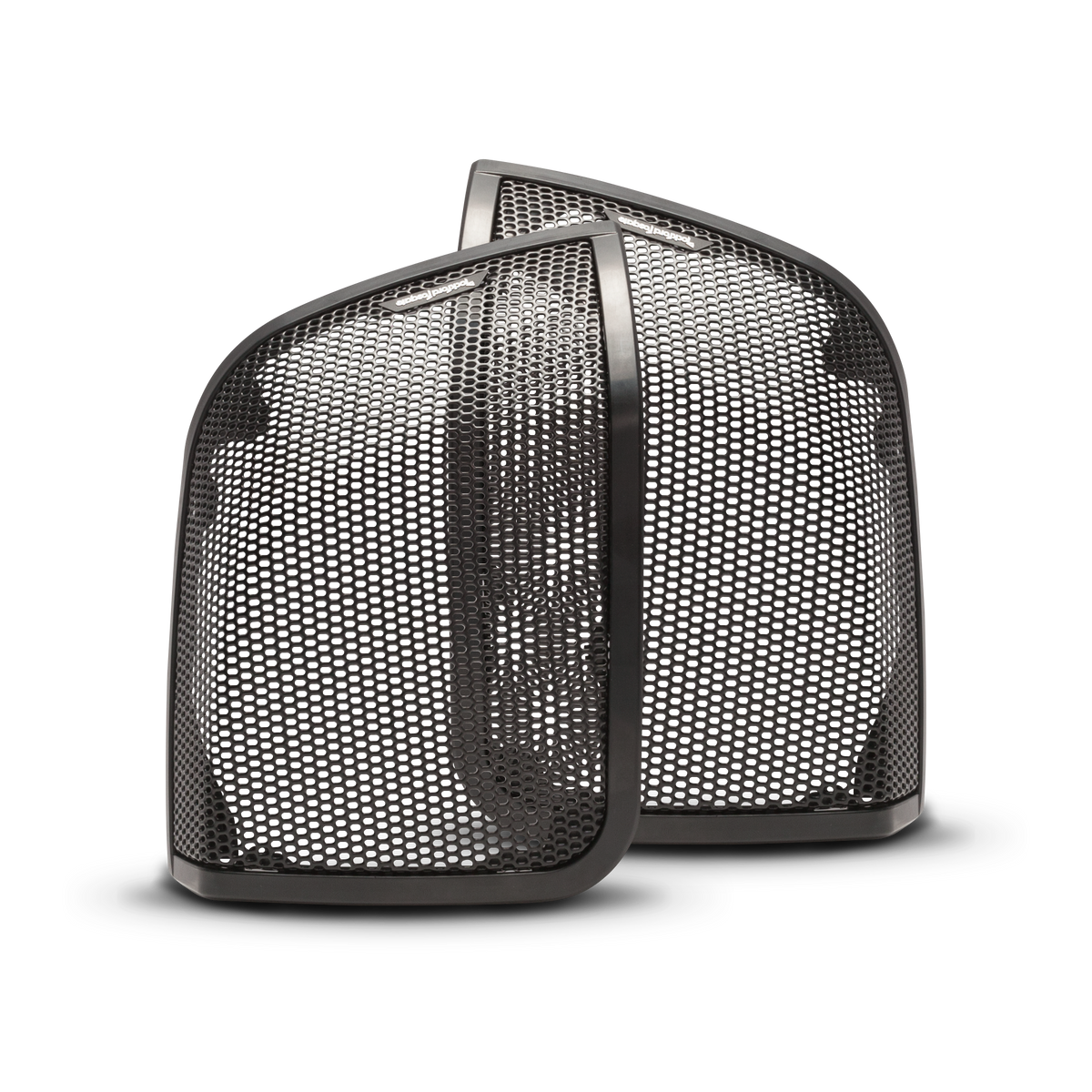

  • Painted stamped steel grill with ASA plastic frame for UV protection
  • Designed for use with 2014+ Factory Harley-Davidson® Hardshell Bags
  • Leave 2" minimum clearance under speaker magnet when packing bags
  • Ultra‐high temperature glass reinforced polymer frame

Specifications

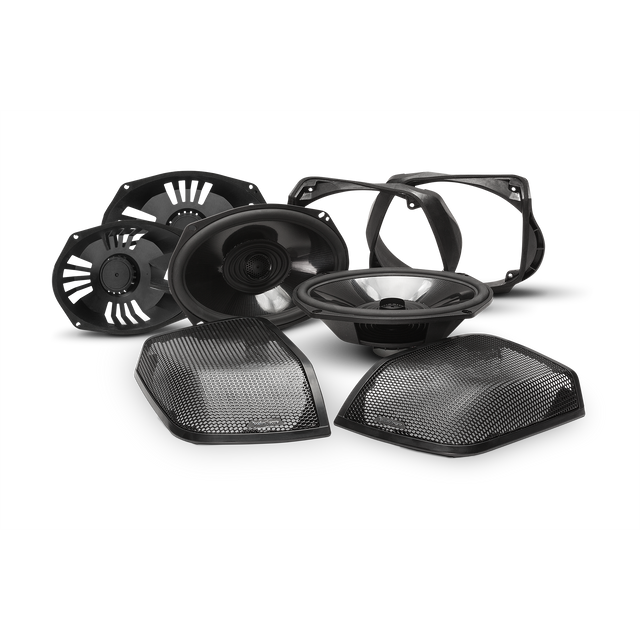

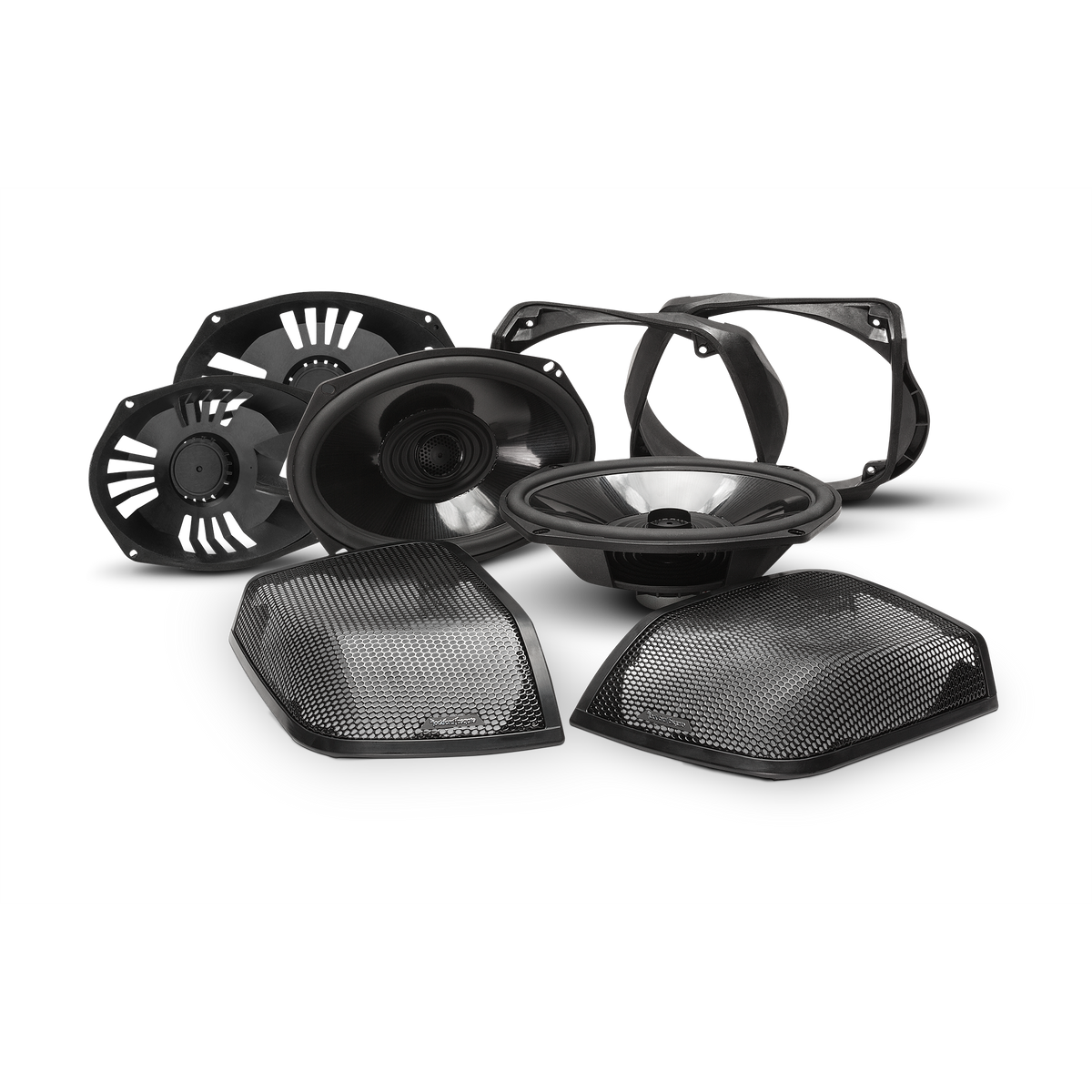

Included In The Box
(2) TMS69 Speakers
(2) Speaker Grilles
(2) 6"x9" Basket Protectors

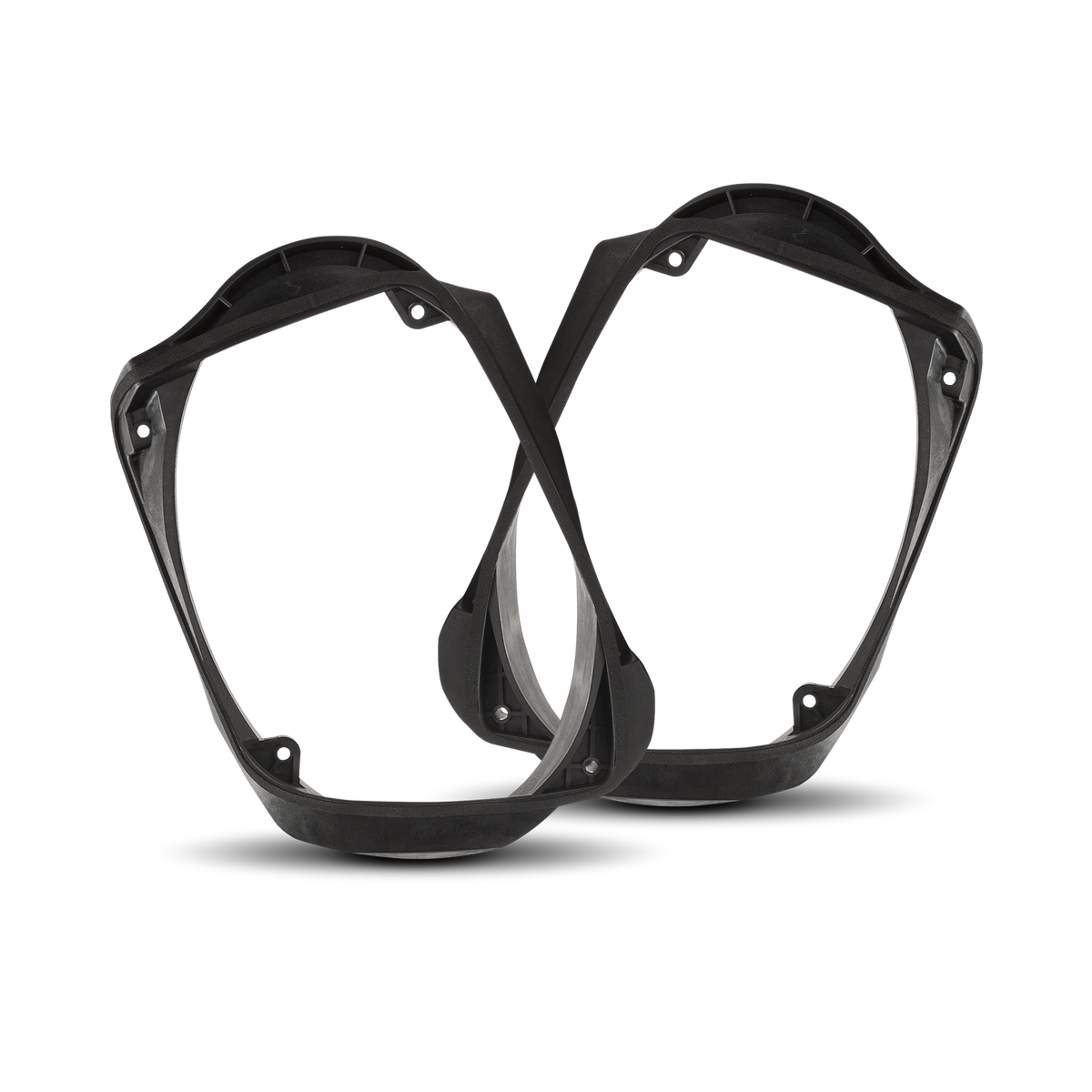

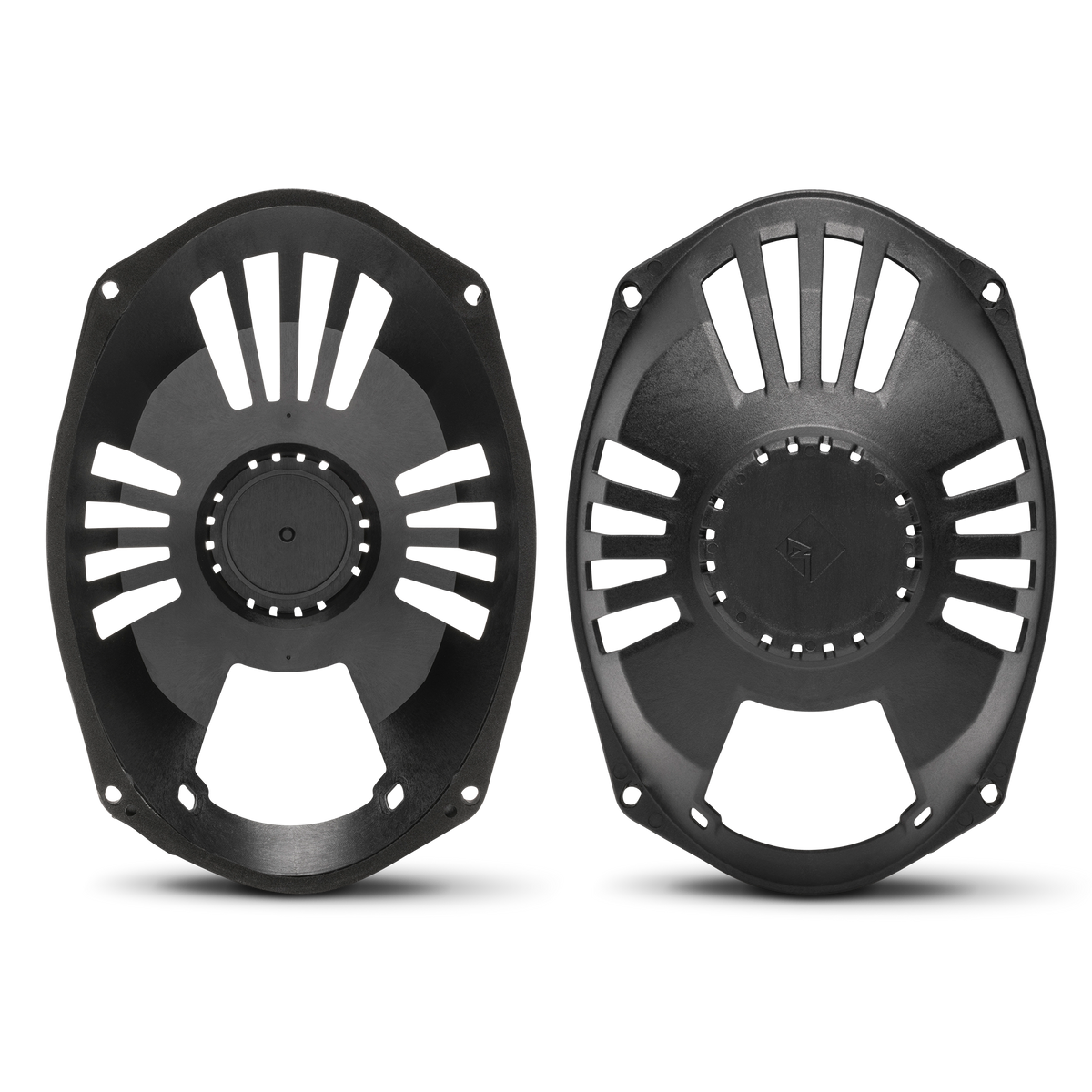

(2) Mounting Rings
(2) Cutting Templates
(1) Main Harness
(2) Saddlebag Harnesses
Plastic Wire Tie Wraps
Plastic Cable Tie Mounts

(8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L

(12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L
Mounting Hardware
Yes
Grille/Trim Ring Included
Yes
Shipping Weight
8.65 Lbs. (3.92 Kg)

Compatibility

LEGEND

YES

Model IS compatible

NO

Model NOT compatible

NOT AVAILABLE

Model not produced this year


FITMENT

REQUIRED

H-D® ABS Saddlebags3

YES

H-D® Stretched Saddlebags3

NO

H-D® Speaker Lids3

NO

Fiberglass Saddlebags3

NO

H-D® Power Lock2

NO

H-D® Skyline Saddlebags


HARLEY-DAVIDSON® ROAD KING®
The TMS69BL14 kit requires the RFK-HDRKM5 on these models.
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
CVO Road King® FLHRSE ✅ — — — — — — — — — —
CVO Softail Deluxe FLSTNSE X X — — — — — — — — —
Electra Glide Highway King FLHFB — — — — — — — — — ✅ —
Road King® FLHR — ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ — —
Road King® Classic FLHRC X X X X X X — — — — —
Road King® Special FLHRXS — — — ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅


HARLEY-DAVIDSON® TOURING
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Electra Glide® Revival FLH — — — — — — — ✅ — ✅ —
Electra Glide® Standard NR FLHT — — — — — X X X X — —
Road Glide® FLTRX — ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ XSKYRF2
Road Glide® ST FLTRXST — — — — — — — — ✅ ✅ —
Road Glide® Special FLTRXS — ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ —
Road Glide® Special 120th Anniversary FLTRXSANV — — — — — — — — — ✅ —
Street Glide® FLHX ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ XSKYRF2
Street Glide® ST FLHXST — — — — — — — — ✅ ✅ —
Street Glide® 115th Anniversary FLHXANV — — — — ✅ — — — — — —
Street Glide® Special FLHXS ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ —
Street Glide® Special 115th Anniversary FLHXSANV — — — — ✅ — — — — — —
Street Glide® Special 120th Anniversary FLHXSANV — — — — — — — — — ✅ —


HARLEY-DAVIDSON® ULTRA
The HD14U-STG2 is better equipped for these models.
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Road Glide® Limited FLTRK — — — — — — ✅ ✅ ✅ ✅ ✅
Road Glide® Ultra FLTRU — — ✅ ✅ ✅ ✅ — — — — —
Electra Glide® Ultra Classic® FLHTCU ✅ ✅ ✅ ✅ ✅ ✅ — — — — —
Electra Glide® Ultra Classic® Twin-Cooled FLHTCU ✅ ✅ ✅ — — — — — — — —
Electra Glide® Ultra Classic® Low FLHTCUL — ✅ ✅ — — — — — — — —
Electra Glide® Ultra Classic® Low Twin-Cooled FLHTCUL — ✅ ✅ — — — — — — — —
Ultra Limited FLHTK ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Ultra Limited 115th Anniversary FLHTKANV — — — — ✅ — — — — — —
Ultra Limited 120th Anniversary FLHTKANV — — — — — — — — — ✅ —
Ultra Limited Low FLHTKL — ✅ ✅ ✅ ✅ ✅ — — — — —
Ultra Limited Shrine Edition FLHTK — — — ✅ ✅ ✅ ✅ ✅ ✅ ✅ —


HARLEY-DAVIDSON® CVO
The HD14CVO-STG2 is better equipped for these models.
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
CVO LimitedCVO Ultra Limited FLHTKSE ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ — — —
CVO Limited 115th Anniversary FLHTKSEANV — — — — ✅ — — — — — —
CVO Road Glide® FLTRXSE — — — — X X X XRF2 XRF2 XSKYRF2 XSKYRF2
CVO Road Glide® ST FLTRSXTSE — — — — — — — — — — XSKYRF2
CVO Road Glide® Limited FLTRKSE — — — — — — — — XRF1 — —
CVO Road Glide® Limited 120th Anniversary FLTRKSEANV — — — — — — — — — XRF1 —
CVO Road Glide® Ultra FLTRUSE — ✅ ✅ — — — — — — — —
CVO Street Glide® FLHXSE — X X X X X X XRF2 XRF2 XSKYRF2 XSKYRF2


HARLEY-DAVIDSON® TRIKE
The HD14U-STG2 is better equipped for these models.
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Freewheeler®NR FLRT — X X X X X X X X X X
Road Glide 3 FLTRT — — — — — — — — — X X
Tri Glide® Ultra Classic® FLHTCUTG X X X X X X X X X X X
Tri Glide® Ultra 115th Anniversary FLHTCUTGANV — — — — X — — — — — —
Tri Glide® Ultra 120th Anniversary FLHTCUTGANV — — — — — — — — — X —
CVO Tri Glide® FLHTCUTGSE — — — — — — X X XRF1 — —


GRAY TEXT indicates nomenclature used on some early models and later inherited.
1 Factory Radio from Harley-Davidson® must be flashed. Read advisory for more information.
2 H-D® Power Lock for touring luggage not compatible with 6x9" bag-lid kit.
3 Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits. Fiberglass saddlebags and bag-lids not compatible.
4 Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5 Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR No Radio equipped from factory.
RF1 RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2 RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKYRF1 Skyline RF Stage I: Not upgradable. Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and fairing amplifier.
SKYRF2 Skyline RF Stage II: Not upgradable. Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and fairing amplifier.
