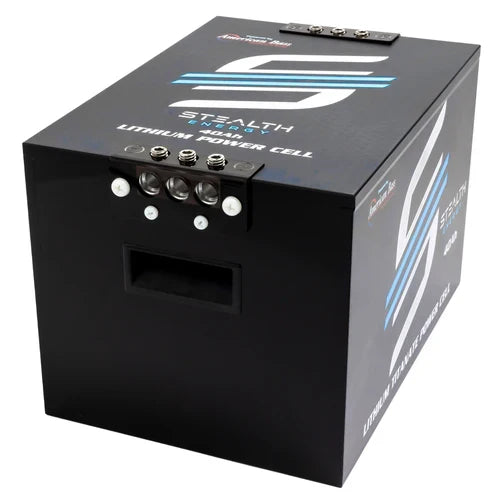

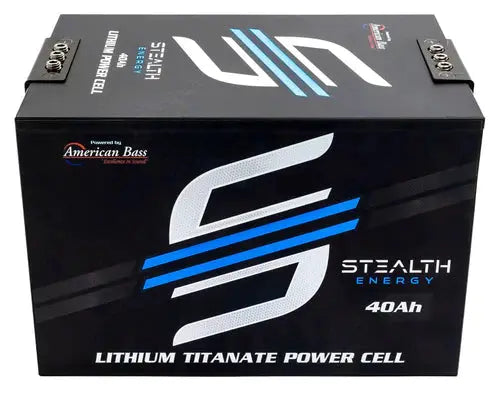

Stealth Energy Lithium Titanate Battery 13.8V 40Ah
Key features
- Chemistry: Lithium titanate (LTO)
- Nominal voltage: 13.8V
- Capacity: 40Ah
- Cell configuration: 6S1P
- Charge cutoff: 16.8V (2.8V per cell)
- Discharge cutoff: 9V (1.5V per cell)
Stealth Energy Lithium Titanate Battery 13.8V 40Ah is backordered and will ship as soon as it is back in stock.
Stealth Energy Lithium Titanate Battery 13.8V 40Ah is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Stealth Energy Lithium Titanate Battery 13.8V 40Ah is a high-current battery for demanding car audio systems. Its lithium titanate cells and high discharge ratings support amplifier power demands and bass-heavy listening.
Key Features & Benefits
- High continuous output: The 400A continuous discharge rating suits systems with sustained current demands.
- Brief current bursts: Up to 800A peak discharge supports short-lived power demands during musical transients.
- Lithium titanate cells: The LTO cell design is specified for high-current capability and long cycle life.
- Cell balancing: Adjustable balancing start voltage supports maintaining balance across the cells.
- Compact footprint: Its listed dimensions help you check available installation space before planning a build.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 13.8V |
| Nominal Capacity | 40Ah |
| Cell inside | LTO Cylindrical cell 66160 2.3V 40AH |
| Configuration | 6S1P |
| Continuous Discharge Current | 400A (10C) |
| Peak Discharge Current | 800A (20C) |
| Discharge Cut-off Voltage | 9V (1.5V per cell) |
| Charge Cut-off Voltage | 16.8V (2.8V per cell) |
| Balancing Start Voltage | 2.7V per cell (adjustable between 2.5V ~2.8V) |
| Battery Net Weight | 15.6 Kg (approx.) |
| Battery Dimension | 14.2'' (L) × 10.1'' (W) × 9.3'' (H) / 360 × 255 × 235 mm |
| Connector | Pair of 3-hole aluminum blocks |
| Operating temperature | Charging: 0°C ~ 45°C; Discharging: -20°C ~ 55°C |
| Storage temperature | Recommended to store 20 ± 5°C for long term storage |
| Life Cycle | >20,000 times (80% of initial capacity at 1C rate, IEC Standard) |
Why Choose This Product?
This battery combines a 40Ah capacity with high continuous and peak discharge ratings for car audio builds with substantial amplifier demands. Its specified cycle life gives you a clear longevity reference: more than 20,000 cycles to 80% of initial capacity at a 1C rate under the IEC Standard.
Installation & Compatibility Notes
Check the battery’s dimensions, connector arrangement, and voltage limits against your installation plan and system requirements. Keep charging and discharging within the listed temperature ranges, and follow the stated cut-off voltages when planning charging and discharge controls.
Frequently Asked Questions
What is the difference between the continuous and peak discharge ratings?
The battery is rated for 400A continuous discharge and 800A peak discharge. The peak rating applies to brief demands rather than sustained draw.
What does the 6S1P configuration mean?
It identifies a configuration of six cells in series and one parallel string.
Which connector does this battery use?
It uses a pair of 3-hole aluminum blocks. Check that your planned connections suit this terminal type.
How much space should I allow for installation?
Compare the listed dimensions—14.2'' × 10.1'' × 9.3'' or 360 × 255 × 235 mm—with the available space in your installation area.
What temperature range applies during charging and discharging?
Charging is specified from 0°C to 45°C. Discharging is specified from -20°C to 55°C.
Explore More
Shop 12 Volt Outlet for car audio power equipment. Want to learn more about American Bass? Explore our American Bass brand profile.
| Nominal Voltage | 13.8V |
| Nominal Capacity | 40Ah |
| Cell inside | LTO Cylindrical cell 66160 2.3V 40AH |
| Configuration | 6S1P |
| Continuous Discharge Current | 400A (10C) |
| Peak Discharge Current | 800A (20C) |
| Discharge Cut-off Voltage | 9V (1.5V per cell) |
| Charge Cut-off Voltage | 16.8V (2.8V per cell) |
| Balancing Start Voltage | 2.7V per cell (adjustable between 2.5V ~2.8V) |
| Battery Net Weight | 15.6 Kg (approx.) |
| Battery Dimension |
14.2'' (L) *10.1''（W）*9.3'' (H) 360（L）*255（W）*235 (H) mm |
| Connector | Pair of 3-hole aluminum blocks |
| Operating temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
| Storage temperature | Recommended to store 20 ± 5°C for long term storage |
| Life Cycle | >20000 times (80% of initial capacity at 1C rate, IEC Standard) |
