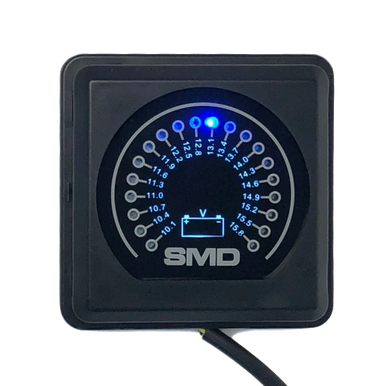

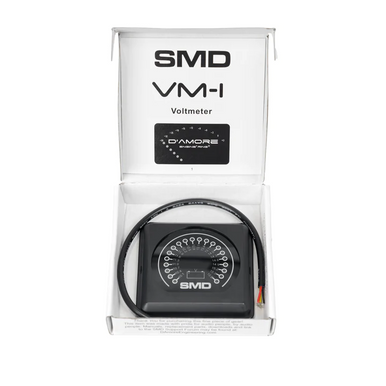

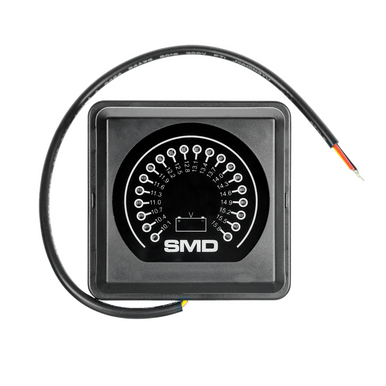

SMD VM-1 Volt Meter 12v

The SMD VM-1 monitors battery and charging-system voltage in 12 V systems.

Features

• White LED backlight
• 20 surface-mount LEDs
• Regulated power supply

Specifications

• Measurement range: 10.1–15.8 VDC
• Accuracy: ±0.15 V
• Response time from 10.1–15.8 V: 130 milliseconds
• Dimensions: 2.75 × 2.75 × 0.6 inches

Select whether to add the plug-and-play 12 V cigarette-lighter adapter.
