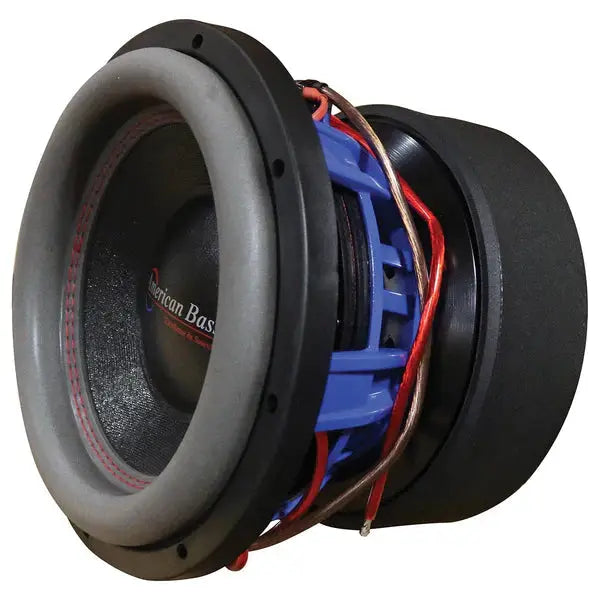

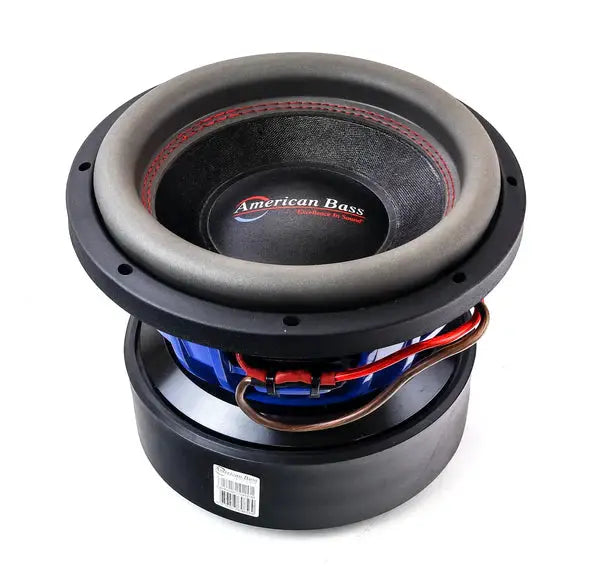

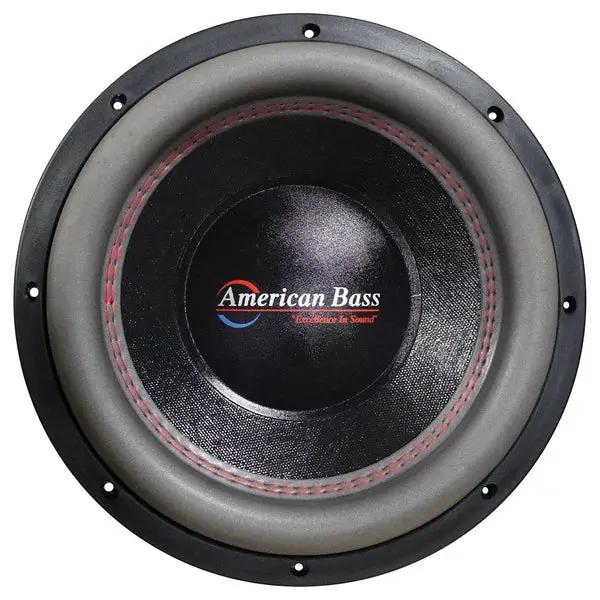

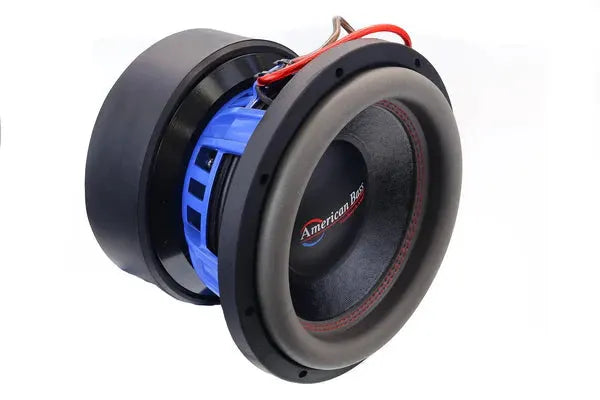

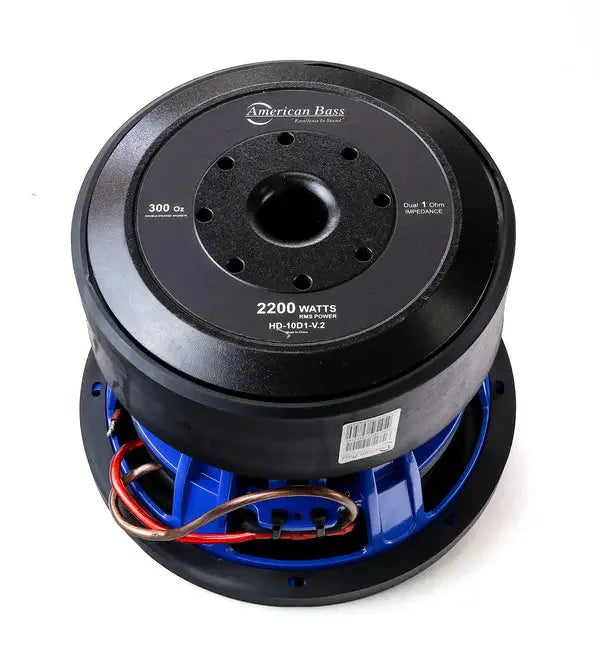

American Bass HD Series 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 2000 W
- Voice-coil options: D1, D2
- Mounting depth: 7.4 inches
- Cutout size: 9.4 inches
- Voice-coil diameter: 3.3 inches
American Bass HD Series 10" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
American Bass HD Series 10" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a high-output car audio system around the American Bass HD Series 10" Subwoofer, a 10-inch subwoofer rated for 2000W RMS and 4000W maximum power. Its D1 / D2 impedance options and 3" voice coil make it a substantial driver for installations planned around its power and enclosure requirements.
Key Features & Benefits
- 2000W RMS power handling: Supports sustained high-output use when paired with an appropriate amplifier.
- D1 / D2 impedance options: Gives you impedance choices to consider when matching the subwoofer to your amplifier and system plan.
- 3" voice coil: The larger coil supports heat dissipation during sustained high-output use.
- Cast basket: The rigid frame supports structural stability and consistent alignment.
- Ported enclosure recommendation: The specified 1.5–1.75 ft³ range helps guide enclosure planning.
Technical Specifications
| RMS POWER | 2000W |
| MAX POWER | 4000W |
| IMPEDANCE (OHMS) | D1 / D2 |
| SENSITIVITY DB | 84 |
| MOUNTING DEPTH (IN) | 7.4 |
| CUTOUT SIZE (IN) | 9.4 |
| PORTED BOX (FT3) | 1.5 - 1.75 |
| MAGNET SIZE (OZ) | 350 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL 3K |
Why Choose This Product?
The HD Series combines a 2000W RMS rating with a 350 oz magnet and a 3" voice coil. These specifications make it suited to a high-power car audio build where amplifier matching and enclosure planning are important. The manufacturer-listed recommendation for a pair is VFL 3K amplifiers.
Its D1 / D2 impedance options offer a choice to factor into your system design. The stated ported-box volume range gives you a specific starting point when planning an enclosure for this subwoofer.
Installation & Compatibility Notes
Allow for 7.4 inches of mounting depth and a 9.4-inch cutout. Check the available mounting space and enclosure plan before installation.
Match the selected impedance option and power handling to your amplifier and system configuration. The listed ported-box volume is 1.5–1.75 ft³.
Frequently Asked Questions
What do the 2000W RMS and 4000W maximum ratings mean?
The listed continuous power handling is 2000W RMS. The maximum power rating is 4000W; match your amplifier to the system requirements.
What impedance options are available?
The specification lists D1 / D2 options. Choose the version that suits your amplifier and planned system configuration.
What enclosure volume is listed for a ported box?
The recommended ported-box volume is 1.5–1.75 ft³.
How much space does installation require?
Plan for a 7.4-inch mounting depth and a 9.4-inch cutout.
What amplifier is recommended for a pair?
The listed recommendation for a pair is VFL 3K.
Explore More
Shop American Bass products at 12 Volt Outlet. Want to learn more about American Bass? Explore our American Bass brand profile.
| RMS POWER | 2000W |
| MAX POWER | 4000W |
| IMPEDANCE (OHMS) | D1 / D2 |
| SENSITIVITY DB |
84 |
| MOUNTING DEPTH (IN) | 7.4 |
| CUTOUT SIZE (IN) |
9.4 |
| PORTED BOX (FT3) | 1.5 - 1.75 |
| MAGNET SIZE (OZ) | 350 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL 3K |
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
