American Bass SQ 05T Tweeters (Pair)
Key features
- RMS power per speaker: 50 W
- Speaker impedance: 4.0 ohms
- Mounting depth: 1.9375 inches
- Cutout size: 2.1875 inches
- Frequency response: 3k-20k Hz
- Basket construction: Cast
American Bass SQ 05T Tweeters (Pair) is backordered and will ship as soon as it is back in stock.
American Bass SQ 05T Tweeters (Pair) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

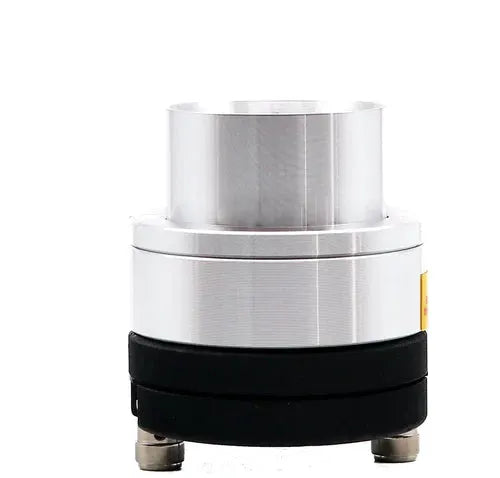

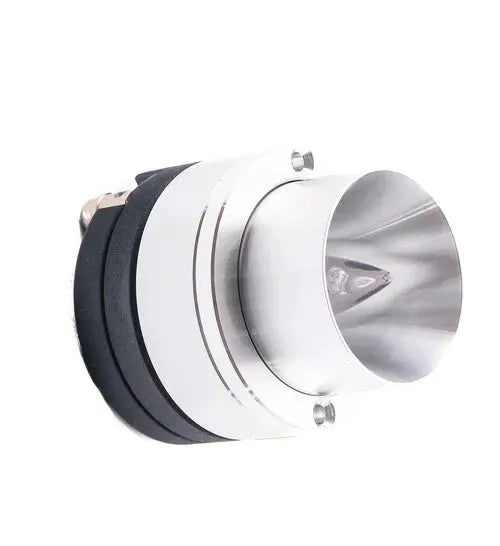

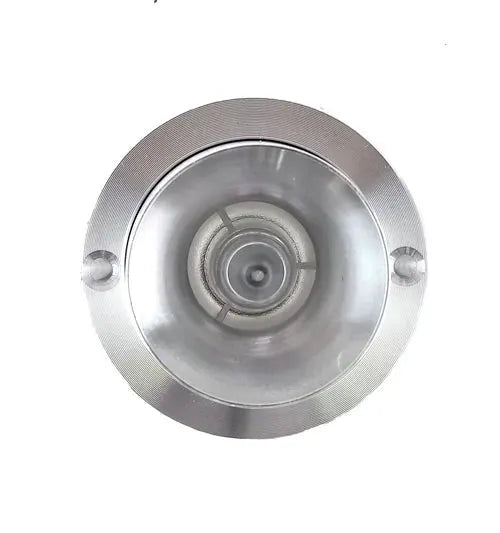

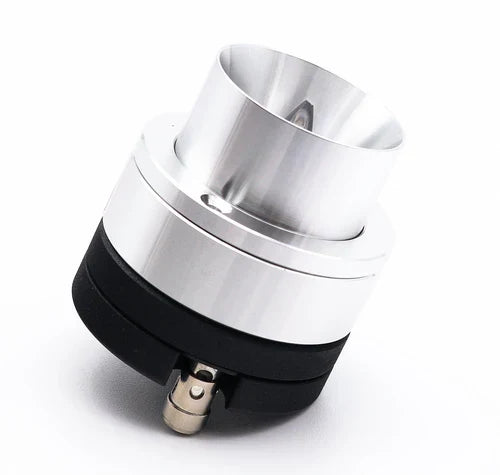

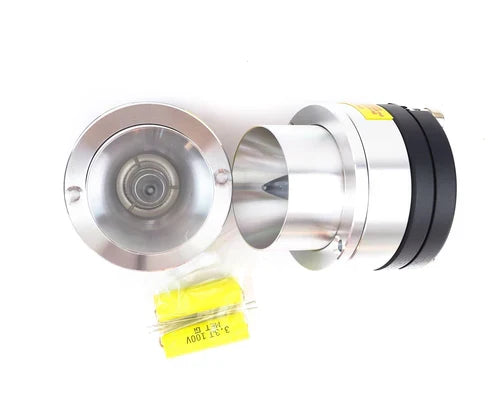

Add detailed high-frequency sound to your car-audio system with the American Bass SQ 05T Tweeters (Pair). Each aluminum-dome tweeter has a vented back and aluminum shorting-ring design, with a 4-ohm impedance and a 3k–20k Hz frequency response.
Key Features & Benefits
- Aluminum dome: Delivers high-frequency detail for a treble-focused system upgrade.
- Vented back: Supports coil cooling to help reduce distortion compared with non-vented designs.
- Aluminum shorting ring: Reduces inductance to help smooth high-frequency response.
- 109dB sensitivity: Provides high output potential from modest electrical input.
- Cast basket: Adds rigidity to help minimize resonance.
- Shallow mounting depth: The 1.9375-inch depth helps with planning installations where space is limited.
Technical Specifications
| RMS POWER | 50W |
| MAX POWER | 100W |
| IMPEDANCE (OHMS) | 4 |
| SENSITIVITY DB | 109dB |
| MOUNTING DEPTH (IN) | 1.9375 |
| CUTOUT SIZE (IN) | 2.1875 |
| FREQUENCY RESPONSE | 3k-20k Hz |
| BASKET TYPE | CAST |
Why Choose This Product?
The SQ 05T pair is designed for two-way systems and high-frequency upgrades. Its frequency response covers upper-mid and treble frequencies, making it an option to complement midrange drivers. The vented back and shorting-ring construction address cooling and response in a compact tweeter design.
Installation & Compatibility Notes
Check that your mounting location accommodates the 2.1875-inch cutout and 1.9375-inch mounting depth. Confirm that your amplifier and system are suitable for a 4-ohm tweeter load before installation.
Frequently Asked Questions
What is the difference between RMS and maximum power?
The listed continuous power handling is 50W RMS. Maximum power handling is 100W for brief transients.
What impedance should I account for?
Each SQ 05T tweeter has a listed impedance of 4 ohms. Check your amplifier and system requirements before connecting it.
What mounting space does it require?
Allow for a 2.1875-inch cutout and 1.9375-inch mounting depth.
What frequencies does this tweeter cover?
Its listed frequency response is 3k–20k Hz, covering upper-mid and treble frequencies.
How many tweeters are included?
The product is sold as a pair.
