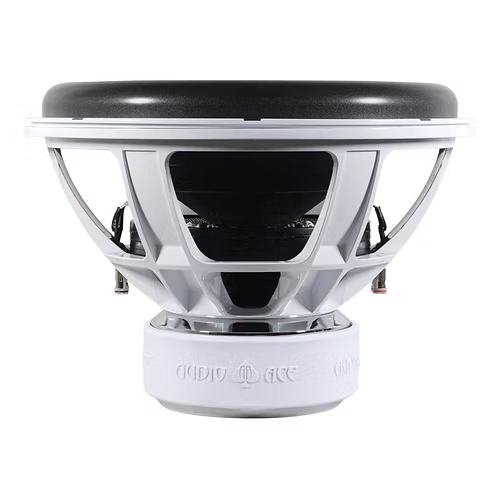

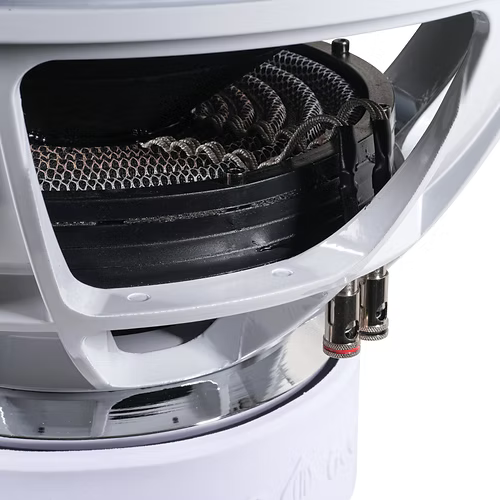

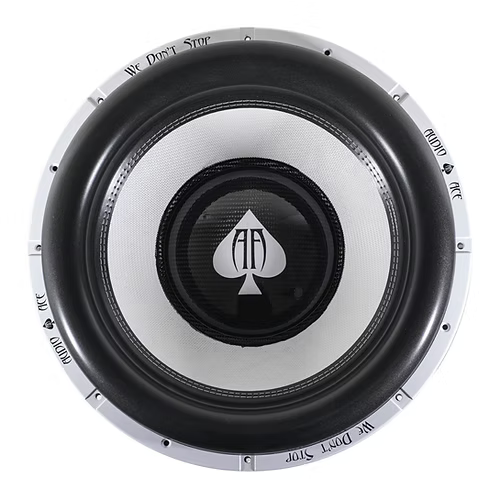

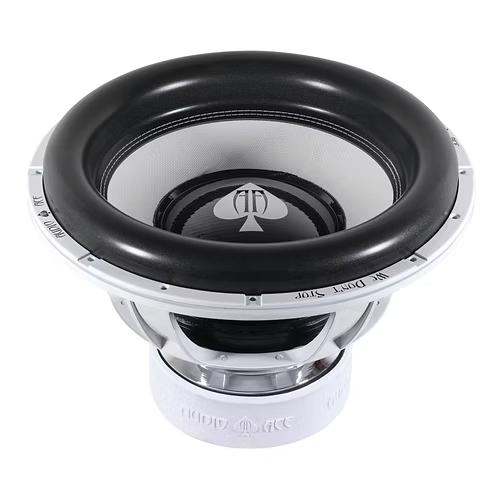

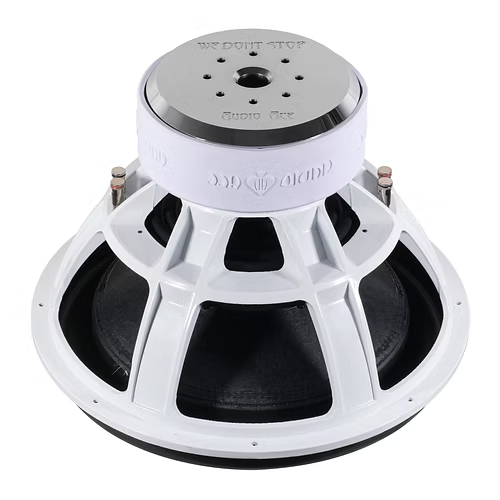

Audio Ace Jester Series 18" Subwoofer Dual 2 Ohm
Key features
- Subwoofer size: 18.0 inches
- RMS power per subwoofer: 3000 W
- Voice-coil options: D2
- Voice-coil diameter: 3 inches
- Mounting depth: 11.1 inches
- Mounting cutout diameter: 16.85 inches
Audio Ace Jester Series 18" Subwoofer Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build deep, high-output bass around the Audio Ace Jester Series 18-inch Dual 2 Ohm subwoofer. Its 3,000 W RMS rating, dual voice coils, and ported-enclosure recommendations support high-SQ/SPL builds across music styles.
Key Features & Benefits
- 3,000 W RMS rating: Provides substantial power-handling capacity when paired with a suitable amplifier and ventilation.
- Dual 2 Ω voice coils: Offer wiring flexibility for matching an amplifier to your build’s impedance needs.
- 3-inch, four-layer voice coil: Supports power handling and heat dissipation during sustained high-output use.
- 300 oz magnet structure: Provides motor force for controlled excursion and low-frequency extension.
- Die-cast aluminum basket: Adds rigidity and helps manage heat under demanding duty cycles.
- Four-layer spider suspension: Supports linear motion at high excursion for consistent bass response.
Technical Specifications
| Specification | Value |
|---|---|
| Product | Audio Ace Jester Series 18-inch subwoofer |
| Voice coil configuration | Dual 2 Ω |
| Power handling | 3,000 W RMS |
| Voice coil | 3-inch, four-layer |
| Magnet structure | 300 oz |
| Basket | Heavy-duty die-cast aluminum |
| Suspension | Four-layer spider |
| Mounting depth | 16.85 inches |
| Re | 3.53 Ω |
| Le | 3.462 mH |
| Qts | 0.550 |
| Qes | 0.605 |
| Qms | 6.006 |
| Recommended ported enclosure volume | 4.75–5.5 cu ft |
| Recommended port area | 14–16 in² per cu ft |
| Recommended tuning | 28–36 Hz |
| Enclosure alignment | Optimal for ported 4th- and 6th-order enclosures; not recommended for sealed enclosures |
Why Choose This Product?
The Jester combines high power handling with detailed electrical parameters and specific ported-enclosure guidance. That information helps you plan a bass system around the subwoofer’s needs instead of choosing an enclosure by guesswork.
In a properly designed ported installation, it is intended to deliver extended, controlled bass with the potential to fill large spaces when matched with the right amplifier and enclosure.
Installation & Compatibility Notes
Plan for the 16.85-inch mounting depth and the recommended 4.75–5.5 cu ft ported enclosure. The stated port area is 14–16 in² per cubic foot, with tuning between 28 and 36 Hz.
This subwoofer is not recommended for sealed enclosures. Match the dual 2 Ω voice coils to your amplifier’s supported impedance, and provide suitable ventilation for the 3,000 W RMS application.
Frequently Asked Questions
What is the power rating of the Audio Ace Jester Series 18-inch subwoofer?
It is rated at 3,000 W RMS. Pair it with a suitable amplifier and ventilation.
What impedance does this subwoofer have?
It has a dual 2 Ω voice coil configuration. Check your amplifier’s supported impedance when planning the wiring.
What enclosure is recommended?
The stated recommendation is a 4.75–5.5 cu ft ported enclosure, with 14–16 in² of port area per cubic foot and tuning from 28–36 Hz. It is not recommended for sealed enclosures.
How much mounting depth should I allow?
The listed mounting depth is 16.85 inches. Check the available installation space against this measurement.
