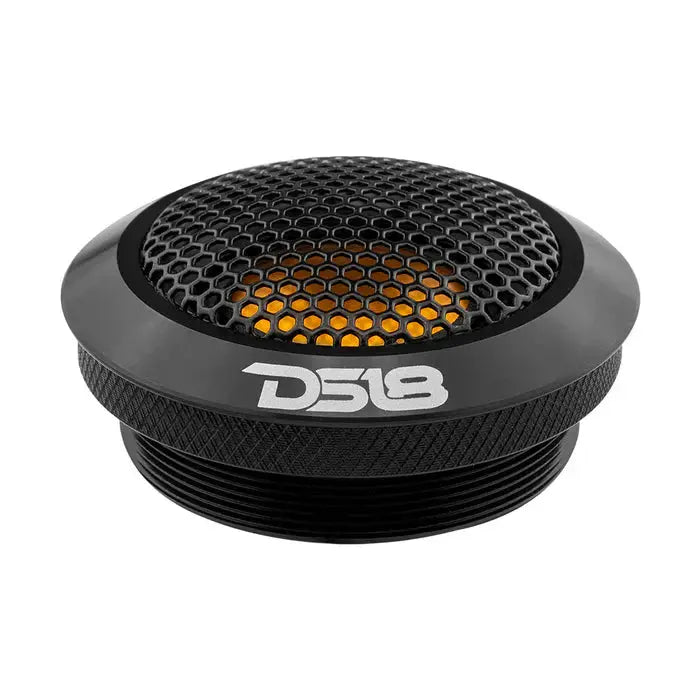

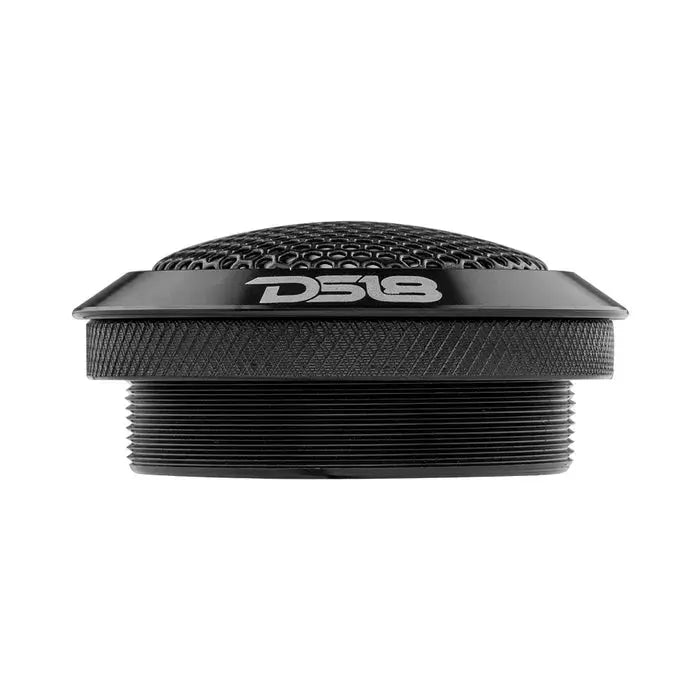

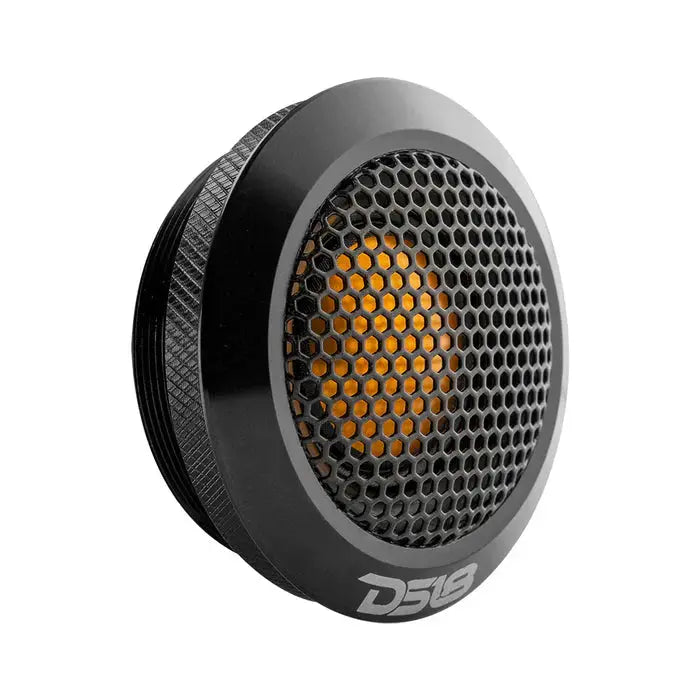

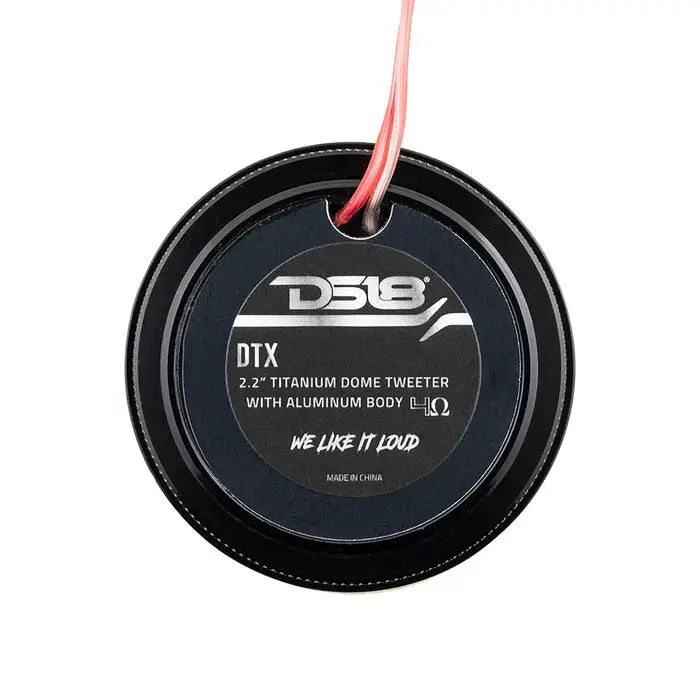

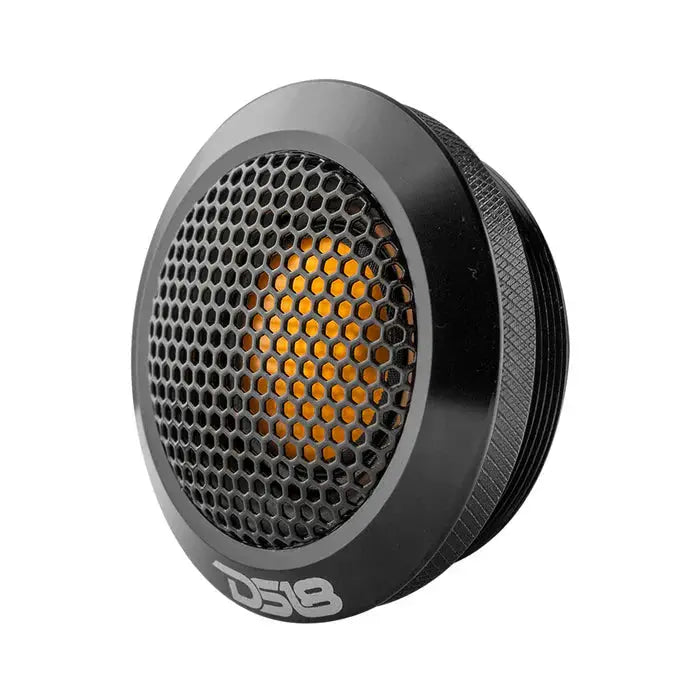

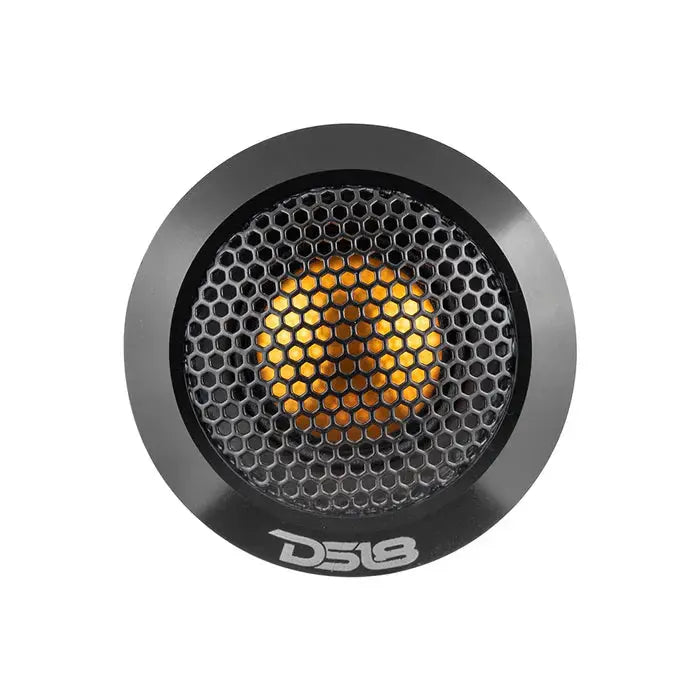

DS18 DTX 2.2" Sound Quality Titanium Dome Tweeter with Aluminum Body
Key features
- Speaker size: 2.2″
- RMS power per speaker: 30 W
- Speaker impedance: 4.0 ohms
- Frequency response: 900 Hz–20 kHz
- Sensitivity (1 W/1 m): 95.2 dB
- Voice-coil diameter: 1 inch
DS18 DTX 2.2" Sound Quality Titanium Dome Tweeter with Aluminum Body is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring high-frequency detail to your car audio system with the DS18 DTX 2.2-inch titanium dome tweeter. Its titanium diaphragm, aluminum body, and 95.2 dB sensitivity make it a distinct choice for adding a dedicated high-range speaker to an audio setup.
Key Features & Benefits
- Titanium diaphragm: Handles the high-frequency range specified for the DTX, from 900 Hz to 20 KHz.
- Aluminum body: Provides the tweeter’s silver-finish housing.
- Neodymium magnet: Uses a neodymium motor magnet.
- 95.2 dB sensitivity: Gives you the stated sensitivity rating measured at 1w/1m.

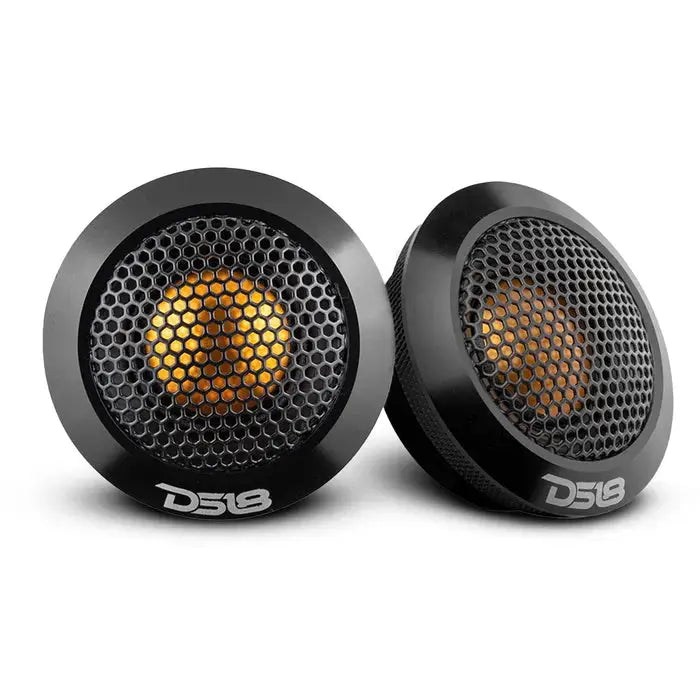

- Pair packaging: The DTX is sold in a pair for a two-tweeter installation.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | DTX |
| Nominal Diameter | 2.2" / 58 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 15W |
| Program Power Handling | 30W |
| Peak Power Handling | 60W |
| Sensitivity (1w/1m) | 95.2 dB |
| Frequency Response | 900 Hz - 20 KHz |
| Recommended Hi Pass Crossover | 3.8 KHz |
| Pair or Single | Pair |
| Body Material | Aluminum |
| Body Color | Silver |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | KCV |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Overall Diameter | 2.28" / 58mm |
| Overall Depth | 1" / 26mm |
| Front Mount Baffle Cutout | 1.85" / 47mm |
| Mounting Depth | 0.65" / 16.5mm |
| Product Weight | 0.5 lbs |
| Product Dimensions | 5.5 x 2.75 x 1.5 |
| M/C Weight | 22 lbs |
| M/C Dimensions | 14.75 x 11.5 x 6.75 |
| M/C QTY | 40 |
| Sold In | Pair |
Why Choose This Product?
The DTX combines a titanium dome with a 4-ohm nominal impedance and clearly stated power-handling ratings. Its high-pass crossover recommendation gives you a specific starting point when planning how the tweeter fits into your system.
Installation & Compatibility Notes
Check the mounting area against the 1.85" / 47mm front-mount baffle cutout and 0.65" / 16.5mm mounting depth before installation. Match the tweeter’s 4-ohm impedance and power ratings to your audio system, and account for the recommended 3.8 KHz high-pass crossover.
Frequently Asked Questions
How many tweeters are included?
The DTX is sold in a pair.
What is the nominal impedance?
Its nominal impedance is 4 Ohms.
What crossover point does DS18 recommend?
The recommended high-pass crossover is 3.8 KHz.
What mounting space should I allow?
Plan around the stated 1.85" / 47mm front-mount baffle cutout and 0.65" / 16.5mm mounting depth.
What are the power-handling ratings?
The listed ratings are 15W AES, 30W program, and 60W peak.
