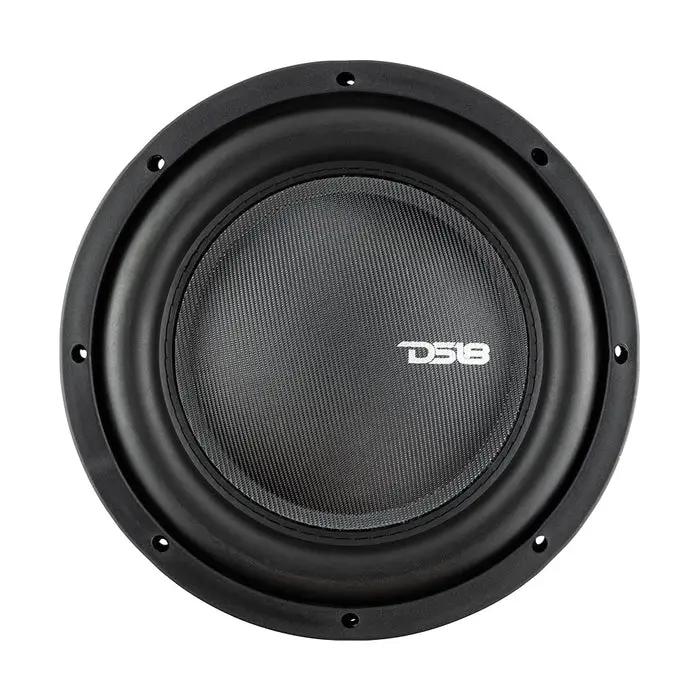

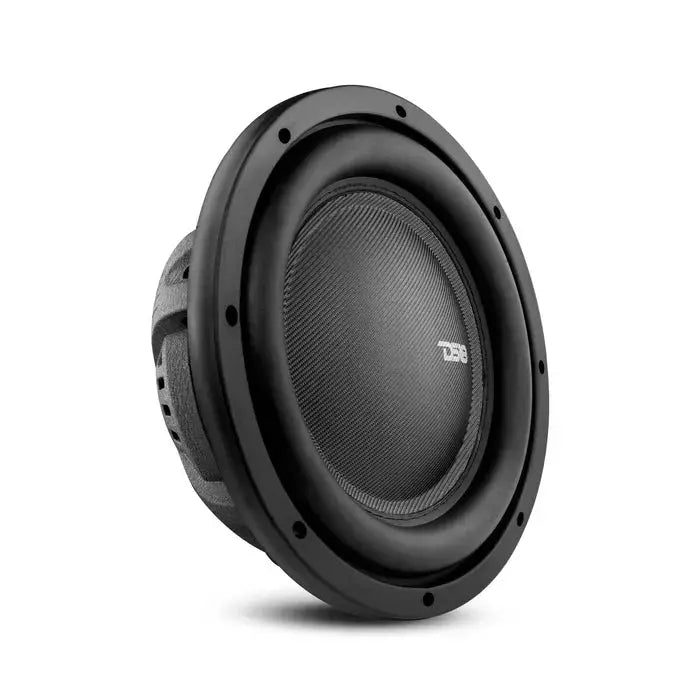

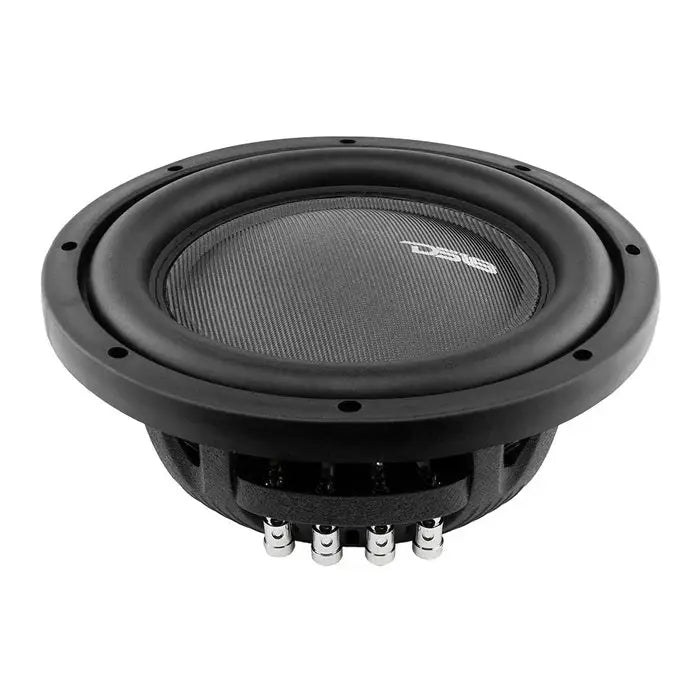

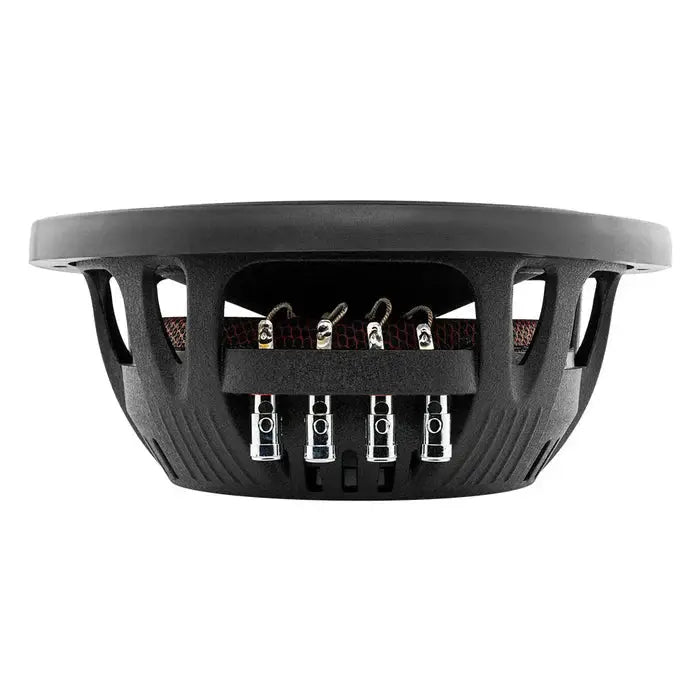

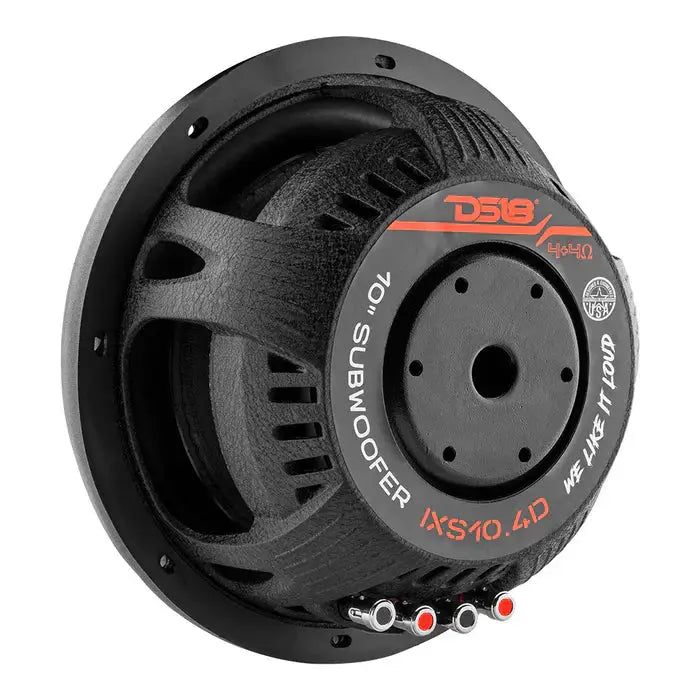

DS18 IXS10.4D IXS Shallow 10" Subwoofer 1200 Watts DVC 4-Ohm
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 600 W
- Voice-coil options: D4
- Frequency response: 20–800 Hz
- Voice-coil diameter: 2.5 inches
- Magnet material: Ferrite
DS18 IXS10.4D IXS Shallow 10" Subwoofer 1200 Watts DVC 4-Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The DS18 IXS10.4D shallow-mount 10-inch subwoofer brings deep-bass capability to installations where mounting space is limited. Its dual 4-ohm voice coils provide wiring flexibility, while 600 watts RMS power handling gives you a clear rating for amplifier planning.
Key Features & Benefits
- Shallow-mount design: Helps accommodate compact car audio installations.
- 10-inch cone: Provides a larger radiating surface for moving air and producing bass.
- Dual 4-ohm voice coils: Offer wiring options when matching the subwoofer to a suitable amplifier.
- 600 watts RMS: Gives you the continuous power-handling figure to use when planning your system.
- Stitched rubber surround: Supports long-travel movement during repeated bass playback.
- Aluminum basket and ferrite magnet: Combine a rigid frame with a steady magnetic field for bass reproduction.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Diameter | 10" / 254 mm |
| Nominal Impedance | 4+4 ohms |
| RMS Power Handling | 600 W |
| Maximum Power Handling | 1200 W |
| Sensitivity | 84 dB (1W/1m) |
| Frequency Response | 20 - 800 Hz |
| Voice Coil Diameter | 2.5" / 63.5 mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Surround Material | Stitched rubber |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Weight | 62 oz |
| Displacement Volume | 0.9 L / 0.032 ft3 |
| Sealed Enclosure (Minimum Internal Volume) | 14.2 L / 0.5 ft3 |
| Box F3 (Sealed) | 44 Hz |
| Overall Diameter | 10.63" / 270 mm |
Why Choose This Product?
The IXS10.4D pairs a shallow-mount profile with a 10-inch cone, making it an option to consider when a conventional subwoofer may not suit your available space. Its stated sealed-enclosure guidance gives you a concrete starting point for planning a compact bass system.
The 2.5-inch aluminum voice coil former, copper winding, paper cone, and stitched rubber surround specify the materials used in its construction. The 1200-watt maximum rating describes peak power handling; use the 600-watt RMS rating when considering continuous amplifier power.
Installation & Compatibility Notes
Plan around the 10.63-inch overall diameter and the enclosure’s available internal volume. For a sealed enclosure, the listed minimum internal volume is 14.2 L / 0.5 ft3, with a 44 Hz Box F3.
Match the amplifier and wiring to the subwoofer’s dual 4-ohm voice coils and the load supported by your system. The overall diameter is provided for planning; confirm the mounting space and enclosure requirements for your installation.
Frequently Asked Questions
What do the 600-watt and 1200-watt ratings mean?
600 W is the RMS power-handling rating. 1200 W is the maximum power-handling rating.
What impedance does the DS18 IXS10.4D have?
It has dual 4-ohm voice coils, listed as a nominal impedance of 4+4 ohms. Choose wiring that presents a load supported by your amplifier.
What sealed enclosure volume is listed?
The minimum internal volume for a sealed enclosure is 14.2 L / 0.5 ft3. The listed sealed-box F3 is 44 Hz.
How much space should I allow for the subwoofer?
Its nominal diameter is 10 inches / 254 mm, and its overall diameter is 10.63 inches / 270 mm. Plan the enclosure and mounting space around the overall measurement.
Explore More
Shop for the DS18 IXS10.4D at 12 Volt Outlet. Want to learn more about DS18? Explore our DS18 brand profile.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
