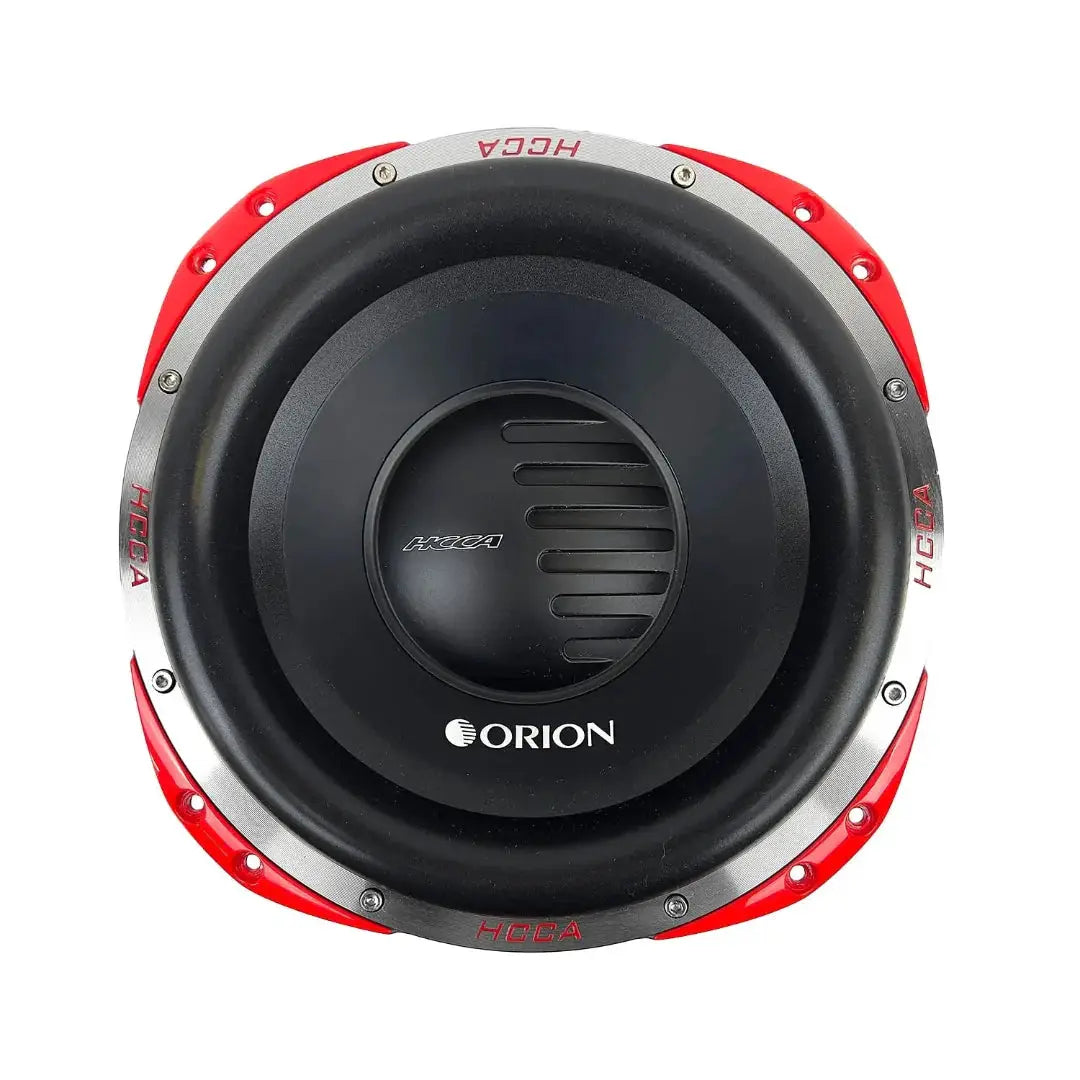

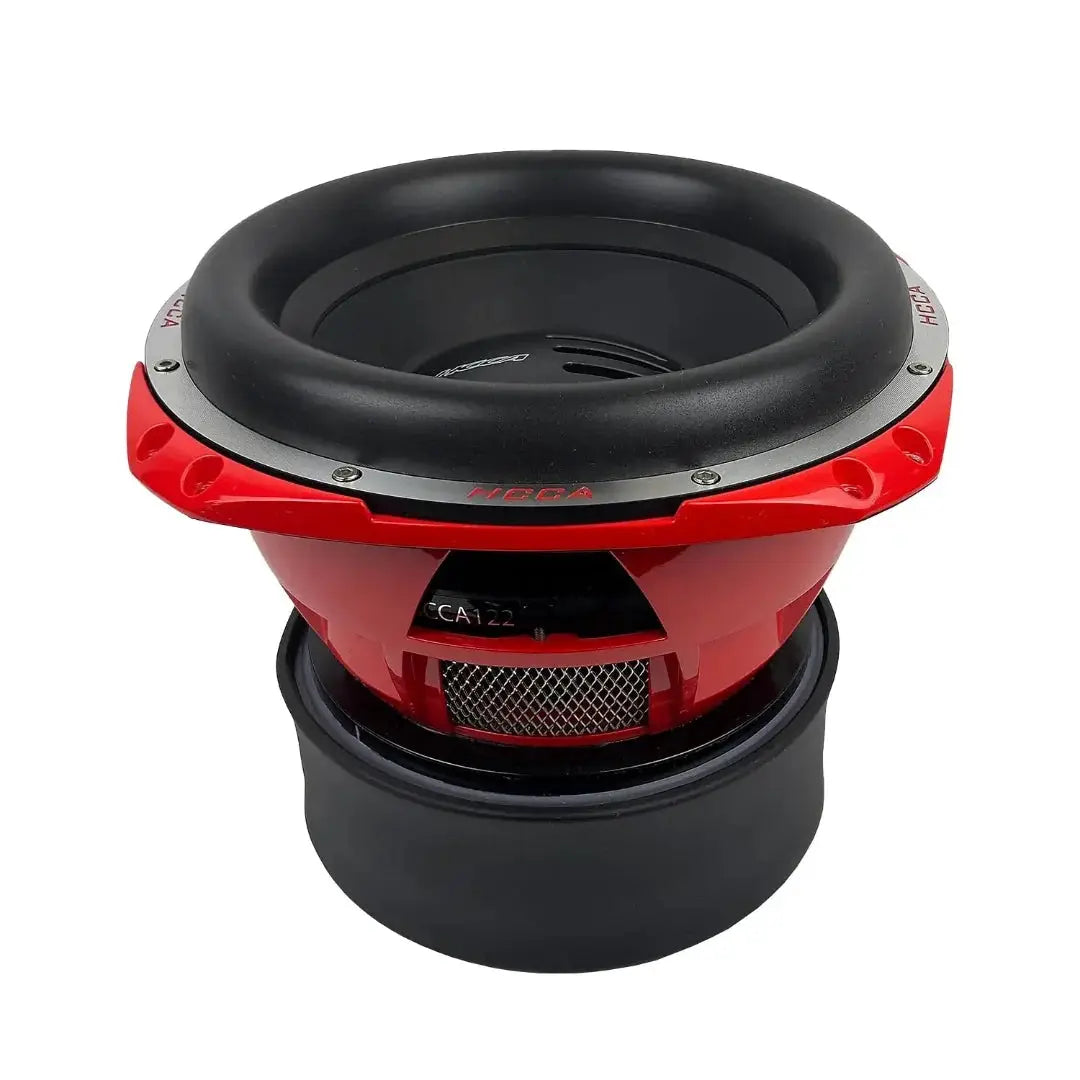

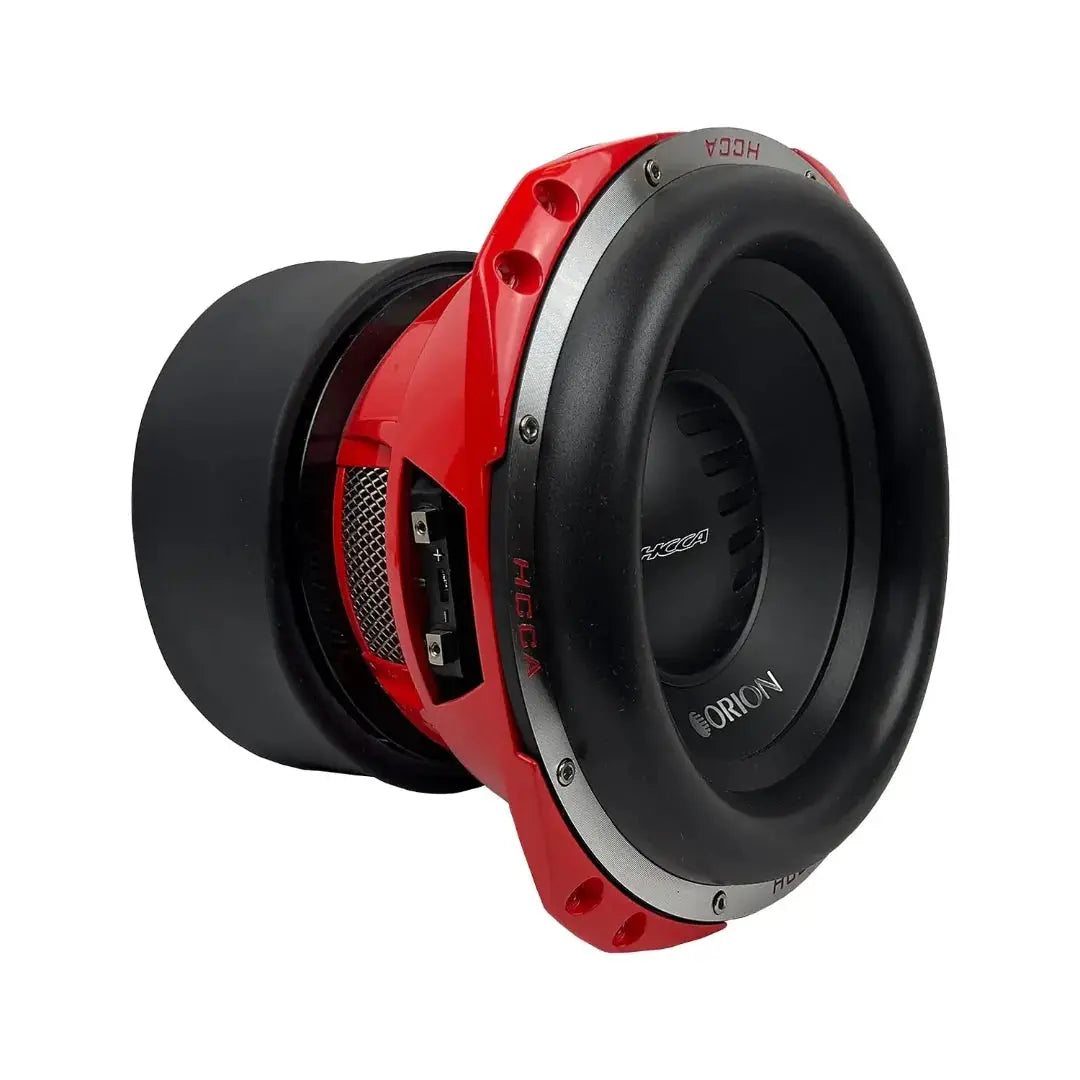

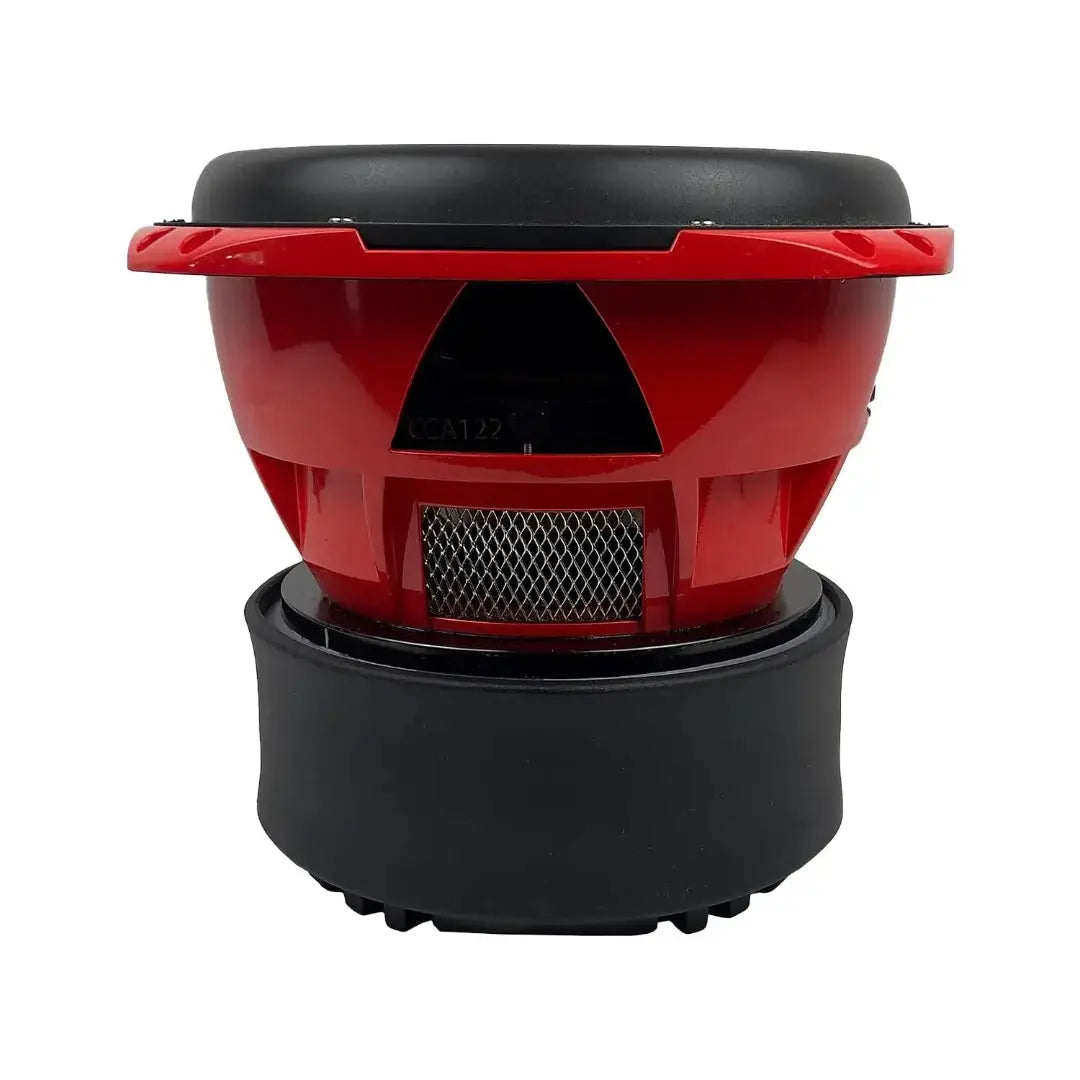

Orion HCCA122 – 12 Inch Dual 2 Ohm High-Performance Subwoofer | 2500W RMS Bass Power
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 2500 W
- Voice-coil options: D2
- Voice-coil diameter: 4 inches
- Surround: NBR foam
- Dust cap: Polypropylene
Orion HCCA122 – 12 Inch Dual 2 Ohm High-Performance Subwoofer | 2500W RMS Bass Power is backordered and will ship as soon as it is back in stock.
Orion HCCA122 – 12 Inch Dual 2 Ohm High-Performance Subwoofer | 2500W RMS Bass Power is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, controlled bass to a high-output car audio system with the Orion HCCA122 12-inch subwoofer. Its dual 2-ohm coils offer wiring flexibility, while 2500W RMS power handling suits demanding builds with a capable amplifier and quality enclosure.
A 4-inch high-temperature voice coil and 445 oz triple-stack ceramic magnet support sustained, powerful playback. The HCCA122 is designed for sealed or ported enclosures.
Key Features & Benefits
- Dual 2-ohm voice coils: Give you wiring options for matching the subwoofer load to your amplifier.
- 2500W RMS / 10000W peak: Provide power-handling ratings to consider when planning a high-output system.
- 4-inch high-temperature voice coil: Helps manage heat during extended high-power playback.
- Moisture- and UV-resistant paper cone: Combines a durable cone design with stiffness for precise bass.
- NBR foam surround and polypropylene dustcap: Support controlled cone movement and help resist flex at high output.
- 445 oz triple-stack ceramic magnet: Provides motor force for control and stability at high power levels.
Technical Specifications
| Product type | 12-inch dual 2-ohm subwoofer |
|---|---|
| Power handling | 2500W RMS / 10000W peak |
| Voice coil | 4” high-temperature voice coil |
| Cone | Moisture- and UV-resistant paper |
| Surround | NBR foam |
| Dustcap | Polypropylene |
| Magnet | 445 oz triple-stack ceramic |
| Enclosure compatibility | Sealed and ported |
| Mounting depth | 261mm / 10.28" |
| Cutout | 292mm / 11.5" |
| Overall diameter | 324.5mm / 12.78" |
| Sensitivity | 84.22 dB |
| Frequency response | 24 Hz – 100 Hz |
Why Choose This Product?
The HCCA122 combines substantial power handling with construction features intended to help maintain control during demanding playback. Its dual 2-ohm coils give you flexibility when planning an amplifier load, while the cone, surround, and dustcap support controlled movement.
Sealed and ported enclosure compatibility lets you choose between enclosure approaches based on your build goals and available space. The listed sensitivity and frequency response also give you useful reference points when planning the system.
Installation & Compatibility Notes
Check the mounting depth, cutout, and overall diameter against your enclosure before installation. Allow for the stated 261mm mounting depth and 292mm cutout, and confirm the enclosure can accommodate the 324.5mm overall diameter.
Match the dual 2-ohm coil wiring to an amplifier load it supports. Consider the 2500W RMS rating when selecting supporting equipment, and use a quality sealed or ported enclosure.
Frequently Asked Questions
What do the 2500W RMS and 10000W peak ratings mean?
They are separate power-handling ratings: 2500W RMS and 10000W peak. Consider the RMS rating when matching the subwoofer with an amplifier.
What impedance are the voice coils?
The HCCA122 has dual 2-ohm voice coils. Choose a wiring arrangement that presents a load supported by your amplifier.
Can I use this subwoofer in a sealed enclosure?
Yes. It is listed for use in sealed and ported enclosures.
What enclosure opening and depth should I plan for?
Plan for a 292mm / 11.5" cutout and 261mm / 10.28" mounting depth. The overall diameter is 324.5mm / 12.78".
What frequency range and sensitivity are listed?
The listed frequency response is 24 Hz – 100 Hz, and sensitivity is 84.22 dB.
