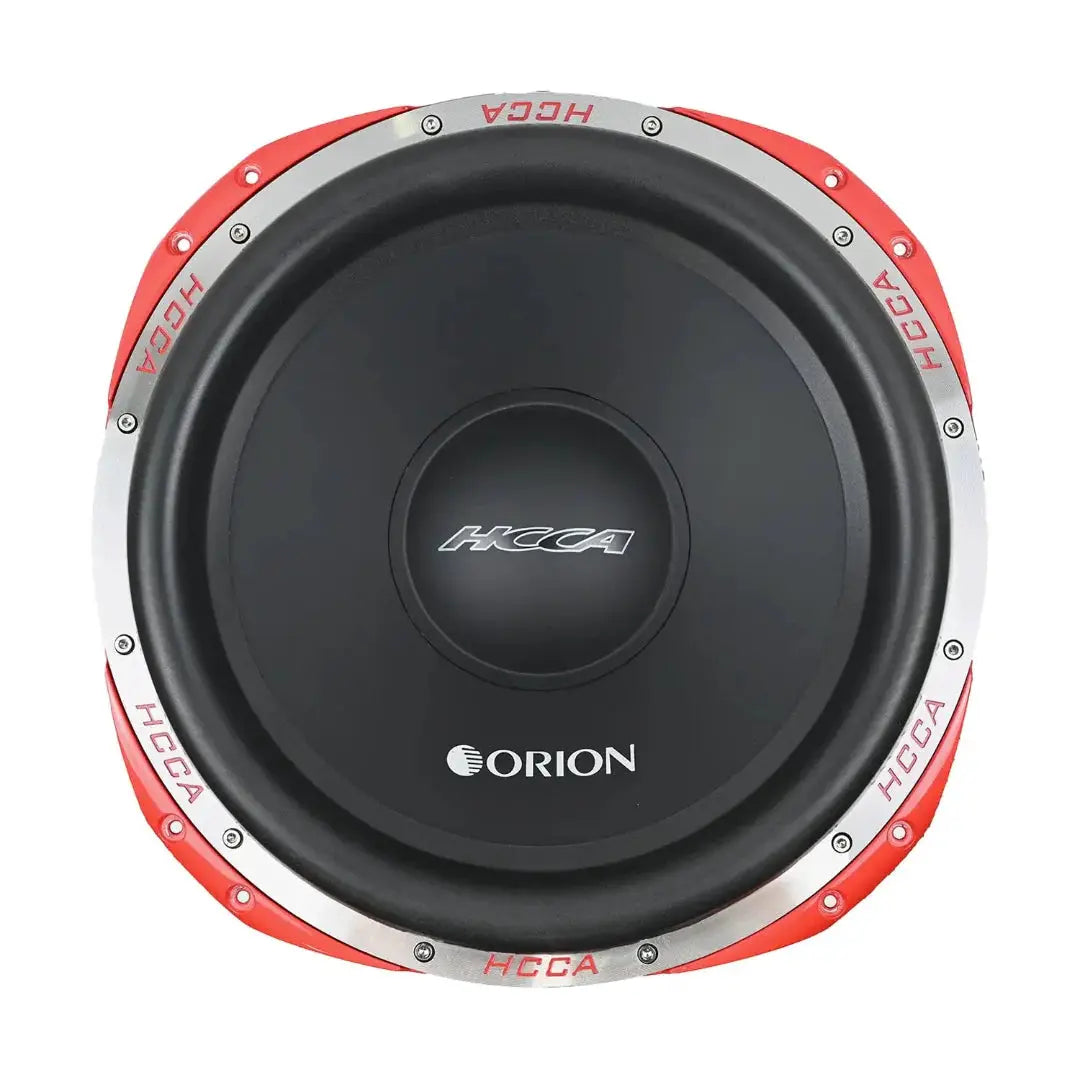

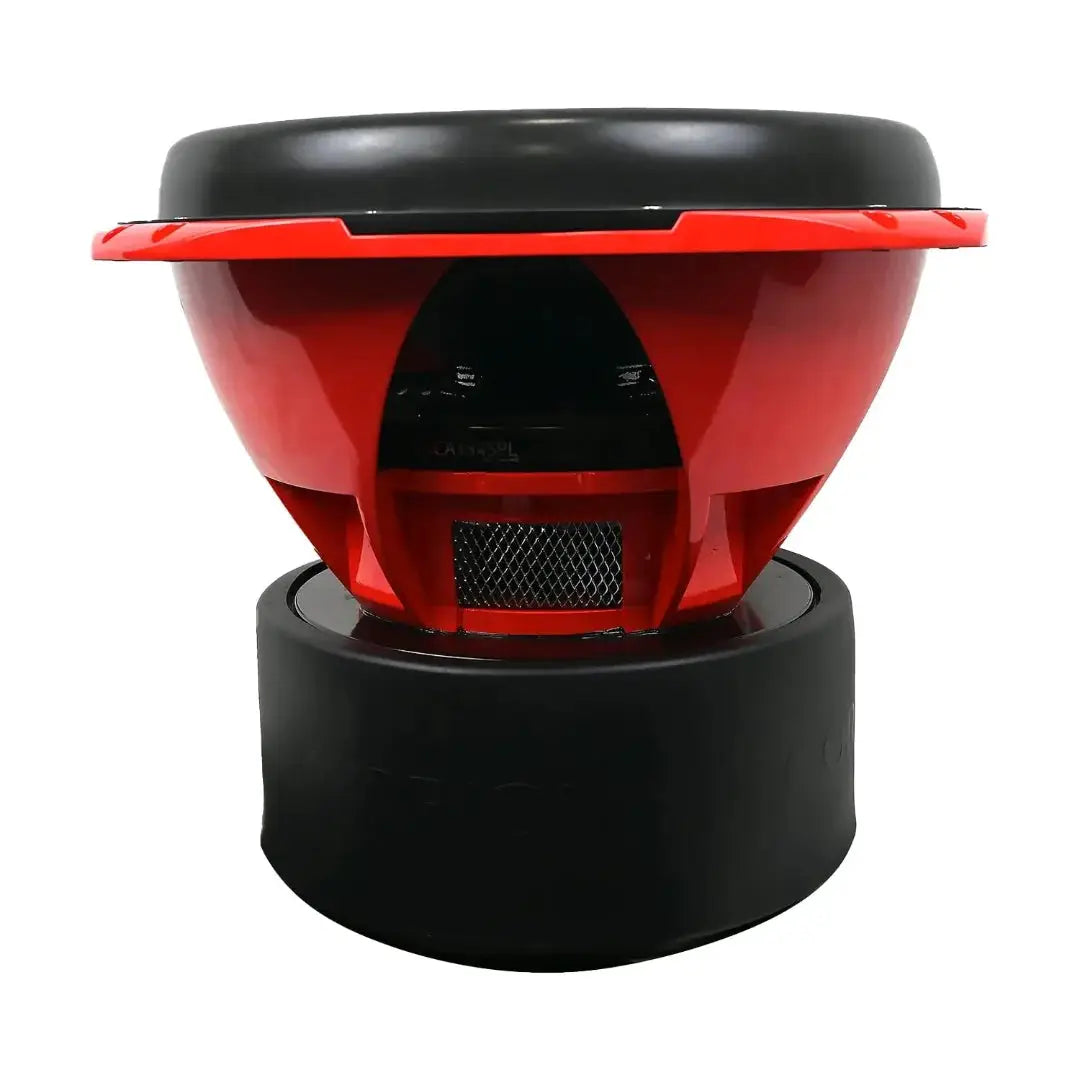

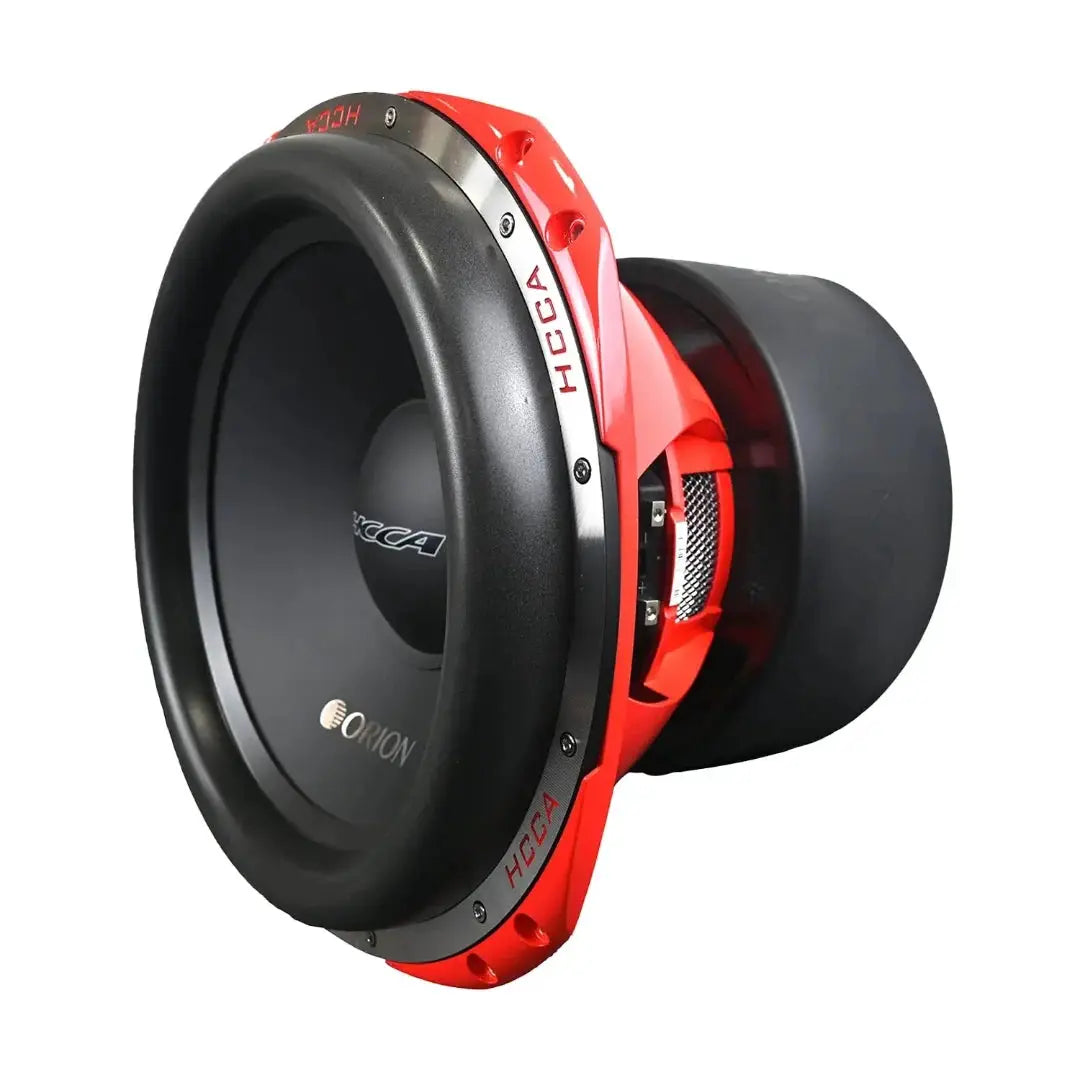

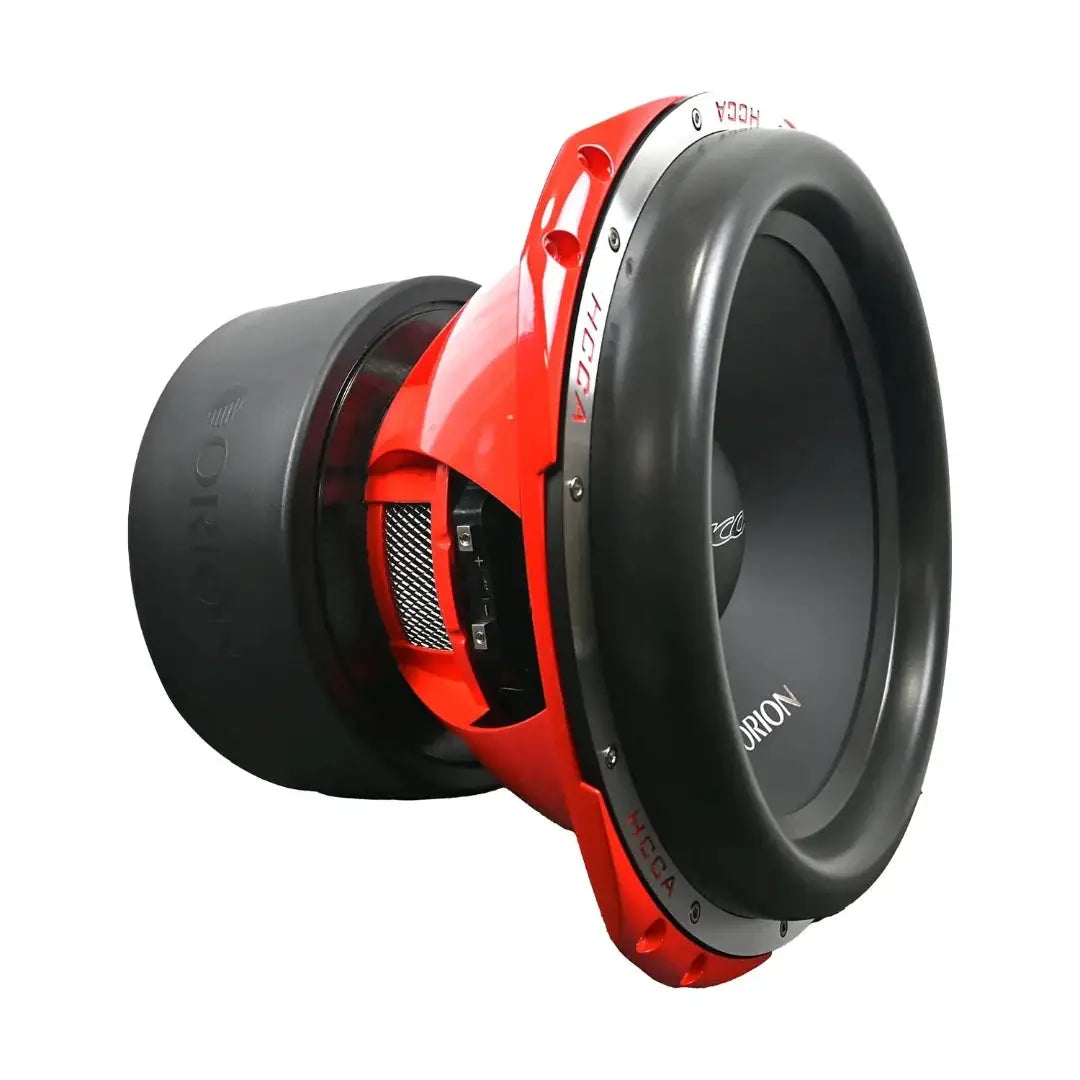

Orion HCCA151SPL – 15 Inch Dual 1 Ohm SPL Subwoofer | 5000W RMS Extreme Bass Power
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 5000 W
- Voice-coil options: D1
- Voice-coil diameter: 4 inches
- Surround: NBR foam
- Dust cap: Polypropylene
Orion HCCA151SPL – 15 Inch Dual 1 Ohm SPL Subwoofer | 5000W RMS Extreme Bass Power is backordered and will ship as soon as it is back in stock.
Orion HCCA151SPL – 15 Inch Dual 1 Ohm SPL Subwoofer | 5000W RMS Extreme Bass Power is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Orion HCCA151SPL is a 15-inch dual 1-ohm SPL subwoofer built for high-output car audio systems. Its 5000W RMS power handling, large motor assembly, and competition-focused design suit SPL vehicles, bass demo builds, and multi-subwoofer bass walls.
Key Features & Benefits
- Dual 1-ohm voice coils: Offer low-impedance wiring options for high-output competition amplifiers.
- High power handling: The 5000W RMS and 20000W peak ratings support demanding bass builds.
- 4-inch high-temperature voice coil: Designed to handle the heat associated with high-power use.
- Reinforced cone assembly: The moisture- and UV-resistant paper cone, NBR foam surround, and polypropylene dustcap support the subwoofer’s demanding application.
- 690 oz triple-stack ceramic magnet: Supplies motor force for high-output, low-frequency performance.
Technical Specifications
| Product type | 15-inch SPL subwoofer |
|---|---|
| Voice coils | Dual 1 ohm |
| Power handling | 5000W RMS / 20000W peak |
| Voice coil | 4-inch high-temperature |
| Cone | Moisture- and UV-resistant paper |
| Surround | Reinforced NBR foam |
| Dustcap | Polypropylene |
| Magnet | 690 oz triple-stack ceramic |
| Cutout diameter | 383mm / 15.07 inches |
| Mounting depth | 306mm / 12.05 inches |
| Overall diameter | 422mm / 16.61 inches |
| Frequency response | 21 Hz – 100 Hz |
| Sensitivity | 86.02 dB |
Why Choose This Product?
The HCCA151SPL is designed for builds where SPL output and substantial power handling are central goals. Its low-impedance dual voice coils and robust cone and motor components make it a purpose-built option for high-power bass systems.
Its stated frequency response reaches down to 21 Hz. The broad response range gives you useful information when planning a competition-style enclosure around your system goals.
Installation & Compatibility Notes
Plan the enclosure and mounting location around the subwoofer’s listed cutout diameter, mounting depth, and overall diameter. The product is optimized for purpose-built, high-power enclosures; confirm your enclosure and amplifier setup suit your intended application before installation.
Frequently Asked Questions
Is the 5000W rating RMS or peak?
5000W is the RMS power-handling rating. The listed peak rating is 20000W.
What does dual 1-ohm mean?
The subwoofer has two 1-ohm voice coils, offering low-impedance wiring options for high-output systems.
What mounting space should I plan for?
Use the listed cutout diameter, mounting depth, and overall diameter to check your enclosure and installation space.
What kind of enclosure is it designed for?
It is optimized for competition-style enclosures built for high SPL output.
What builds is the HCCA151SPL intended for?
Its stated applications include SPL competition vehicles, extreme bass demo builds, and multi-subwoofer bass walls.
Explore More
Shop for the Orion HCCA151SPL at 12 Volt Outlet. Want to learn more about Orion? Explore our Orion brand profile.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
