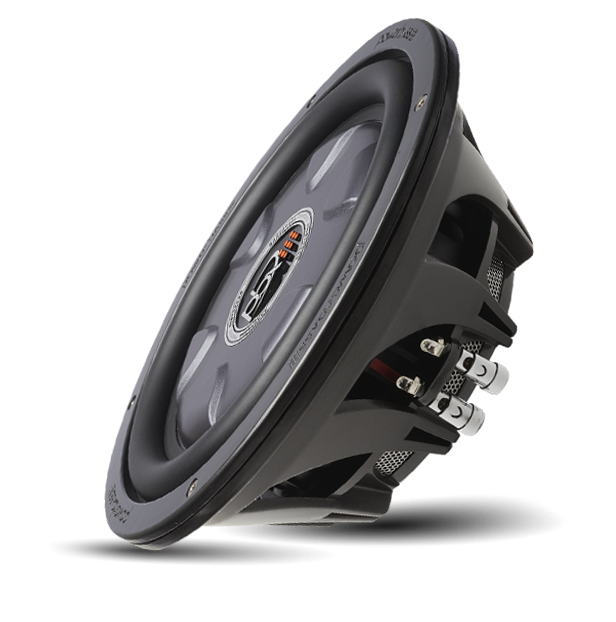

PowerBass XL-1040TD 10" DVC Shallow Mount Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 350 W
- Voice-coil options: D4
- Mounting depth: 3.4 in
- Voice-coil diameter: 2 in
- Cone material: Injection molded Polypropylene
PowerBass XL-1040TD 10" DVC Shallow Mount Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The PowerBass XL-1040TD is a 10-inch DVC shallow-mount subwoofer for car audio installations where space behind the woofer is limited. Its 3.4-inch mounting depth, flat polypropylene cone, and design for small sealed enclosures make it an option for adding bass in a compact setup.
Key Features & Benefits
- Shallow-mount design: The 3.4-inch mounting depth helps accommodate installations with limited clearance.
- Small sealed-enclosure design: It is intended for compact sealed enclosures.
- Dual 4-ohm voice coils: The DVC configuration gives you two voice coils to account for when planning your system.
- Power handling: Its 350-watt RMS and 700-watt maximum ratings help you match the subwoofer with a suitable amplifier.
- Cooling features: Perimeter Aero-Vent cooling vents and a vented voice coil design support cooling during operation.
- Flat cone and basket: The injection-molded polypropylene cone and polycarbonate/glass fiber basket are distinctive parts of the XL-1040TD’s construction.
Technical Specifications
| Brand and model | PowerBass XL-1040TD |
|---|---|
| Product type | 10" DVC shallow mount subwoofer |
| Power handling | 350 Watts RMS / 700 Watts Max |
| Voice coils | Dual 4-ohm voice coils |
| Voice coil former | 2.0" KSV |
| Terminals | Chrome push terminals |
| Cone | Proprietary single-piece injection-molded flat polypropylene cone |
| Surround | High Roll Santoprene |
| Basket | Turbine-style, proprietary non-resonance polycarbonate/glass fiber basket |
| Cooling | Perimeter Aero-Vent voice coil cooling vents; vented coil cooling |
| Magnet | 116 oz |
| Frequency response | 35 Hz – 500 Hz |
| Sensitivity | 82.9 dB (1W/1M) |
| Recommended enclosure type | Small sealed enclosure |
| Cutout diameter | 9 5/16" |
| Mounting depth | 3.4" |
| Compared with standard XL counterparts | Nearly 2" shorter |
Why Choose This Product?
The XL-1040TD combines a shallow profile with a 10-inch woofer and dual 4-ohm voice coils. Its flat cone and turbine-style basket distinguish its construction, while the small sealed-enclosure design suits setups where a larger enclosure is not practical.
Installation & Compatibility Notes
Allow for a 9 5/16-inch cutout diameter and 3.4 inches of mounting depth. The subwoofer is designed for a small sealed enclosure; confirm available space and enclosure requirements for your installation before choosing a location.
Account for both 4-ohm voice coils when planning the amplifier and system connections. The product details do not specify a wiring configuration.
Frequently Asked Questions
How much mounting space does the XL-1040TD need?
It has a 3.4-inch mounting depth and requires a 9 5/16-inch cutout diameter.
What enclosure type is this subwoofer designed for?
The XL-1040TD is designed for a small sealed enclosure.
What does DVC mean for this subwoofer?
DVC means it has two voice coils. Each coil is rated at 4 ohms.
What are its power-handling ratings?
The stated ratings are 350 Watts RMS and 700 Watts Max.
Explore More
Shop for the PowerBass XL-1040TD at 12 Volt Outlet. Want to learn more about PowerBass? Explore our PowerBass brand profile.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
