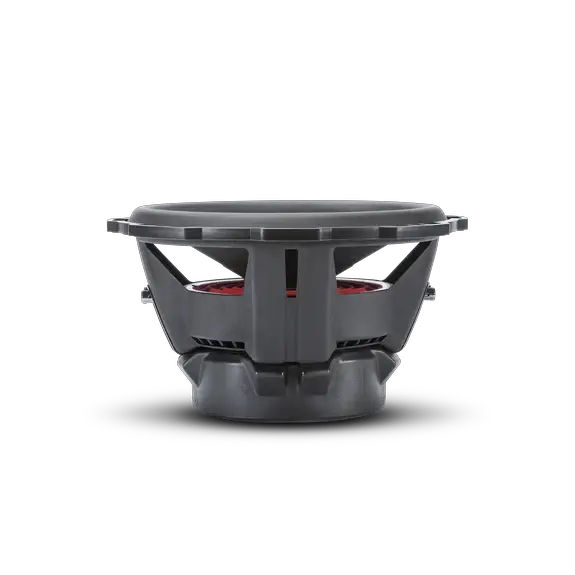

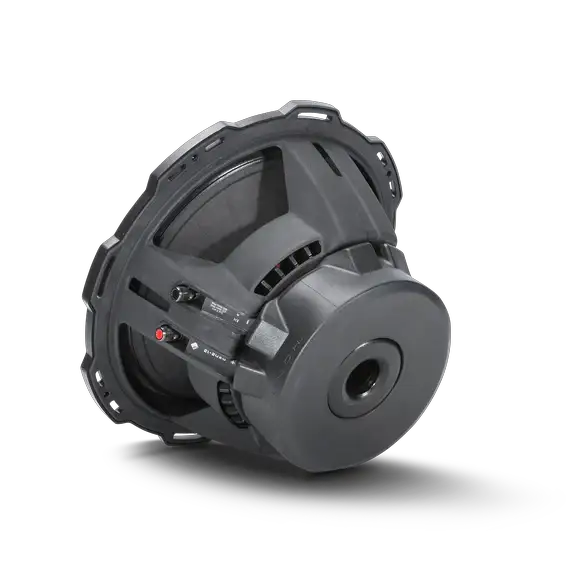

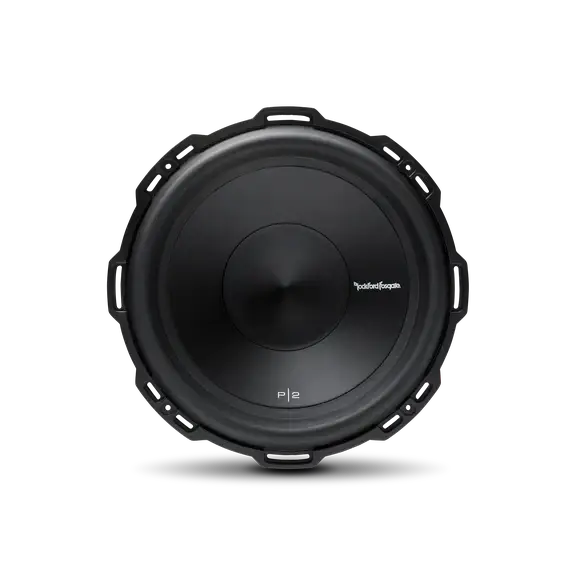

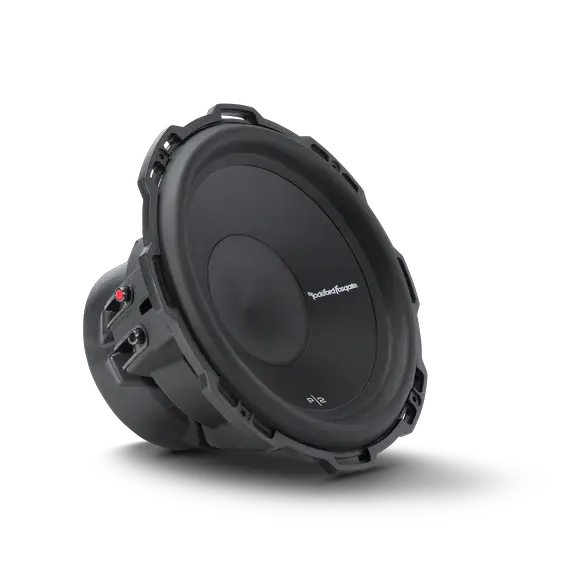

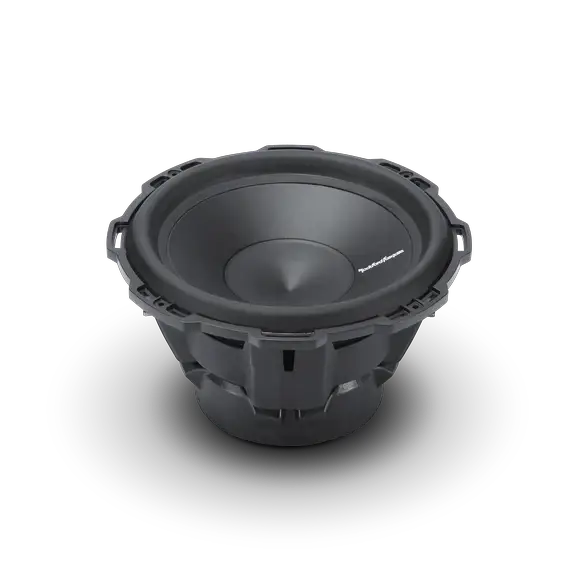

Rockford Fosgate Punch P2 Series 12" Subwoofer

The Rockford Fosgate Punch P2 12" Subwoofer is a dual-voice-coil 12-inch driver built for serious car audio installs, delivering bass impact with a Kevlar-fiber reinforced paper cone and VAST technology that increases cone surface area by up to 25%. It is designed for standard sealed or vented enclosures and includes a diamond cut cast aluminum trim ring with an optional grille insert for a premium finish.

• Dual voice coils (Dual 2-Ohm / Dual 4-Ohm): Flexible wiring options to match your amplifier and achieve the desired impedance for power delivery.
• Power handling: 400 Watts RMS / 800 Watts Max for solid continuous output with headroom for peak bass.
• Kevlar fiber reinforced paper cone: High stiffness and durability for controlled motion and accurate bass under high excursion.
• VAST technology: up to 25% more cone area: More surface area translates to greater bass output in the same enclosure size.
• High-temp voice coil with Nomex reinforcement collar: Enhanced thermal handling to sustain performance during demanding playback.
• Dual linear spider with embedded 16 AWG tinsel leads: Maintains linear movement and reliable electrical connections during heavy excursion.
• StampCast basket with integrated spider venting: Rigid chassis and venting reduce distortion and heat buildup at high power.

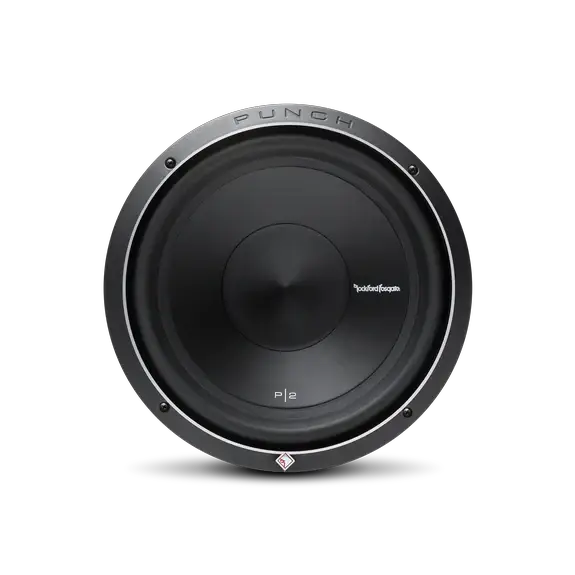

• Diamond cut cast aluminum trim ring: Premium finish and secure mounting; optional grille for protection and aesthetics.
• Enclosure compatibility: Sealed 1.02 cu ft (28.8 L) or vented 1.79 cu ft (50.6 L) recommended for this driver.
• Physical fit: Cutout diameter 11.22 in (285 mm); mounting depth 6.40 in (162 mm).
• Performance benchmarks: SPL 86 dB @ 1W/1m; Xmax 13.3 mm; Vas 81.5 L; Sd 570 cm².
• Compliance and warranty: CEA-2031 compliant; 1 Year Warranty.

Benefits: In a typical build, pair this 12" sub with a capable amplifier up to 400W RMS and choose a sealed (1.02 cu ft) or vented (1.79 cu ft) enclosure to balance depth and enclosure size. The dual impedance options and robust mechanical structure support reliable, high‑excursion bass, while the Kevlar cone, Nomex‑reinforced coil, spider assembly, and StampCast basket provide durable, repeatable performance. The VAST cone-area boost helps extract more bass from a compact enclosure, and the diamond trim ring with an optional grille offers a premium install finish.
