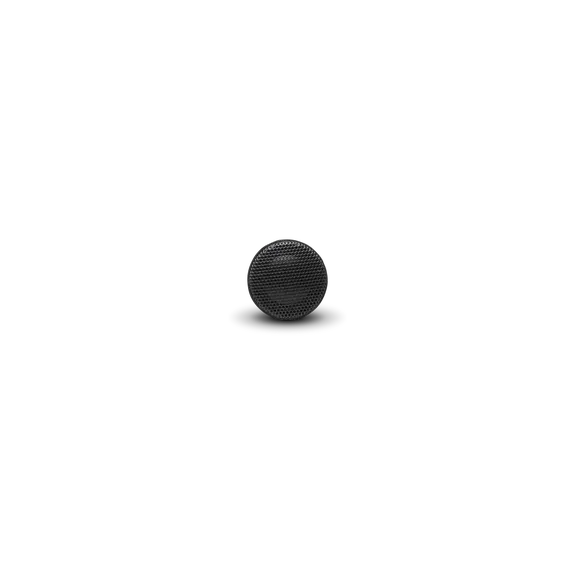

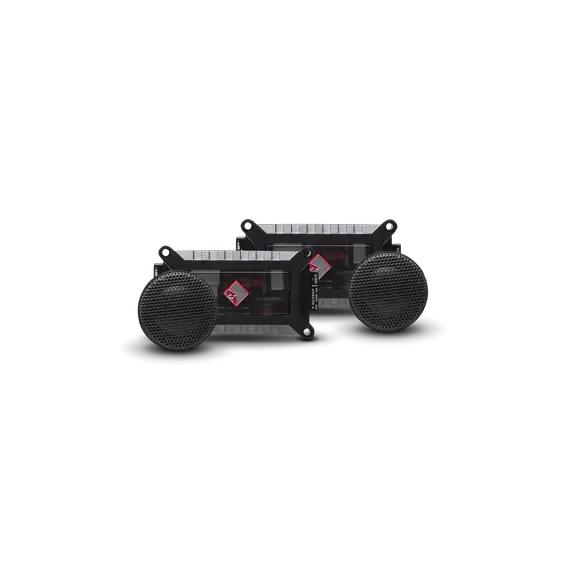

Rockford Fosgate Punch Series T1T-S 1" Tweeters
Key features
- Speaker size: 1″
- RMS power per speaker: 75 W
- Speaker impedance: 4.0 ohms
- Frequency response: 3–22 kHz
- Sensitivity: 90 dB (1 W/1 m)
- Flush-mount depth: 0.91 inches
Rockford Fosgate Punch Series T1T-S 1" Tweeters is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch Series T1T-S 1" Tweeters is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add dedicated high-frequency detail to your car audio system with the Rockford Fosgate Punch Series T1T-S 1" tweeters. Each pair combines a treated fabric dome neo-tweeter with an external crossover, for a component-system upgrade with a specified 3.0 kHz high-pass filter.
Key Features & Benefits
- Treated fabric dome: The 1.0" dome and integral suspension are designed for smooth, controlled high-frequency response.
- External crossover: High-frequency filtering takes place outside the tweeter, with high-quality passive components.
- On- and off-axis configuration: The tweeter design supports consistent highs from different listening angles.
- Recessed mounting: A standard 1-3/4" hole saw is specified for the mounting opening.

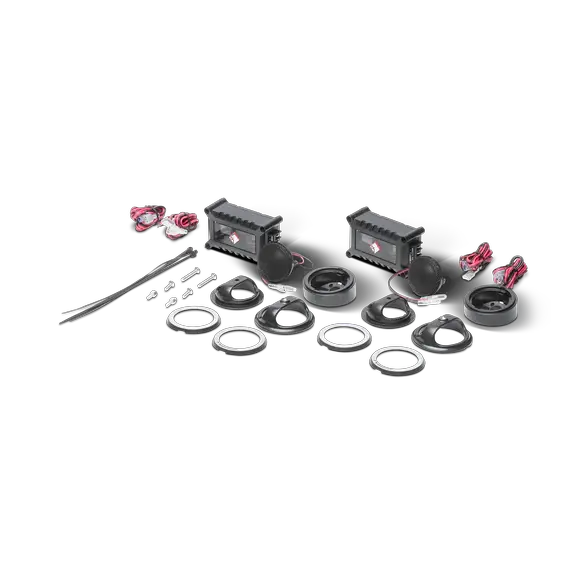

- Pair with grille and trim ring: Two tweeters and a grille/trim ring are included for a coordinated installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand and series | Rockford Fosgate Punch Series |
| Model | T1T-S |
| Tweeter size | 1.0" (25.4 mm) nominal diameter |
| Frequency response | 3kHz - 22kHz |
| Crossover high-pass | 3.0kHz @ 18dB/octave Butterworth |
| Sensitivity | 90 dB @ 1W/1M |
| Power handling (RMS/Max) | 75 Watts RMS / 150 Watts Max |
| Crossover components | 5% tolerance high quality poly-capacitors and air-core inductors |
| Mounting | Recessed tweeter mount; uses a standard 1-3/4" hole saw |
| Configuration | On-axis/off-axis tweeter configuration |
| Quantity | Sold in pairs; includes two tweeters |
| Grille/trim ring | Included |
| Standard | CEA-2031 Compliant |
| Warranty | 1 Year Warranty |
| Shipping weight | 1.6 Lbs. (0.72 Kg.) |
Why Choose This Product?
The T1T-S is designed for a component-based car audio system that needs a dedicated high-frequency driver. Its treated fabric dome, external crossover, and stated on-axis/off-axis configuration focus the design on adding highs while maintaining detail across listening angles.
The crossover’s 3.0 kHz high-pass point and 18dB/octave Butterworth slope define its filtering specification. The stated RMS and maximum power ratings help you compare the tweeters with your system’s amplification.
Installation & Compatibility Notes
The recessed mount uses a standard 1-3/4" hole saw. Check the available mounting space and opening location before cutting your vehicle’s panels.
When planning the system, compare the 75 Watts RMS rating with the amplifier’s output and account for the specified crossover. The product details identify an external crossover design but do not state its mounting dimensions.
Frequently Asked Questions
How many tweeters are included?
The T1T-S is sold as a pair and includes two tweeters.
What is the crossover high-pass specification?
It is rated at 3.0kHz @ 18dB/octave Butterworth.
What power handling is listed?
The listed rating is 75 Watts RMS / 150 Watts Max.
What mounting opening does the recessed tweeter use?
The specified opening uses a standard 1-3/4" hole saw. Check the mounting location and available space before installation.
Does the product include a grille or trim ring?
Yes. A grille/trim ring is listed as included.
