SoundQubed HDX Series Pro Audio 10" Speaker (each)

SoundQubed PA10M-8 — 10" Pro Audio Midrange | 500W RMS | 97 dB | 68 oz Ferrite Motor | 8Ω | Sold Single

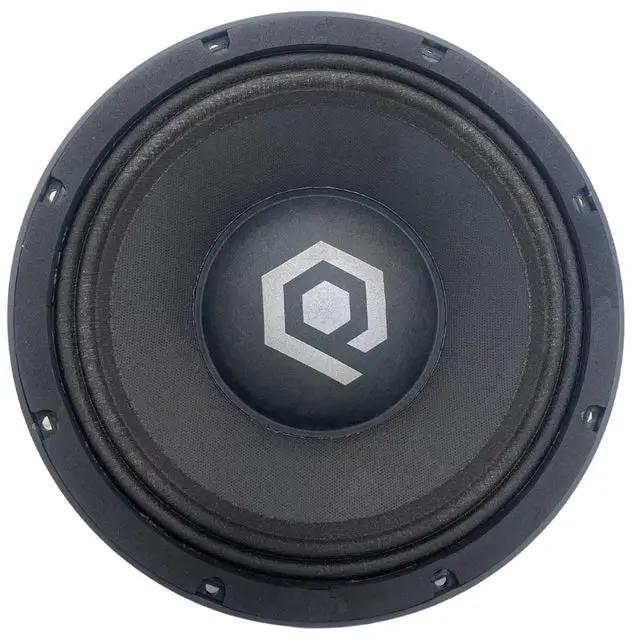

The SoundQubed PA10M-8 is a purpose-built 10" pro audio midrange driver engineered for competition car audio, high-output daily drivers, and any build where maximum midbass and midrange output is the priority. Featuring a non-pressed paper cone, cloth surround, a massive 68 oz ferrite magnet, a 2.5" / 65.5mm Japan SV voice coil on a USA glass fiber former, and an aluminum basket, the PA10M-8 delivers 500W RMS / 1000W max at 97 dB sensitivity with a frequency response of 40 Hz–5 kHz at 8Ω. Sold as a single speaker — order the quantity you need for your build.

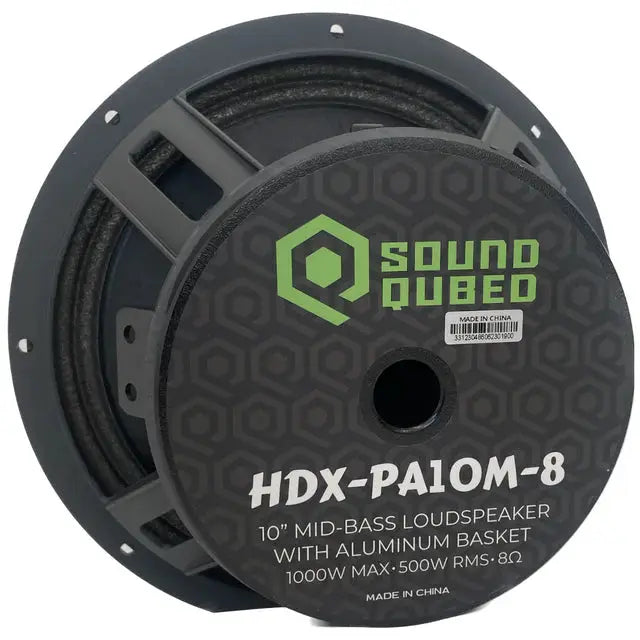

The PA10M-8’s 68 oz ferrite motor is a serious piece of hardware — delivering the thermal mass and sustained power handling needed for competition-level output at 500W RMS continuous. The 11mm one-way Xmax gives this driver exceptional linear excursion capability for a 10" midrange, allowing it to move massive amounts of air at high output levels without distortion. With a Qts of 0.51 and Fs of 80 Hz, the PA10M-8 is optimized for use with a high-pass crossover at 80 Hz — keeping it in its optimal midbass and midrange operating range. The Japan SV winding on a USA glass fiber former reflects the premium materials used throughout this driver.

Whether you’re building a competition SPL or SQL system, a high-output bagger build, or a multi-driver pro audio front stage, the PA10M-8 is the 10" midrange that delivers the output and durability to compete at the highest level.

Why Choose the SoundQubed PA10M-8?

• 500W RMS / 1000W MAX @ 8Ω — Pro-grade power handling in a 10" midrange — built for the highest-output competition and demo builds.
• 97 dB Sensitivity (1W/1m) — Exceptionally high efficiency — delivers massive output with relatively modest amplification.
• 68 oz Ferrite Motor — Massive motor for sustained high-power performance — the thermal mass to handle 500W RMS continuously without compression.
• 11mm One-Way Xmax — Exceptional linear excursion for a 10" midrange — moves serious air at high output without distortion or mechanical failure.
• 2.5" Japan SV Voice Coil on USA Glass Fiber Former — Premium winding material on a rigid, thermally stable former — handles sustained high-power use without thermal compression.
• Non-Pressed Paper Cone — Low-mass, natural-sounding cone material for fast transient response and detailed midrange reproduction at high output levels.
• Aluminum Basket — Rigid, resonance-free basket construction — pro audio grade in a car audio package.
• 8Ω Impedance — Ideal for high-power pro audio amplifier configurations — verify your amplifier is stable at 8Ω before purchasing.

Installation & Pairing Recommendations

Crossover Configuration: The PA10M-8 is a dedicated midrange driver — always use a high-pass crossover set at 80 Hz minimum to protect the driver and keep it operating in its optimal range. For competition and high-output builds, use an active crossover or DSP to set precise HPF and LPF crossover points. A band-pass configuration (80 Hz HPF / 3–5 kHz LPF) is recommended for maximum output and driver protection.

Amplifier Pairing: The PA10M-8 handles 500W RMS at 8Ω. Use a dedicated amplifier channel rated for at least 300–500W RMS at 8Ω. Verify your amplifier’s 8Ω power rating before purchasing — many car audio amplifiers are rated at 4Ω or 2Ω and may produce significantly less power at 8Ω.

Enclosure: The PA10M-8 has a Vas of 21.48L / 0.75ft³ and Fs of 80 Hz — it is designed for open-baffle or large sealed enclosure use as a midrange driver. Do not use in a ported enclosure tuned below 80 Hz. For competition builds, consult your system tuner for optimal enclosure and crossover configuration.

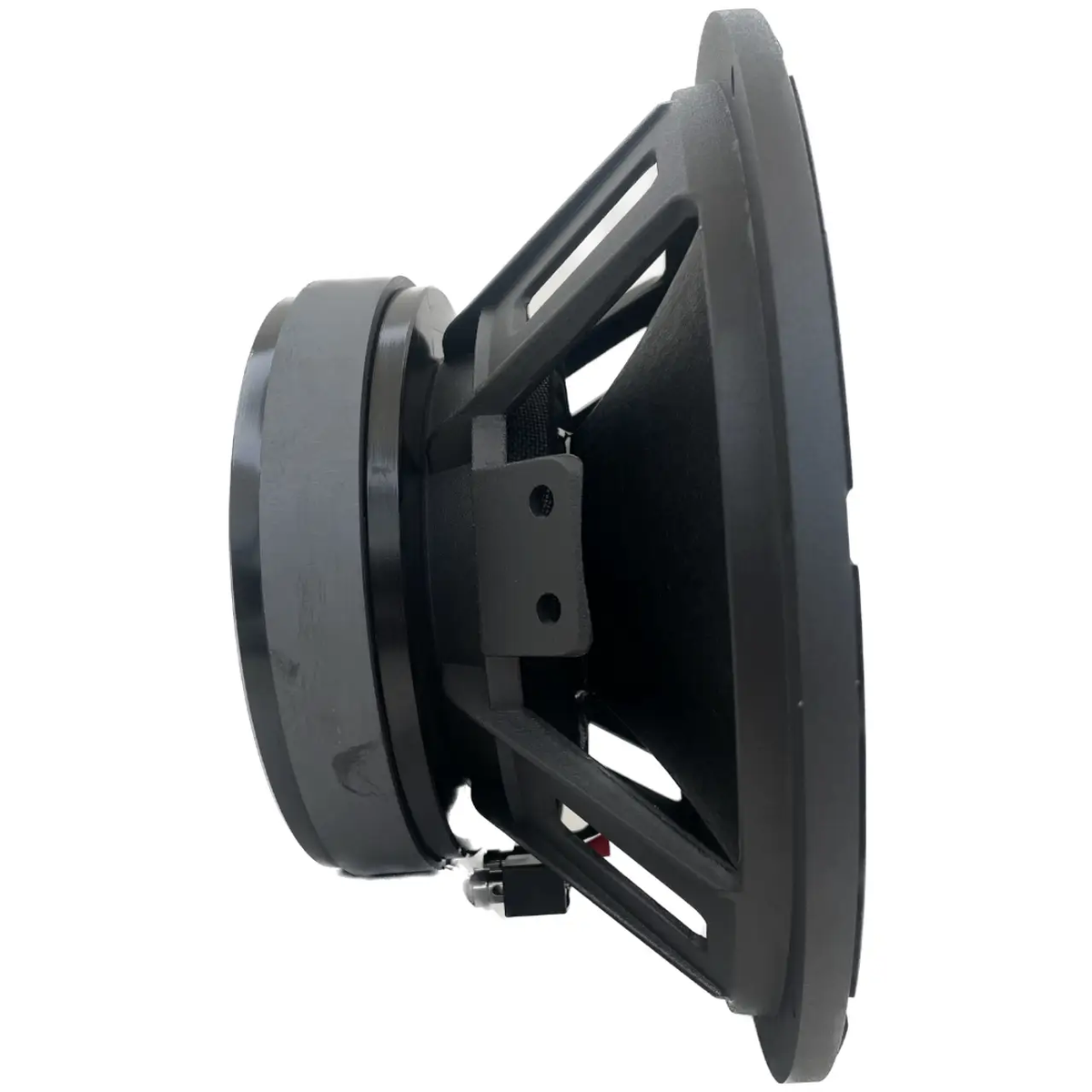

Mounting: The PA10M-8 requires a 9.17" / 233mm baffle cutout and 4.13" / 104.8mm mounting depth. Overall diameter is 10.3" / 261.5mm, overall depth is 4.46" / 133.4mm. Motor diameter is 6.3" / 160mm. Verify your mounting location provides adequate depth clearance before purchasing.

Full Specifications

General

Motor Specifications

Thiele & Small Parameters

Speaker Measurements

Frequently Asked Questions

Q: Is the PA10M-8 a subwoofer or a midrange driver?
A: It’s a dedicated pro audio midrange driver — not a subwoofer. Its frequency response of 40 Hz–5 kHz and Fs of 80 Hz make it ideal for midbass and midrange duty in a high-output system. Always use a high-pass crossover at 80 Hz minimum and a low-pass crossover at 3–5 kHz to keep it in its optimal operating range.

Q: Why is the PA10M-8 rated at 8Ω instead of 4Ω?
A: The PA10M-8 uses an 8Ω voice coil — standard for pro audio drivers. This allows multiple drivers to be wired in parallel to achieve a 4Ω load, or used individually at 8Ω with a pro audio amplifier. Verify your amplifier’s 8Ω power rating before purchasing.

Q: What amplifier should I pair with the PA10M-8?
A: The PA10M-8 handles 500W RMS at 8Ω. Use a dedicated amplifier channel rated for at least 300–500W RMS at 8Ω. Many car audio amplifiers produce significantly less power at 8Ω than at 4Ω — check your amplifier’s 8Ω spec before purchasing.

Q: Is this sold as a pair or single?
A: The PA10M-8 is sold as a single speaker. Order quantity two for a stereo pair.
