PRV Audio | SKU: 8MR500SEAL PRO

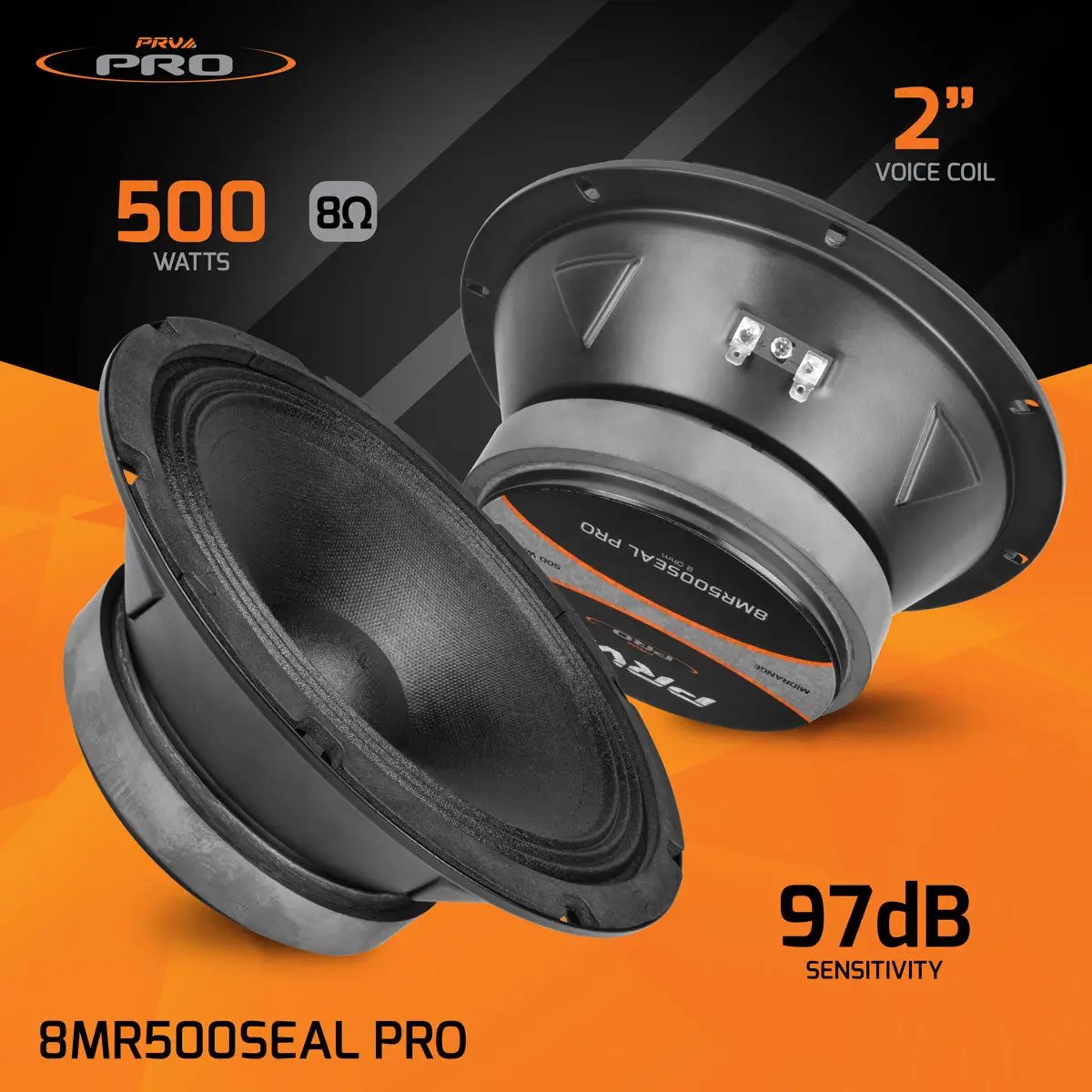

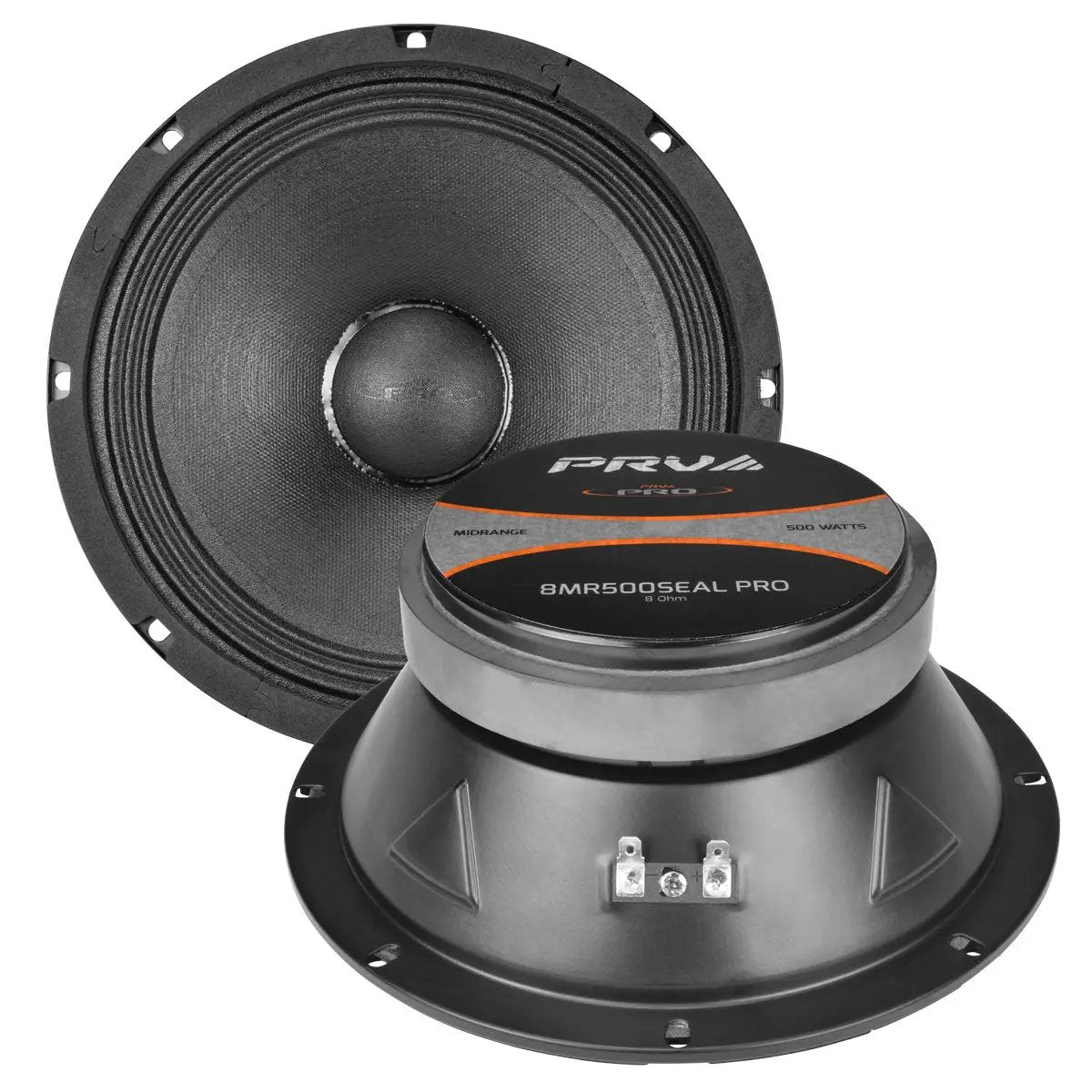

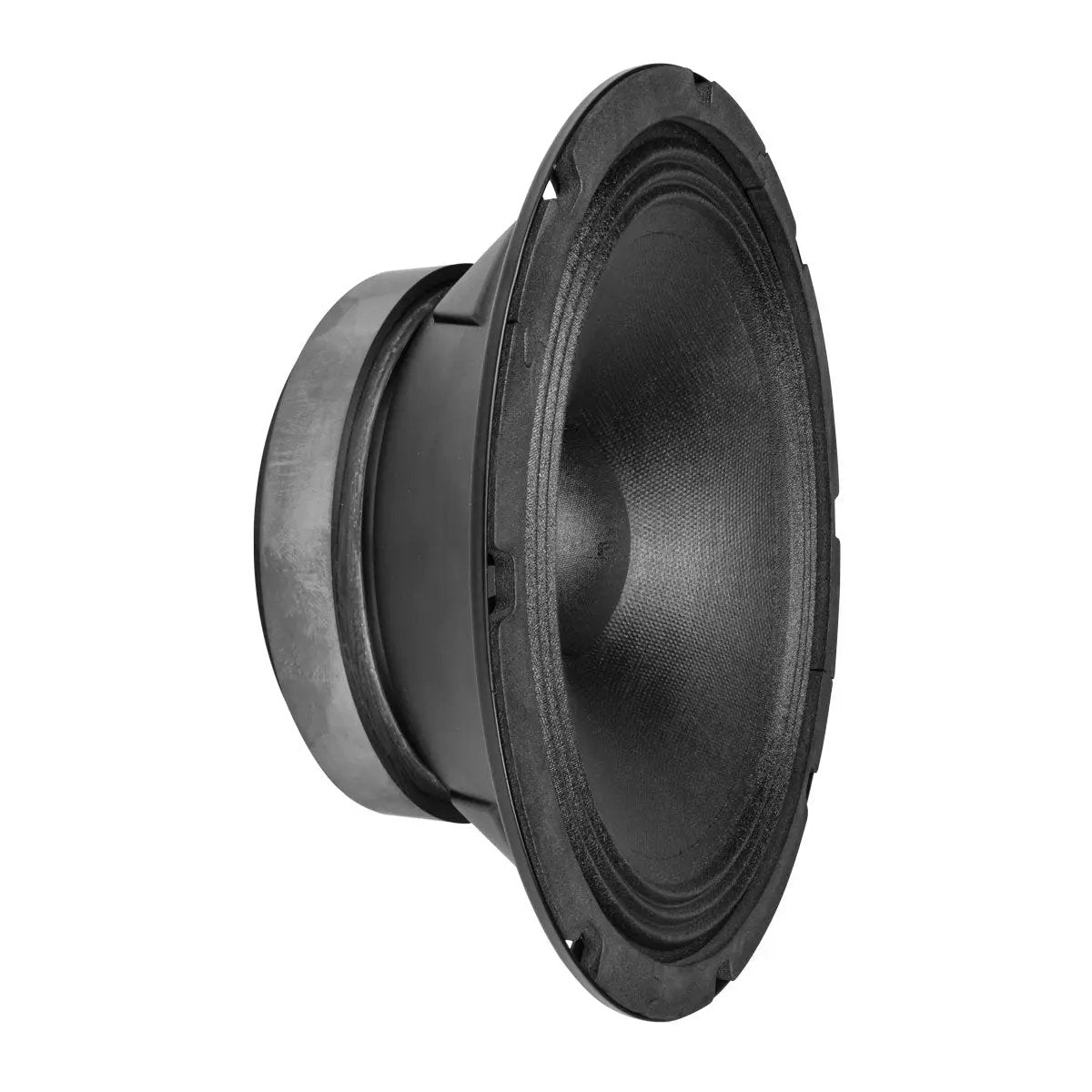

PRV Audio 8MR500SEAL PRO 8" Midrange Speaker, 8 Ohm

$64.91

Shipping calculated at checkout.

Key features

Speaker size: 8″
RMS power per speaker: 250 W
Available impedance: 8 Ohm
Mounting depth: 3.09″ (78.5 mm)
Frequency response (-10 dB): 400 - 9,000 Hz
Sensitivity: 97 dB (2.83 V / 1 m)

Impedance

8 Ohm

Description

Product Overview

The PRV Audio 8MR500SEAL PRO is an 8-inch midrange speaker with an 8-ohm nominal impedance. Its sealed basket isolates the cone from pressure inside a shared enclosure, making enclosure design an important part of planning your installation.

Key Features & Benefits

Sealed basket: Isolates the cone from pressure inside a shared enclosure.
8-inch midrange: Provides a dedicated speaker size for midrange audio applications.
97 dB sensitivity: The listed sensitivity is measured at 2.83 V at 1 m.
Stamped steel frame: Offers a defined frame material to consider when planning the installation.
Single-speaker listing: The price is per unit, so you can plan your quantity accordingly.

Technical Specifications

Specification	Value
Model	8MR500SEAL PRO
Sold as	Single speaker
Nominal impedance	8 Ohm
Nominal Power Handling	250 Watts
Continuous Program Power (RMS)	500 Watts
Max Peak Power	1000 Watts
Sensitivity 2.83V at 1m	97 dB
Frequency Response at -10DB	400 - 9,000 Hz
Frame Material	Stamped Steel
Overall Diameter	8.26" (209.7 mm)
Front Mount Baffle Cutout	7.20" (183 mm)
Mounting Depth	3.09" (78.5 mm)

Why Choose This Product?

The 8MR500SEAL PRO combines an 8-inch format with a sealed basket designed to isolate the cone from pressure inside a shared enclosure. Its listed sensitivity, frequency response, and distinct power ratings help you compare it with the requirements of your audio system.

Installation & Compatibility Notes

Check the 8.26-inch overall diameter, 7.20-inch front mount baffle cutout, and 3.09-inch mounting depth against your available space. Check mounting dimensions and crossover requirements before installation. The speaker has an 8-ohm nominal impedance.

Frequently Asked Questions

How many speakers are included?

This listing includes one speaker, and the listed price is per unit.

What is the nominal impedance?

The nominal impedance is 8 Ohm. Check that your system is suitable for this load.

What do the power ratings mean?

The listed ratings are 250 Watts nominal power handling, 500 Watts continuous program power (RMS), and 1000 Watts maximum peak power. These ratings are distinct from one another.
