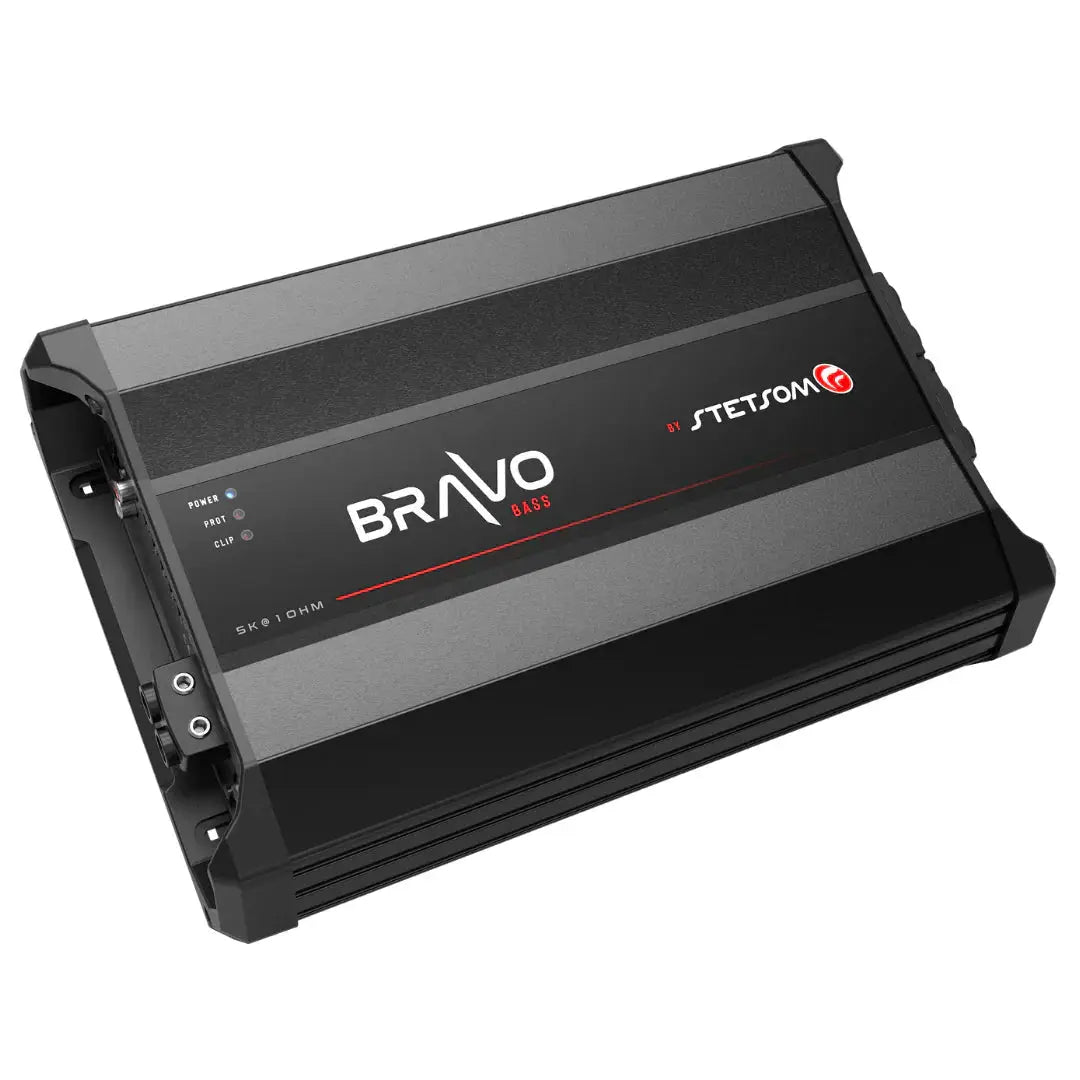

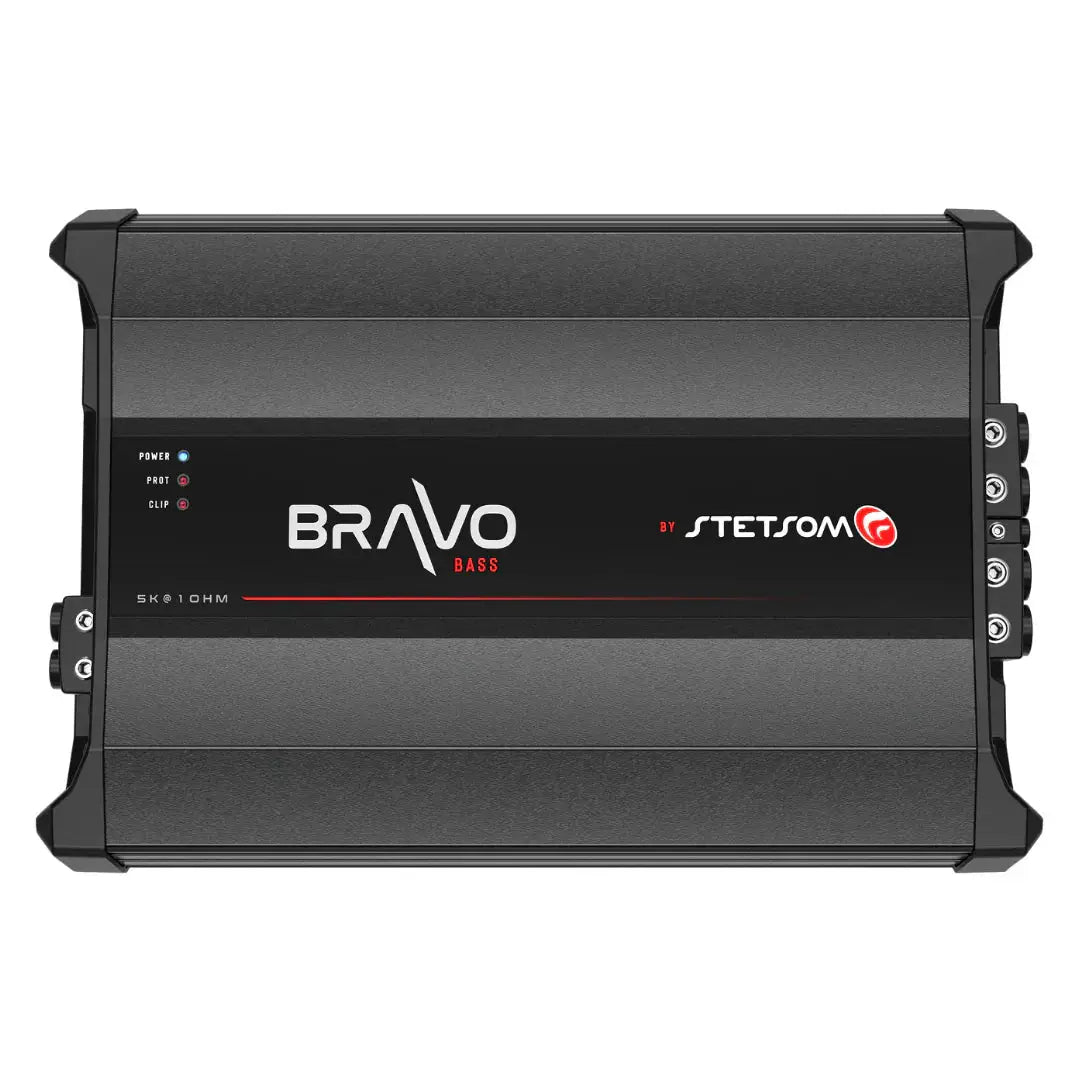

Stetsom BRAVO BASS 5K Digital Subwoofer Amplifier Mono 1 Channel Class D 5000 Watts RMS
Key features
- Amplifier channels: 1
- RMS output at 2 ohms: 2900 W
- RMS output at 1 ohm: 5200 W
- Low-pass crossover: 30–250 Hz
- High-pass crossover: 5–40 Hz
- Supply voltage: 9–17 V DC
Stetsom BRAVO BASS 5K Digital Subwoofer Amplifier Mono 1 Channel Class D 5000 Watts RMS is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring dedicated, high-output subwoofer power to your car audio system with the Stetsom BRAVO BASS 5K mono Class D amplifier. It delivers up to 5200W RMS at 1 Ohm and 14.4V, with built-in filters and bass boost for shaping low-frequency output.
Use it as the dedicated amplifier in a bass-focused installation. Its single-channel design keeps the setup centered on subwoofer power and control.
Key Features & Benefits
- Mono Class D design: One dedicated channel focuses the amplifier on subwoofer applications.
- High RMS output: The 1 Ohm rating is 5200W RMS at 14.4V; the 2 Ohm rating is 2900W RMS at 14.4V.

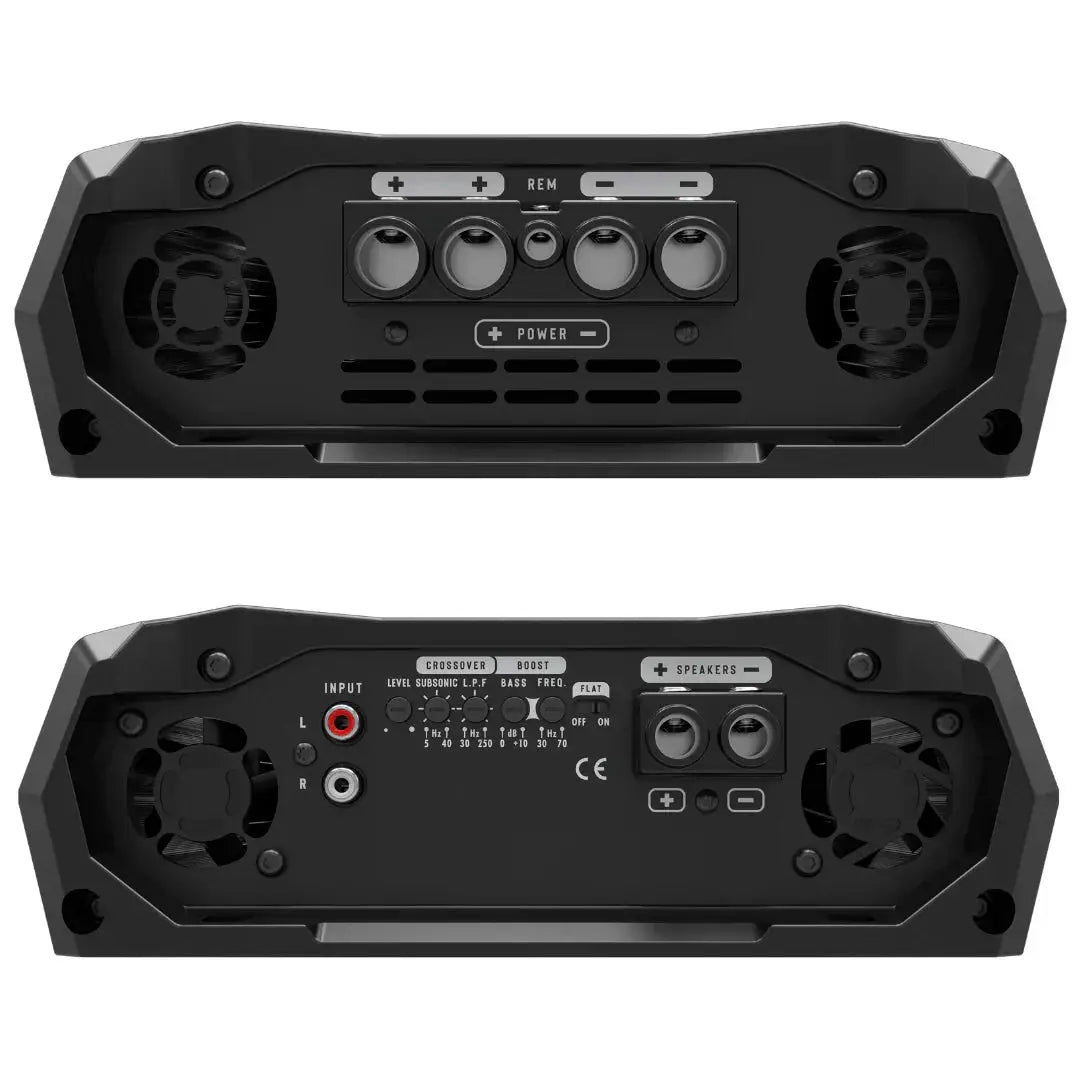

- Adjustable bass response: Low-pass and subsonic filters let you tailor the signal to your bass setup.
- Bass boost: Adjustable from 0 to +10 dB between 30 and 70 Hz for added low-end presence.
- Compact chassis: Its stated dimensions are 3.14" x 9.11" x 13.11" for installation-space planning.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | Digital subwoofer amplifier |
| Channel configuration | 1-channel mono |
| Amplifier class | Class D |
| RMS power at 1 Ohm | 5200W (14.4V) |
| RMS power at 2 Ohm | 2900W (14.4V) |
| Supply voltage | 9V ~ 17V DC |
| Frequency response (Flat On) | 5 Hz ~ 600 Hz |
| Frequency response (Flat Off) | 5 Hz ~ 250 Hz |
| Crossover low pass | 30 Hz ~ 250 Hz |
| Subsonic filter | 5 Hz ~ 40 Hz |
| Bass boost | 0 ~ +10 dB (30 Hz ~ 70 Hz) |
| Signal to noise | >90 dB |
| Input impedance | 4.8K Ohms |
| Dimensions (H x W x L) | 3.14" x 9.11" x 13.11" |
| Weight | 9.50 lbs |
| Musical consumption | 228A |
| BASS consumption | 456A |
Why Choose This Product?
The BRAVO BASS 5K combines a single subwoofer-focused channel with selectable response settings. That gives you useful control over the bass signal without adding channels intended for other speakers.
Its separate 1 Ohm and 2 Ohm power ratings help you compare the amplifier with your planned subwoofer load. The listed current consumption also gives you an important figure to consider when planning the vehicle electrical system.
Installation & Compatibility Notes
Check available mounting space against the amplifier’s 3.14" x 9.11" x 13.11" dimensions. Confirm that the planned electrical setup supports the stated 9V ~ 17V DC supply range and current consumption.
Match the connected subwoofer load to the amplifier’s listed ratings: 5200W RMS at 1 Ohm or 2900W RMS at 2 Ohm, each at 14.4V.
Frequently Asked Questions
What is the BRAVO BASS 5K’s RMS power?
It is rated at 5200W RMS at 1 Ohm and 14.4V, or 2900W RMS at 2 Ohm and 14.4V.
What do the Flat On and Flat Off frequency ranges mean?
The listed response is 5 Hz ~ 600 Hz with Flat On and 5 Hz ~ 250 Hz with Flat Off.
Can I adjust the bass signal?
Yes. The amplifier lists a 30 Hz ~ 250 Hz low-pass crossover, a 5 Hz ~ 40 Hz subsonic filter, and bass boost from 0 ~ +10 dB at 30 Hz ~ 70 Hz.
What space should I allow for installation?
The amplifier measures 3.14" x 9.11" x 13.11" (H x W x L) and weighs 9.50 lbs. Compare these measurements with your planned mounting location.
