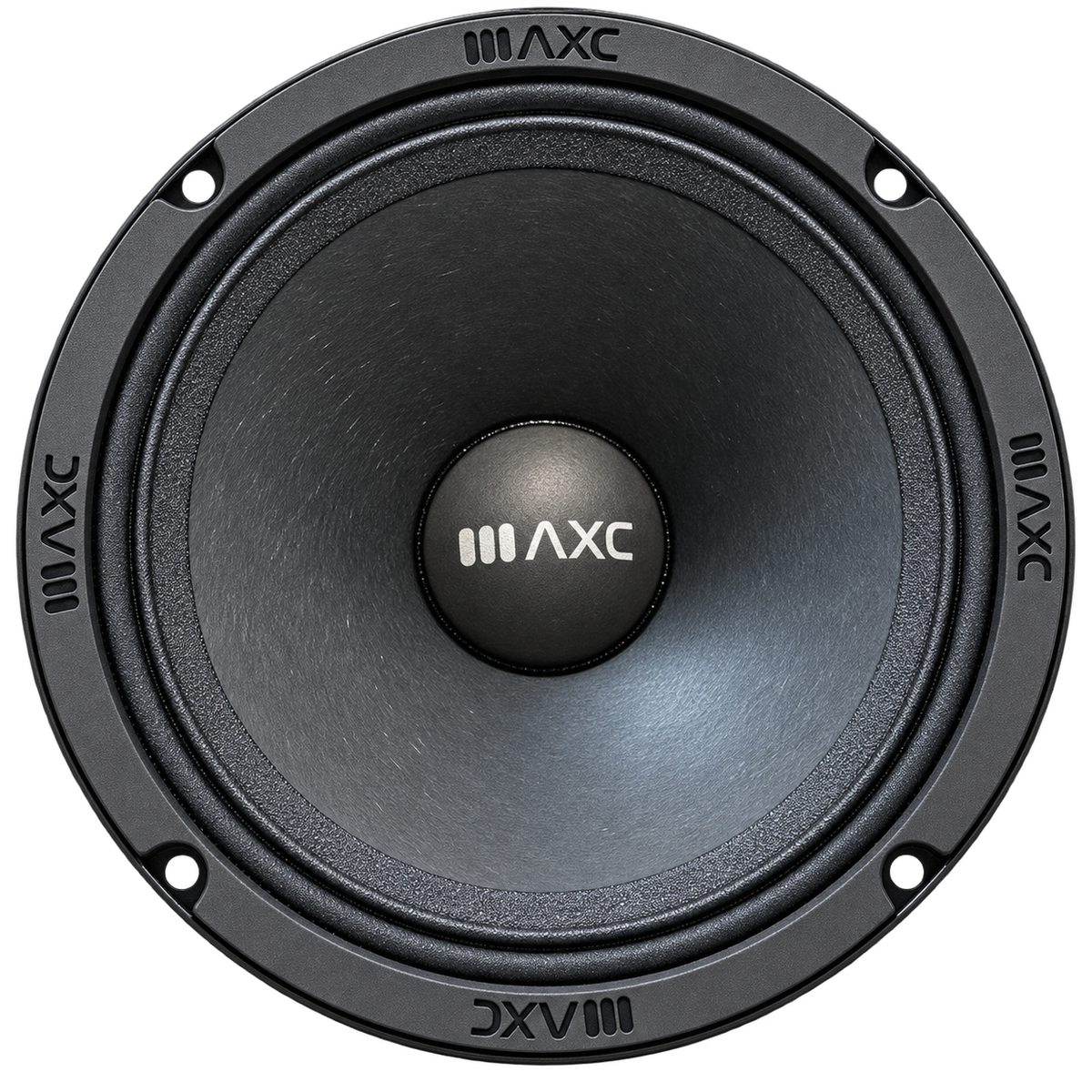

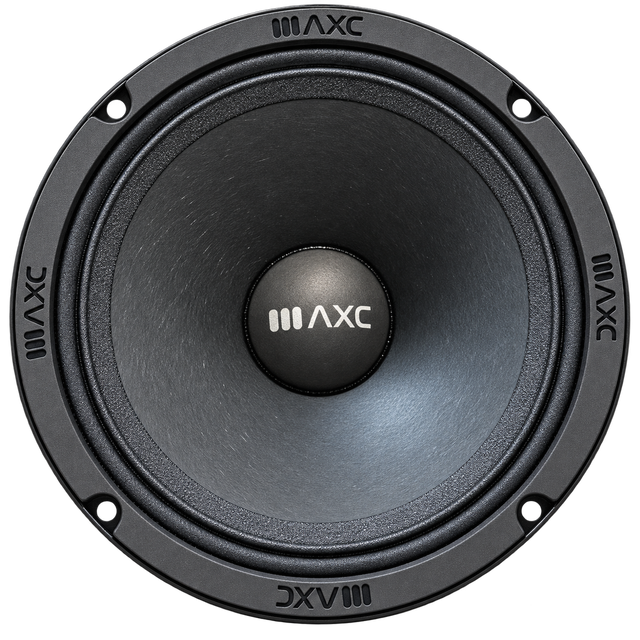

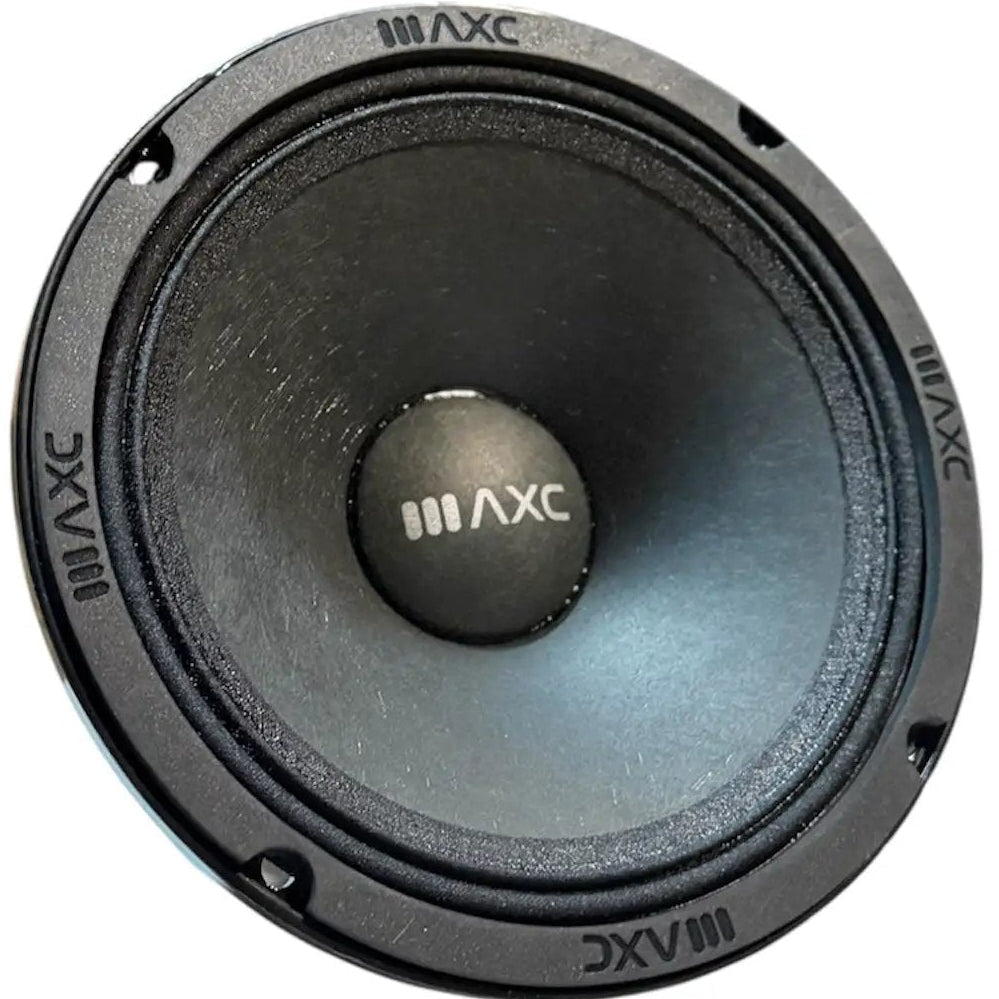

Audio Code AXC CYPHER65 6.5" Midrange Loudspeaker

Product Overview

The Audio Code AXC CYPHER65 6.5-inch midrange loudspeaker handles the central range of a multi-way car audio system. Its 300W RMS power handling and 200Hz–13kHz frequency response make it a dedicated driver for active or passive crossover setups.

Use it alongside a subwoofer and tweeter in a custom system or door pod installation. Each order includes one speaker, so order two for a stereo pair.

Key Features & Benefits

• Dedicated midrange driver: Build it into an active or passive multi-way system rather than using it as a coaxial speaker.
• 300W RMS power handling: Supports high-output system designs with a suitable amplifier channel.
• 200Hz–13kHz response: Covers the midrange band from upper bass through lower treble presence.
• 4-ohm nominal impedance: Helps you match the speaker to an amplifier channel rated for a 4-ohm load.
• 6.5-inch nominal diameter: Suits custom builds designed around standard door and pod locations.

Technical Specifications

Why Choose This Product?

The CYPHER65 is designed for system builders who want a separate midrange driver in a multi-way setup. Compared with the Audio Code AXC ZRO 6, it handles 300W RMS versus 250W RMS and has a 200Hz–13kHz response versus 100Hz–12kHz.

Its dedicated-driver design lets you plan the midrange as one part of a system with separate low- and high-frequency drivers.

Installation & Compatibility Notes

Use the CYPHER65 with an active or passive crossover. For an active three-way setup, the supplied recommendation is a high-pass setting of 200–250Hz and a low-pass setting of 4–6kHz, with a tweeter handling upper frequencies and a subwoofer handling the low end.

A dedicated amplifier channel rated at 150–300W RMS at 4 ohms is recommended. A four-channel amplifier or a DSP amplifier with active crossover capability can support this type of system; the JBL DSP4086 is one example cited for this application. Check your planned mounting location and system components before purchase.

Frequently Asked Questions

Is the AXC CYPHER65 sold as a pair?

No. Each order is for one speaker; order two for a stereo pair.

Does this midrange loudspeaker need a crossover?

Yes. Use an active or passive crossover. For the recommended active three-way setup, use a 200–250Hz high-pass and a 4–6kHz low-pass setting.

What amplifier channel is recommended?

Use a dedicated channel rated at 150–300W RMS at 4 ohms.

What other speakers are used with the CYPHER65?

In the described three-way setup, pair it with a dedicated tweeter for upper frequencies and a subwoofer for low frequencies.
