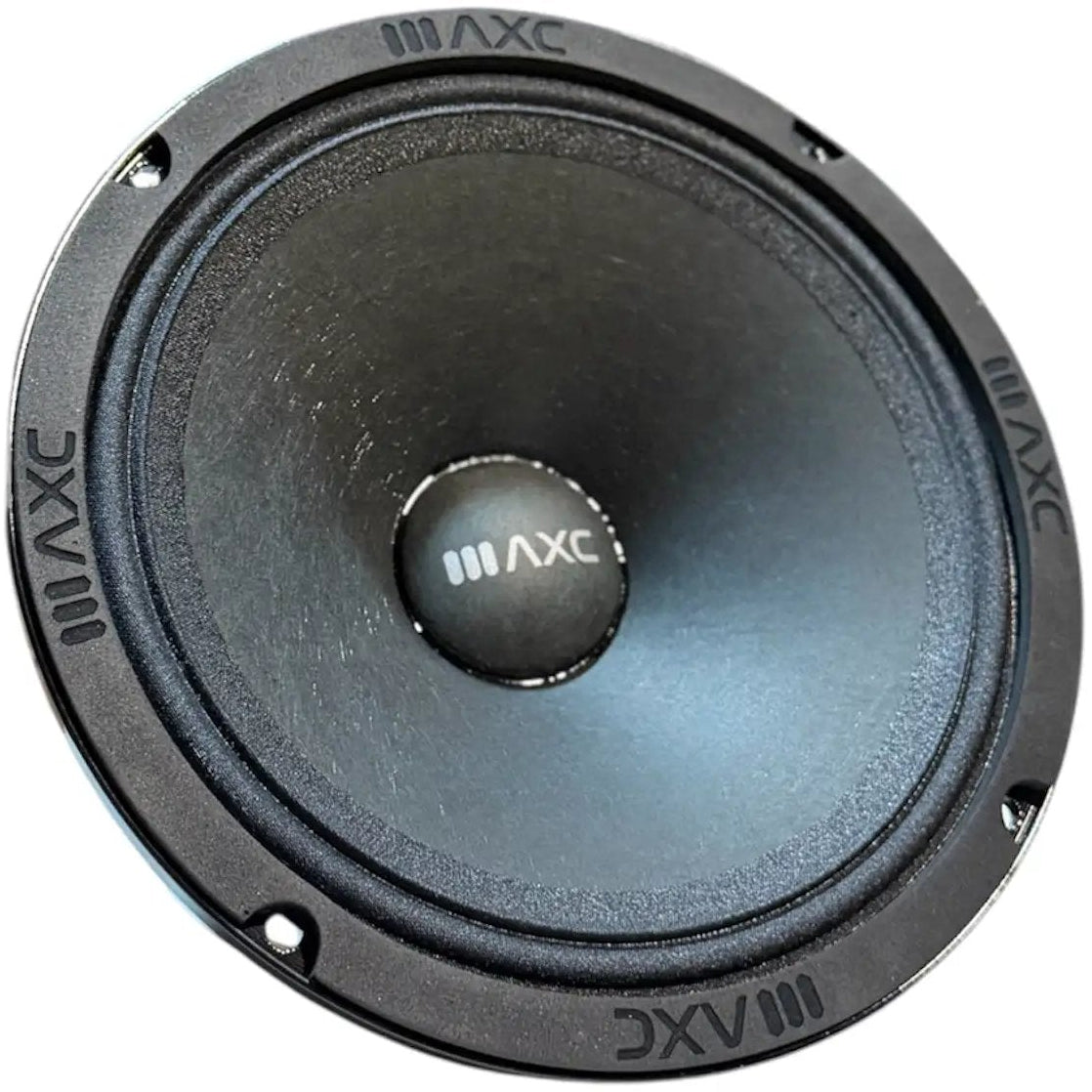

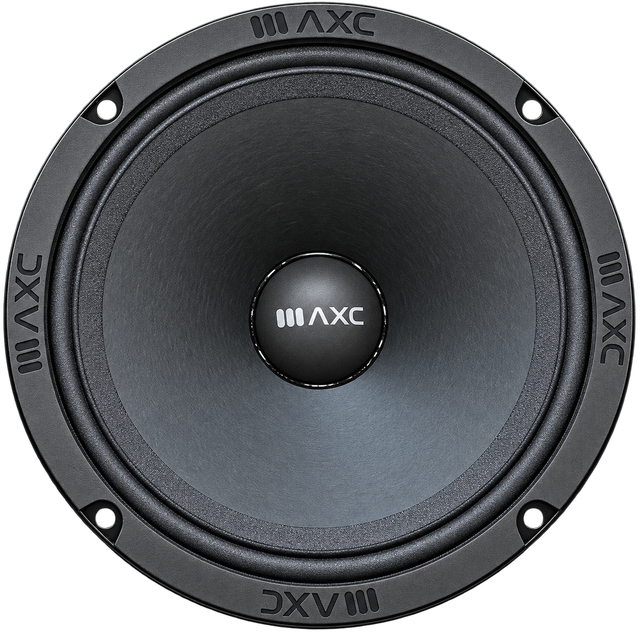

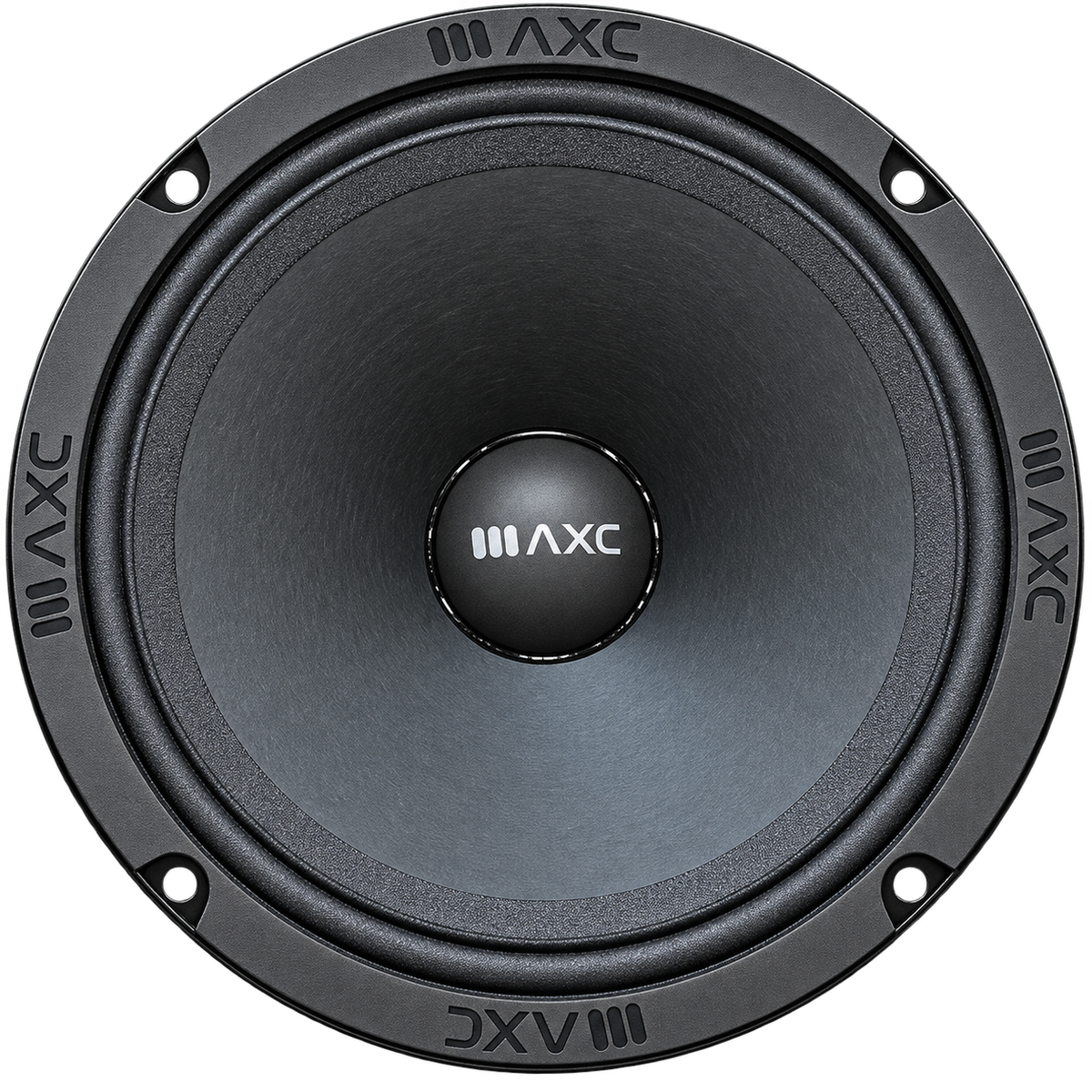

Audio Code AXC CYPHER8 8" Midrange Loudspeaker

Product Overview

Give vocals and instruments a focused place in your car audio system with the Audio Code AXC CYPHER8 8" midrange loudspeaker. Its 300W RMS power handling and 200Hz–13kHz frequency response suit active multi-way systems where a subwoofer handles lower bass frequencies.

Key Features & Benefits

• 8" nominal diameter: More cone area than 6.5" or 5.25" midrange drivers supports greater midrange output and presence.
• 300W RMS power handling: Provides a high-output option for demanding system builds.
• 200Hz–13kHz response: Focuses on the midrange band for vocals, instruments, and upper-bass presence.
• 4-ohm nominal impedance: Helps you select an amplifier channel rated for a 4-ohm load.
• Single-speaker package: Each order includes one speaker; order two for a stereo pair.

Technical Specifications

Why Choose This Product?

The AXC CYPHER8 is a dedicated midrange driver, not a coaxial speaker. It is designed to work with a subwoofer and tweeter in an active or passive multi-way system.

Compared with the Audio Code MATRIX8, the CYPHER8 has a narrower 200Hz–13kHz response rather than 100Hz–15kHz. That makes it a focused option for a three-way setup where a subwoofer covers frequencies below the midrange driver. The MATRIX8 offers broader frequency coverage.

Installation & Compatibility Notes

Use the CYPHER8 with an active or passive crossover. For an active three-way setup, the supplied guidance recommends a high-pass filter at 200–250Hz and a low-pass filter at 5–7kHz to hand off to a tweeter.

Plan for a dedicated amplifier channel rated at 150–300W RMS at 4 ohms. A DSP amplifier with active crossover capability, such as the JBL DSP4086, is one suggested signal-processing option. The 8" format is noted for custom door pods, kick panels, and enclosures; check your intended installation space before purchase.

Frequently Asked Questions

Is the AXC CYPHER8 sold individually or as a pair?

It is sold individually as one speaker. Order two for a stereo pair.

Does this midrange loudspeaker need a crossover?

Yes. Use it with an active or passive crossover. The recommended active settings are a 200–250Hz high-pass filter and a 5–7kHz low-pass filter.

What amplifier rating is recommended?

Use a dedicated amplifier channel rated at 150–300W RMS at 4 ohms.

How does it differ from the Audio Code MATRIX8?

Both are 8" dedicated midrange loudspeakers rated at 300W RMS and 4 ohms. The CYPHER8 covers 200Hz–13kHz, while the MATRIX8 covers 100Hz–15kHz.
