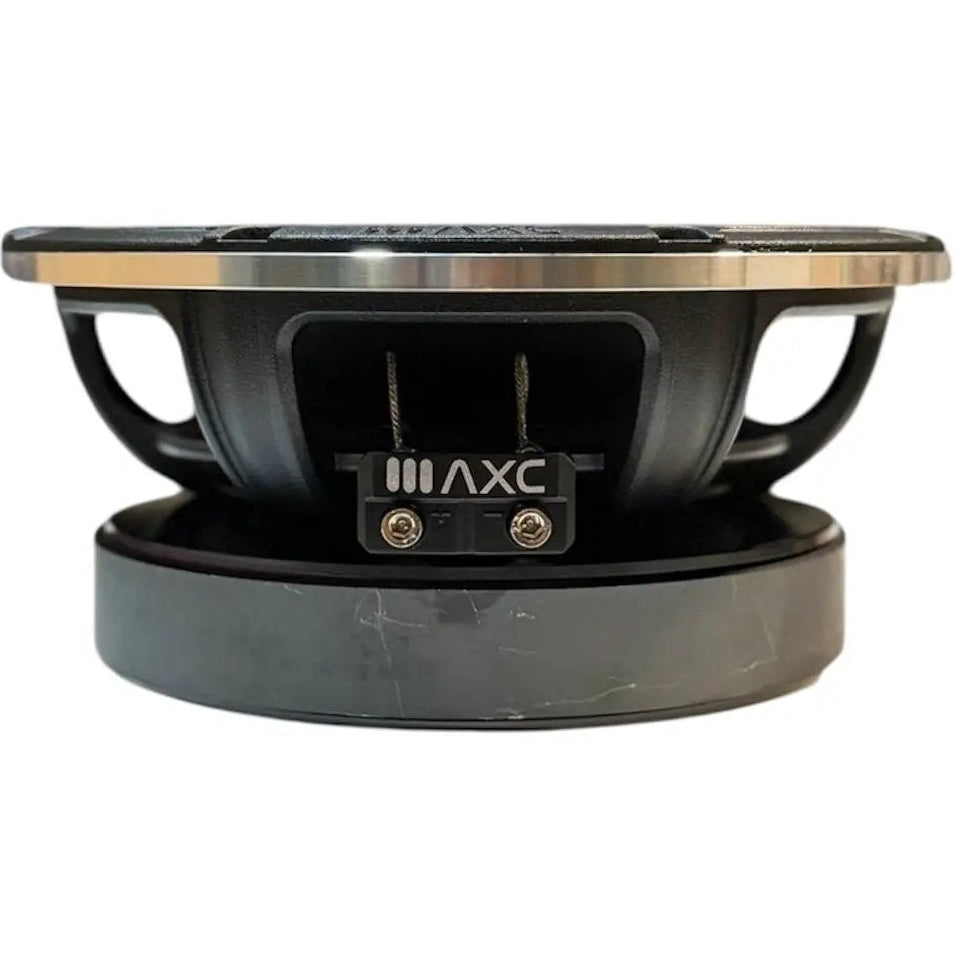

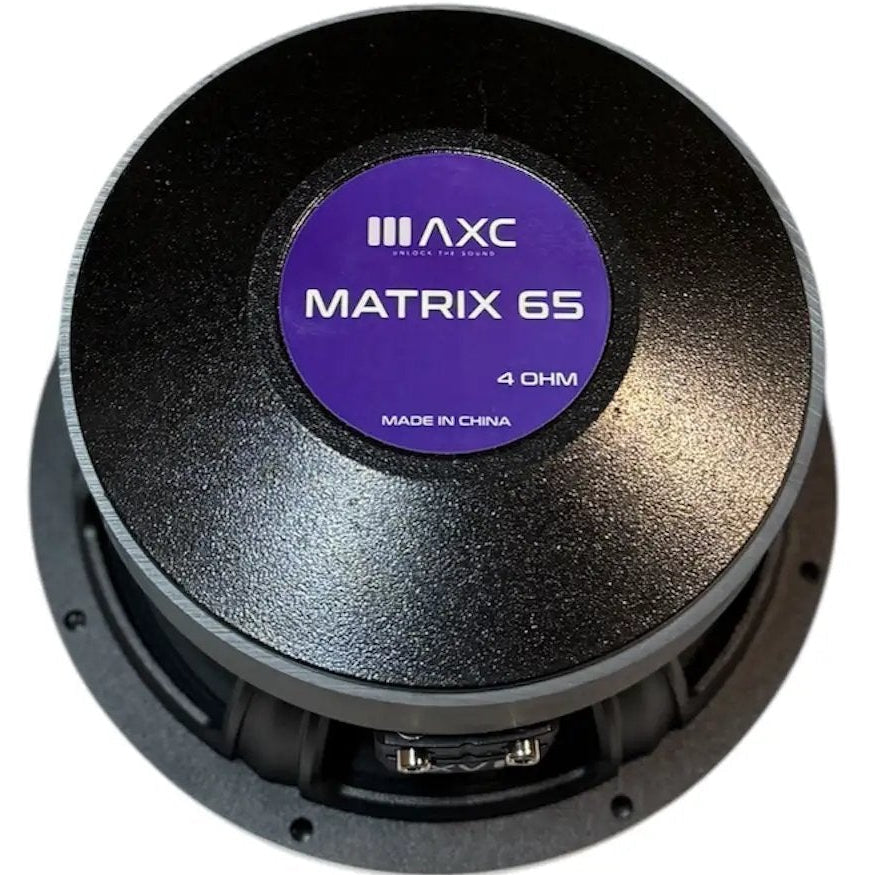

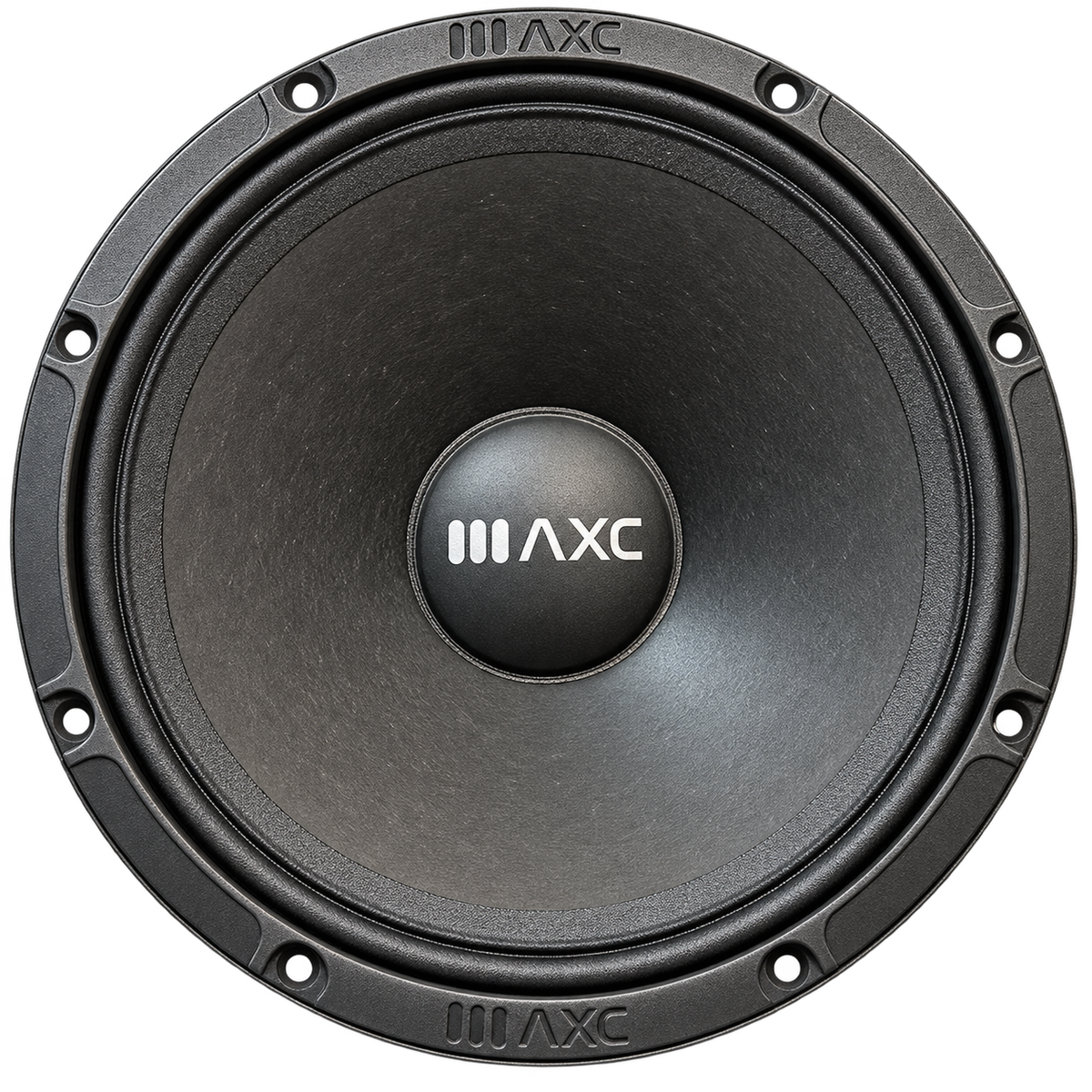

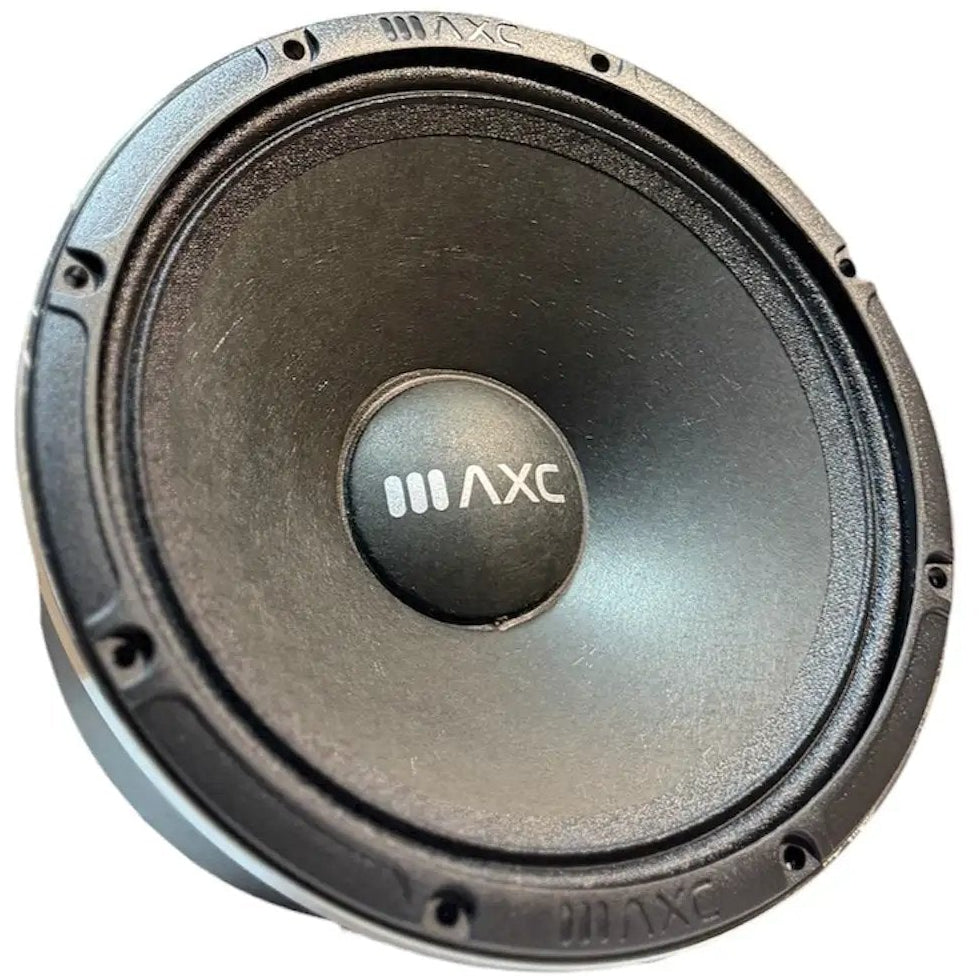

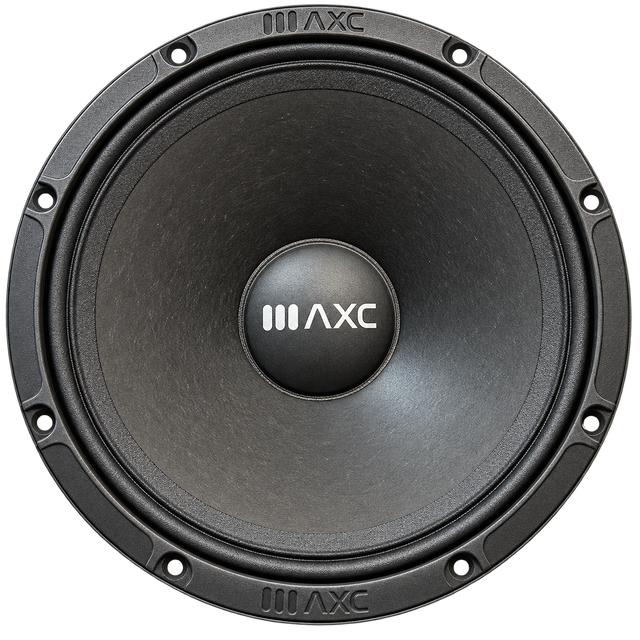

Audio Code AXC Matrix 65 6.5" Midrange Loudspeaker

Product Overview

Bring clearer, punchier midrange to your car audio system with the Audio Code AXC Matrix 65 6.5-inch midrange loudspeaker. Its 89dB sensitivity and 75W RMS power handling make it a practical choice for active multi-way systems and enthusiast car audio builds.

The 4-ohm driver is sold individually, so you can add one speaker or order two for a stereo pair.

Key Features & Benefits

• 89dB sensitivity: Delivers strong output from modest amplifier power.
• 75W RMS power handling: Suits systems using amplification within the recommended range.
• 25mm voice coil: Provides thermal capacity for the speaker’s rated power handling.
• 4-ohm nominal impedance: Makes amplifier matching straightforward when the amplifier supports a 4-ohm load.
• 6.5-inch size: Matches a common factory door-speaker size; confirm your vehicle’s mounting requirements.
• Single-speaker package: Lets you replace one speaker or order two for a stereo pair.

Technical Specifications

Why Choose This Product?

The AXC Matrix 65 is designed to reproduce clear mids and punchy upper bass in a car audio system. Its sensitivity supports strong output with modest amplifier power, while its 75W RMS rating suits a dedicated amplified setup.

For an active multi-way system, pairing the midrange with a subwoofer lets each speaker handle its intended frequency range.

Installation & Compatibility Notes

The 6.5-inch format is intended for standard OEM door-speaker locations, but speaker size alone does not confirm fitment. Check your vehicle’s mounting space and requirements before ordering.

• Amplifier: The recommended pairing is a 4-channel amplifier rated at 40–80W RMS per channel at 4 ohms.
• Crossover: For an active system, use a high-pass filter at 80–100Hz to limit bass frequencies reaching the midrange driver.
• Speaker wire: Use 16-gauge or heavier wire for runs over 6 feet.
• Quantity: One speaker is included; order two for a stereo pair.

Frequently Asked Questions

Is the AXC Matrix 65 sold individually?

Yes. The package contains one speaker. Order two for a stereo pair.

What amplifier is recommended?

A 4-channel amplifier rated at 40–80W RMS per channel at 4 ohms is the recommended pairing. Confirm that the amplifier supports a 4-ohm load.

Should I use a crossover?

For an active system, the recommended high-pass crossover range is 80–100Hz. A subwoofer can handle the low-frequency range.

Will it fit my vehicle’s door?

It is sized for standard 6.5-inch OEM door locations. Check your vehicle’s mounting requirements before ordering.

What speaker wire should I use?

For wire runs over 6 feet, the installation recommendation is 16-gauge or heavier speaker wire.
