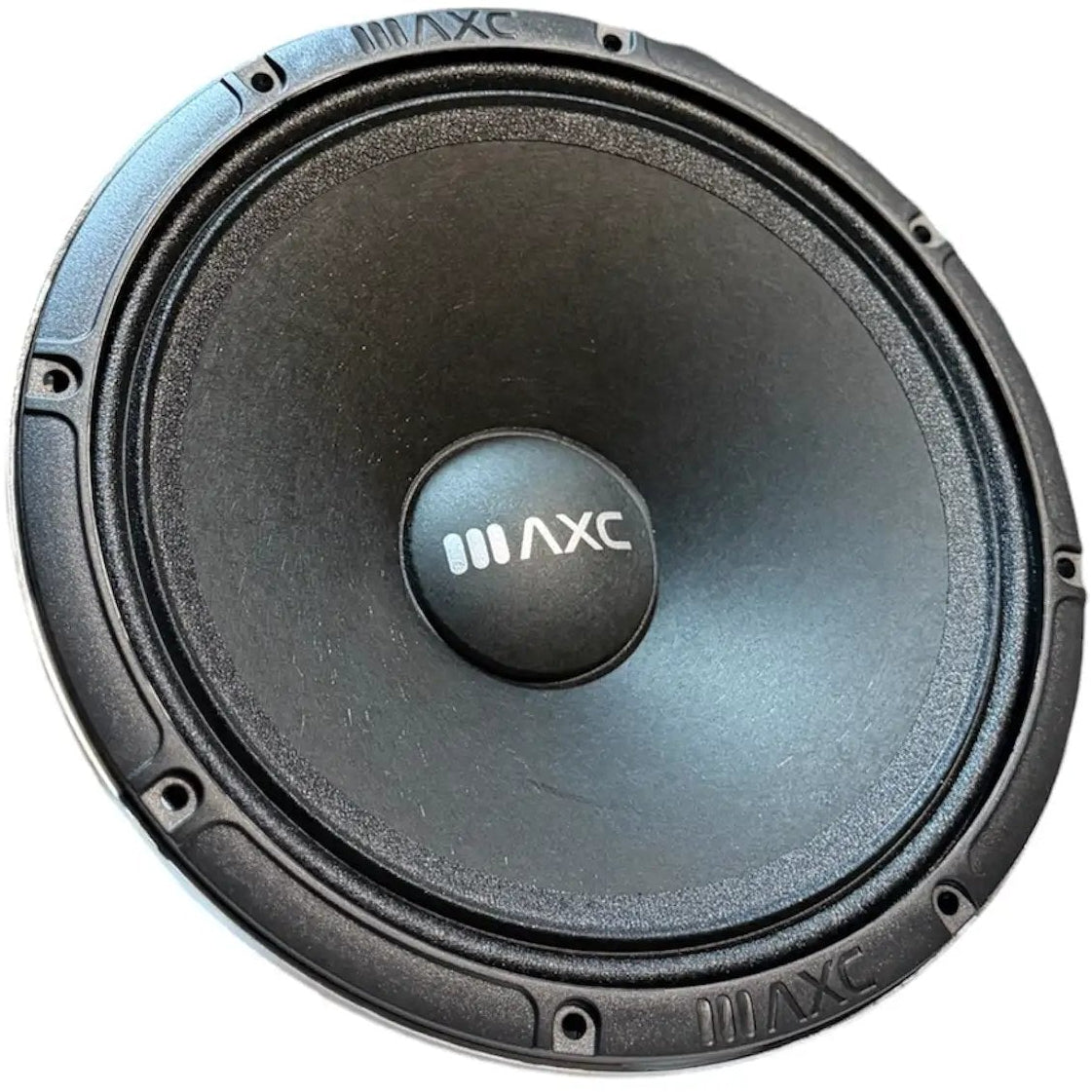

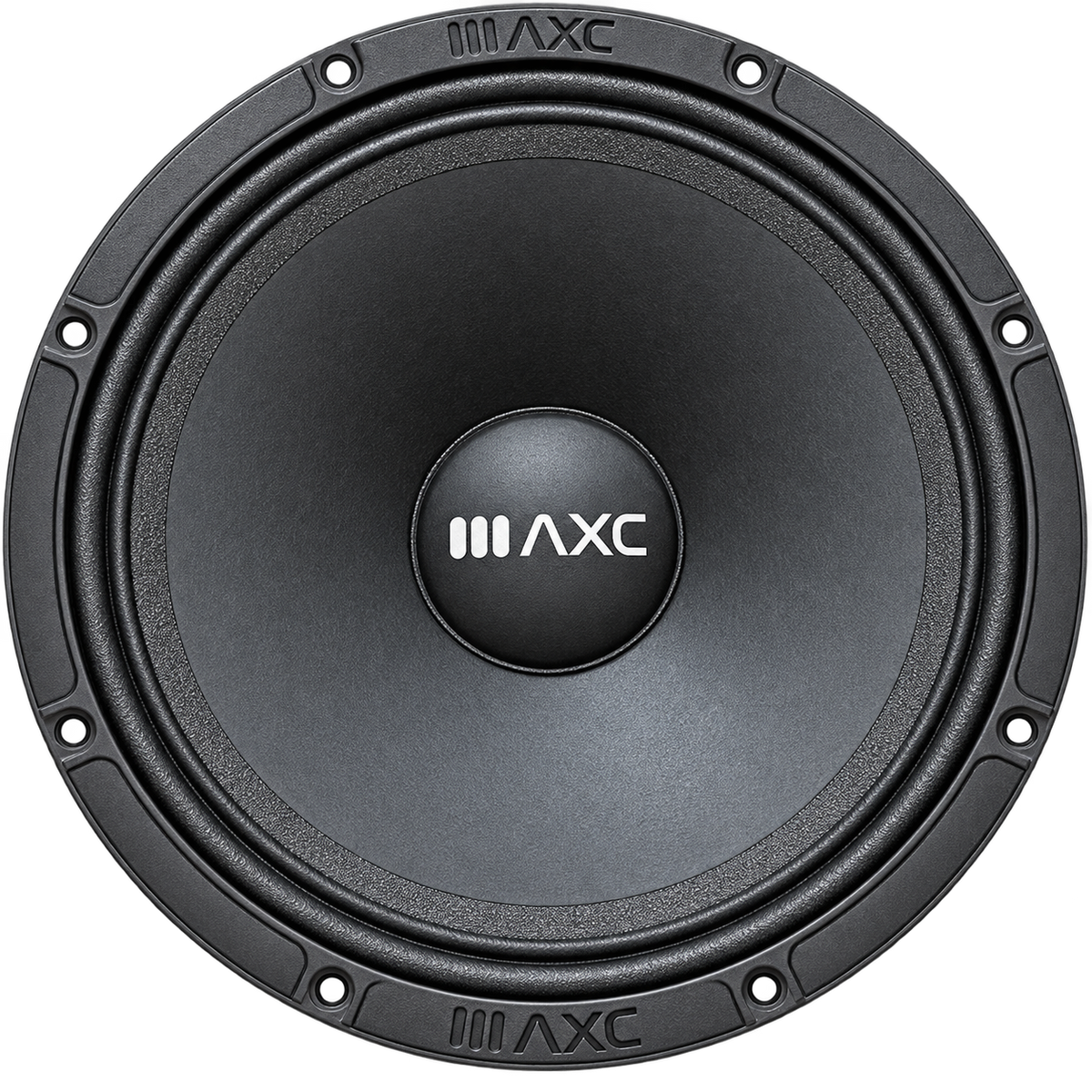

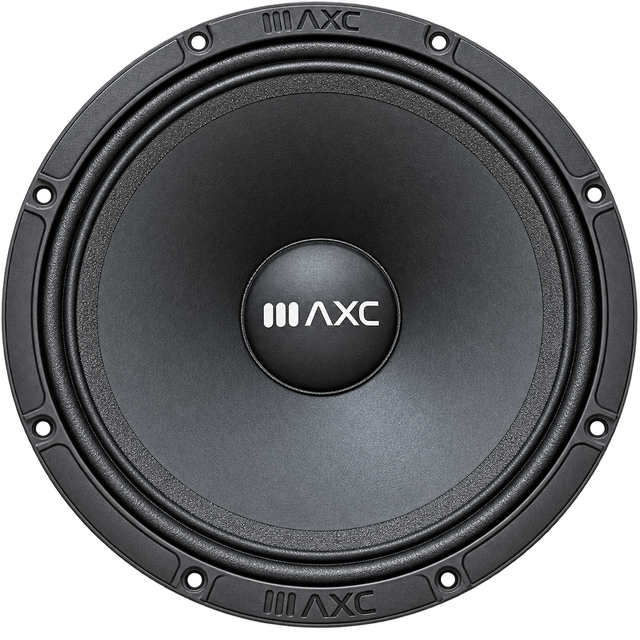

Audio Code AXC MATRIX8 8" Midrange Loudspeaker

Product Overview

The Audio Code AXC MATRIX8 8" midrange loudspeaker adds powerful midbass presence to a multi-way audio system. Its 300W RMS power handling, 4-ohm impedance, and 100Hz–15kHz frequency response make it the flagship 8" midrange driver in the Audio Code lineup.

Key Features & Benefits

• 300W RMS power handling: Supports high-output system designs with a dedicated amplifier channel.
• 8" nominal diameter: Offers more cone area than 6.5" or 5.25" midrange drivers for added midbass output.
• 100Hz–15kHz frequency response: Extends higher than the AXC ZRO 8, which reaches 12kHz.
• 4-ohm nominal impedance: Provides a standard load for amplifier-channel planning.
• Single-speaker package: Order two speakers for a stereo pair.

Technical Specifications

Why Choose This Product?

The AXC MATRIX8 is a dedicated midrange driver, not a coaxial speaker. Its 8" format provides greater cone area for lower-midrange presence and midbass output than smaller 6.5" or 5.25" drivers. Compared with the AXC ZRO 8, it handles 300W RMS rather than 250W RMS and extends to 15kHz rather than 12kHz.

Consider it for a custom system where you want an 8" midrange driver alongside a subwoofer and tweeter. It is suited to custom door pods, kick panels, and enclosures where midbass output is a priority.

Installation & Compatibility Notes

Use the AXC MATRIX8 in an active or passive multi-way system with a crossover. The supplied active 3-way recommendations are a 100–150Hz high-pass filter and a 5–7kHz low-pass filter. These crossover points separate bass frequencies below the driver and direct higher frequencies to a tweeter.

Plan for a dedicated amplifier channel rated at 150–300W RMS at 4 ohms. A DSP amplifier with active crossover capability is one signal-processing option; the JBL DSP4086 is given as an example. The speaker is sold individually.

Frequently Asked Questions

Is the AXC MATRIX8 sold individually or as a pair?

It is sold as one speaker per order. Order two for a stereo pair.

Does the AXC MATRIX8 need a crossover?

Yes. This dedicated midrange driver must be used with an active or passive crossover. The supplied active-system recommendations are a 100–150Hz high-pass filter and a 5–7kHz low-pass filter.

What amplifier rating is recommended?

Use a dedicated amplifier channel rated at 150–300W RMS at 4 ohms.

How does it compare with the AXC ZRO 8?

The MATRIX8 is rated at 300W RMS and reaches 15kHz. The ZRO 8 is rated at 250W RMS and reaches 12kHz.

Can I use it as a standalone coaxial speaker?

No. The AXC MATRIX8 is a dedicated midrange driver intended for use with other speakers in a multi-way system.
