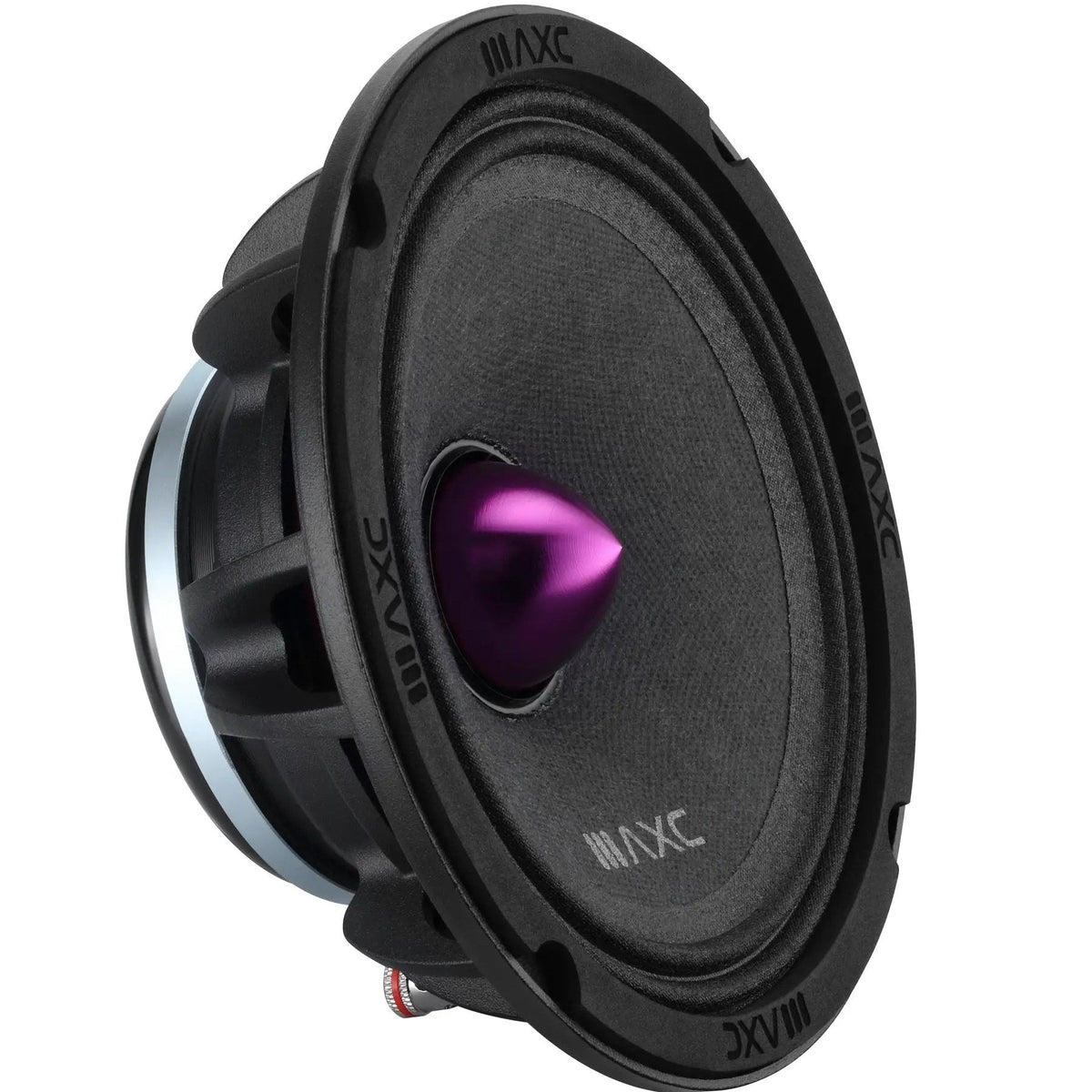

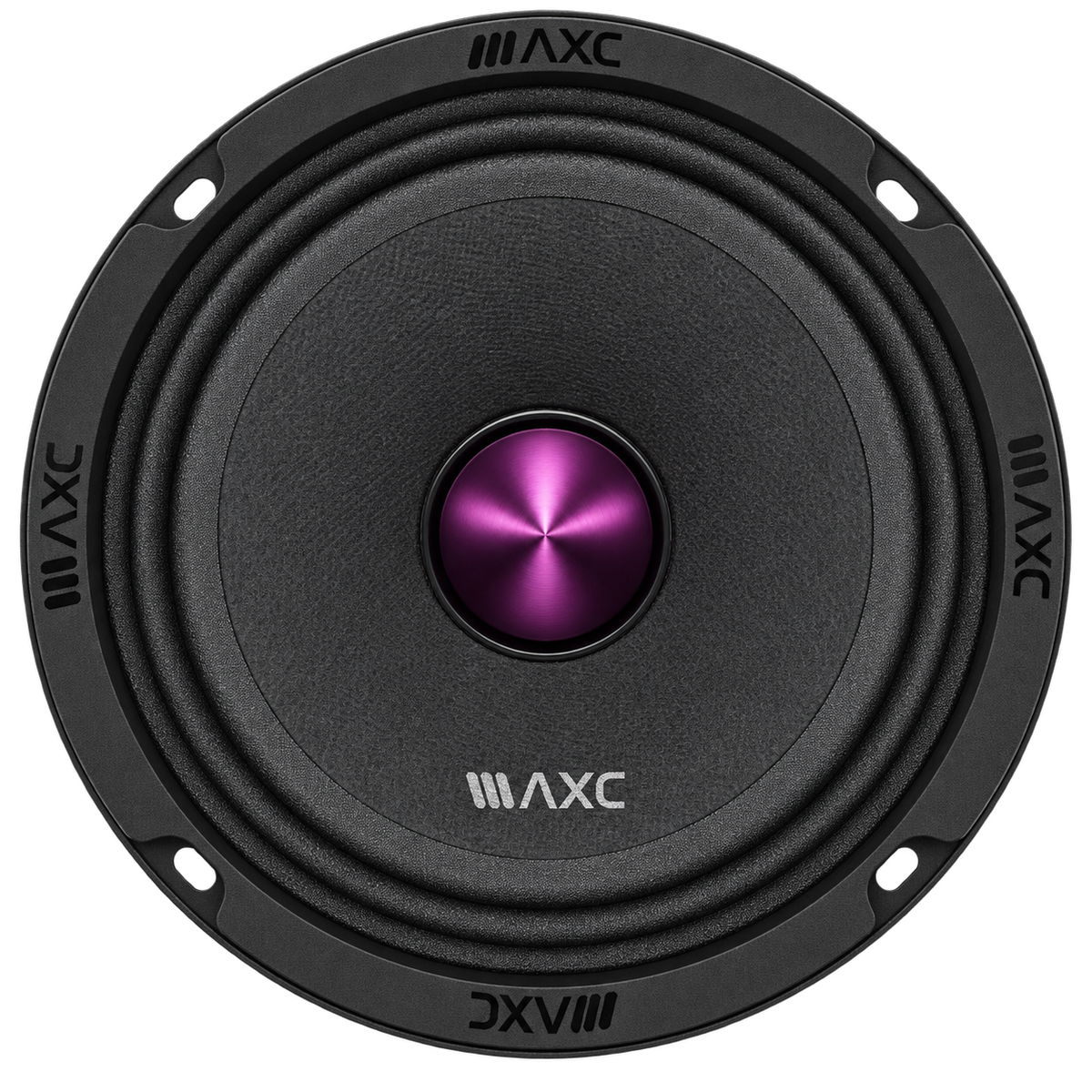

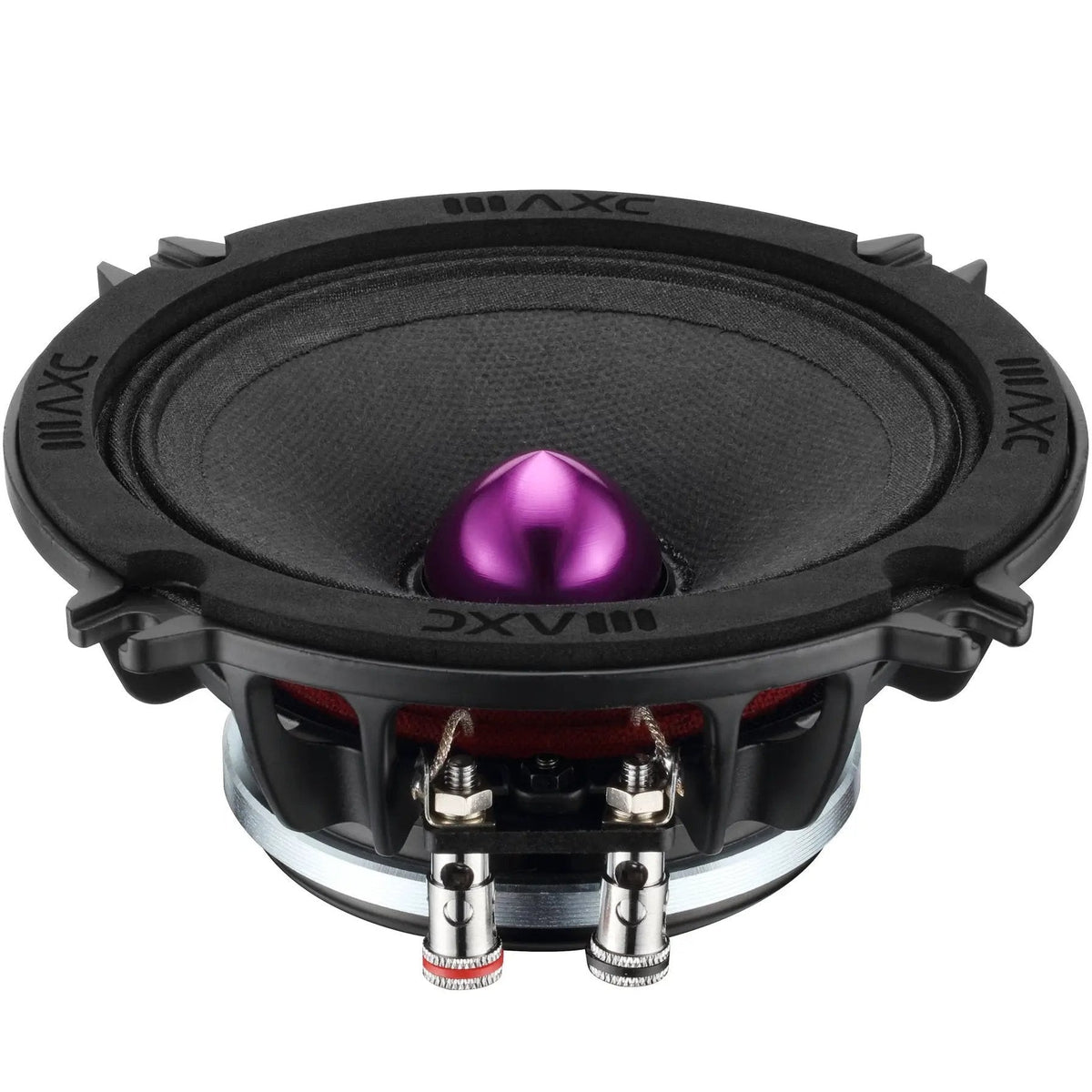

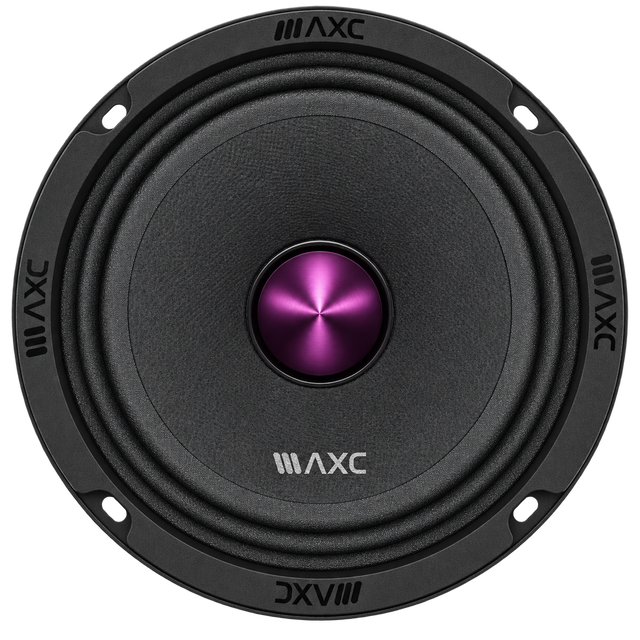

Audio Code AXC NEO 5 5.25" Neodymium Midrange Loudspeaker

Product Overview

The Audio Code AXC NEO 5 is a 5.25-inch neodymium midrange loudspeaker for active multi-way systems, competition SPL builds, and custom door pods. Its 200W RMS power handling and 150Hz–16kHz frequency response cover a broad midrange band in a compact driver format.

Use it as the midrange section of a system with a dedicated tweeter for upper frequencies and a subwoofer for low bass. It is sold individually, so order two for a stereo pair.

Key Features & Benefits

• Neodymium magnet: The rare-earth motor delivers a strong magnetic field with less weight than a conventional ferrite magnet.
• 200W RMS power handling: This is the higher-power 5.25-inch midrange option compared with the Audio Code ZR05, rated at 150W RMS.
• 150Hz–16kHz response: The listed range extends from upper-bass presence through lower treble before a system hands off to a tweeter.
• 5.25-inch format: The nominal diameter suits installations where a 6.5-inch driver will not fit, subject to checking the vehicle’s actual opening.
• Dedicated midrange design: Use it with an active or passive crossover as part of a multi-way speaker system.

Technical Specifications

Why Choose This Product?

The AXC NEO 5 combines a neodymium motor with 200W RMS power handling in a 5.25-inch midrange driver. Its stated upper-frequency extension reaches 16kHz, matching the ZR05’s listed response while offering a different magnet type and higher RMS rating.

Choose a dedicated midrange when you are building a multi-way system with crossover control. The NEO 5 is intended to work alongside separate speakers for high and low frequencies, rather than as a standalone full-range system.

Installation & Compatibility Notes

The AXC NEO 5 must be used with an active or passive crossover. For an active three-way setup, the supplied recommendation is a high-pass filter at 150–200Hz and a low-pass filter at 6–8kHz, with a dedicated amplifier channel rated at 100–200W RMS.

Pair it with a dedicated tweeter and a subwoofer for the upper and low frequencies. A DSP amplifier with active crossover capability is recommended; the source gives the JBL DSP4086 as an example. Check the vehicle’s mounting space and installation requirements before choosing a location.

Frequently Asked Questions

Is the AXC NEO 5 sold individually or as a pair?

It is sold as one speaker per order. Order two for a stereo pair.

Does this midrange need a crossover?

Yes. Use an active or passive crossover. The active-system recommendation is a 150–200Hz high-pass and a 6–8kHz low-pass.

What amplifier power is recommended?

The supplied system recommendation is a dedicated amplifier channel rated at 100–200W RMS.

How does it compare with the Audio Code ZR05?

Both are 5.25-inch midrange loudspeakers with a 150Hz–16kHz response. The NEO 5 uses a neodymium magnet and handles 200W RMS. The ZR05 uses a conventional magnet, has an integrated bullet phase plug, and is rated at 150W RMS and 93dB sensitivity.

Will it fit my vehicle’s speaker opening?

Its nominal diameter is 5.25 inches. Confirm the available mounting space and installation requirements for your vehicle before selecting it.
