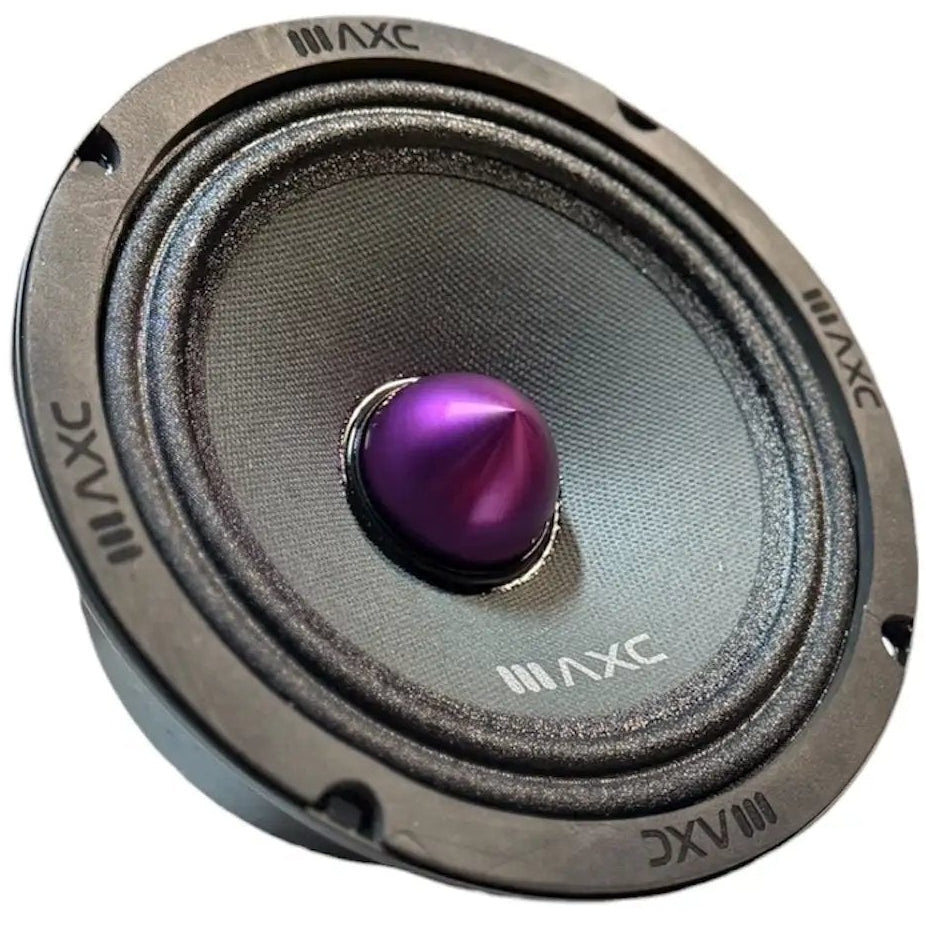

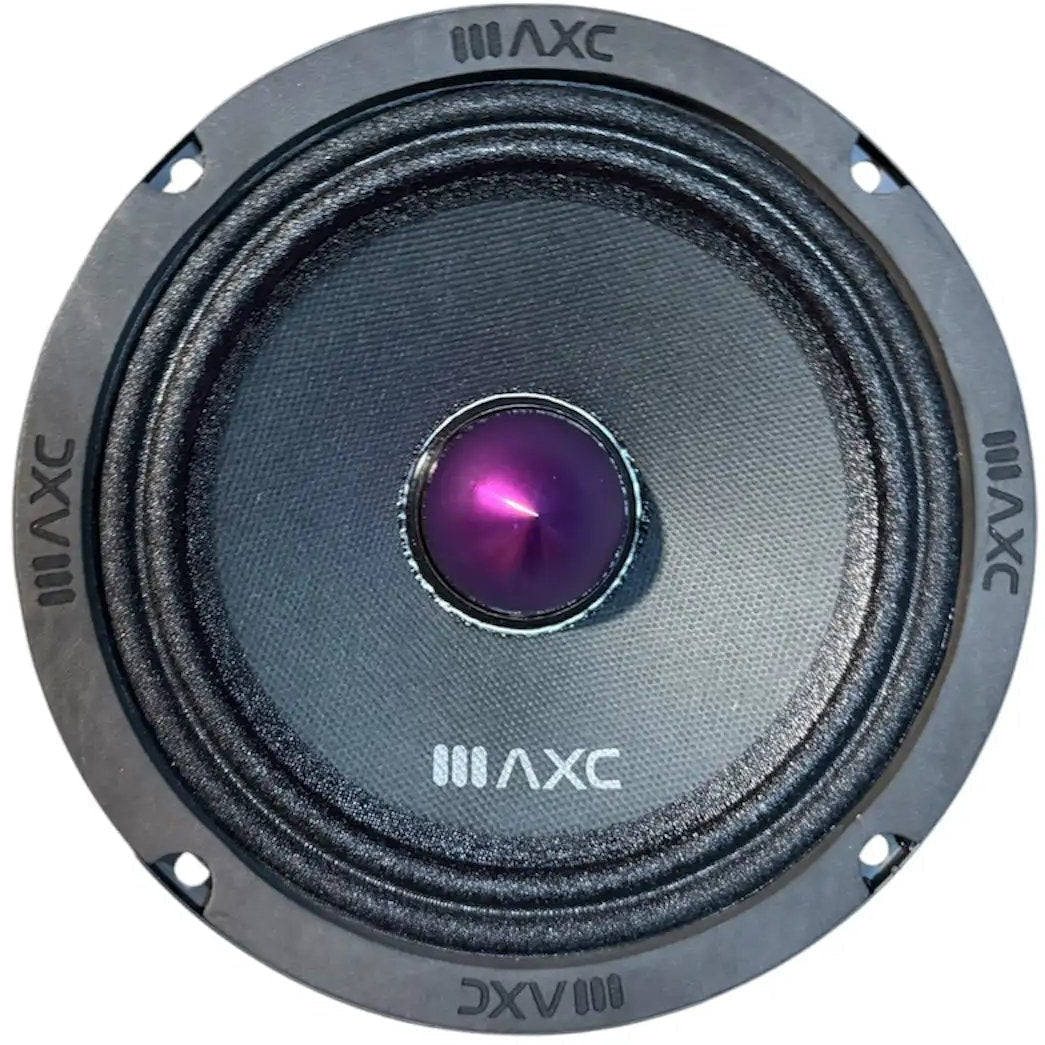

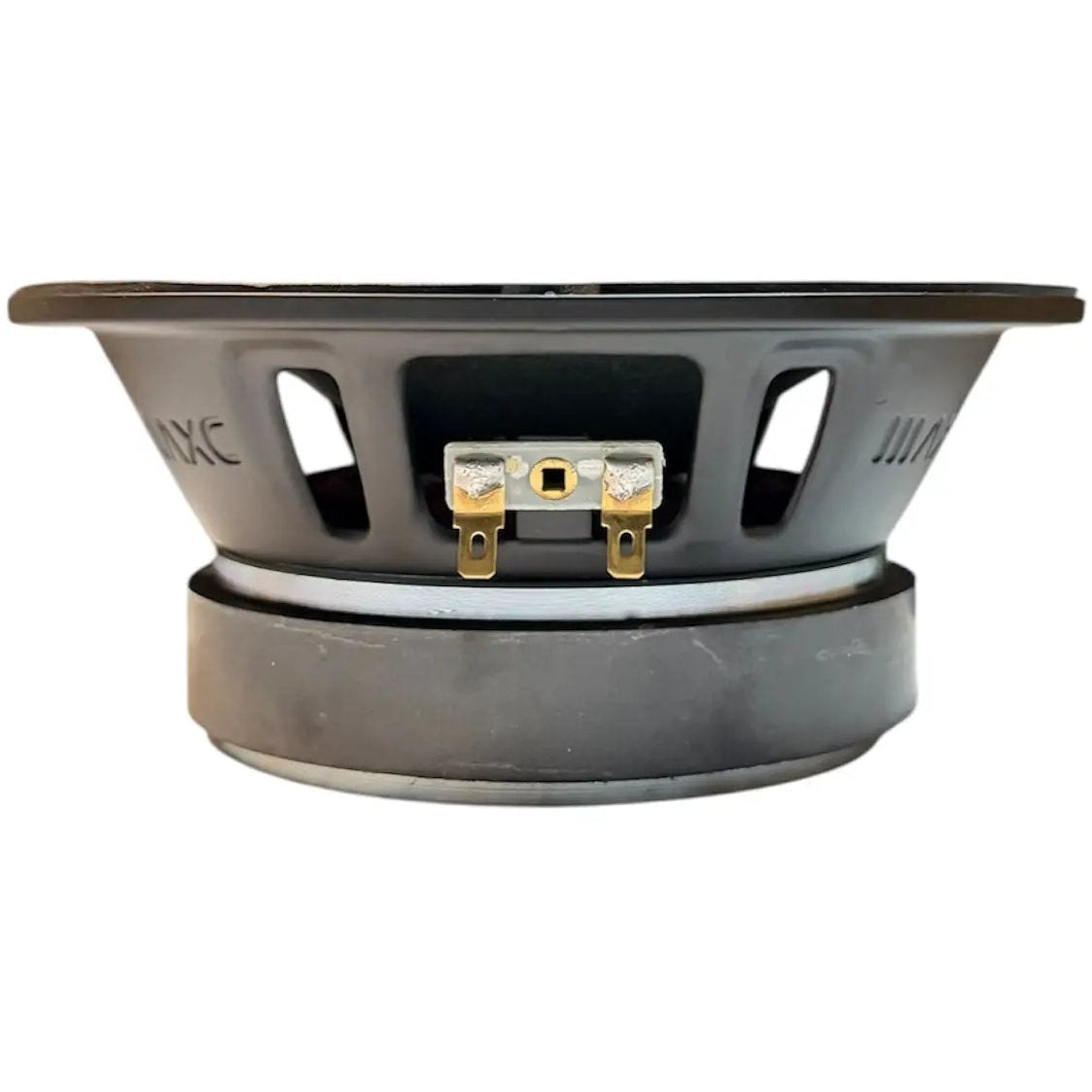

Audio Code AXC ZRO 6 6.5" Bullet Midrange Loudspeaker

Product Overview

Bring focused, high-output midrange to a multi-way car audio system with the Audio Code AXC ZRO 6 6.5-inch bullet midrange loudspeaker. Its integrated phase bullet and 96dB sensitivity support clear, efficient midrange reproduction in competition SPL builds and custom door pods.

This is a dedicated midrange driver, not a coaxial speaker. Use it with a crossover, a subwoofer for low frequencies, and a tweeter for upper frequencies.

Key Features & Benefits

• Integrated phase bullet: Controls midrange dispersion to support on-axis clarity and focus.
• 96dB sensitivity: Delivers high output from modest amplifier power.
• 250W RMS power handling: Suits high-output active system builds within its stated rating.
• 100Hz–12kHz frequency response: Covers the midrange band from upper-bass punch to lower-treble presence.
• 4-ohm nominal impedance: Works with an amplifier channel rated for a 4-ohm load.
• Sold individually: Each order includes one speaker; order two for a stereo pair.

Technical Specifications

Why Choose This Product?

The AXC ZRO 6 is designed for systems that need a dedicated midrange driver rather than a coaxial speaker. Its phase bullet is intended to control dispersion, while its 96dB sensitivity supports strong output in multi-channel setups where amplifier channels serve multiple drivers.

Its 6.5-inch nominal diameter is suited to door and pod locations, including custom builds. Plan the full speaker system around its midrange role instead of using it alone.

Installation & Compatibility Notes

Use the AXC ZRO 6 with an active or passive crossover. For an active three-way setup, the stated recommendations are a 100–150Hz high-pass filter and a 4–6kHz low-pass filter. These crossover points route low frequencies to a subwoofer and upper frequencies to a tweeter.

A dedicated amplifier channel rated at 100–250W RMS at 4 ohms is recommended in the product details. A four-channel amplifier or DSP amplifier with active crossover capability can support this type of system. Check the available mounting space and system requirements before installation.

Frequently Asked Questions

Is the Audio Code AXC ZRO 6 sold as a pair?

No. It is sold individually, with one speaker per order. Order two for a stereo pair.

Does the AXC ZRO 6 need a crossover?

Yes. It is a dedicated midrange driver and must be used with an active or passive crossover.

What crossover points are recommended for an active three-way system?

The stated starting points are a 100–150Hz high-pass filter and a 4–6kHz low-pass filter. The system also calls for a subwoofer and tweeter to cover the lower and upper frequencies.

What amplifier rating should I plan for?

The product details recommend a dedicated channel rated at 100–250W RMS at 4 ohms. The speaker’s listed power handling is 250W RMS and 500W peak.

What does the phase bullet do?

It controls the dispersion pattern of midrange frequencies to reduce off-axis coloration and support on-axis clarity and focus.
