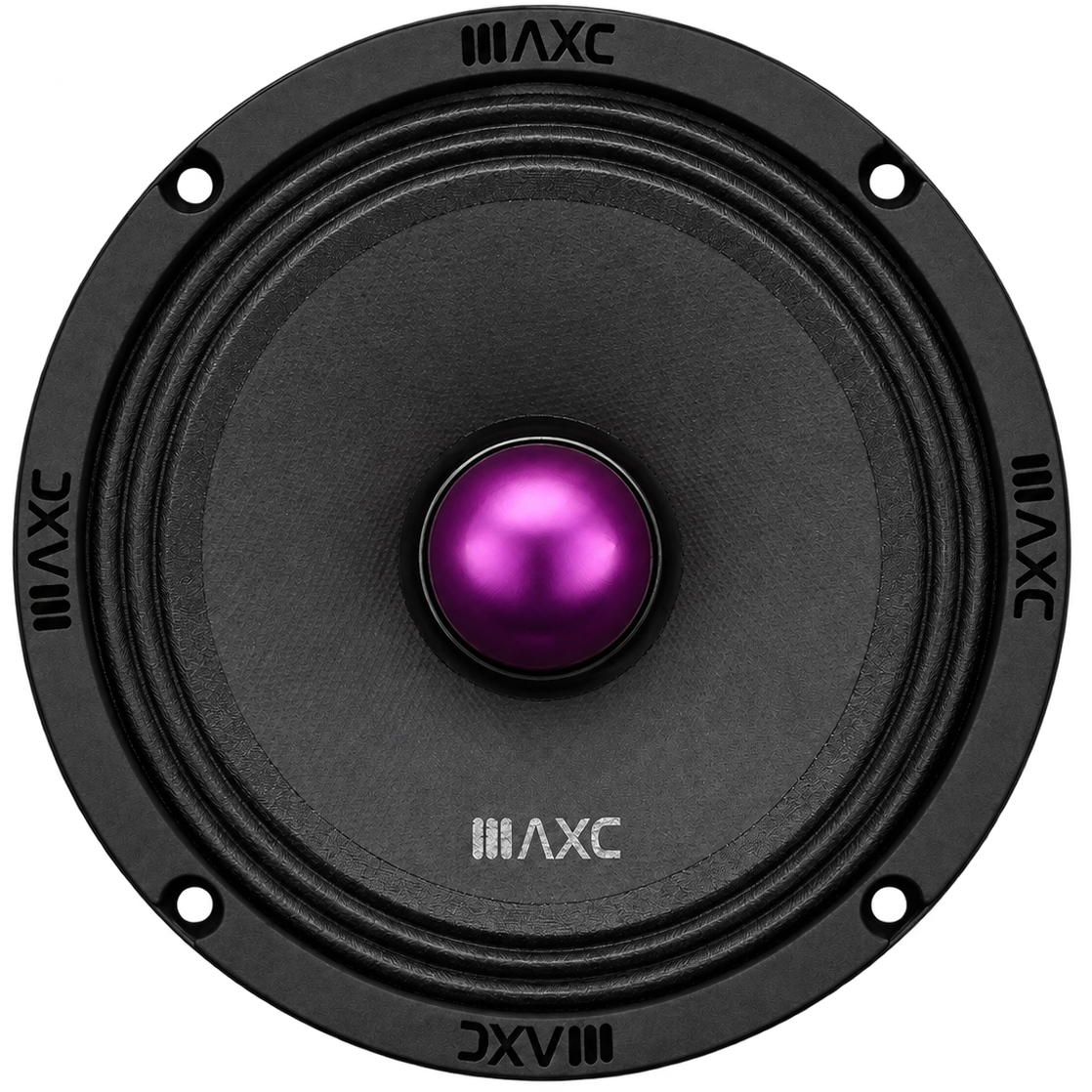

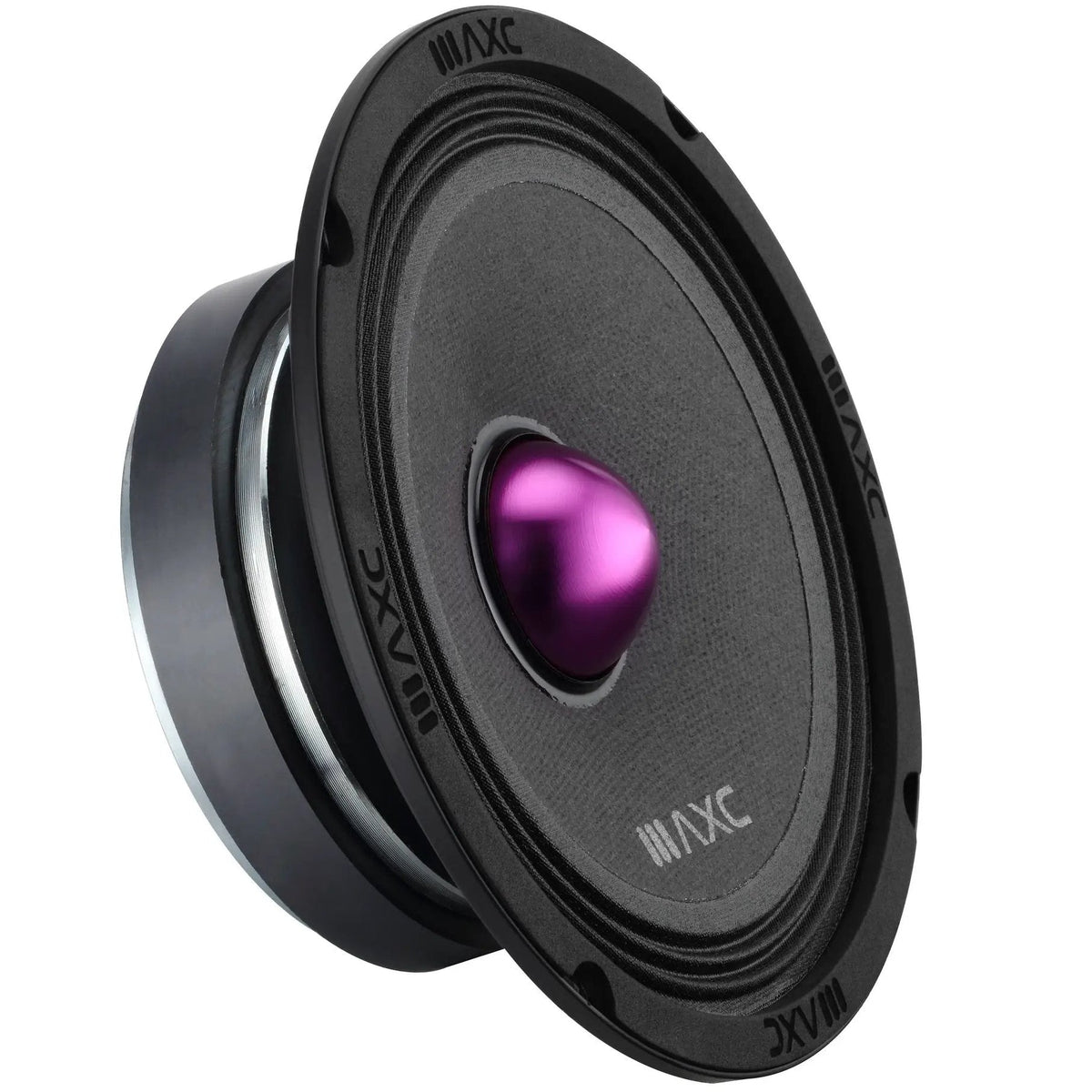

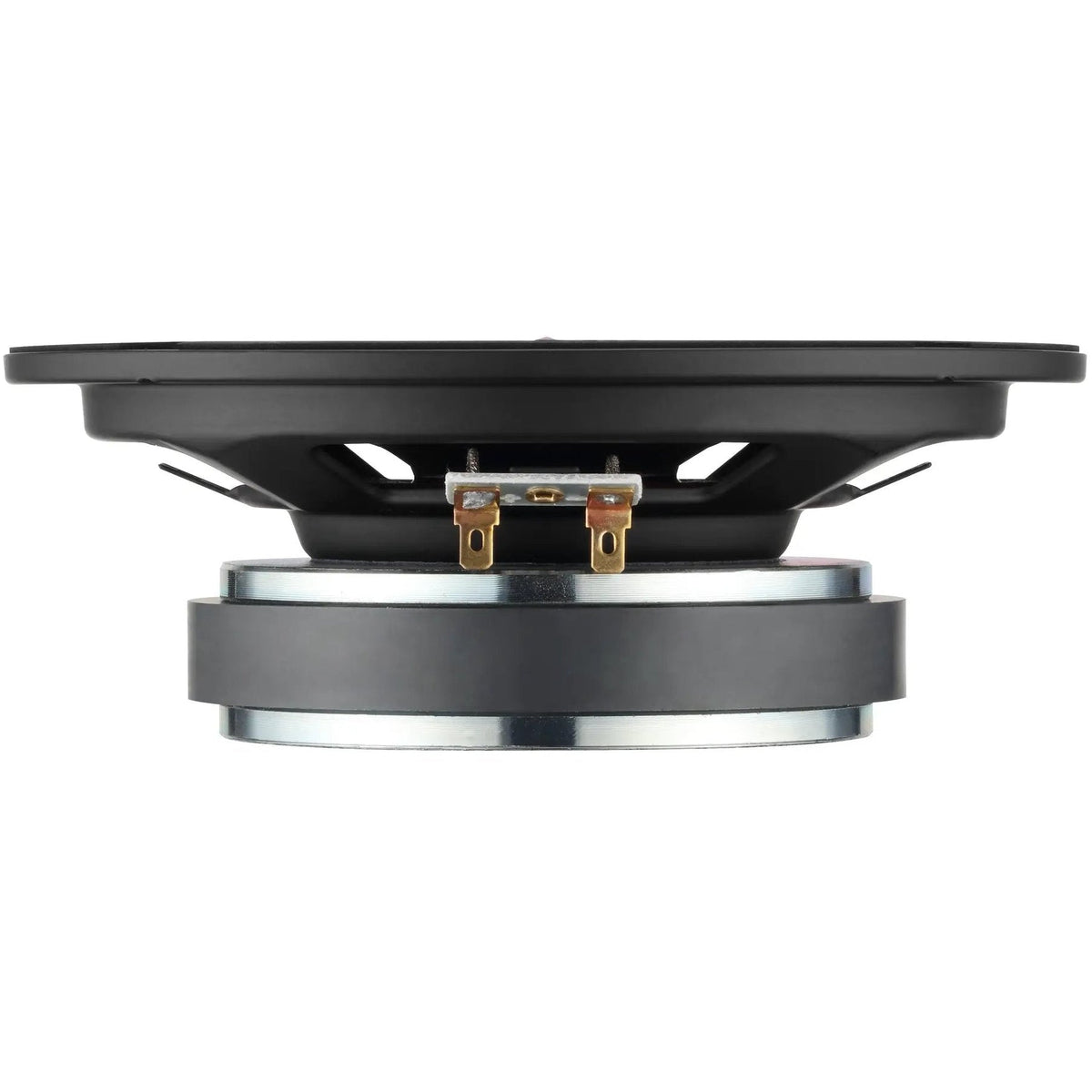

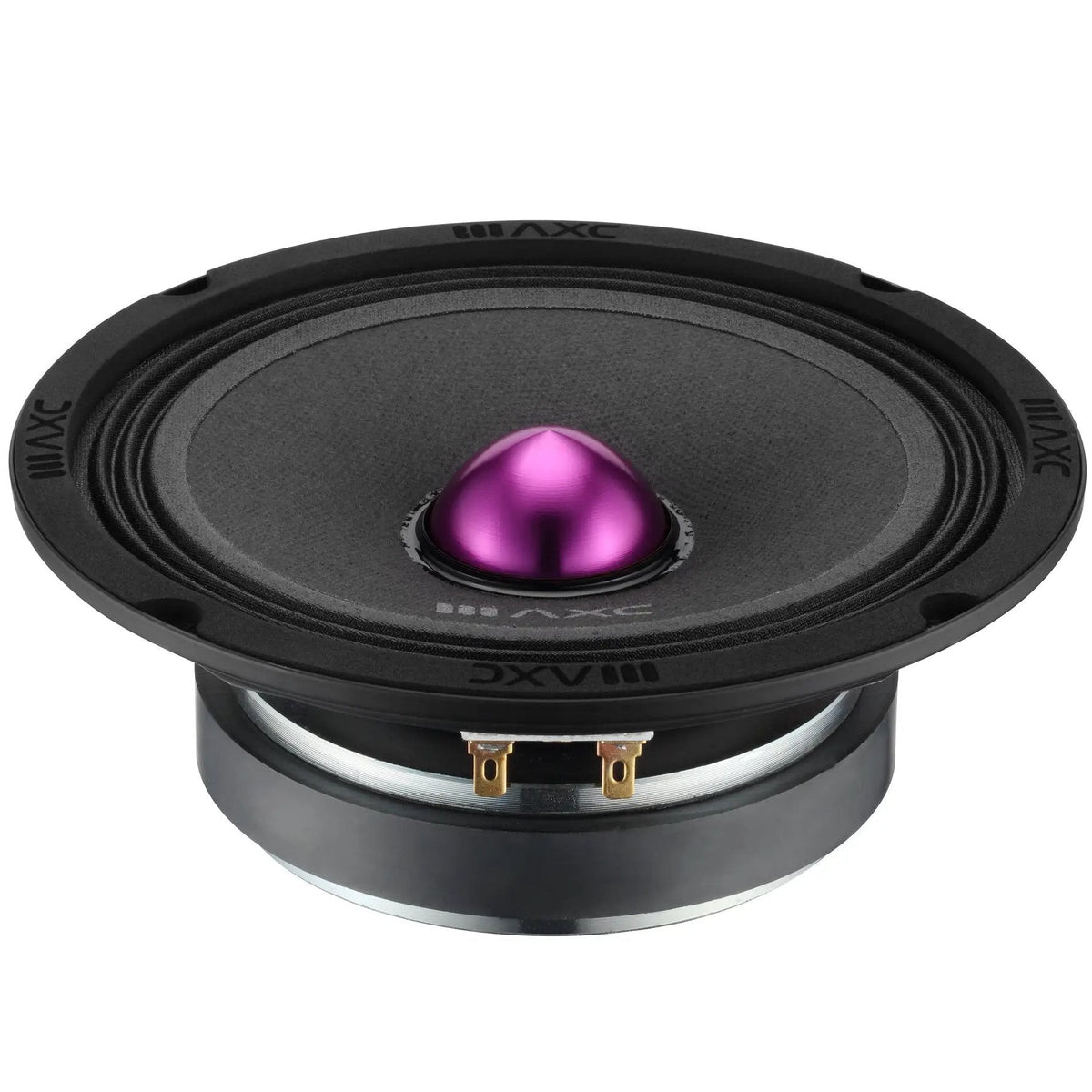

Audio Code AXC ZRO6-S 6.5" Midrange Loudspeaker

Product Overview

Build a focused midbass and midrange stage with the Audio Code AXC ZRO6-S 6.5-inch midrange loudspeaker. Its 90Hz–7kHz response suits multi-way systems where a separate tweeter handles higher frequencies.

Key Features & Benefits

• 250W RMS power handling: Provides the stated capacity for high-output system builds.
• Focused frequency range: The 90Hz–7kHz response covers the upper bass and midrange bands.
• Dedicated midrange design: Use it as one driver in an active or passive multi-way speaker system.
• 6.5-inch nominal size: The source describes it for standard OEM door locations; check your vehicle’s fitment before ordering.
• Sold individually: Each order includes one speaker, so order two for a stereo pair.

Technical Specifications

Why Choose This Product?

The ZRO6-S concentrates on the lower and middle portions of the midrange band, leaving higher frequencies to a dedicated tweeter. Compared with the Audio Code ZRO 6, its 90Hz–7kHz response is narrower; the ZRO 6 extends to 12kHz and has an integrated phase bullet.

That makes the ZRO6-S a specific option for a 3-way system with a subwoofer for low frequencies and a tweeter for the upper range.

Installation & Compatibility Notes

This is a dedicated midrange driver and requires an active or passive crossover. For an active 3-way setup, the source recommends a 90–120Hz high-pass filter and a 5–7kHz low-pass filter.

Use a dedicated amplifier channel rated 125–250W RMS. A DSP amplifier with active crossover capability, such as the JBL DSP4086, is one suggested signal-processing option. Confirm the speaker’s fit in your intended location before purchase.

Frequently Asked Questions

Is the AXC ZRO6-S sold as a pair?

No. Each order contains one speaker; order two for a stereo pair.

Does the ZRO6-S need a crossover?

Yes. Use an active or passive crossover. For the recommended active setup, use a 90–120Hz high-pass and a 5–7kHz low-pass filter.

What amplifier power is recommended?

The source recommends a dedicated amplifier channel rated 125–250W RMS.

How does it differ from the Audio Code ZRO 6?

The ZRO6-S covers 90Hz–7kHz. The ZRO 6 extends to 12kHz and includes an integrated phase bullet.
