$30.00 off

AudioControl A69CS2 Altitude Series 6x9" Component Speakers with 1" Tweeters, 100W RMS, 4 Ohms (Pair)

Name: AudioControl A69CS2 Altitude Series 6x9" Component Speakers with 1" Tweeters, 100W RMS, 4 Ohms (Pair)
Brand: AudioControl
Price: 189.99 USD
Availability: InStock

$189.99 $219.99

Shipping calculated at checkout.

Key features

Speaker size: 6×9″
RMS power per speaker: 100 W
Speaker impedance: 4.0 ohms
Frequency response: 55 Hz–20 kHz
Voice-coil diameters (tweeter / midrange): 20 / 30 mm
Woofer mounting depth: 2.67 inches

Description

Product Overview

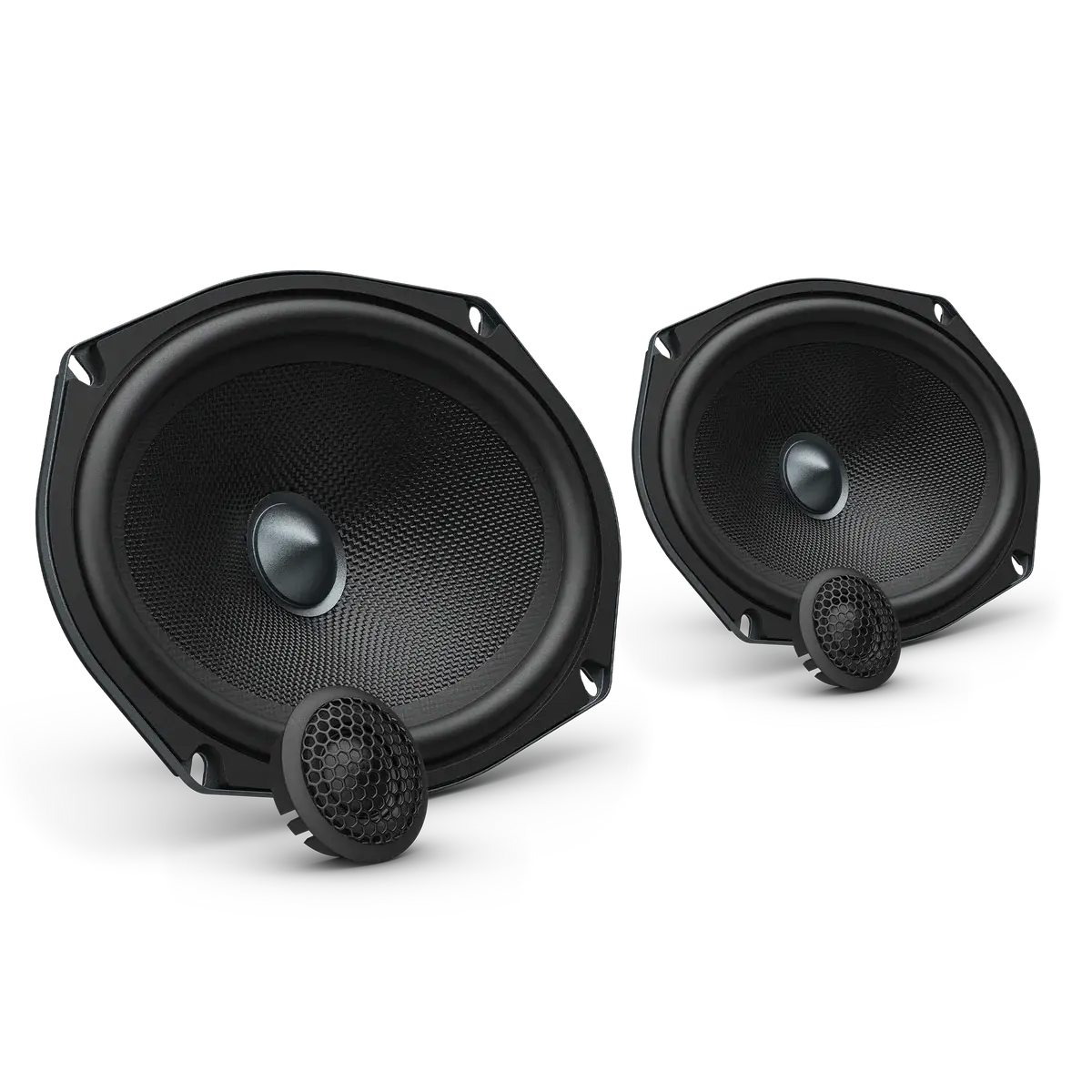

Give your car stereo separate woofer and tweeter drivers with the AudioControl A69CS2 Altitude Series 6x9-inch component speakers. A glass fiber woofer, silk dome tweeter, and matched passive crossovers are designed to deliver controlled midbass and detailed highs.

The slimline basket helps with space-conscious installations, while separate drivers let you position the tweeters for your build.

Key Features & Benefits

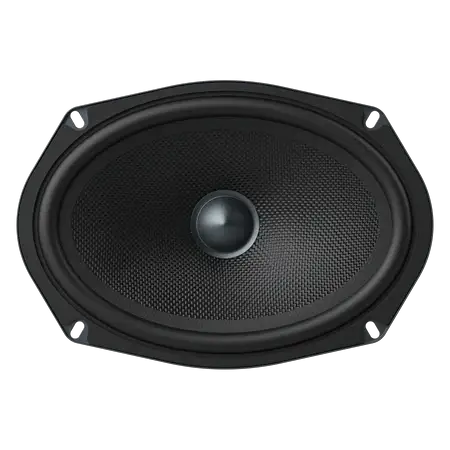

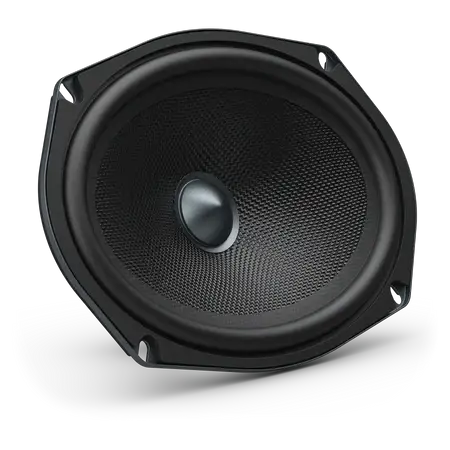

Glass fiber woofer: The precision-molded cone supports controlled midbass and clear midrange.
Silk dome tweeter: The 1-inch tweeter is designed for smooth, detailed high frequencies.

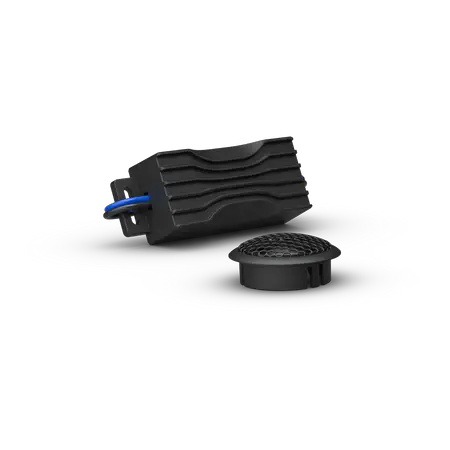

Passive crossovers: Matched drivers and included crossovers route the signal to each speaker component.

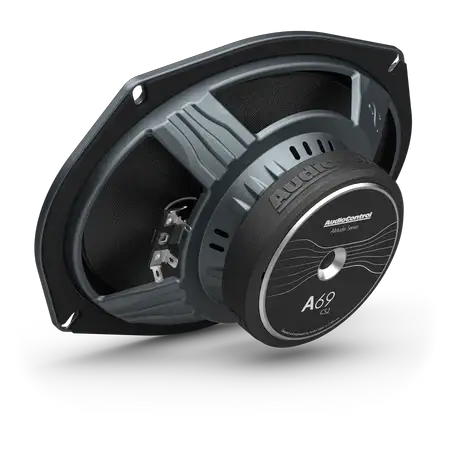

Slimline steel basket: Its space-saving design can help when door-panel space is limited.
Butyl rubber surround: The durable surround supports bass control in automotive use.
Aluminum dust cap: The anti-phasing design is intended to enhance sensitivity and extend frequency response.

Technical Specifications

Specification	Details
Product	AudioControl A69CS2 Altitude Series 6x9-inch component speakers with 1-inch tweeters
Power (RMS)	100 Watts
Impedance	4 Ohms
Woofer construction	6x9-inch woofer with precision-molded glass fiber cone
Tweeter	1" Silk Dome Tweeter
Dust cap	Anti-phasing aluminum dust cap
Surround	Durable butyl rubber surround
Basket	Structurally enhanced steel slimline basket
System efficiency	Matched drivers and included passive crossovers
Design and engineering	Designed and engineered in USA
System Frequency Response	5 5 Hz to 20,000 Hz
Sensitivity	86.9 dB 1W/1m; 89.9 dB @ 2.83 V/1m
Woofer dimensions	Overall 6.43 x 9.27 in; Cut Out 5.67 x 8.23 in; Mounting Depth 2.67 in
Tweeter dimensions	Overall with housing 1.67 in; Cut Out 1.37 in; Mounting Depth 0.39 in; Overall Depth with housing 0.73 in
Crossover dimensions	Length 3.6 in; Width 1.3 in; Height 0.94 in
In the box	(2) A 69CS2 Speakers & Tweeters, Manual

Why Choose This Product?

The A69CS2 is a component speaker system for a car audio upgrade that uses separate woofers and tweeters. Its matched drivers and passive crossovers support signal routing between the components, while the slimline basket offers a space-conscious option for a custom build.

Installation & Compatibility Notes

Check the woofer cutout and mounting depth against your available mounting location. Also compare the tweeter and crossover dimensions with the space planned for each component. The 4-ohm impedance and 100-watt RMS rating are useful details when matching the speakers to an amplifier.
