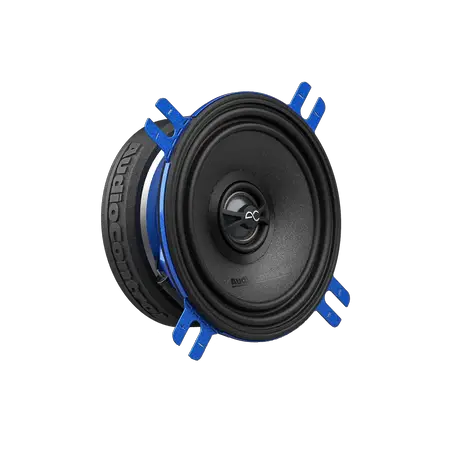

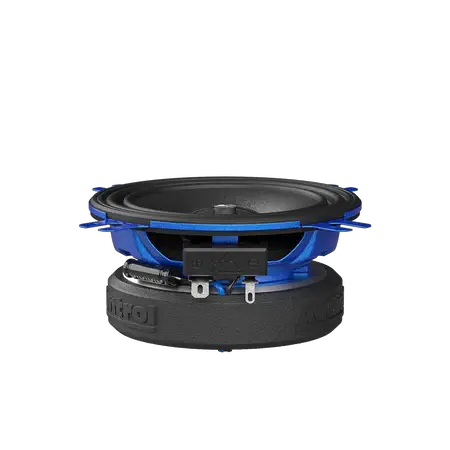

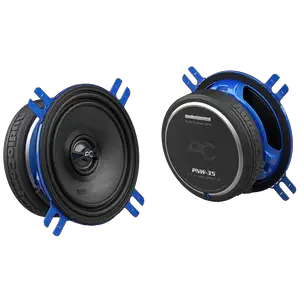

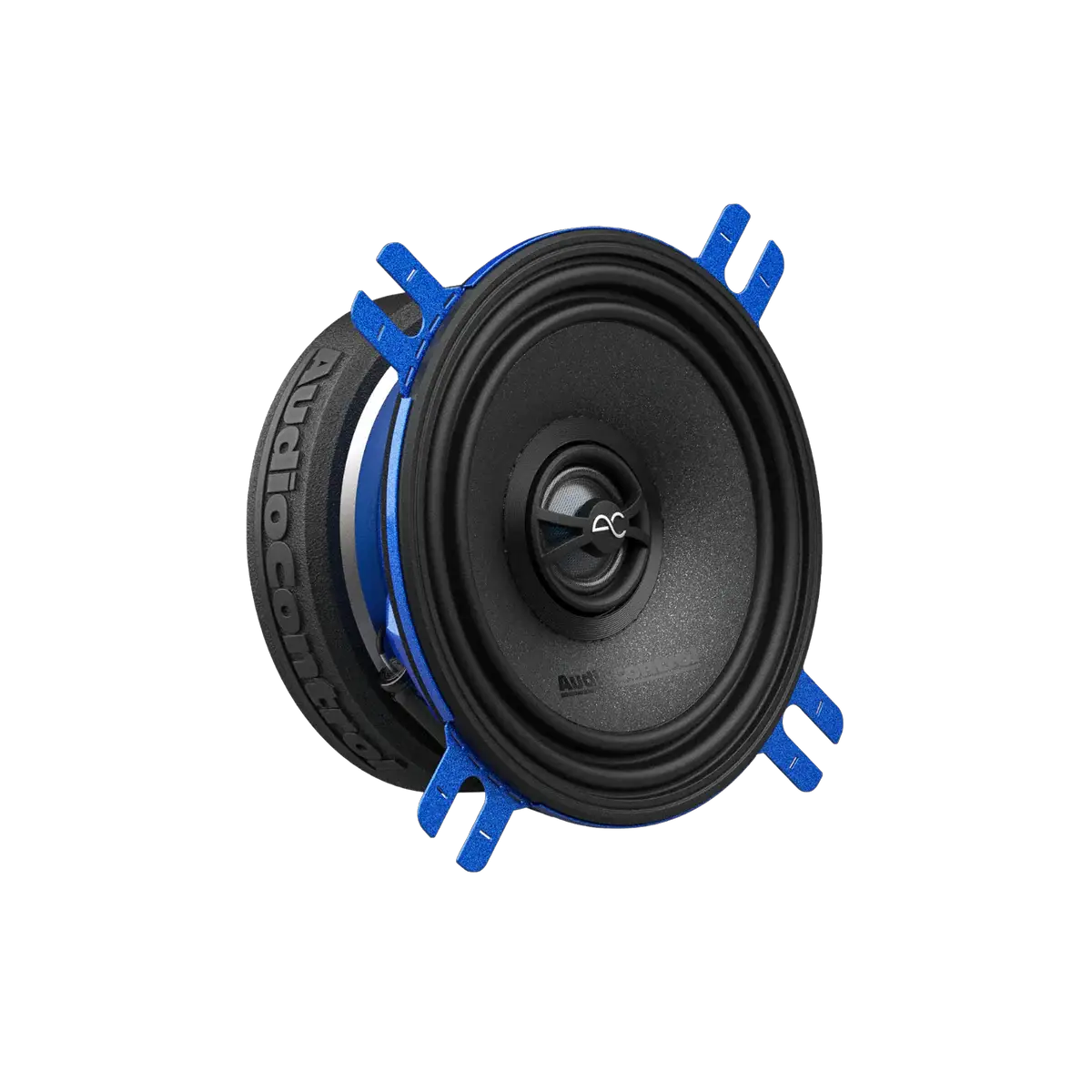

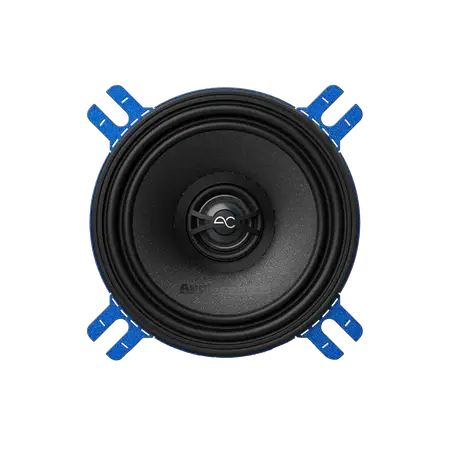

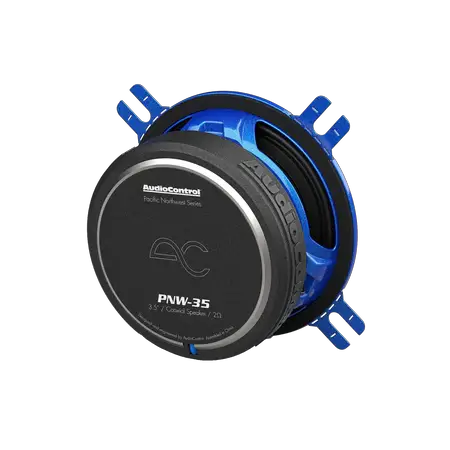

AudioControl PNW-35 3.5" Coaxial Speakers, 25W RMS, 2 Ohms (Pair)

The AudioControl PNW-35 is a pair of 3.5-inch coaxial speakers designed for compact automotive installations, delivering detailed midrange and extended high frequencies in a small footprint. Built for car-audio enthusiasts who demand accurate imaging in tight doors or dash spaces, this pair pairs with premium amplifiers to deliver clear, controlled sound.

• Edge-enhanced steel frame: Adds structural strength to withstand mounting in constrained spaces and reduces flex, helping maintain precise cone motion for consistent sound.
• Black anodized voice coil former: Improves heat dissipation, supporting stable performance during longer listening sessions and demanding musical transients.
• Linear double-roll surround: Enables precise cone movement with smooth travel, reducing distortion during dynamic passages.
• Rigid poly mica-coated cone: Keeps the cone stiff for accurate transient response and tighter bass definition in a small-diameter driver.
• Rear dampened hybrid silk dome tweeter: Extends high-frequency response with controlled performance and reduced harshness for everyday listening.
• Concentric point source design: Aligns midrange and tweeter outputs for coherent imaging and tighter stereo localization.
• Sonic diffuser and radiant collar: Improves off-axis frequency response, maintaining balance when the listener isn’t perfectly in front of the speaker.
• High-quality mounting hardware included: Facilitates secure installation in a variety of panels without additional parts.
• Crossover: Butterworth with a 5900 Hz crossover frequency, providing a smooth transition between woofer and tweeter for natural sound.
• Power handling: 25W RMS / 50W Max, indicating the continuous and peak power the pair is designed to handle within typical head-unit and small-amp setups.
• Impedance: DC Resistance (Re) 1.75 ohms, a low-impedance design that can work well with capable amplifiers for efficient power delivery.
• Frequency response: 90 Hz – 20 kHz, covering essential bass to treble range for a balanced two-way system in a compact speaker.
• XO frequency: 5900 Hz, indicating the high‑pass point between midrange and tweeter for crossover clarity.
• Tweeter voice coil diameter: 13 mm, contributing to the tweeter’s high-frequency performance and excursion control.
• Midrange voice coil diameter: 25 mm, supporting adequate midrange excursion and output for a 3.5-inch driver.
• Dimensions: Overall diameter with bracket 4.44 in (113 mm); Cut-out diameter 3.0 in (76.5 mm); Mounting depth 1.55 in (39.5 mm); Motor diameter with cover 2.96 in (75.4 mm).
• In the box: (2) PNW-35, Manual, Warranty.

In real-world installs, the PNW-35 fits shallow door cavities or dash locations where space is at a premium, delivering coherent mid/high output with reliable imaging. The combination of a heat-dissipating voice coil former, a stiff cone, and a well-tuned crossover helps maintain clarity and dynamics even when driven by modest amplification, making it a practical choice for a compact two-way upgrade.
