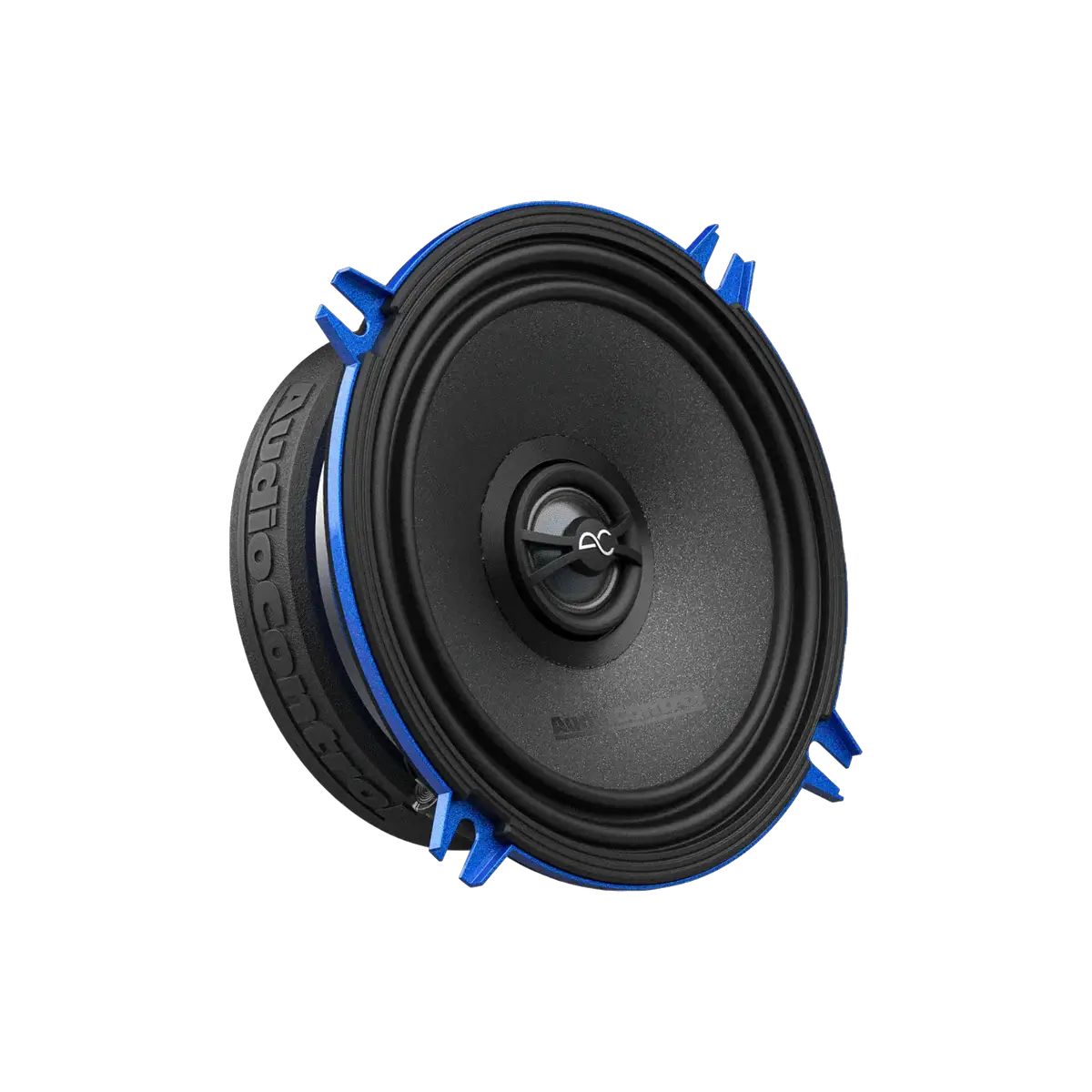

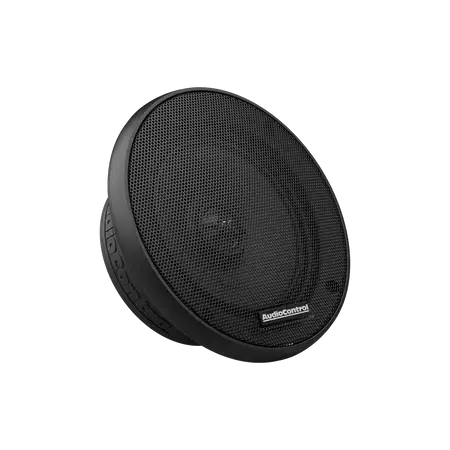

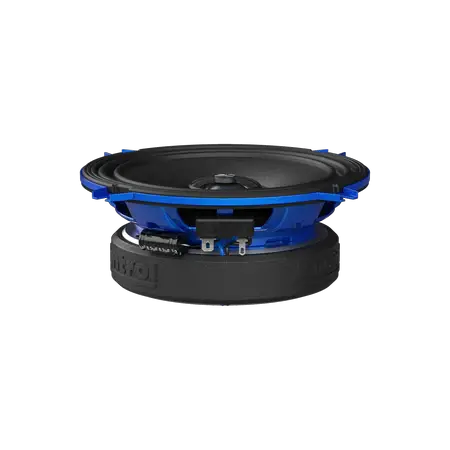

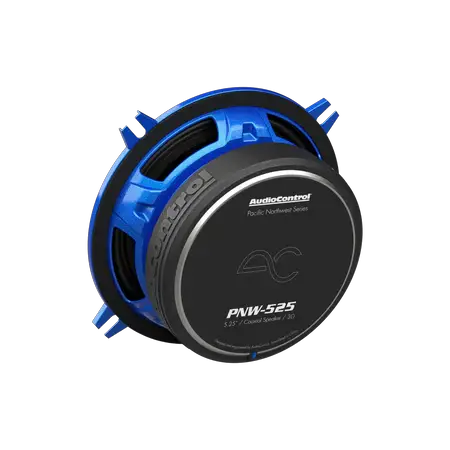

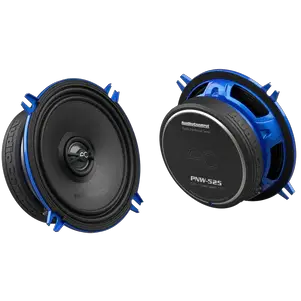

AudioControl PNW-525 5.25" Coaxial Speakers, 50W RMS, 3 Ohms (Pair)

Name: AudioControl PNW-525 5.25" Coaxial Speakers, 50W RMS, 3 Ohms (Pair)
Brand: AudioControl
Price: 239.99 USD
Availability: InStock

$239.99 $259.99

Shipping calculated at checkout.

Key features

Speaker size: 5.25″
RMS power per speaker: 50 W
Speaker impedance: 3.0 ohms
Frequency response: 75 Hz–20 kHz
Voice-coil diameters (tweeter / midrange): 20 / 35 mm
Mounting depth: 1.66 in/ 42.2 mm

Description

Product Overview

Bring clear midrange and extended highs to your car audio system with the AudioControl PNW-525 5.25-inch coaxial speakers. This pair handles 50W RMS and combines a midrange driver and tweeter in a concentric point-source design.

Key Features & Benefits

Poly mica-coated cone: Its stiff, lightweight construction supports accurate sound reproduction across frequencies.
Hybrid silk dome tweeter: Rear damping helps deliver detailed high frequencies without harshness.
Concentric point-source design: Aligned midrange and tweeter output supports a coherent on-axis image.
Off-axis sound features: The sonic diffuser and radiant collar help make frequency response more consistent around the cabin.
Heat-managing voice coil former: The black anodized former improves heat dissipation during extended listening.
Included mounting hardware: The pair comes with mounting hardware, a manual, and a warranty.

Technical Specifications

Brand	AudioControl
Model	PNW-525
Speaker type	5.25-inch coaxial speakers
Quantity	Pair (2 speakers)
Power handling	50W RMS / 75W max
Impedance	3 ohms
DC resistance	2.6 ohms
Frame	Edge-enhanced steel
Voice coil former	Black anodized
Surround	Linear double-roll
Cone	Rigid poly mica-coated
Tweeter	Rear-dampened hybrid silk dome
Crossover	Butterworth; XO frequency: 5250 Hz; -6 dB slope
Overall diameter	5.23 in (133 mm)
Cutout diameter	3.60 in (91.5 mm)
Mounting depth	1.66 in (42.2 mm)
In the box	(2) PNW-525 speakers, mounting hardware, manual, and warranty

Why Choose This Product?

The PNW-525 pairs controlled cone movement with a tweeter and crossover designed for a balanced two-way response. Its compact dimensions make it an option to consider for front or rear fill in a car audio build, while its off-axis features address listening positions where speakers are not aimed directly at you.

For a fuller in-vehicle system, the product details suggest pairing these speakers with an AudioControl Spike or Space series subwoofer.

Installation & Compatibility Notes

Before buying, compare the 5.23-inch overall diameter, 3.60-inch cutout diameter, and 1.66-inch mounting depth with your intended location. Confirm that the speaker opening and available depth suit your installation. The supplied mounting hardware is included in the box.

Frequently Asked Questions

What is the power handling of the PNW-525?

The pair is rated at 50W RMS and 75W maximum.

Why are both 3 ohms and 2.6 ohms listed?

The product title lists 3 ohms, while the description gives 2.6 ohms as DC resistance. These are separate stated values.

What are the speaker’s mounting dimensions?

Overall diameter is 5.23 in (133 mm), cutout diameter is 3.60 in (91.5 mm), and mounting depth is 1.66 in (42.2 mm).

What comes in the box?

The box includes two PNW-525 speakers, mounting hardware, a manual, and a warranty.

Can I use these as front or rear speakers?

The product details describe them as a front or rear fill option in a typical car audio build. Check the dimensions against your intended mounting location.
