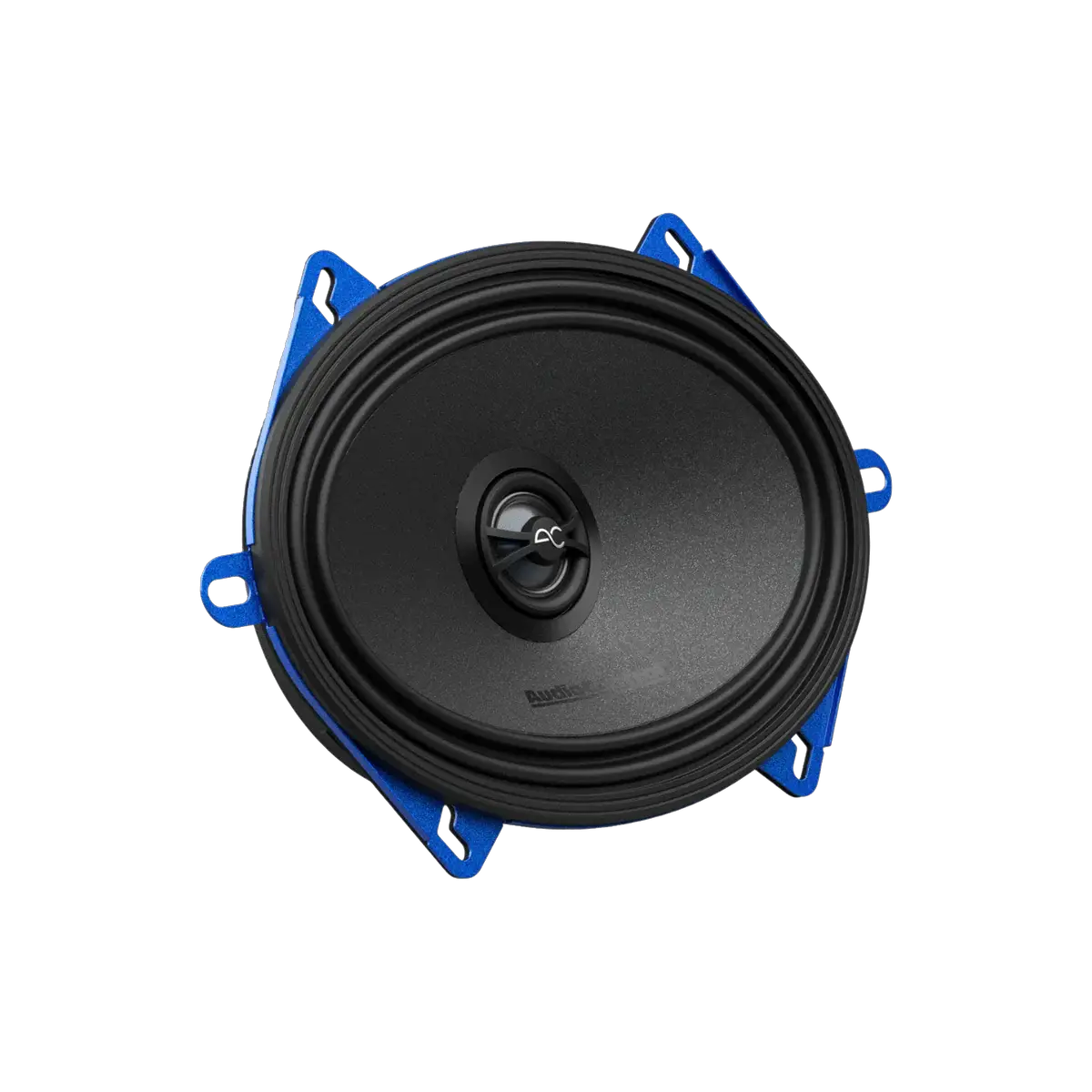

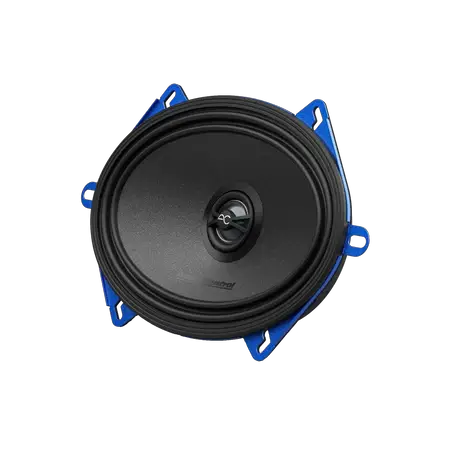

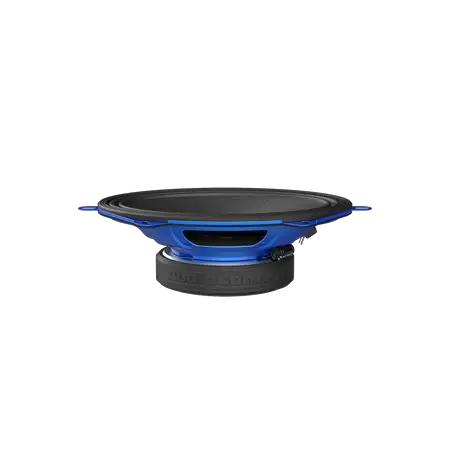

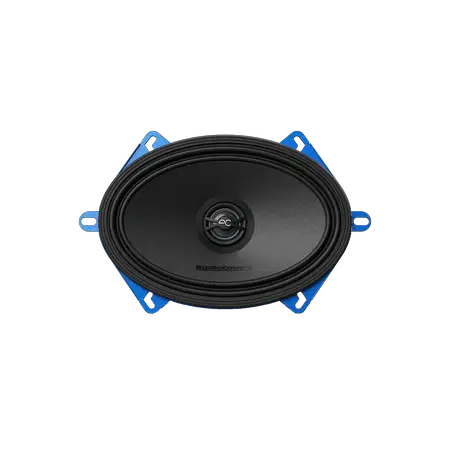

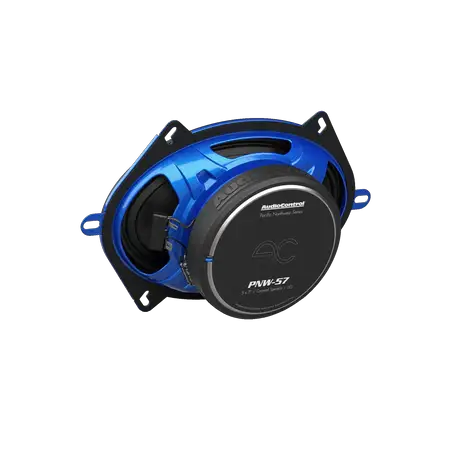

AudioControl PNW-57 5x7" Coaxial Speakers, 75W RMS, 3 Ohms (Pair)

Name: AudioControl PNW-57 5x7" Coaxial Speakers, 75W RMS, 3 Ohms (Pair)
Brand: AudioControl
Price: 259.99 USD
Availability: InStock

$259.99 $289.99

Shipping calculated at checkout.

Key features

Speaker size: 5×7″
RMS power per speaker: 75 W
Speaker impedance: 3.0 ohms
Frequency response: 60 Hz–20 kHz
Voice-coil diameters (tweeter / midrange): 20 / 35 mm
Mounting depth: 2.24 in / 57 mm

Description

Product Overview

Bring a coordinated midrange-to-tweeter presentation to your car audio system with the AudioControl PNW-57 5x7-inch coaxial speaker pair. Its concentric point-source design aligns the drivers, while the included mounting hardware helps make installation more straightforward.

Key Features & Benefits

Concentric point-source design: Helps create a cohesive transition from midrange to tweeter.
Rigid poly mica-coated cone: Supports the speaker’s sound reproduction.
Linear double-roll surround: Supports precise cone movement.
Rear-dampened hybrid silk dome tweeter: Extends the speaker’s frequency response.
Mounting hardware included: Helps secure the speakers during installation.

Technical Specifications

Brand	AudioControl
Model	PNW-57
Product type	5x7" coaxial speakers
Quantity	Pair
Power handling	75W RMS / 100W Max
Impedance	3 Ohms
DC Resistance (Re)	2.3 ohms
Frequency response	60-20k Hz
Crossover	Butterworth
XO frequency	5250 Hz
Slope	-6 dB
Frame	Edge-enhanced steel frame
Voice coil former	Black anodized, heat-dissipating
Cone	Rigid poly mica-coated cone
Surround	Linear double-roll surround
Tweeter	Rear-dampened hybrid silk dome tweeter
Additional design features	Sonic diffuser and radiant collar for better off-axis frequency response; complex FEA-designed high-efficiency motor
Overall diameter	5.5 x 8.73 in / 140.6 x 221.9 mm
Cut Out Diameter	4.64 x 6.96 in / 118 x 177 mm
Mounting depth	2.24 in / 57 mm
In the box	(2) PNW-57 Speakers, Manual, Warranty, high-quality mounting hardware

Why Choose This Product?

The PNW-57 combines midrange and tweeter drivers in each coaxial speaker, giving you a single speaker unit for both ranges. Its edge-enhanced steel frame adds structural strength, and the black anodized voice coil former is designed to dissipate heat.

The sonic diffuser and radiant collar are designed to improve off-axis frequency response. For a system with more low-end output, the source describes pairing these speakers with AudioControl Spike or Space series subwoofers.

Installation & Compatibility Notes

Before installation, compare the listed cutout dimensions and mounting depth with your speaker opening and available space. Check that your amplifier supports the speakers’ listed 3 Ohms impedance. The specifications also list a DC resistance (Re) of 2.3 ohms; this is a separate measurement.

Mounting hardware is included. Confirm that the installation location and mounting method suit your vehicle before fitting the pair.

Frequently Asked Questions

What is included with the AudioControl PNW-57 pair?

The box includes two PNW-57 speakers, a manual, warranty, and high-quality mounting hardware.

What amplifier load should I check?

The product title lists 3 Ohms impedance. Confirm that your amplifier supports that speaker load before connecting the pair.

What are the speaker’s mounting dimensions?

The overall diameter is 5.5 x 8.73 in / 140.6 x 221.9 mm. The cutout diameter is 4.64 x 6.96 in / 118 x 177 mm, and mounting depth is 2.24 in / 57 mm.
