$30.00 off

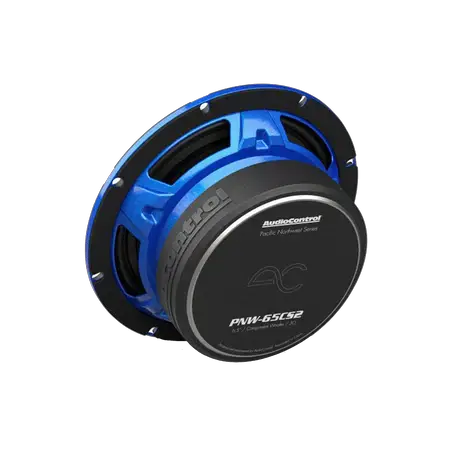

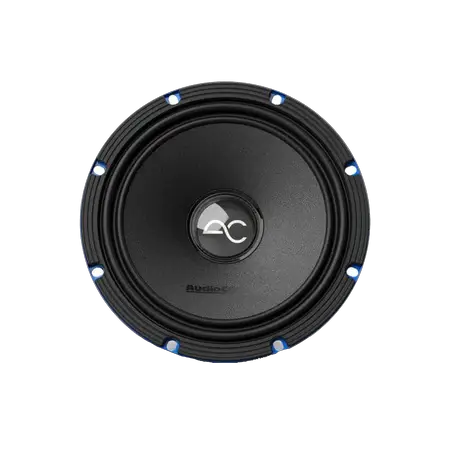

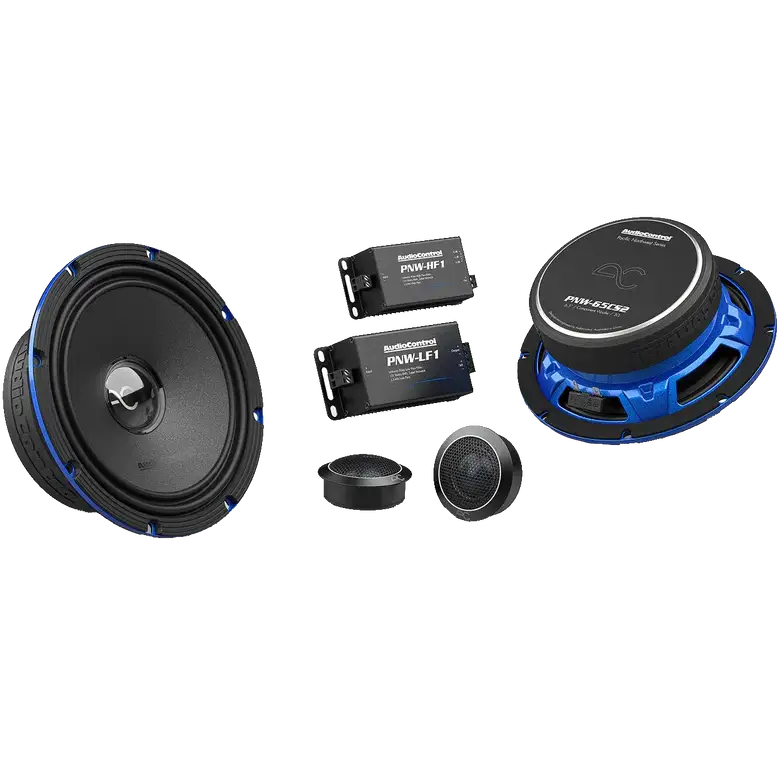

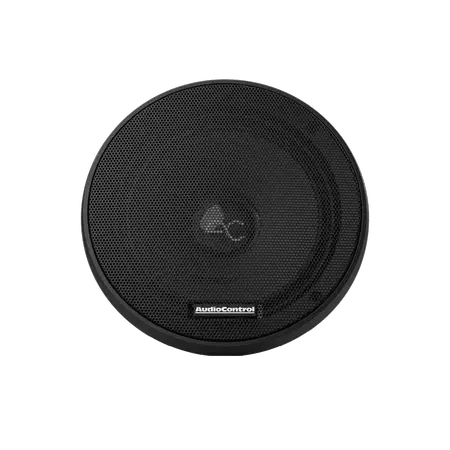

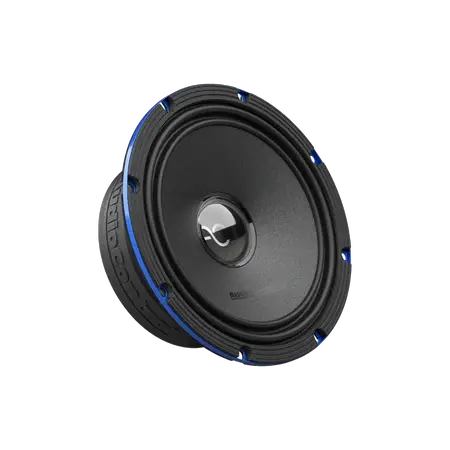

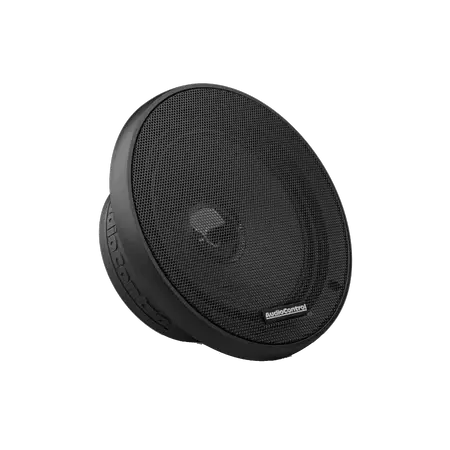

AudioControl PNW-65CS2 6.5" Component Speakers, 100W RMS, 3 Ohms (Pair)

Name: AudioControl PNW-65CS2 6.5" Component Speakers, 100W RMS, 3 Ohms (Pair)
Brand: AudioControl
Price: 319.99 USD
Availability: InStock

$319.99 $349.99

Shipping calculated at checkout.

Key features

Speaker size: 6.5″
RMS power per speaker: 100 W
Speaker impedance: 3.0 ohms
Frequency response: 60 Hz–20 kHz
Voice-coil diameters (tweeter / midrange): 25 / 35 mm
Woofer mounting depth: 2.36 in / 60 mm

Description

Product Overview

Bring detailed highs and a solid midrange to your car’s front stage with the AudioControl PNW-65CS2 6.5-inch component speakers. This pair combines a hybrid silk-dome tweeter, poly mica-coated cone and included crossover design for a balanced handoff between high and midrange frequencies.

Use the PNW-65CS2 in an automotive speaker upgrade, with dimensions and amplifier requirements checked against your installation before purchase.

Key Features & Benefits

100W RMS / 125W Max: The stated power handling helps you match the speakers with suitable amplification.
2nd order Linkwitz-Riley crossover: The 3.5 kHz crossover uses a -12 dB/octave slope for the woofer-to-tweeter handoff.
Hybrid silk-dome tweeter: Rear damping supports extended high-frequency response and controlled dispersion.
Poly mica-coated cone: A linear double-roll surround supports accurate cone motion.
High-efficiency motor: Complex FEA design supports precise driver control.
Mounting hardware included: The box also includes two speakers, a manual and a warranty.

Technical Specifications

Brand	AudioControl
Model	PNW-65CS2
Product type	6.5-inch component speakers, pair
Power handling	100W RMS / 125W Max
Impedance	3 Ohms (title); DC resistance: 2.3 ohms
Frequency response	60–20,000 Hz
Crossover design	2nd order Linkwitz-Riley crossover at 3.5 kHz; HP/LP configuration; -12 dB/octave slope
Tweeter	Rear dampened hybrid silk dome
Cone and surround	Rigid poly mica-coated cone; linear double-roll surround
Motor and frame	Edge-enhanced steel frame; black anodized voice coil former; complex FEA-designed high-efficiency motor
Speaker overall diameter	6.5 in (166 mm)
Speaker cut-out diameter	5.59 in (142 mm)
Speaker mounting depth	2.36 in (60 mm)
Tweeter overall diameter	2.13 in
Tweeter cut-out diameter	1.85 in (47 mm)
Tweeter mounting depth	0.63 in (16 mm)
In the box	(2) PNW-65CS2 speakers, Manual, Warranty; high-quality mounting hardware

Why Choose This Product?

The PNW-65CS2 pairs a 6.5-inch speaker design with a separate tweeter and a specified crossover, giving you distinct components for front-stage playback. Its 60–20,000 Hz frequency response and stated power handling help you assess how it fits your audio system.

The product details also identify AudioControl Spike or Space series subwoofers as pairing options for a complete in-vehicle listening setup.

Installation & Compatibility Notes

Compare the speaker and tweeter cut-out diameters and mounting depths with the available space in your vehicle. The main speakers measure 2.36 inches deep; the tweeters measure 0.63 inches deep.

The title lists 3 Ohms, while the product details give 2.3 ohms DC resistance. Check that your amplifier supports the speakers’ load and can deliver sufficient current. Follow the supplied manual for installation guidance.

Frequently Asked Questions

What is included with the AudioControl PNW-65CS2?

The box includes two PNW-65CS2 speakers, a manual, a warranty and mounting hardware.

What are the speaker mounting dimensions?

The speakers have a 6.5-inch (166 mm) overall diameter, a 5.59-inch (142 mm) cut-out diameter and a 2.36-inch (60 mm) mounting depth.

What are the tweeter dimensions?

The tweeter measures 2.13 inches overall, with a 1.85-inch (47 mm) cut-out and 0.63-inch (16 mm) mounting depth.

What amplifier load should I check?

The title lists 3 Ohms, and the product details state 2.3 ohms DC resistance. Confirm your amplifier supports the speaker load and its current requirements.
