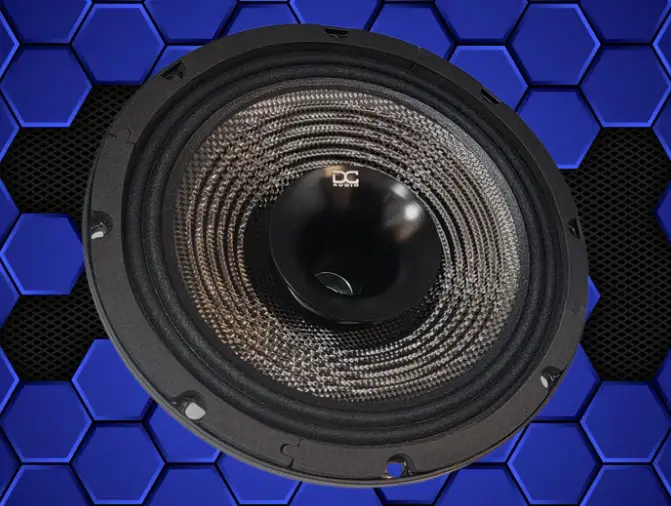

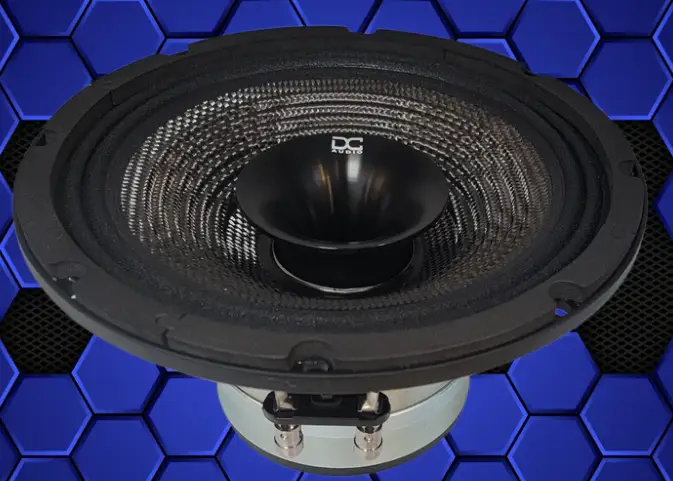

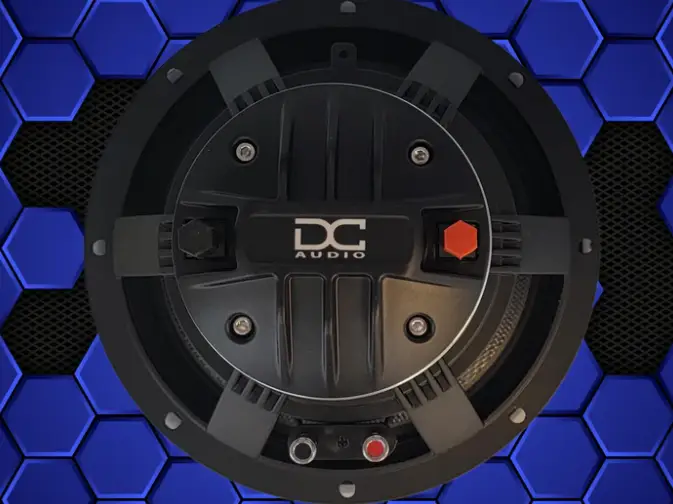

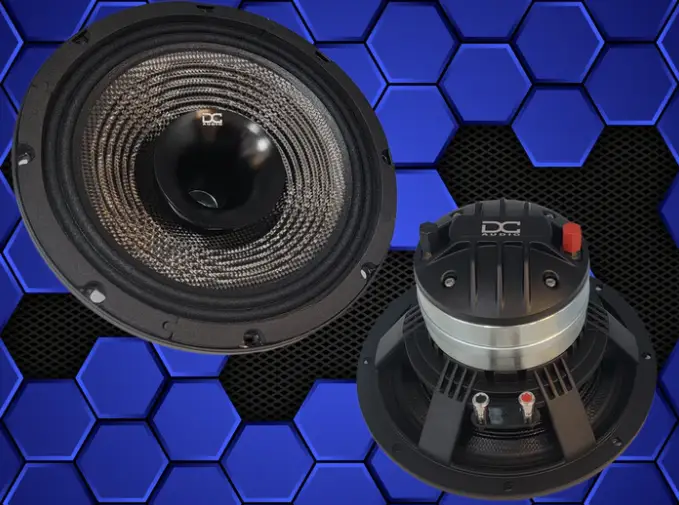

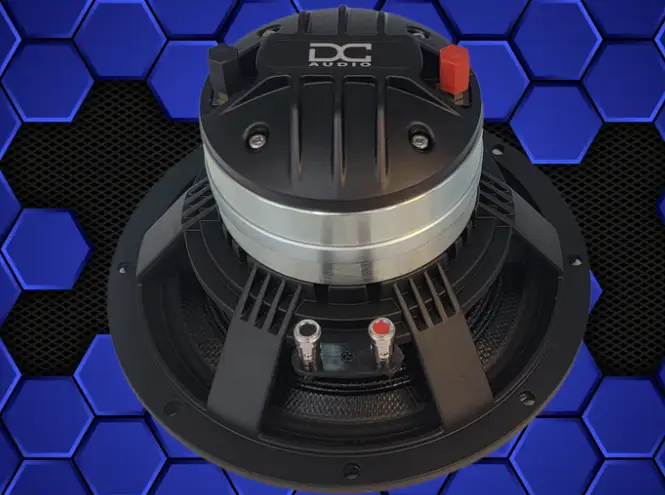

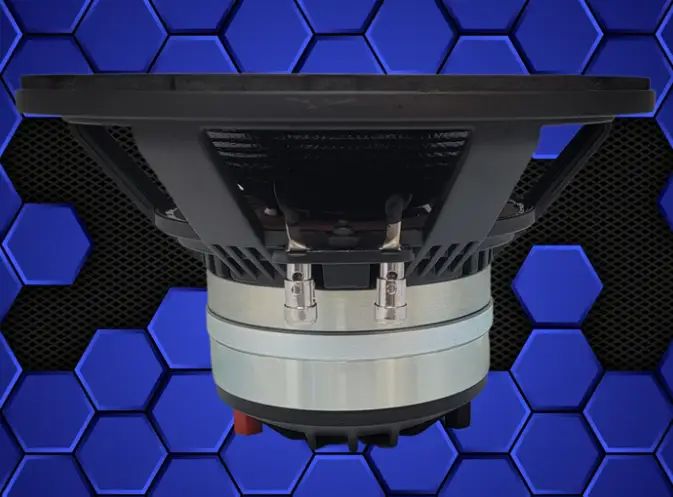

DC Audio NEO COAXIAL CF 8" Full Range Pro Audio

$390.00

Shipping calculated at checkout.

Key features

Speaker size: 8″
Available impedance: 4 or 8 ohms
Mounting depth: 4.75 inches (120 mm)
Cutout diameter: 7.3 inches
Frequency range: 120 Hz–20 kHz; HF crossover at 1.2 kHz or higher
Configuration: Fully active, with mids and horns on separate amplifier channels

Coil Configuration

Pro Coxial NEO SVC 4 Ohm Pro Coxial NEO SVC 8 Ohm

Description

Product Overview

The DC Audio NEO COAXIAL CF 8" full range pro audio driver brings midrange and high-frequency output together in an 8-inch coaxial speaker. Its 200-watt mid section, 50-watt highs section, and cast frame are designed for high-output installations.

Use it as a front-stage speaker or monitor when your build can accommodate its mounting requirements. The 4- or 8-ohm options offer flexibility when planning the amplifier and system configuration.

Key Features & Benefits

Separate mid and high sections: Their distinct power ratings and crossover ranges support tailored setup of each frequency path.
50 mm mid voice coil: The larger coil supports the mid section’s power handling and heat dissipation.
Cast frame: A rigid frame supports demanding high-output use.
4- or 8-ohm impedance: Choose the version that suits your amplifier and system design.
Individual sale: Each purchase is for one driver, allowing flexible multi-driver configurations.

Technical Specifications

Category	Specification
Product type	8" coaxial full range pro audio driver
Impedance	4 or 8 ohms
Mid power rating	200 watts via a 50 mm voice coil
Highs power rating	50 watts
Frequency response	120 Hz–20 kHz; HF crossover at 1.2 kHz or higher
Mid crossover	120 Hz–20 kHz
HF crossover	1.2 kHz–20 kHz
Voice coil diameter	50 mm
Cutout	7.3"
Mounting depth	4.75" / 120 mm
Motor diameter	2.95" / 75 mm
Frame	Cast frame
Quantity	Sold in individuals
Operating mode	Run fully active with mids and horns on separate channels set at the appropriate crossover and power settings

Why Choose This Product?

The NEO COAXIAL CF 8" combines a 200-watt mid section with a 50-watt highs section for a broad stated response range. Its separate mid and high crossover ranges let an installer set up the two paths with dedicated control.

The 2.95" motor and cast frame are substantial design features for a pro audio driver. Plan the installation around the speaker’s mounting dimensions and the space needed for its motor and frame.

Installation & Compatibility Notes

The required cutout is 7.3", and mounting depth is 4.75" / 120 mm. The product description notes that 99% of the time, Pro Audio lineup speakers require custom installations or modifications to fit their massive motor and frame.

Run the mids and highs on separate channels in fully active mode, with appropriate crossover and power settings. Check the selected 4- or 8-ohm version against your amplifier and system plan before installation.

Frequently Asked Questions

What is the power rating for each section?

The mid section is rated at 200 watts via a 50 mm voice coil. The highs section is rated at 50 watts.

What crossover range is specified?

The mid crossover is 120 Hz–20 kHz. The HF crossover is 1.2 kHz–20 kHz, with the stated HF crossover at 1.2 kHz or higher.

What mounting space does this driver need?

Allow for a 7.3" cutout and 4.75" / 120 mm mounting depth. The motor diameter is 2.95" / 75 mm.

Is this sold as a pair?

No. It is sold individually, with each unit being one driver.

Does it require a custom installation?

The product description states that 99% of the time, Pro Audio lineup speakers require custom installation or modifications to fit the motor and frame.
