DS18 6OCT300-8 Octagonal 6" Mid-Bass Loudspeaker 300 Watts Rms 8-Ohm (each)

Name: DS18 6OCT300-8 Octagonal 6" Mid-Bass Loudspeaker 300 Watts Rms 8-Ohm (each)
Brand: DS18
Price: 107.99 USD
Availability: InStock

$107.99 $137.99

Shipping calculated at checkout.

Key features

Speaker size: 6.5″
RMS power per speaker: 300 W
Speaker impedance: 8.0 ohms
Frequency response: 80 Hz–10 kHz
Sensitivity (1 W/1 m): 95 dB
Voice-coil diameter: 2 inches

Description

DS18 6OCT300-8 PRO Octagon 6.5" Mid-Range Loudspeaker
600 Watts Max 8 Ohm

Get your system in shape with DS18’s new 6OCT300-8!

This 6.5” octagonal midrange loudspeaker offers better frequency response than your usual round speakers and can reproduce frequencies as low as 80Hz and as high as 10KHz!

Create an incredibly tangible soundstage that increases the quality and feel of the speakers in your system and sound created by them!

For our competitors, the octagonal speakers will give your show stopping system a cleaner look that can be easily organized for precise reproduction when you need it most.

It’s high sensitivity, rated at 95 dB, allows it to handle powers of 300 W RMS and 600 W MAX. These speakers get LOUD easily, just the way we like it!

Install these 8 ohm speakers into your sound system correctly and enjoy intense volume that never fades!

Highlights

Octagonal shape offers wider range of frequency response available to speakers of rounder shape
Easier organization of the equipment in your system
300 RMS Power Handling
600 MAX Power Handling

DS18 6OCT300-8 octagonal loudspeaker shown from the front and side against a red branded background.

DS18 6OCT300-8 front view highlighting its octagonal frame, with size, impedance and power callouts.

DS18 6OCT300-8 front and rear views beside frequency-response, sensitivity and mounting-depth callouts.

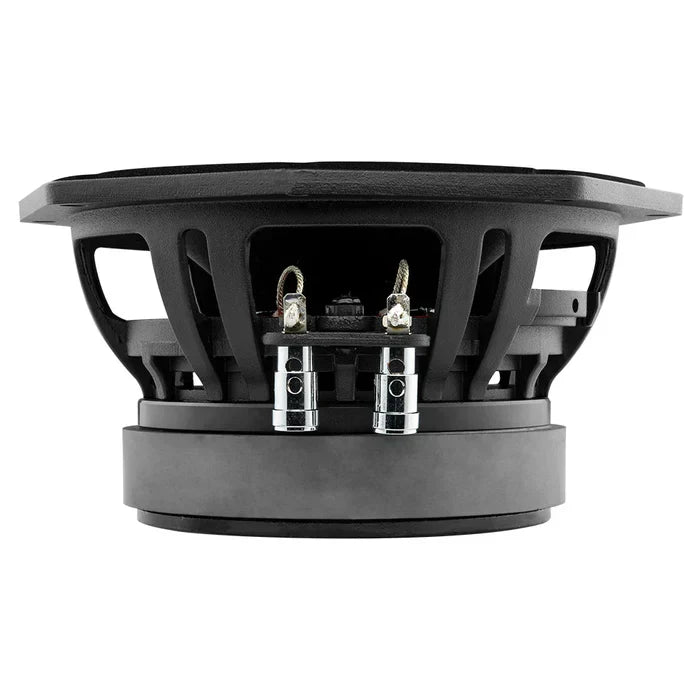

DS18 6OCT300-8 side view highlighting the aluminum basket, speaker terminals, magnet and voice-coil specifications.

Two octagonal DS18 speakers and a central tweeter installed in a red vehicle door panel.

Technical Details

Download 6OCT300-8 Product Manual

SPECIFICATIONS
Nominal Diameter	6.5” / 165mm
Nominal Impedance	8 ohms
RMS Power Handling	300W
MAX Power Handling	600W
Sensitivity (1w/1m)	95dB
Frequency Response	80Hz-10KHz
Recommended HI Pass Crossover	120Hz
Sold As Pair or Single	Single
Grill Included	No
MOTOR
Voice Coil Diameter	2" / 50.8mm
Voice Coil Former Material	TIL
Winding Material	CCAW
Cone Material	Paper
Dust Cap Material	Paper
Surround Material	Cloth
Basket Material	Aluminum
Basket Color/Finish	Black Sandblasted
Magnet Material	Ferrite
Magnet Weight	30 oz
Displacement Volume	0.05L / 0.0017ft3
MEASUREMENT
Overall Diameter	6.7" / 170mm
Overall Depth	3.7" / 95mm
Front Mount Baffle Cutout	5.8" / 148mm
Mounting Depth	3.4" / 87mm
Motor Diameter	4.7" / 120mm
