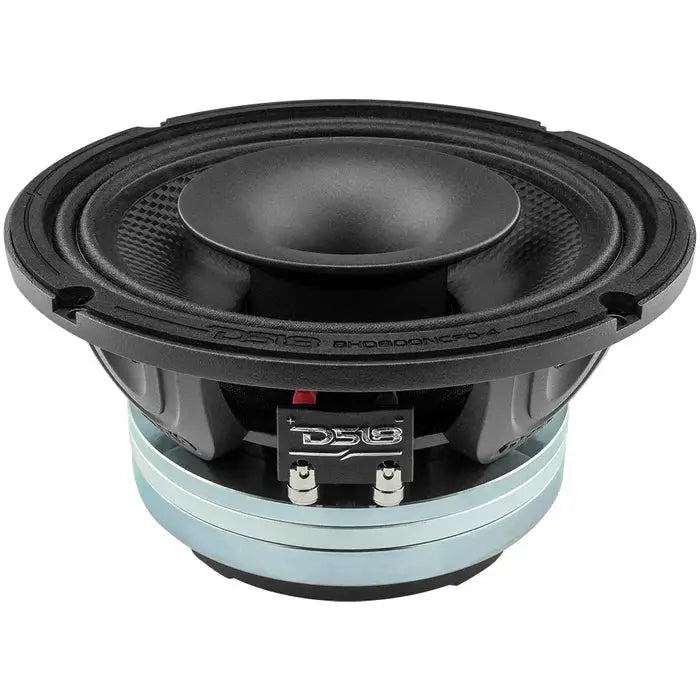

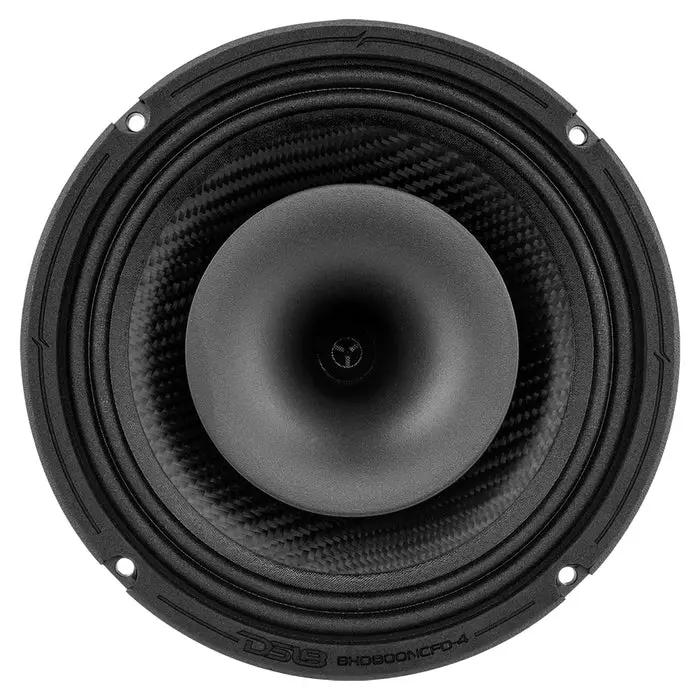

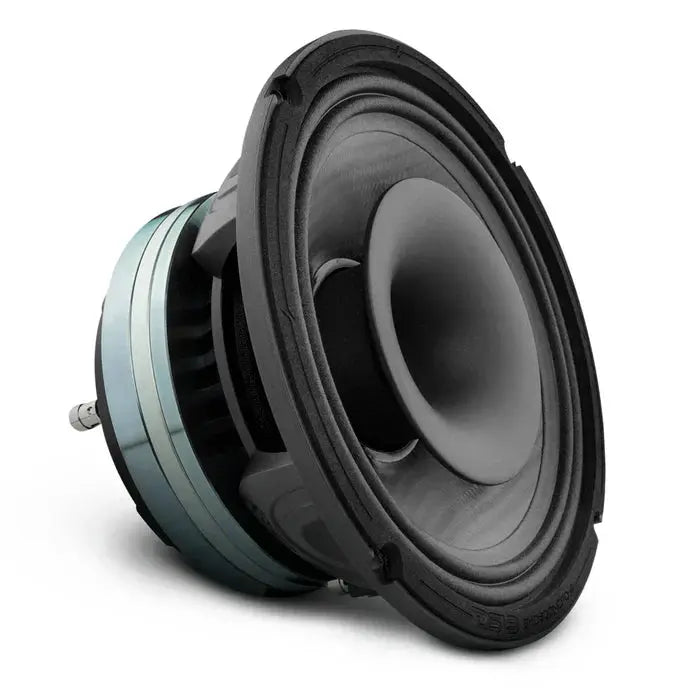

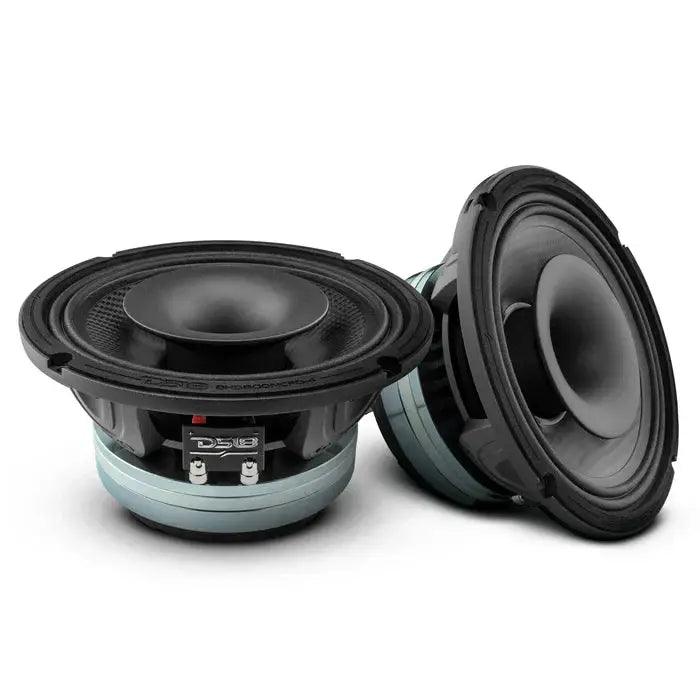

DS18 8HD800NCFD-4 8" Water Proof Carbon Fiber Mid Bass and Driver Coaxial Hybrid Neodymium Magnet 4-Ohm (each)

Product Overview

Bring a high-output 8-inch mid-bass speaker and coaxial compression-horn driver together in one assembly with the DS18 8HD800NCFD-4. Its water-resistant carbon fiber cone and separate woofer and driver terminals suit audio builds for cars, boats, and motorcycles.

Key Features & Benefits

• Hybrid coaxial design: The built-in driver and compression horn pair midrange and high-frequency output in one speaker assembly.
• Water-resistant carbon fiber cone: The cone is designed for installations where moisture resistance matters.
• High sensitivity: The combined rating of 105 dB (1W/1m) supports efficient output in high-output systems.
• Neodymium magnet: This magnet material supports a compact speaker motor design.
• Four terminals: Separate midrange and driver connections allow crossover configurations to be planned around your system.
• Sold individually: Order the number of speakers your installation requires; a grille is not included.

Technical Specifications

Why Choose This Product?

The 8HD800NCFD-4 combines an 8-inch woofer with a coaxial high-frequency driver in a single assembly. That gives your build one mounting reference for both sections while keeping their impedance and wiring connections distinct.

Its water-resistant cone makes it an option to consider for moisture-prone vehicle, boat, and motorcycle installations. The 400W combined RMS and 800W combined MAX ratings help you assess power handling when matching the speaker to your system.

Installation & Compatibility Notes

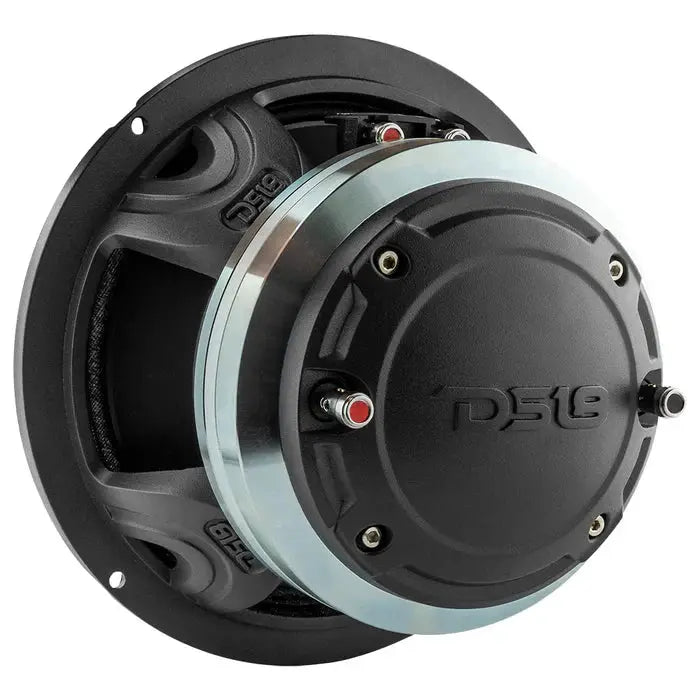

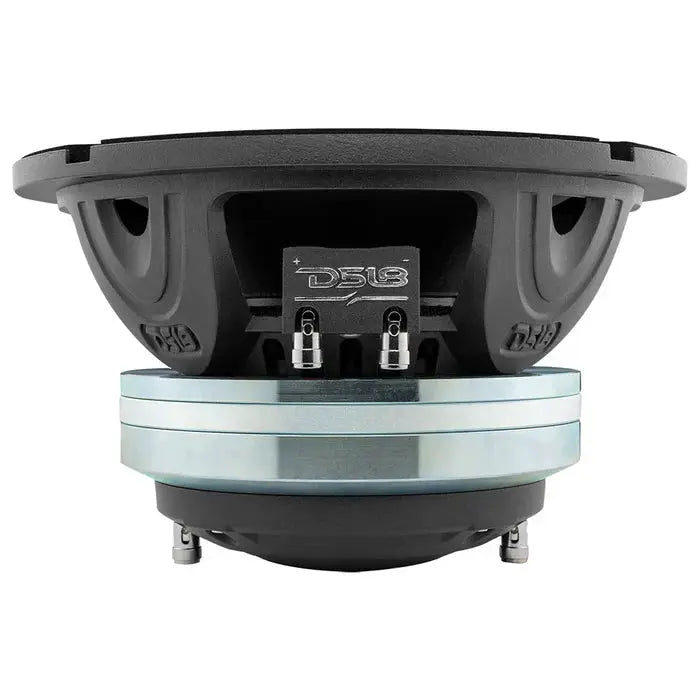

Plan for the woofer’s 4 Ω impedance and the driver’s 8 Ω impedance separately when selecting crossover settings and system connections. The speaker has four terminals: two for the midrange and two for the driver.

The nominal diameter is 8" / 203mm. Check the mounting space and installation requirements for your specific vehicle or enclosure before purchase. A grille is not included.

Frequently Asked Questions

What do the 4-ohm and 8-ohm ratings refer to?

The woofer is rated at 4 Ω, while the built-in driver is rated at 8 Ω. The two sections also have separate terminals.

How much power can the speaker handle?

Combined handling is rated at 400W RMS and 800W MAX. The woofer is rated at 250W RMS / 500W MAX; the driver is rated at 150W AES / 300W Program.

Is this speaker waterproof?

The carbon fiber cones are described as water-resistant. The supplied details do not establish a waterproof rating.

Does it include a grille?

No. The grille is not included, and the product is sold as a single speaker.

Can I use it in a boat or motorcycle?

Its water-resistant cone is described for moisture-prone installations, including boats and motorcycles. Check the mounting space and system requirements for your installation.
