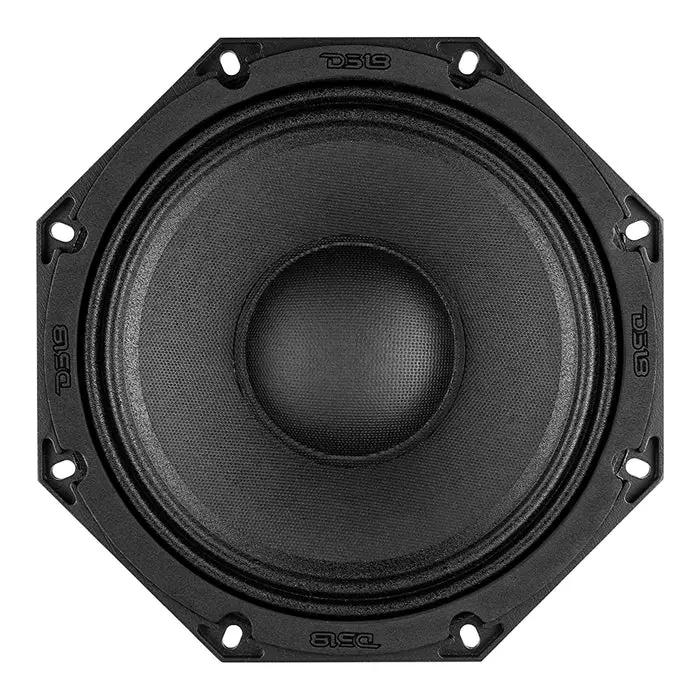

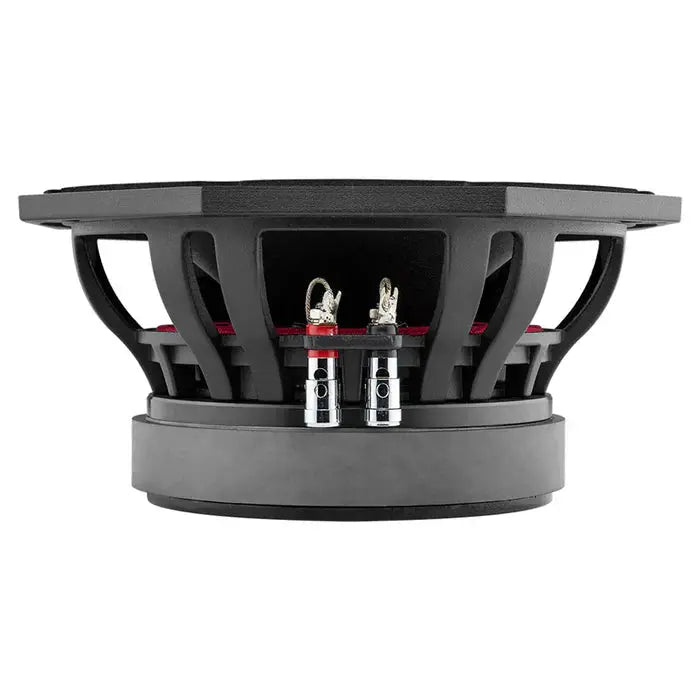

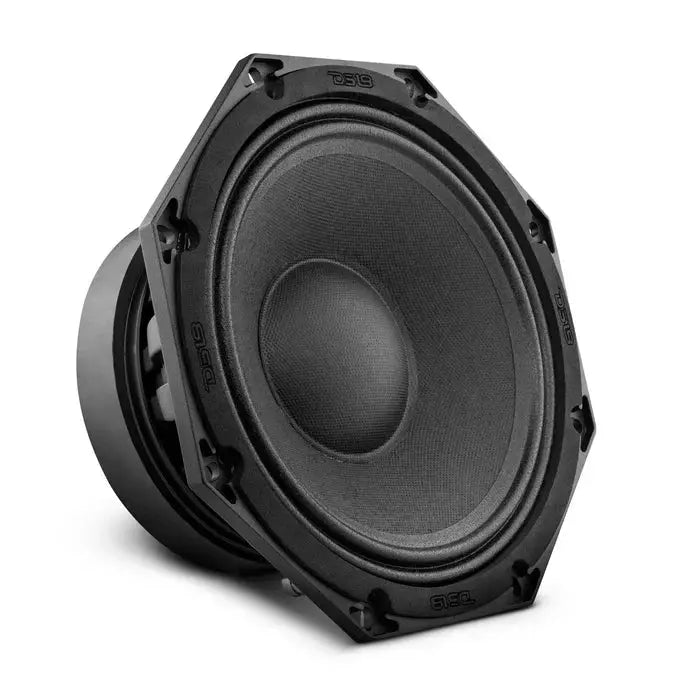

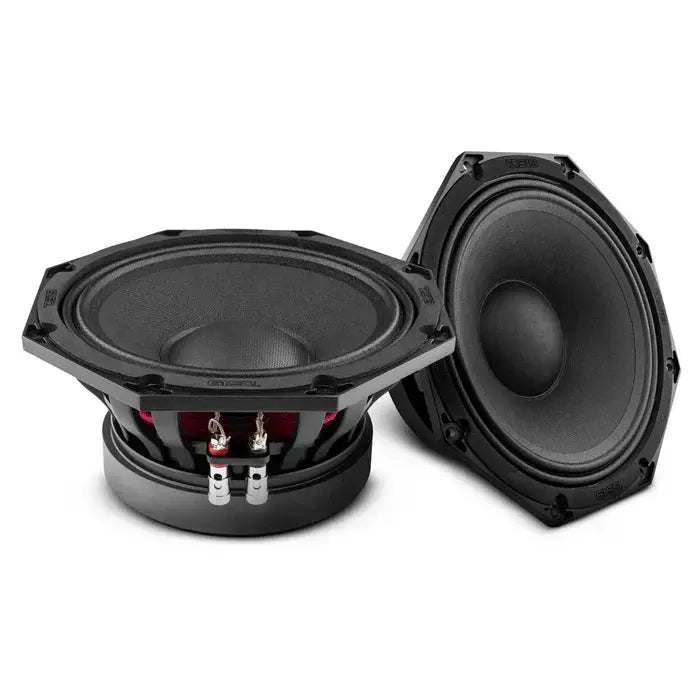

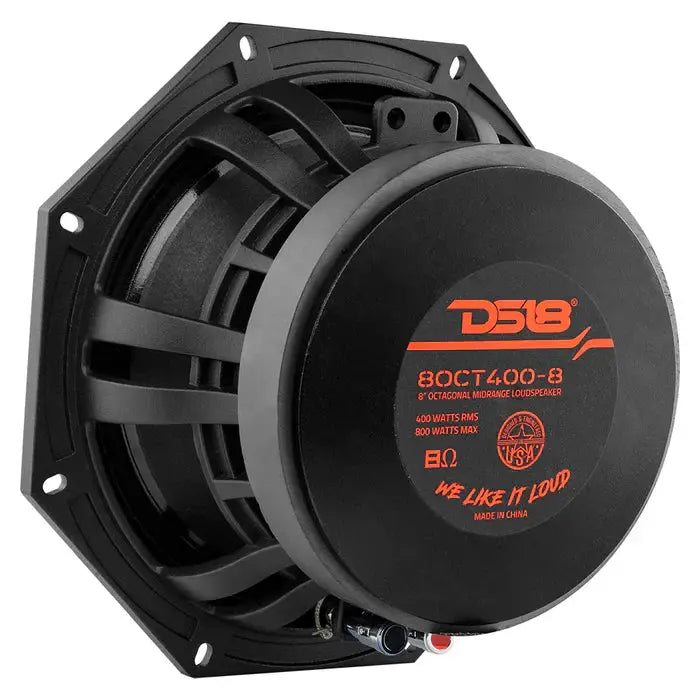

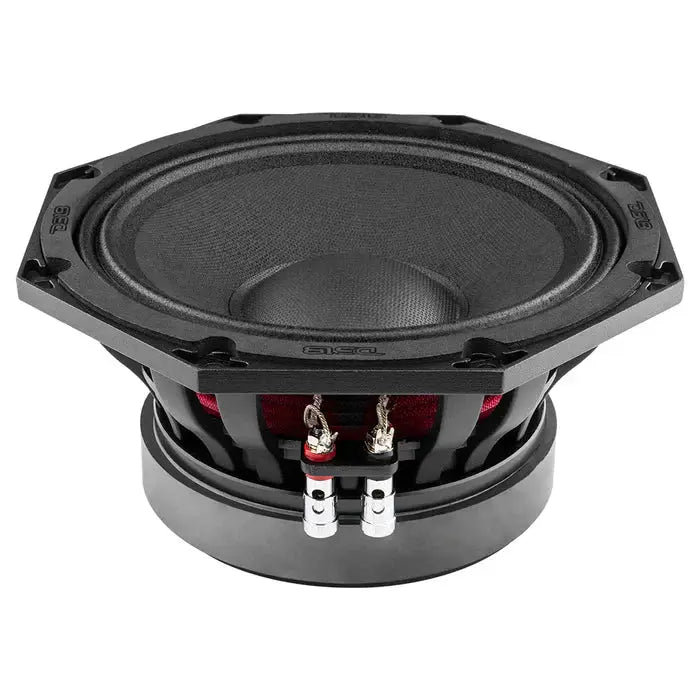

DS18 8OCT400-8 Octagonal 8" Mid-Bass Loudspeaker 400 Watts Rms 8-Ohm (each)

Product Overview

Bring high-output mid-bass and midrange detail to a multi-way car-audio system with the DS18 8OCT400-8 octagonal 8-inch loudspeaker. Its 8-ohm design handles 400 watts RMS, while a 98 dB sensitivity rating supports strong output from the power you provide.

Key Features & Benefits

• Octagonal 8-inch design: The shape is designed to provide a wider frequency response than traditional round drivers.
• 400 watts RMS power handling: The rating helps you match the speaker to your system’s amplifier.
• 98 dB sensitivity: Rated at 1W/1m, it supports high output with less amplification.
• 63 Hz–10 kHz frequency response: The range covers bass territory and detailed midrange frequencies.
• Aluminum basket: The basket material is specified for this driver’s construction.
• 100 Hz recommended high-pass crossover: Use this recommendation when planning integration in a multi-way system.

Technical Specifications

Why Choose This Product?

The 8OCT400-8 is designed for high-output midrange roles in multi-way car-audio systems. Its octagonal geometry and stated 63 Hz–10 kHz response give you a distinctive driver option when planning sound across a broad frequency range.

With 400 watts RMS handling and 98 dB sensitivity, this DS18 speaker combines substantial power handling with an efficient output rating. Its 8-ohm impedance is an important consideration when matching it to your amplifier and other system components.

Installation & Compatibility Notes

Check your mounting location against the 7.2" (185 mm) front-mount cutout, 3.7" (95 mm) mounting depth, and 8.1" (208 mm) overall diameter. Allow for the 4.1" (105 mm) overall depth when checking clearance.

Match the speaker’s 8-ohm nominal impedance and 400-watt RMS rating to your system. The recommended high-pass crossover is 100 Hz; confirm crossover and system settings for your installation.

Frequently Asked Questions

Is the 400-watt rating RMS or maximum?

400 watts is the RMS power handling. Maximum power handling is 800 watts.

What impedance should I account for?

The nominal impedance is 8 ohms. Consider it when matching the speaker with your amplifier and system configuration.

What crossover point does DS18 recommend?

The recommended high-pass crossover is 100 Hz.

Will it fit my speaker opening?

Compare your available space with the 7.2" (185 mm) front-mount cutout, 8.1" (208 mm) overall diameter, and mounting-depth measurements above.

What frequency range does this speaker cover?

Its specified frequency response is 63 Hz–10 kHz.
