DS18 G5.25Xi GEN-X 5.25" 2-Way Coaxial Speakers, 45W RMS / 135W Max, 4 Ohm (Pair)

Name: DS18 G5.25Xi GEN-X 5.25" 2-Way Coaxial Speakers, 45W RMS / 135W Max, 4 Ohm (Pair)
Brand: DS18
Price: 50.99 USD
Availability: InStock

$50.99 $60.99

Shipping calculated at checkout.

Key features

Speaker size: 5.25″
RMS power per speaker: 45 W
Speaker impedance: 4.0 ohms
Frequency response: 50 Hz–20 kHz
Sensitivity (1 W/1 m): 84 dB
Woofer voice-coil diameter: 1 inch

Description

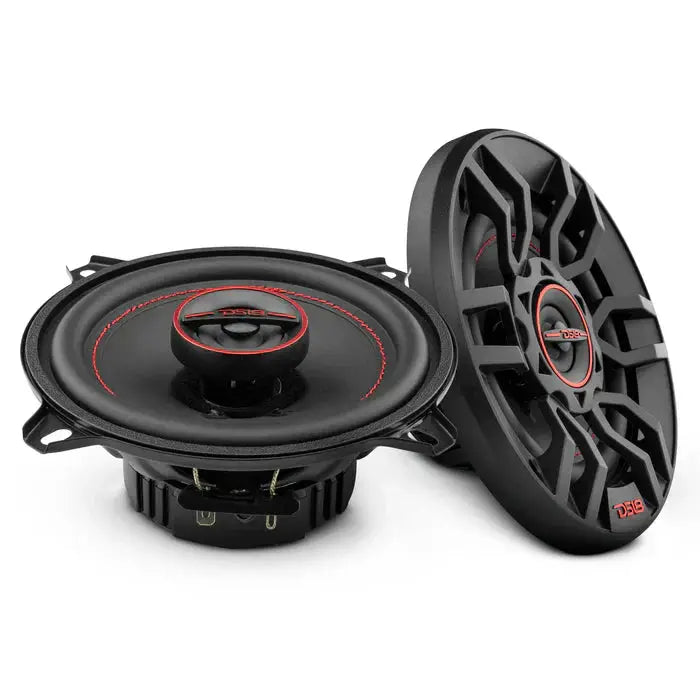

DS18 G5.25Xi GEN-X 5.25-inch 2-Way Coaxial Speakers

Upgrade your car audio with the DS18 G5.25Xi speaker pair. Each 4-ohm speaker combines a paper woofer cone and rubber surround with a Mylar balanced-dome tweeter. A steel basket supports the assembly, and protective grilles are included.

Highlights

5.25-inch, 2-way coaxial design
45 watts RMS and 135 watts maximum power handling per speaker
50 Hz–20 kHz frequency response and 84 dB sensitivity
Barium ferrite woofer magnet and neodymium tweeter magnet

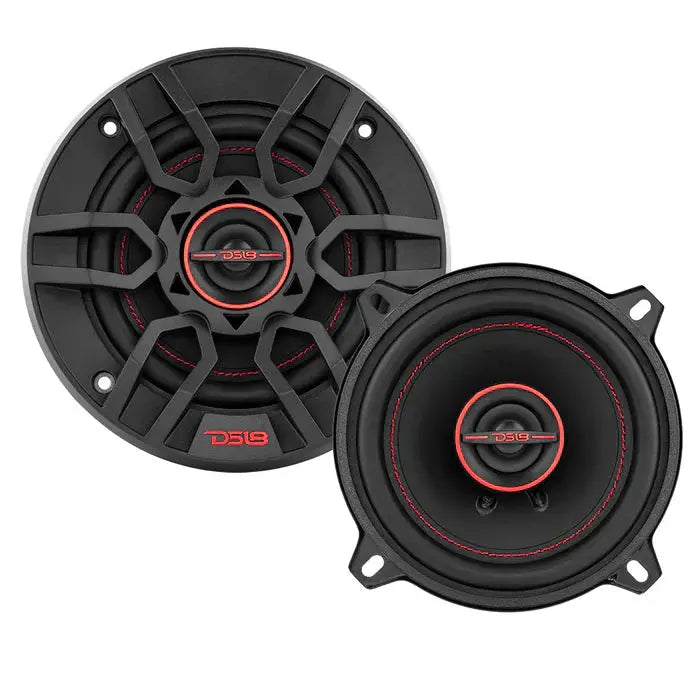

Sold as a pair with grilles

Technical Details

Download the DS18 G5.25Xi product manual

GENERAL SPECIFICATIONS
Model	G5.25Xi
Nominal diameter	5.25 inches / 133 mm
Nominal impedance	4 ohms
RMS power handling (each)	45 W
Maximum power handling (each)	135 W
Sensitivity (1 W/1 m)	84 dB
Frequency response	50 Hz–20 kHz
Recommended high-pass crossover	80 Hz
Number of ways	2
Package	Pair; grilles included
WOOFER SPECIFICATIONS
Voice-coil diameter	1 inch / 25.5 mm
Voice-coil former / winding	ASV / EISV
Cone / surround	Paper / rubber
Basket / finish	Steel / black matte
Magnet material / weight	Barium ferrite / 6.3 oz (180 g)
TWEETER SPECIFICATIONS
Nominal diameter	1 inch / 25.5 mm
Voice-coil diameter	0.5 inch / 13.25 mm
Voice-coil former / winding	ASV / EISVM
Diaphragm / magnet	Mylar / neodymium
Magnet weight	1.8 g
SPEAKER MEASUREMENTS
Overall diameter	5.13 inches / 130.4 mm
Overall depth	2.47 inches / 62.8 mm
Overall diameter with grille	6.38 inches / 162 mm
Overall depth with grille	2.75 inches / 69.8 mm
Front-mount baffle cutout	4.52 inches / 115 mm
Mounting depth	1.97 inches / 50 mm
Motor diameter	3 inches / 76 mm
Tweeter protrusion	0.5 inch / 12.8 mm
