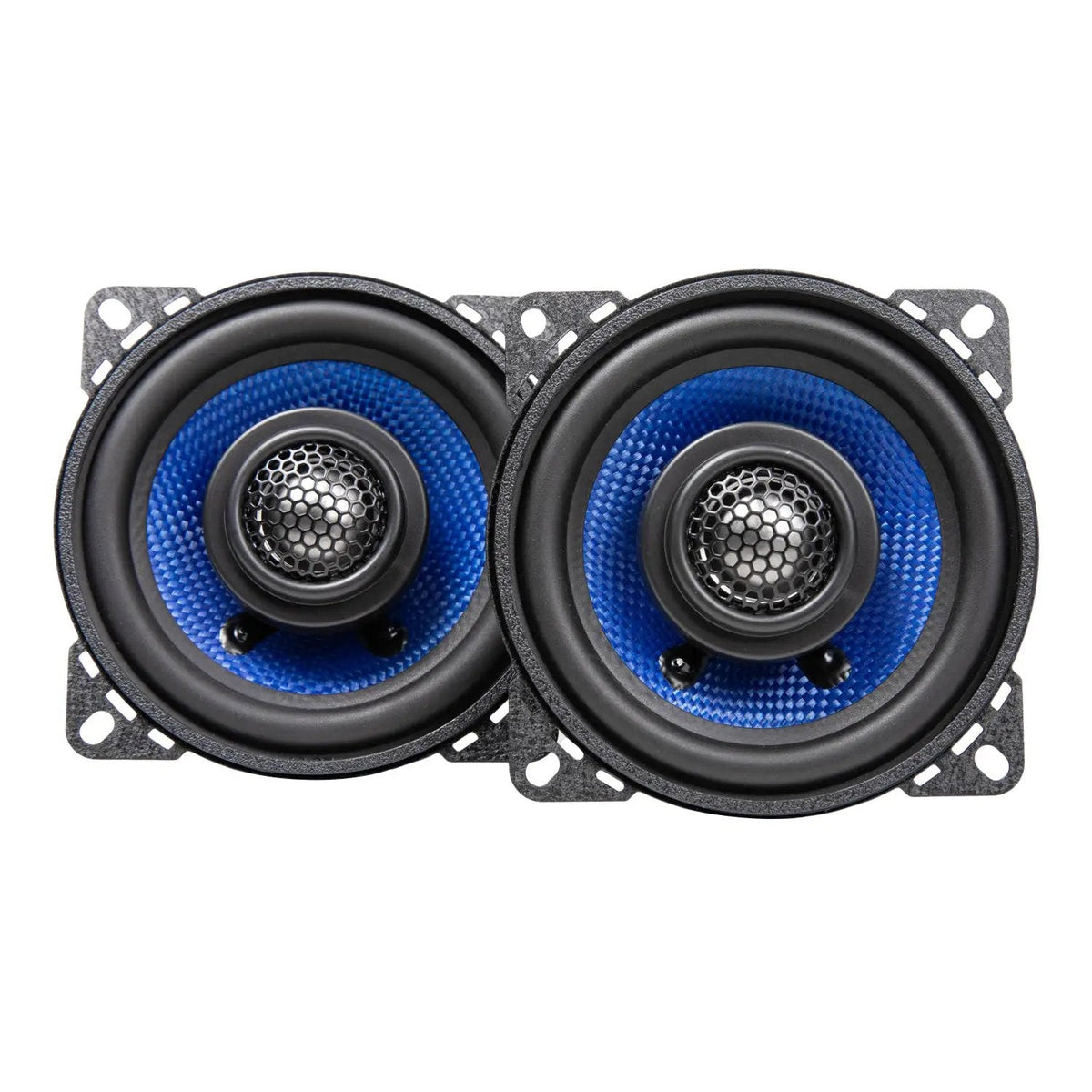

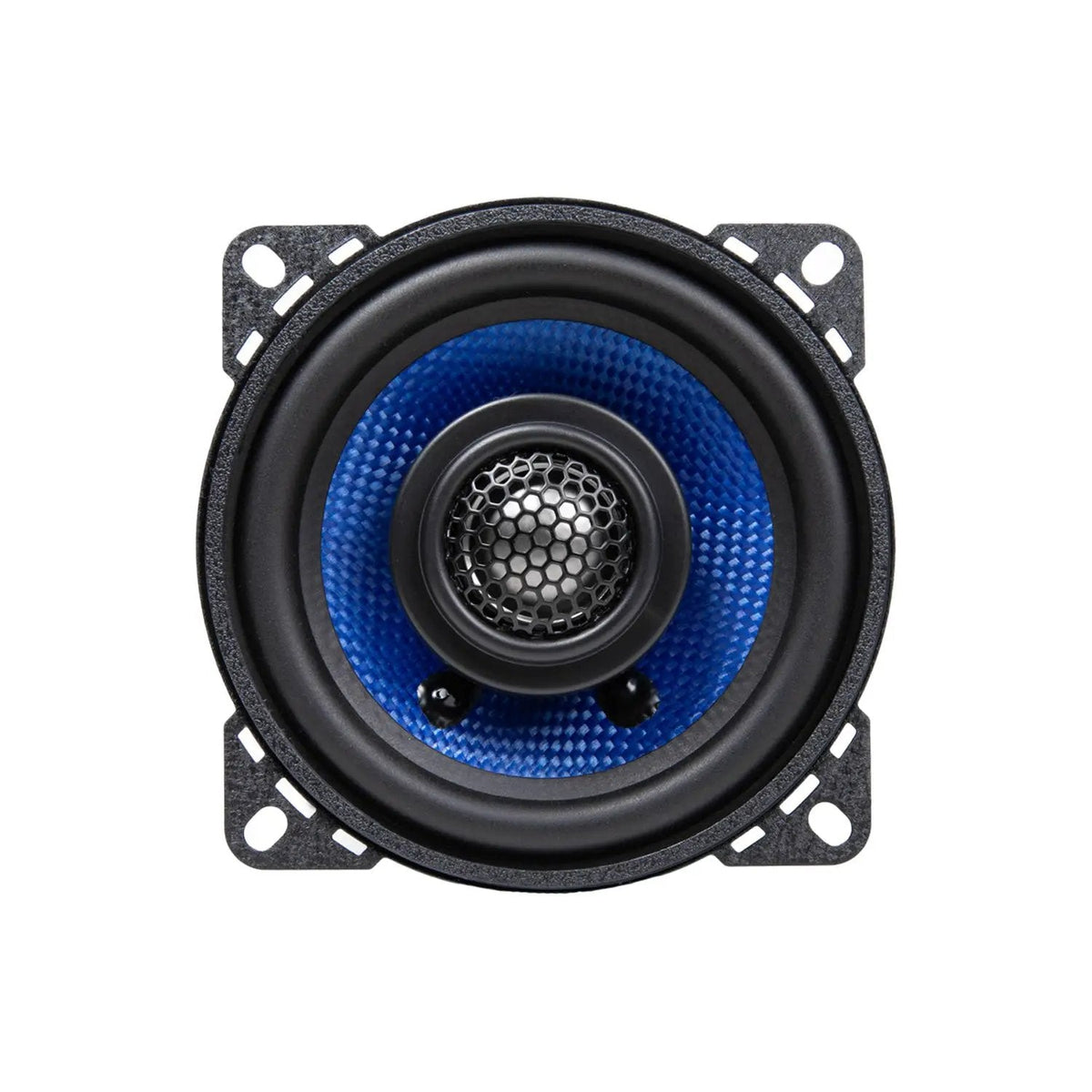

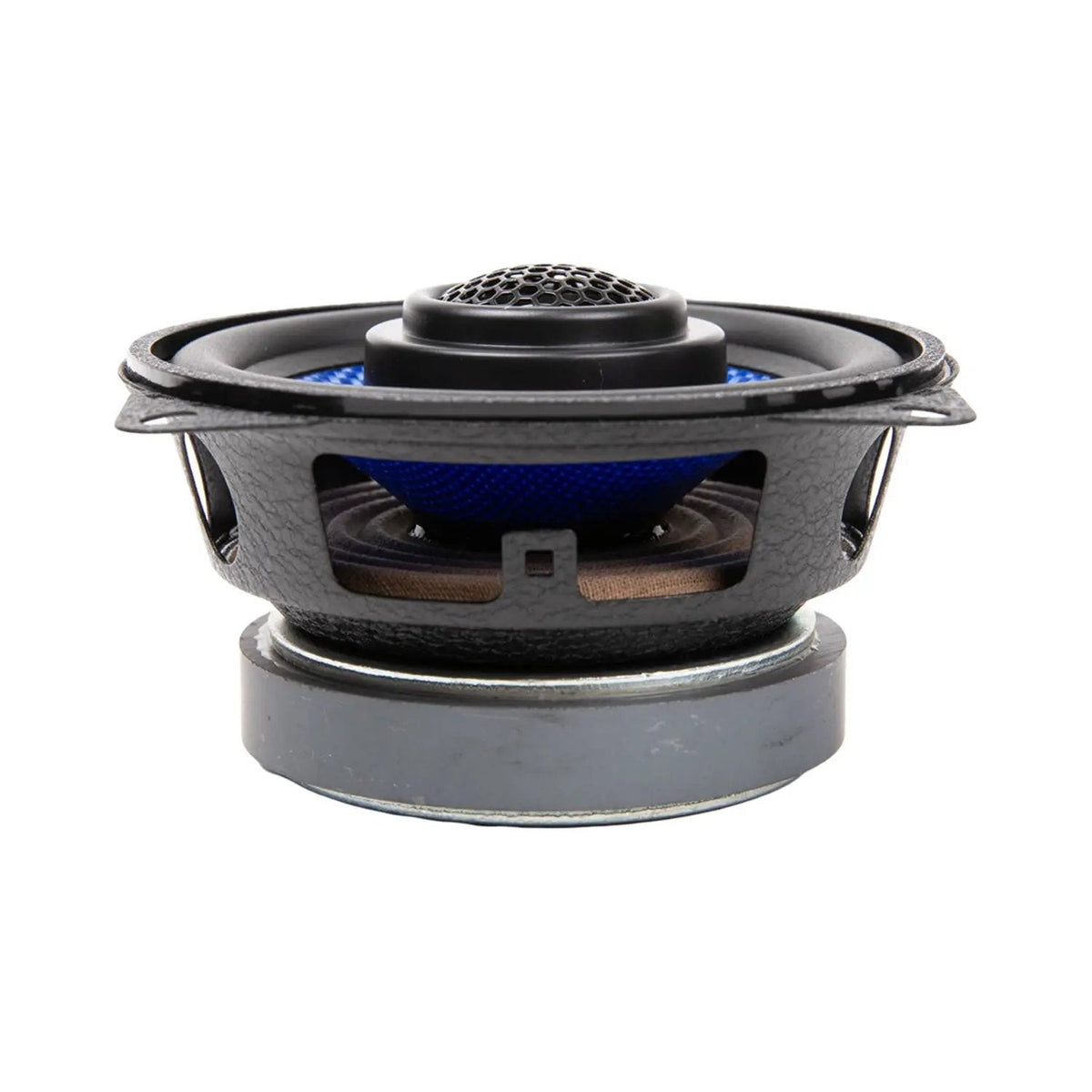

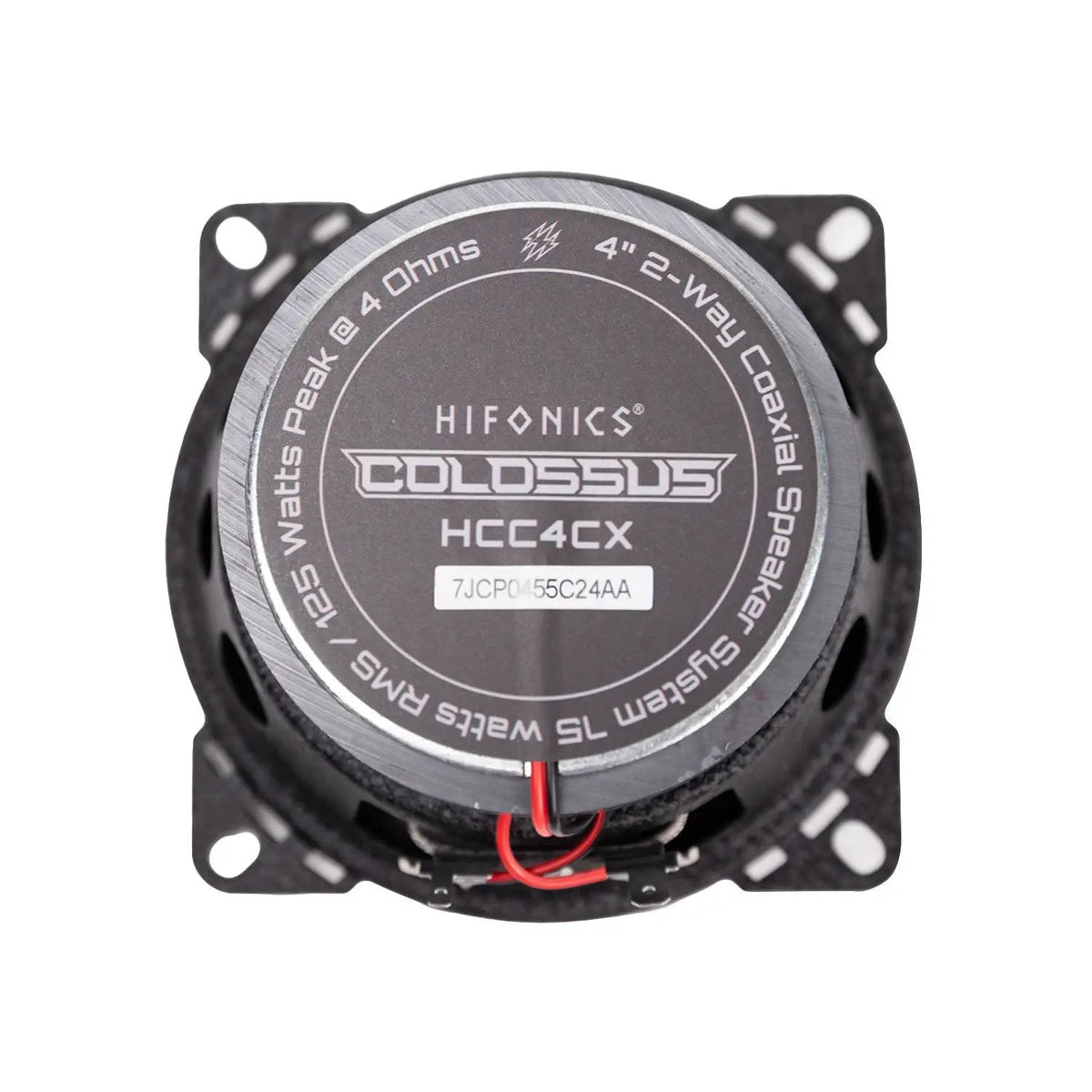

Hifonics HCC4CX COLOSSUS Classic 4 Inch Coaxial Speakers

Name: Hifonics HCC4CX COLOSSUS Classic 4 Inch Coaxial Speakers
Brand: Hifonics
SKU: 806576235781
Price: 39.99 USD
Availability: InStock

$39.99 $47.99

Shipping calculated at checkout.

Key features

Speaker size: 4″
RMS power per speaker: 40 W
Speaker impedance: 4.0 ohms
Frequency response: 80Hz-20kHz
Cone: Blue woven fiber
Surround: Butyl rubber

Description

Product Overview

Bring clear, high-output sound to a vehicle’s standard 4-inch speaker location with the Hifonics HCC4CX COLOSSUS Classic coaxial speakers. Blue woven fiber cones handle the midrange, while integrated 1-inch aluminum dome tweeters reproduce high frequencies through a passive Butterworth crossover.

Key Features & Benefits

Woven fiber cones: Lightweight cones support faster midrange response.
Butyl rubber surrounds: The cone coupling is designed for durability and deeper mid-bass impact.
Aluminum dome tweeters: The 1-inch tweeters deliver high output and extend high-frequency response.
Heat management: The Kapton former and overcoil cooling system help dissipate heat during extended playback.
Anti-resonant basket: The stamped steel frame is designed to limit harmonics and distortion from flex and ringing.

Technical Specifications

Brand	Hifonics
Series	COLOSSUS CLASSIC
Type	Speaker
Speaker Size	4"
RMS Power Handling	40 W
Peak Power Handling	75 W
Impedance	4 Ohms
Frequency Response	80Hz - 20kHz
Sensitivity	88 dB
Crossover	Passive Butterworth
Crossover Slope	6kHz 12dB
Mounting Diameter / Cutout	9.4 cm
Outside Diameter	13.7 cm
Mounting Depth	7.6 cm
Weight	1.2 kg
Overall Dimensions	30.5 × 15.2 × 7.6 cm
Color	Black / Blue
Condition	New
Tweeter Size	1"
Cone Material	Woven Fiber
Surround Material	Butyl Rubber
Basket Material	Stamped Steel
Magnet Type	Ferrite
Tweeters	1-inch aluminum dome tweeters deliver high output, extend frequency response, and keep music reproduction feeling natural.
Cone Material	Lightweight blue woven fiber cones enable faster midrange response.
Surround / Cone Coupling	Butyl rubber surrounds provide durability and deeper mid-bass impact.
Voice Coil / Former Assembly	Pure copper voice coil creates a strong magnetic field with a very thin extrusion. The Kapton former assembly is lightweight and efficiently dissipates heat.
Spider	Epoxy infused natural fiber allows flexibility while the epoxy gives strength during the manufacturing process.
Cooling System	Overcoil cooling system allows air to be exchanged over the voice coil through the spider.
Crossover	Passive Butterworth crossover gives a smooth transition of frequencies from midrange/midbass to the tweeter element.
Frame	Anti-resonant stamped steel basket strengthens the whole speaker assembly with minimal harmonics or distortion from flex and ringing.
Motor	Ferrite magnet creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors	Spade connectors or solder direct for the best connection.
Grills	No; typical installation mounts speakers behind a panel or dash.
Compatibility	Universal fit designed for standard 4-inch speaker locations in vehicle doors, dashboards, or rear decks behind factory panels.
Reference	Hifonics Colossus Classic Speakers (HCC) Quick Start Guide (Rev1)

Why Choose This Product?

The HCC4CX combines a 4-inch coaxial speaker with an integrated tweeter and passive crossover. Its compact ferrite motor and stamped steel basket suit behind-panel installations, while the crossover manages the transition from midrange and mid-bass to the tweeter.

The speaker’s 40 W RMS and 75 W peak ratings give you distinct power figures to consider when choosing supporting audio equipment. Its 4-ohm impedance is another key detail to match against your system.

Installation & Compatibility Notes

These speakers are designed for standard 4-inch locations in vehicle doors, dashboards, or rear decks behind factory panels. Check the 9.4 cm cutout diameter, 13.7 cm outside diameter, and 7.6 cm mounting depth against your available space before installation.

Connect using spade connectors or direct soldering. Grilles are not included; the typical installation places the speakers behind an existing panel or dash.

Frequently Asked Questions

What are the HCC4CX power ratings?

Each speaker is rated for 40 W RMS power handling and 75 W peak power handling. Keep the RMS and peak figures distinct when comparing equipment.

What impedance should my audio system support?

The HCC4CX has a 4-ohm impedance. Check that your supporting audio equipment is suitable for a 4-ohm speaker load.

Will these fit my vehicle’s speaker location?

They are designed for standard 4-inch vehicle speaker locations. Compare the cutout, outside diameter, and mounting depth with the available space in your door, dash, or rear deck.

Are protective grilles included?

No. The typical installation mounts the speakers behind a factory panel or dash.

What connection options are available?

The speakers can connect with spade connectors or by direct soldering.

Explore More

Shop Hifonics products at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.

Brand	Hifonics
Series	COLOSSUS CLASSIC
Type	Speaker
Speaker Size	4"
RMS Power Handling	40 W
Peak Power Handling	75 W
Impedance	4 Ohms
Frequency Response	80Hz - 20kHz
Sensitivity	88 dB
Crossover Slope	6kHz 12dB
Mounting Diameter / Cutout	9.4 cm
Outside Diameter	13.7 cm
Mounting Depth	7.6 cm
Weight	1.2 kg
Overall Dimensions	30.5 × 15.2 × 7.6 cm
Color	Black / Blue
Condition	New
Tweeter Size	1"
Cone Material	Woven Fiber
Surround Material	Butyl Rubber
Basket Material	Stamped Steel
Magnet Type	Ferrite

Feature	Description
Tweeters	1-inch aluminum dome tweeters deliver high output, extend frequency response, and keep music reproduction feeling natural.
Cone Material	Lightweight blue woven fiber cones enables faster midrange response.
Surround / Cone Coupling	Butyl rubber surrounds provide durability and deeper mid-bass impact.
Voice Coil / Former Assembly	Pure copper voice coil creates strong magnetic field with a very thin extrusion. The Kapton former assembly is lightweight and efficiently dissipates heat.
Spider	Epoxy infused natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
Cooling System	Overcoil coolling system allows air to be exchanged over the voice coil through the spider.
Crossover	Passive Butterworth crossover gives smooth transition of frequencies from midrange/midbass to the tweeter element.
Frame	Anti-resonant stamped steel basket strengthens the whole speaker assembly with minimal harmonics or distortion from flex and ringing.
Motor	Ferrite magnet creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors	Spade connectors or solder direct for the best connection.
Grills	No: Typical installation mounts speakers behind a panel or dash.
