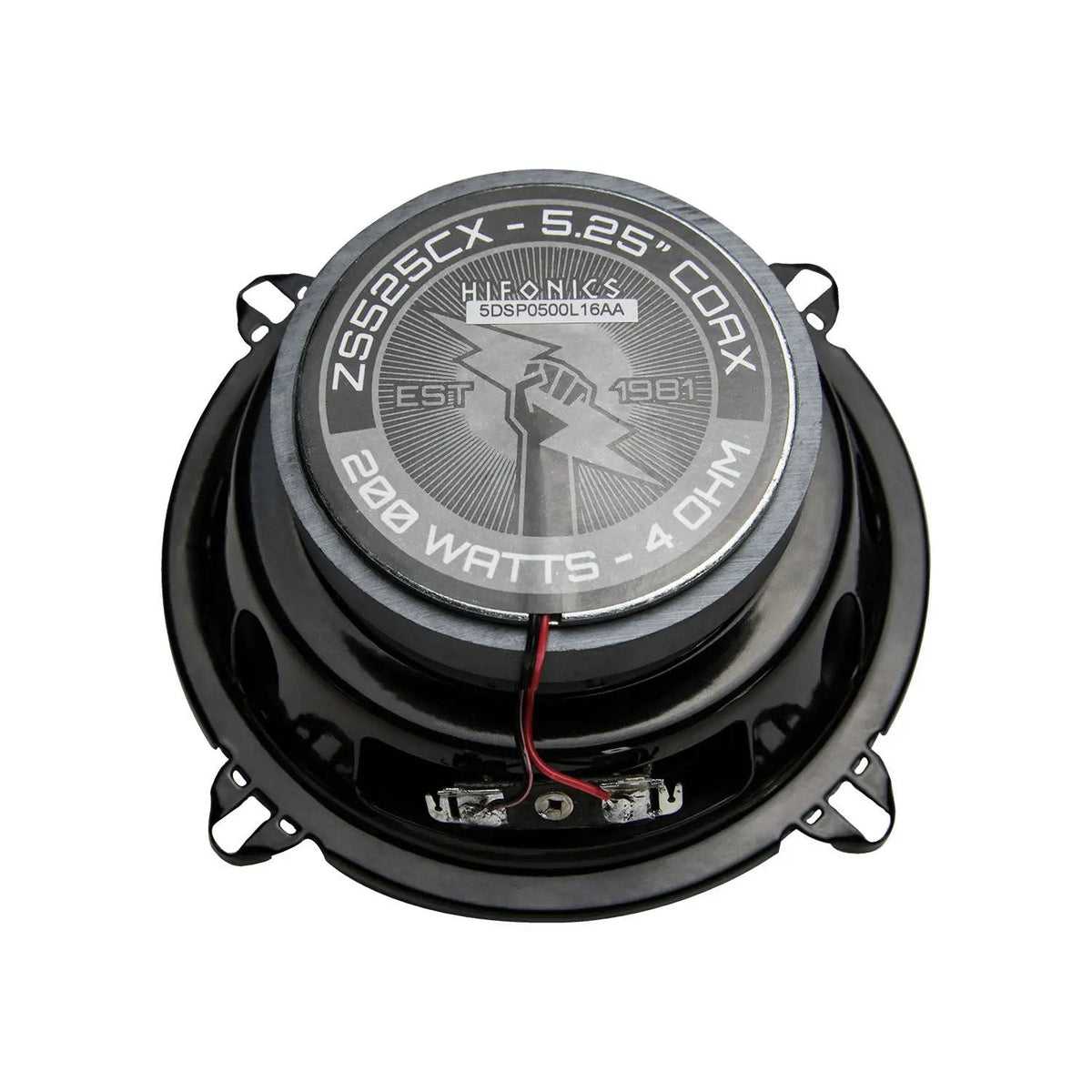

Hifonics ZS525CX ZEUS 5.25 Inch Speakers

Name: Hifonics ZS525CX ZEUS 5.25 Inch Speakers
Brand: Hifonics
SKU: 806576226727
Price: 28.99 USD
Availability: InStock

$28.99 $34.99

Shipping calculated at checkout.

Key features

Speaker size: 5.25″
RMS power per speaker: 30 W
Speaker impedance: 4.0 ohms
Frequency response: 60Hz-20kHz
Cone: Alpha-cellulose
Voice coil: Copper winding on Kapton former

Description

Product Overview

Bring balanced sound to your car with the Hifonics ZS525CX ZEUS 5.25-inch 2-way coaxial speaker pair. Alpha-cellulose woofer cones, moisture-resistant rubber surrounds, and 1-inch Neo-Mylar soft dome tweeters handle low and high frequencies in one speaker assembly.

Use them to replace or upgrade speakers in standard 5.25-inch car audio locations that meet the stated cutout and depth requirements.

Key Features & Benefits

Two-way coaxial design: A woofer and tweeter in each speaker cover mid-bass through high frequencies.
Alpha-cellulose cones: The lightweight, rigid cone material supports responsive mid-bass.
Moisture-resistant rubber surrounds: The surrounds couple to the cones and are designed to resist moisture.
Neo-Mylar soft dome tweeters: The 1-inch tweeters deliver high-frequency output, while their impact-resistant elements are designed for reliability.
Overcoil cooling: Air exchanges over the voice coil through the spider to help manage heat during playback.

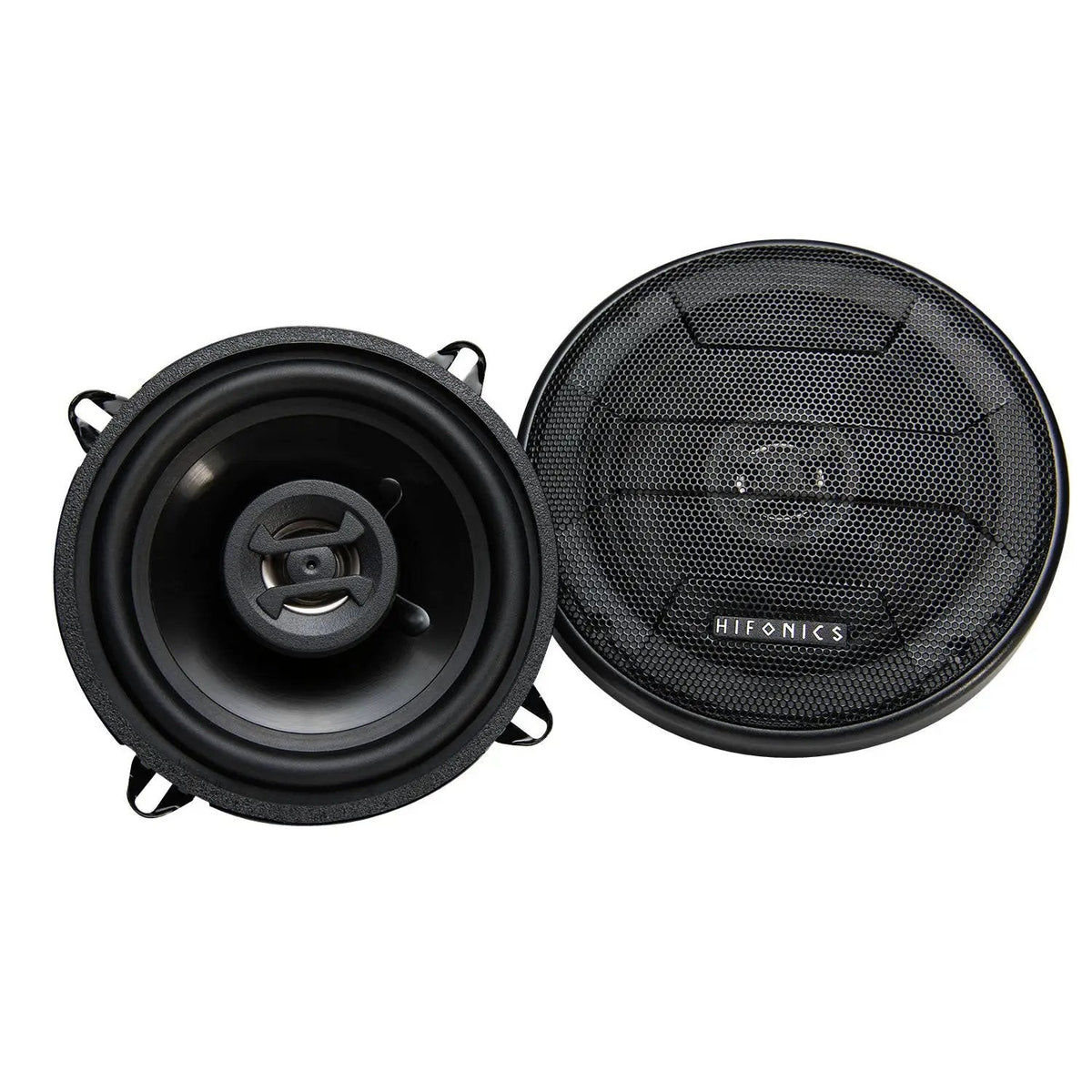

Protective grilles included: Use the grilles when the speakers are not mounted behind vehicle panels.

Technical Specifications

Brand	Hifonics
Series	ZEUS
Model	ZS525CX
Product type	Coaxial car speakers
Speaker size	5.25"
Configuration	2-Way Coaxial
RMS power handling	30 W
Peak power handling	200 W
Impedance	4 Ohms
Frequency response	60Hz - 20kHz
Sensitivity	88 dB
Crossover slope	4kHz 12dB
Mounting diameter / cutout	11.4 cm
Outside diameter	15.9 cm
Mounting depth	5.1 cm
Overall dimensions	31.1 × 17.8 × 9.9 cm
Weight	1.4 kg
Tweeter size and type	1" Neo-Mylar Soft Dome
Cone material	Alpha-Cellulose
Surround material	Moisture-Resistant Rubber
Basket material	Stamped Steel
Color	Black
CEA standards	CEA426B
Tweeter details	1 inch; clear highs while handling plenty of power without sounding harsh. Neo-Mylar soft dome tweeter elements are impact resistant.
Kapton	Lightweight and efficiently dissipates heat.
Cone details	Alpha-cellulose cones are lightweight for speed and rigid for deep bass.
Surround / cone coupling	Moisture-resistant rubber surround with high mid-bass impact. High-temperature adhesive creates a permanent bond between the cone and surround.
Voice coil / former assembly	Pure copper creates a strong magnetic field with a very thin extrusion. Kapton is lightweight and efficiently dissipates heat.
Spider	Epoxy-infused natural fiber; the natural fiber allows flexibility, while the epoxy gives strength during manufacturing.
Cooling system	Overcoil: air is exchanged over the voice coil through the spider.
Crossover	Passive Butterworth; smooth transition of frequencies from midrange/midbass to the tweeter element.
Frame	Anti-resonant stamped steel basket; strong, with minimal harmonics or distortion from flex or ringing.
Motor	Ferrite magnet creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors	Spade; use spade connectors or solder direct for the best connection.
Grilles	Yes; protects the speaker from accidental damage. Not used if the speaker is mounted behind a vehicle panel.
Compatibility	Standard 5.25-inch (13.3 cm) car audio speaker locations requiring an 11.4 cm cutout diameter and at least 5.1 cm of mounting depth.
What's included	Pair of Hifonics ZS525CX 5.25-inch coaxial speakers; protective speaker grilles; quick start guide.

Why Choose This Product?

The ZS525CX combines its woofer and tweeter in a 2-way coaxial layout, making both frequency ranges part of one speaker assembly. A passive Butterworth crossover transitions frequencies from the midrange and mid-bass to the tweeter.

Its stamped steel basket, pure copper voice coil, Kapton former, and overcoil cooling system are specific design choices for this speaker. Check the power handling and 4-ohm impedance against your audio system when selecting a replacement or upgrade.

Installation & Compatibility Notes

These speakers are described for standard 5.25-inch (13.3 cm) car audio locations with an 11.4 cm cutout and at least 5.1 cm of mounting depth. Compare those measurements with your available space before installation.

The connectors are spade type; the source also states that direct soldering can be used. Protective grilles are included, but are not used when the speakers are mounted behind vehicle panels.

Frequently Asked Questions

What are the power ratings for the Hifonics ZS525CX?

The listed power handling is 30 W RMS and 200 W peak. The speakers have a 4-ohm impedance.

What cutout and mounting depth do these speakers need?

The mounting cutout diameter is 11.4 cm, and the mounting depth is 5.1 cm. The compatibility details specify at least 5.1 cm of available depth.

What are the woofer cones and surrounds made from?

The cones are alpha-cellulose, and the surrounds are moisture-resistant rubber. A high-temperature adhesive bonds the cone and surround.

Are speaker grilles included?

Yes. Protective grilles are included. They are not used when the speakers are mounted behind vehicle panels.

How do the speakers connect?

They use spade connectors. The product details also state that direct soldering can be used.

What comes in the package?

The listed contents are a pair of Hifonics ZS525CX 5.25-inch coaxial speakers, protective speaker grilles, and a quick start guide.

Explore More

Shop for the Hifonics ZS525CX at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.

Brand	Hifonics
Series	ZEUS
Product Type	Coaxial Car Speakers
Speaker Size	5.25"
Configuration	2-Way Coaxial
RMS Power Handling	30 W
Peak Power Handling	200 W
Impedance	4 Ohms
Frequency Response	60Hz - 20kHz
Sensitivity	88 dB
Crossover Slope	4kHz 12dB
Mounting Diameter / Cutout	11.4 cm
Outside Diameter	15.9 cm
Mounting Depth	5.1 cm
Overall Dimensions	31.1 × 17.8 × 9.9 cm
Weight	1.4 kg
Tweeter Size and Type	1" Neo-Mylar Soft Dome
Cone Material	Alpha-Cellulose
Surround Material	Moisture-Resistant Rubber
Basket Material	Stamped Steel
Color	Black
CEA Standards	CEA426B

Feature	Description
Tweeters	1 inch: Clear highs while handling plenty of power without sounding harsh. Neo-Mylar Soft Dome Tweeter: Impact Resistant Tweeter Elements, Great sound quality and increased reliability. Kapton: Lightweight and efficiently dissipates heat.
Cone Material	Alpha-Cellulose Cones: Light weight for speed and very rigid for deep bass.
Surround / Cone Coupling	Rubber: Moisture Resistant Rubber Surround with high Mid-Bass Impact. High Temperature Adhesive: Special adhesive is chosen to create a permanent bond between the cone and the surround.
Voice Coil / Former Assembly	Pure Copper: Creates strong magnetic field with a very thin extrusion. Kapton: Lightweight and efficiently dissipates heat.
Spider	Epoxy infused Natural Fiber: Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
Cooling System	Overcoil: Air is exchanged over the voice coil through the spider.
Crossover	Passive Butterworth: Smooth transition of frequencies from midrange/midbass to the tweeter element.
Frame	Anti-Resonant Stamped Steel Basket: Very strong with minimal harmonics or distortions from flex or ringing.
Motor	Ferrite Magnet: Creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors	Spade: Use spade connectors or solder direct for the best connection.
Grills	Yes: Protects the speaker from accidental damage. Not used if speaker is mounted behind vehicle panel.
