Hifonics ZS65CXS ZEUS 6.5 Inch Shallow Speakers

Name: Hifonics ZS65CXS ZEUS 6.5 Inch Shallow Speakers
Brand: Hifonics
SKU: 806576226758
Price: 34.99 USD
Availability: InStock

$34.99 $41.99

Shipping calculated at checkout.

Key features

Speaker size: 6.5″
RMS power per speaker: 50 W
Speaker impedance: 4.0 ohms
Frequency response: 60Hz-20kHz
Cone: Alpha-cellulose
Voice coil: Copper winding on Kapton former

Description

Product Overview

Add a 6.5-inch Hifonics ZS65CXS ZEUS shallow-mount speaker pair where installation depth is limited. This 3-way coaxial car speaker system combines Alpha-Cellulose poly woofer cones, rubber surrounds, and 1-inch Neo-Mylar soft dome tweeters.

Its 4.2 cm mounting depth is designed for standard 6.5-inch vehicle speaker locations that meet the listed cutout and clearance requirements.

Key Features & Benefits

Shallow-mount design: The 4.2 cm chassis depth helps accommodate tighter speaker locations.
Responsive woofer: Lightweight, rigid Alpha-Cellulose cones and moisture-resistant rubber surrounds support mid-bass impact.
Soft dome tweeters: The 1-inch Neo-Mylar tweeters provide high-frequency output with impact-resistant elements.
Heat management: Kapton voice coil formers dissipate heat, while the overcoil system exchanges air through the spider.
Flexible connections: Spade terminals accept spade connectors or direct soldering.

Technical Specifications

Brand	Hifonics
Series	ZEUS
Model	ZS65CXS
Product type	3-way shallow-mount coaxial speaker pair
Speaker size	6.5"
RMS power handling	50 W
Peak power handling	300 W
Impedance	4 Ohms
Sensitivity	88 dB
Frequency response	60 Hz - 20 kHz
Crossover slope	4 kHz 12 dB
Crossover type	Passive Butterworth
Mounting depth	4.2 cm (1.65 in)
Mounting diameter / cutout	14.2 cm (5.59 in)
Overall diameter	17.8 cm
Dimensions	37.8 × 21.4 × 10.2 cm
Weight	1.5 kg
Color	Black
Woofer cone material	Alpha-Cellulose poly
Surround material	Rubber
Tweeter type	1" Neo-Mylar soft dome
Basket material	Anti-resonant stamped steel
Magnet type	Ferrite
Connector type	Spade / solder
Voice coil	Pure copper
Voice coil former	Kapton
Spider	Epoxy-infused natural fiber
Adhesive	High-temperature adhesive bonds the cone and surround
Cooling system	Overcoil; air is exchanged over the voice coil through the spider

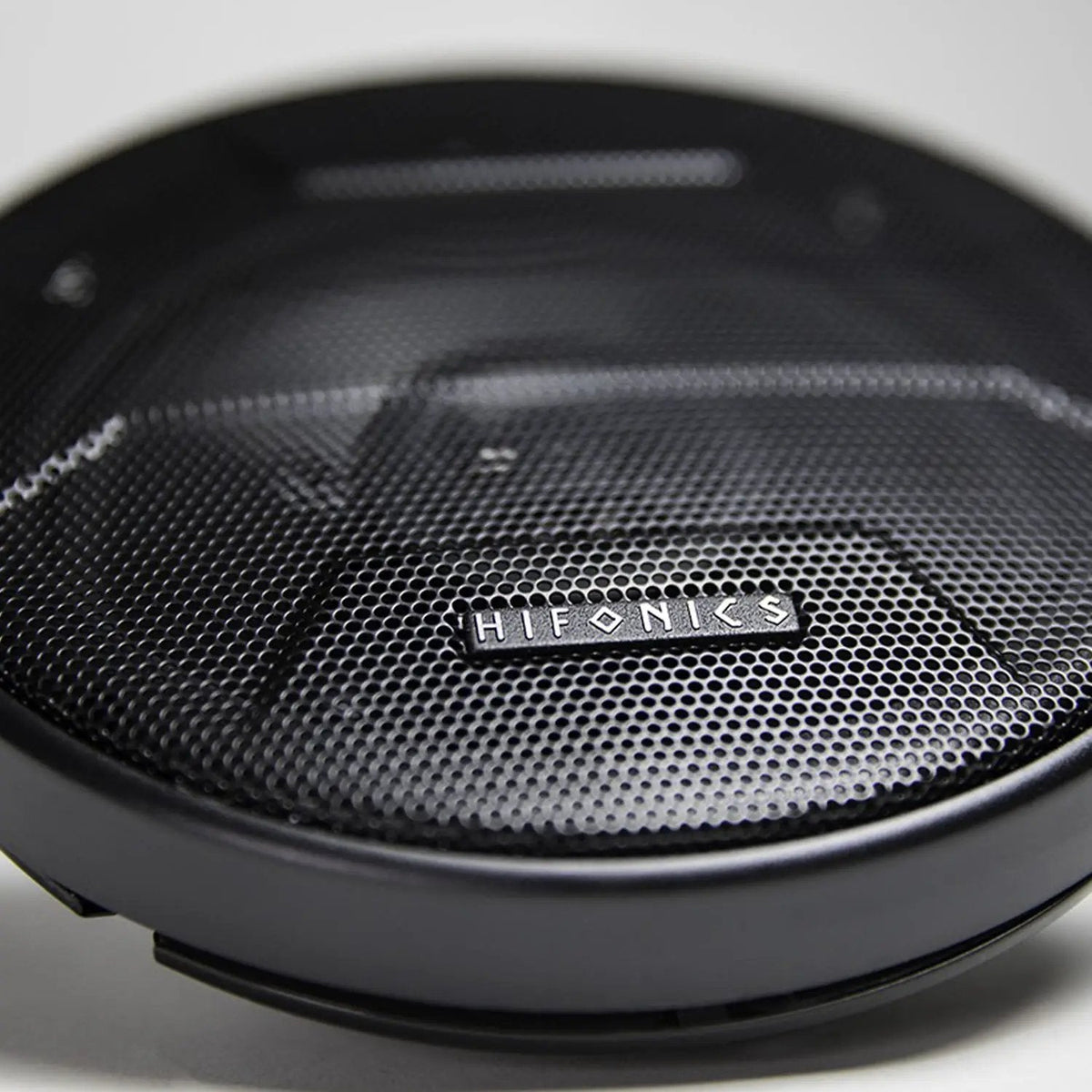

Grilles	Included; protect speakers from accidental damage. Not used when speakers are mounted behind a vehicle panel.
Compatibility	Standard 6.5" vehicle speaker locations requiring a shallow mounting depth of 4.2 cm (1.65 in) and a cutout diameter of 14.2 cm (5.59 in)
Included	Pair of Hifonics ZS65CXS 6.5" shallow-mount speakers, pair of protective speaker grilles, Quick Start Guide

Why Choose This Product?

The ZS65CXS pairs a shallow chassis with a 3-way design for vehicle speaker locations where mounting space matters. Its passive Butterworth crossover provides a transition from midrange and midbass to the tweeter elements.

The stamped steel basket is designed to resist resonance, while the compact ferrite magnet supports a smaller motor assembly. The supplied grilles offer protection in custom installations where a vehicle panel does not cover the speakers.

Installation & Compatibility Notes

Before installation, compare your available mounting depth and cutout with the listed 4.2 cm depth and 14.2 cm cutout diameter. Check the overall speaker diameter and surrounding clearance as well.

Connect using spade connectors or solder directly. The speakers are rated at 4 Ohms, with power handling listed as 50 W RMS and 300 W peak. Grilles are not used when the speakers sit behind a vehicle panel.

Frequently Asked Questions

What is the mounting depth of the Hifonics ZS65CXS?

The mounting depth is 4.2 cm (1.65 in).

What are the power and impedance ratings?

The pair is rated for 50 W RMS and 300 W peak power at 4 Ohms impedance.

What cutout size do I need?

The listed mounting diameter or cutout is 14.2 cm (5.59 in). Check the available space and panel clearance before installation.

Are speaker grilles included?

Yes. A pair of protective grilles is included. They are not used when the speakers are mounted behind a vehicle panel.

What is included in the package?

The package includes a pair of Hifonics ZS65CXS speakers, a pair of protective grilles, and a Quick Start Guide.

Explore More

Shop for the Hifonics ZS65CXS at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.

Brand	Hifonics
Series	ZEUS
Model	ZS65CXS
Product Type	3-Way Shallow Mount Coaxial Speaker Pair
Speaker Size	6.5"
RMS Power Handling	50 W
Peak Power Handling	300 W
Impedance	4 Ohms
Sensitivity	88 dB
Frequency Response	60 Hz - 20 kHz
Crossover Slope	4 kHz 12 dB
Mounting Depth	4.2 cm
Mounting Diameter / Cutout	14.2 cm
Overall Diameter	17.8 cm
Dimensions	37.8 × 21.4 × 10.2 cm
Weight	1.5 kg
Color	Black
Cone Material	Alpha-Cellulose
Surround Material	Rubber
Tweeter Type	1" Neo-Mylar Soft Dome
Basket Material	Stamped Steel
Magnet Type	Ferrite
Connector Type	Spade / Solder

Feature	Description
Tweeters	1 inch: Clear highs while handling plenty of power without sounding harsh. Neo-Mylar Soft Dome Tweeter: Impact Resistant Tweeter Elements, Great sound quality and increased reliability. Kapton: Lightweight and efficiently dissipates heat.
Cone Material	Alpha-Cellulose Cones: Light weight for speed and very rigid for deep bass.
Surround / Cone Coupling	Rubber: Moisture Resistant Rubber Surround with high Mid-Bass Impact. High Temperature Adhesive: Special adhesive is chosen to create a permanent bond between the cone and the surround.
Voice Coil / Former Assembly	Pure Copper: Creates strong magnetic field with a very thin extrusion. Kapton: Lightweight and efficiently dissipates heat.
Spider	Epoxy infused Natural Fiber: Natural fiber allows flexibility while the epoxy gives strength during the manufacturing process.
Cooling System	Overcoil: Air is exchanged over the voice coil through the spider.
Crossover	Passive Butterworth: Smooth transition of frequencies from midrange/midbass to the tweeter element.
Frame	Anti-Resonant Stamped Steel Basket: Very strong with minimal harmonics or distortions from flex or ringing.
Motor	Ferrite Magnet: Creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors	Spade: Use spade connectors or solder direct for the best connection.
Grills	Yes: Protects the speaker from accidental damage. Not used if speaker is mounted behind vehicle panel.
