Infinity Reference REF607FSL 6.5" Shallow Mount Coaxial Speakers

Name: Infinity Reference REF607FSL 6.5" Shallow Mount Coaxial Speakers
Brand: Infinity
Price: 109.99 USD
Availability: InStock

$109.99 $129.99

Shipping calculated at checkout.

Key features

Speaker size: 6.5″
RMS power per speaker: 55 W
Speaker impedance: 3.0 ohms
Frequency response: 57 Hz–21 kHz
Sensitivity (2.83 V/1 m): 93 dB
Mounting depth: 44.6 mm

Description

Product Overview

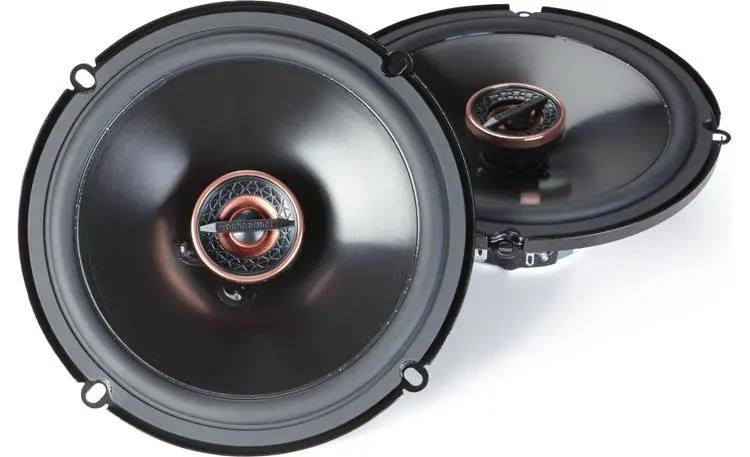

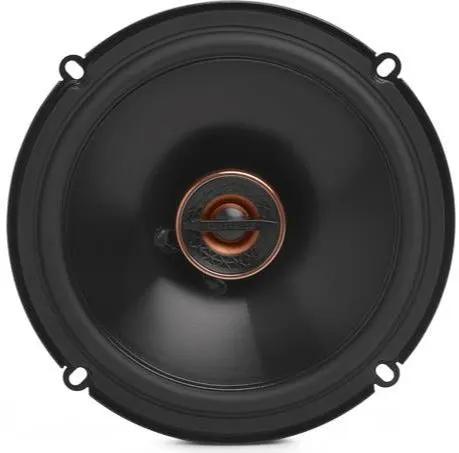

Get a two-way speaker upgrade into a shallow door cavity with the Infinity Reference REF607FSL 6.5-inch shallow-mount coaxial speakers. The pair combines a Plus One+ polypropylene woofer with a 1/2-inch textile balanced-dome tweeter for midbass and clear high-frequency detail in a compact installation.

Key Features & Benefits

Shallow-mount design: A 1.78-inch top-mount depth suits tight spaces where standard-depth speakers may not fit.
Plus One+ woofer: Its polypropylene cone has more surface area than a standard 6.5-inch cone to move more air for midbass.
Textile dome tweeter: The 1/2-inch balanced dome provides high-frequency extension for detailed listening.

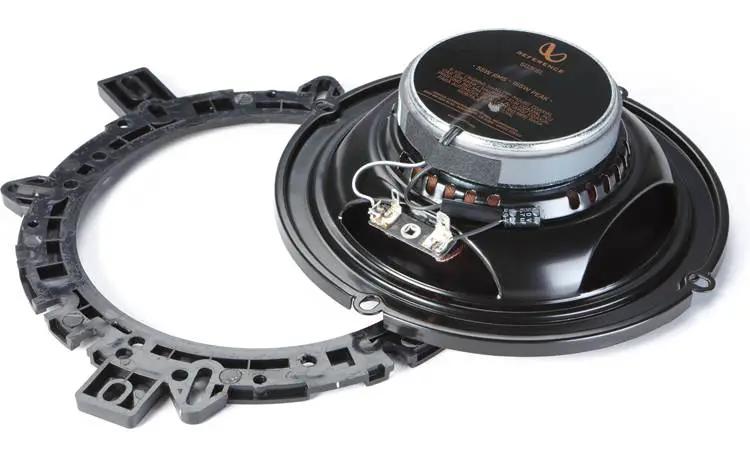

Adapter rings included: The rings help match the speakers to various OEM openings.
True Four Ohm Impedance technology: The 3-ohm speaker and wire create a 4-ohm load for integration with common factory and aftermarket head units.

Technical Specifications

Brand	Infinity
Model	Reference REF607FSL
Speaker type	6.5-inch 2-way shallow-mount coaxial speakers
Quantity	Pair
Woofer	Plus One+ polypropylene cone with hi-roll rubber surround
Tweeter	1/2-inch textile balanced-dome tweeter
Power handling	55W RMS; 165W peak
Frequency response	57–21,000 Hz
Sensitivity	93 dB @ 2.83V
Impedance technology	True Four Ohm Impedance technology (3-ohm speaker + wire = 4-ohm load)
Top-mount depth	1.78"
Grilles	Not included; factory grilles are suitable for most applications
Warranty	1 year
In the box	Two 2-way shallow-mount speakers; 2 plastic mounting rings; mounting screws and speed clips; 2 adhesive-backed foam gaskets; instruction manual

Why Choose This Product?

The REF607FSL is designed for installations where mounting depth is a key constraint. Its two-way layout keeps a woofer and tweeter in each speaker, while the shallow profile helps make use of tight factory locations.

The 57 Hz lower frequency limit supports bass presence from the 6.5-inch driver. With 55W RMS power handling and 93 dB sensitivity at 2.83V, these speakers are suited to systems using common head units or modest amplifiers.

Installation & Compatibility Notes

Check the available mounting depth and speaker opening before installation. The top-mount depth is 1.78", and the included plastic adapter rings are designed for various speaker openings. Factory grilles are suitable for most applications; separate grilles are not included.

The listed impedance technology describes a 3-ohm speaker plus wire as a 4-ohm load. Confirm that the intended head unit or amplifier is appropriate for the speaker load and power handling.

Frequently Asked Questions

How deep are the Infinity REF607FSL speakers?

The top-mount depth is 1.78", making them a shallow-mount option for tight installations.

What does the 55W RMS and 165W peak rating mean?

The speakers handle up to 55W RMS and have a 165W peak rating. Match the system to the RMS rating when planning power.

What is the speaker impedance?

The product uses True Four Ohm Impedance technology: a 3-ohm speaker plus wire equals a 4-ohm load.

Are grilles included?

No. The description states that factory grilles are suitable for most applications.

What comes in the box?

The box includes two speakers, two plastic mounting rings, mounting screws and speed clips, two adhesive-backed foam gaskets, and an instruction manual.
