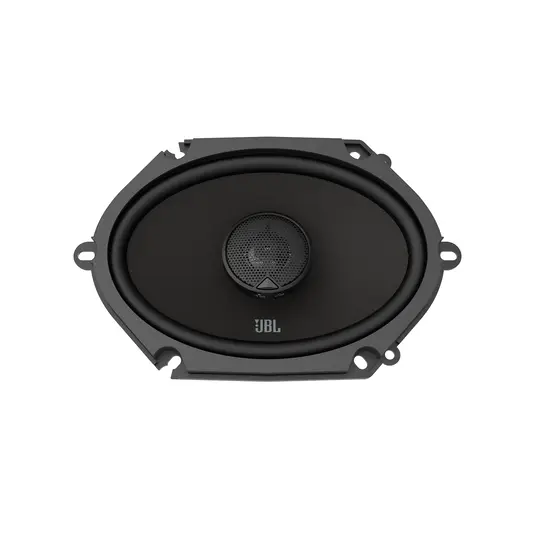

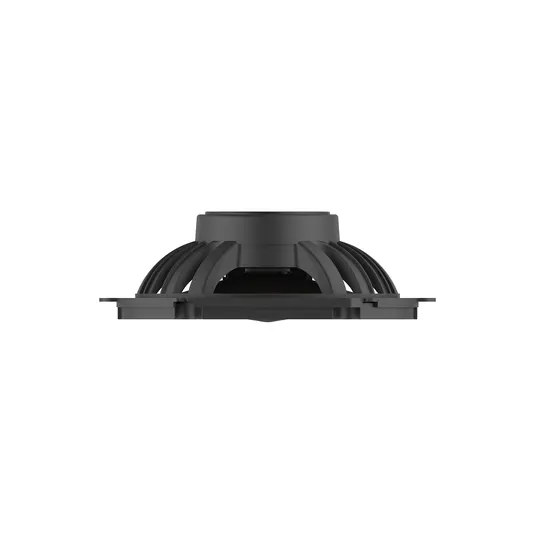

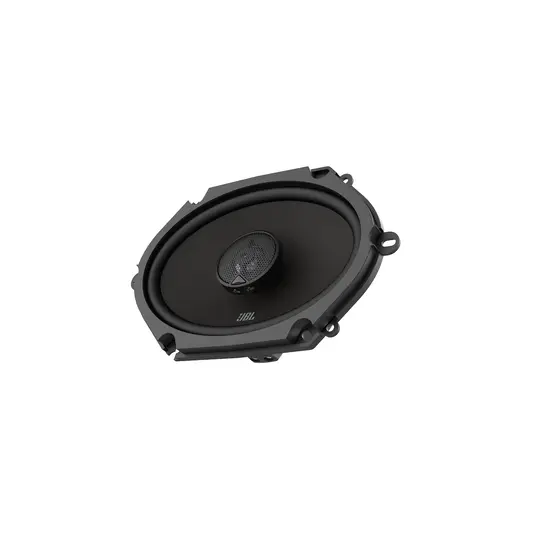

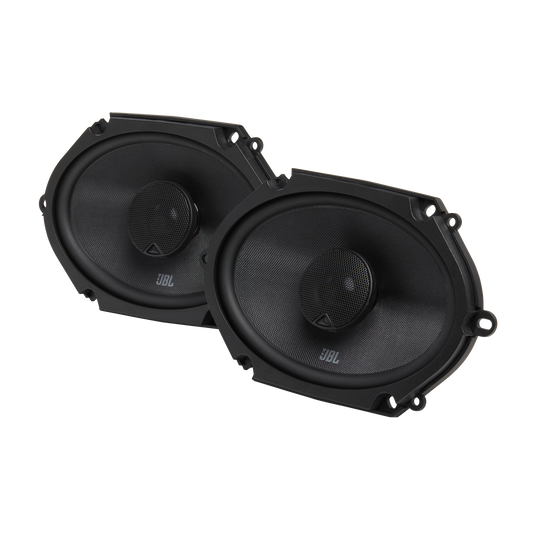

JBL Stadium 862F 6x8" 2-Way Coaxial Car Speakers

Product Overview

Bring detailed highs and defined bass to a 6x8-inch speaker location with the JBL STADIUM 862F 2-way coaxial car speakers. Their Plus One™ glass-fiber woofer, adjustable UniPivot tweeter, and push-button tweeter level control add useful tuning options in a coaxial design.

Key Features & Benefits

• Plus One™ glass-fiber woofer: The reinforced cone is designed for rigidity and accurate bass, with response extending down to 40Hz.
• Aluminum dome tweeter: High-frequency response reaches 40kHz for detailed treble reproduction.
• Adjustable UniPivot mount: Aim the tweeter toward the listening position after installation.
• Push-button level control: Choose 0dB or -3dB tweeter output to adjust high-frequency balance.
• 93dB sensitivity: The sensitivity rating indicates efficient output at the stated measurement conditions.
• Installation hardware and spacers: The included parts support installation in an appropriate 6x8-inch location.

Technical Specifications

Why Choose This Product?

The STADIUM 862F combines a 6x8-inch coaxial layout with an aimable tweeter and selectable tweeter level. Those adjustments let you direct and balance the highs around your listening position without choosing a separate component-speaker configuration.

Its 100W RMS power handling and 3.0-ohm nominal impedance are important when matching an amplifier. The broad 40Hz–40kHz frequency response covers bass through extended treble within the stated range.

Installation & Compatibility Notes

These speakers are intended for standard 6x8-inch OEM locations. Check your vehicle’s speaker opening, mounting space, and spacer requirements before purchase; the size alone does not confirm vehicle fitment.

For an external amplifier, the product information recommends a 4-channel amp rated at 60–120W RMS per channel and stable at 2–4 ohms. The 3.0-ohm load draws more current than a 4-ohm speaker, so allow adequate amplifier headroom. Aim the UniPivot tweeter toward the driver or passenger listening position. For speaker-wire runs over 6 feet, the product information recommends 14-gauge or heavier wire. A DSP processor with time alignment may further adjust imaging and staging.

Frequently Asked Questions

What amplifier is recommended for the JBL STADIUM 862F?

The product information recommends a 4-channel amplifier rated at 60–120W RMS per channel and stable at 2–4 ohms. Allow for the speaker’s 3.0-ohm nominal impedance when choosing an amplifier.

Can I use these speakers with a factory head unit?

Yes. The product information says the speakers can run from a factory head unit. An external amplifier is recommended to make fuller use of their 100W RMS power handling and dynamic range.

Will the STADIUM 862F fit my vehicle?

It is designed for standard 6x8-inch OEM locations. Check your vehicle’s year, make, and model against the speaker opening and mounting requirements before ordering.

What comes with the speakers?

Installation hardware and spacers are included.
