Jensen 5"x7" / 6"x8" Full Range TRIAX Speakers – JS68T

Name: Jensen 5"x7" / 6"x8" Full Range TRIAX Speakers – JS68T
Brand: Jensen
SKU: JS68T
Price: 79.99 USD
Availability: InStock

$79.99 $95.99

Shipping calculated at checkout.

Key features

Speaker size: 5×7″, 6×8″
RMS power per speaker: 50 W
Speaker impedance: 4.0 ohms
Frequency response: 70 Hz–20 kHz
Woofer cone: Injection-molded polypropylene
Tweeter: 15 mm piezo

Description

Product Overview

Bring clearer highs and mids to your in-car listening with the Jensen JS68T 3-way full-range car speakers. Their 5" x 7" / 6" x 8" fit options, polypropylene woofer, PEI dome midrange, and piezo tweeter give you three driver elements in each speaker.

Key Features & Benefits

3-way design: A woofer, midrange, and tweeter handle different parts of the sound range.
Polypropylene woofer: The injection-molded cone and rubber surround support low-frequency response.
Dedicated midrange and tweeter: A 35 mm PEI balanced dome midrange and 15 mm piezo tweeter reproduce mid and high frequencies.
50 Watts RMS at 4 Ohms: Use these ratings to compare the speakers with your audio system.
Grilles included: The protective grilles come with the pair of speakers.

Technical Specifications

Brand	Jensen
Model	JS68T
Speaker Size	6" x 8" / 5" x 7"
Speaker Design	3-Way
RMS Power	50 Watts
Nominal Impedance	4 Ohms
Sensitivity	88dB
Frequency Response	70 Hz ~ 20 kHz
Woofer Material	Injection Molded Black Polypropylene
Surround Material	Rubber
Midrange Size	35 mm
Midrange Material	PEI Balanced Dome
Tweeter Size	15 mm
Tweeter Material	Piezo
Magnet Size	360 g
Cutout Diameter	12.6 cm x 18.1 cm
Top-Mount Depth	5.6 cm
Bottom-Mount Depth	6.6 cm
Mounting Height	1.7 cm
Grilles Included	Yes
Estimated Shipping Weight	1.8 kg

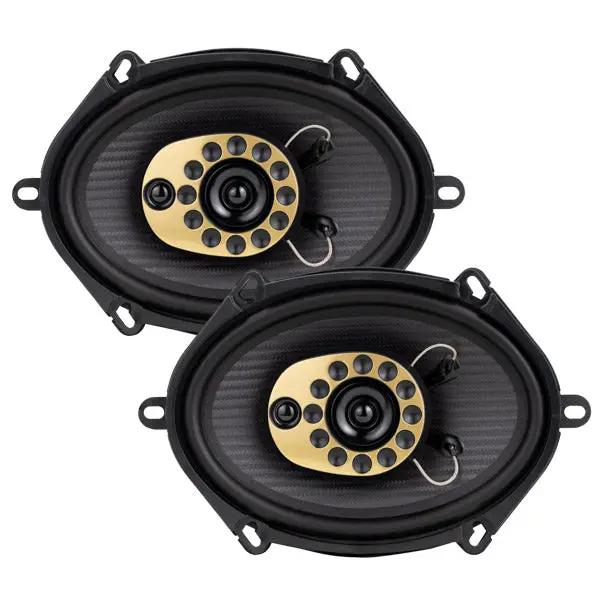

What's included	Pair of Jensen JS68T 3-Way Speakers; speaker grilles
Warranty	4-year limited warranty when registered within 60 days of purchase.

Why Choose This Product?

The JS68T combines three driver types in a full-range speaker design. Its 50-Watt RMS rating and 4-Ohm nominal impedance give you specific figures to compare when choosing replacement speakers for your system.

With grilles included, the pair is ready to complete a compatible speaker-location upgrade. The two listed speaker sizes give you another fitment detail to check against your vehicle.

Installation & Compatibility Notes

The JS68T is listed for 5" x 7" or 6" x 8" vehicle speaker locations. The mounting cutout must measure at least 12.6 cm x 18.1 cm, with at least 5.6 cm of top-mount depth. Check the mounting space and opening before purchase.

Frequently Asked Questions

What speaker openings are these designed for?

They are designed for 5" x 7" and 6" x 8" locations, with a minimum cutout of 12.6 cm x 18.1 cm.

How much mounting depth is required?

The listed top-mount depth is 5.6 cm. The bottom-mount depth is 6.6 cm.

What are the power and impedance ratings?

Each JS68T speaker is rated at 50 Watts RMS with a nominal impedance of 4 Ohms.

What driver elements are built into each speaker?

The 3-way design includes an injection-molded black polypropylene woofer with rubber surround, a 35 mm PEI balanced dome midrange, and a 15 mm piezo tweeter.

What comes with the pair?

The package includes a pair of Jensen JS68T speakers and speaker grilles.
