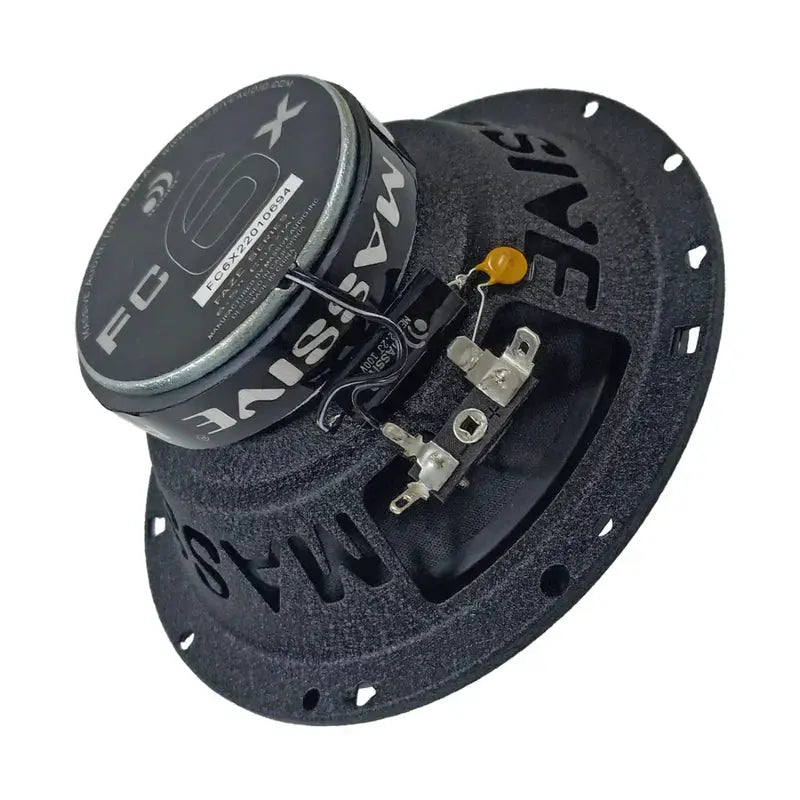

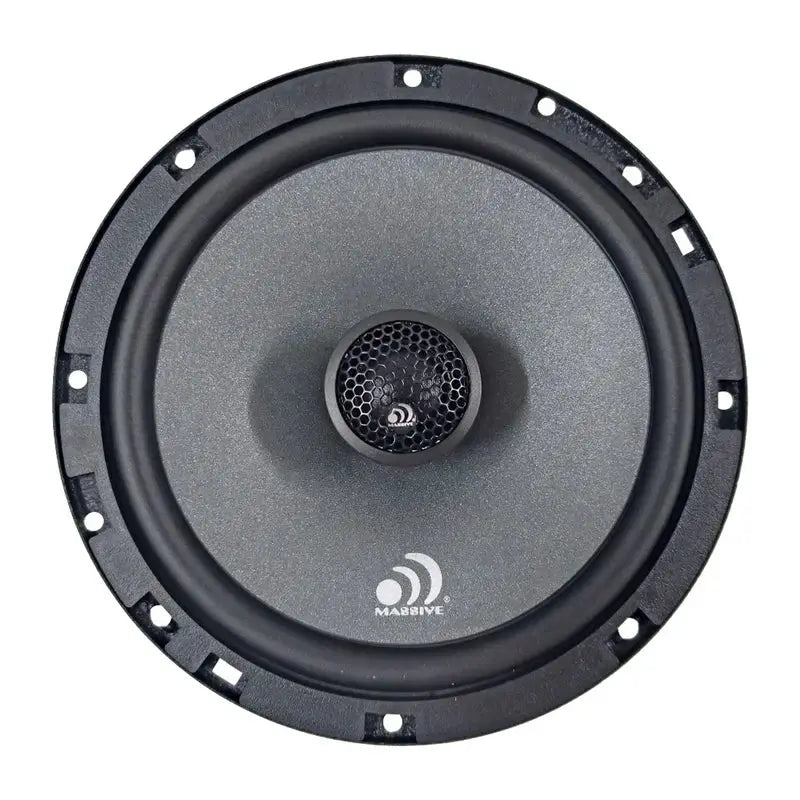

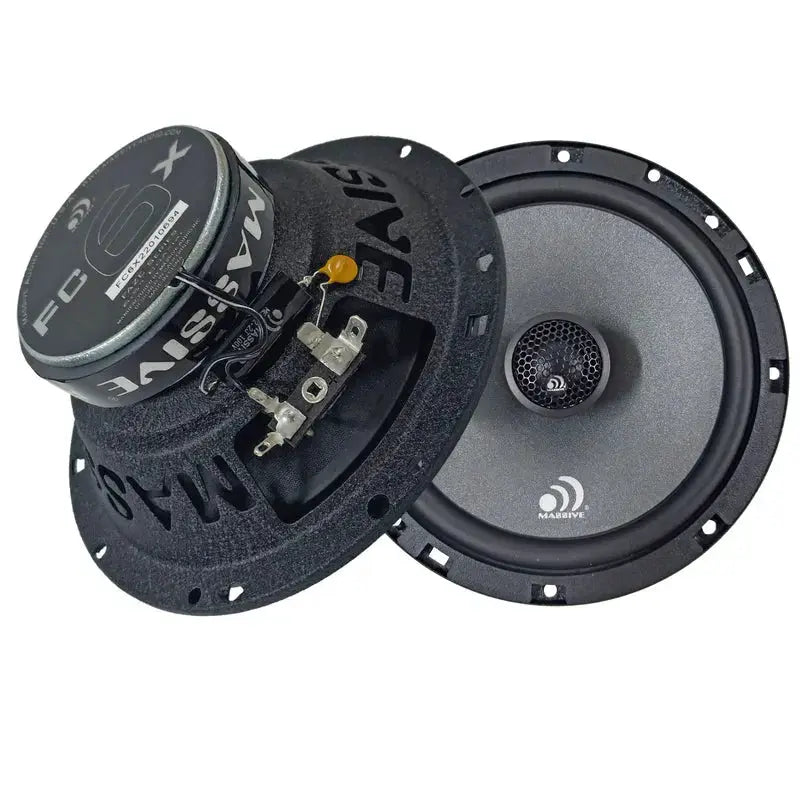

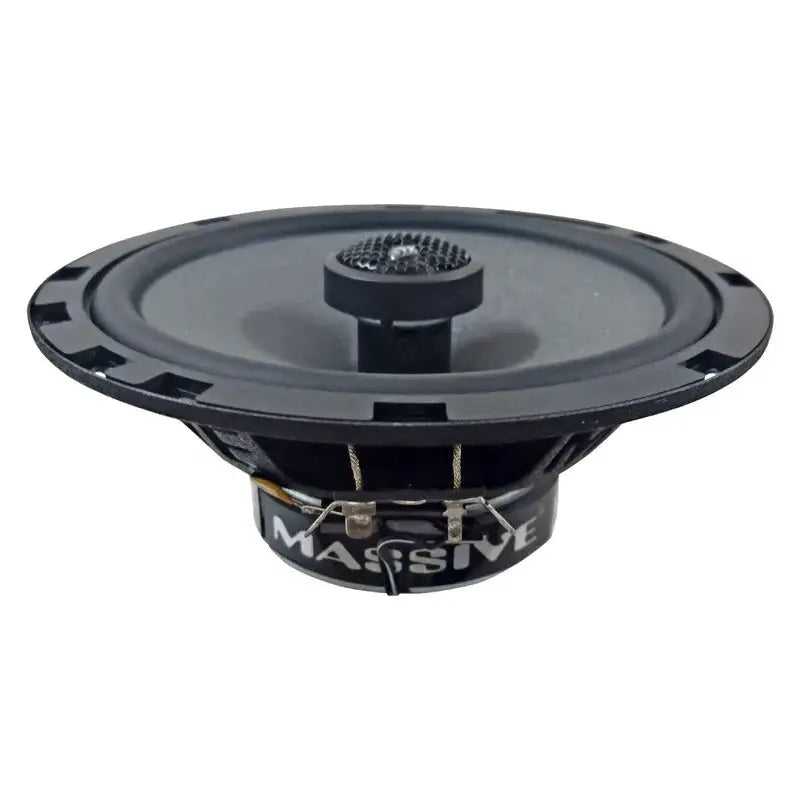

Massive Audio FC6X 6.5" Coaxial Speakers

Product Overview

The Massive Audio FC6X 6.5" coaxial speakers bring integrated midrange and treble into one compact speaker. A woven fiber paper cone, 20mm silk-diaphragm tweeter and built-in 6dB crossover shape the package for car audio installations.

Key Features & Benefits

• Woven fiber cone: Its low-mass construction supports fast response and accurate midrange.
• Silk-dome tweeter: The 20mm tweeter uses ferro fluid and provides high-frequency response with off-axis extension.
• Integrated crossover: The built-in 6dB crossover combines the speaker’s high- and low-frequency drivers in one unit.
• Durable construction: A powder-coated, heavy-gauge steel basket and Butyl rubber surround are designed for mobile environments.
• Customizable grilles: Two-piece paintable metal grilles let you coordinate the speaker finish with your vehicle interior.
• Isolated leads: Fully isolated tinsel leads help preserve stereo imaging.

Technical Specifications

The cone is UV-protected. A 1" high-temperature KSV voice coil supports power handling, while the custom-designed pole piece targets low distortion. The woven fiber cone uses a Butyl rubber surround. The grilles are paintable metal.

Why Choose This Product?

The FC6X combines a cone and tweeter in a coaxial design, with a built-in crossover and isolated leads. That integrated layout reduces the need for an external crossover and suits shoppers looking for a compact speaker with midrange and high-frequency drivers together.

Installation & Compatibility Notes

The 6.5" frame is described as fitting standard 6.5" openings. Before installation, compare your available cutout and mounting depth with the listed measurements, and check that your amplifier or head unit supports a 4 Ohm speaker.

Frequently Asked Questions

What does the built-in 6dB crossover do?

It integrates the high- and low-frequency drivers within the coaxial speaker, reducing the need for an external crossover.

What amplifier power rating should I consider?

The listed continuous rating is 75watts RMS, and the peak rating is 150 watts. Use the RMS figure when comparing continuous amplifier output.

Will the FC6X fit my vehicle?

It is a 6.5" speaker described for standard 6.5" openings. Compare the 5.65" mounting diameter, 2.4" mounting depth and 6.5" frame diameter with your available space.

Are grilles included?

The product details specify two-piece paintable metal grilles.
