SoundQubed HDS Series 5x7" Coaxial 2-way Speakers (Pair)

Name: SoundQubed HDS Series 5x7" Coaxial 2-way Speakers (Pair)
Brand: SoundQubed
Price: 69.95 USD
Availability: InStock

$69.95 $79.99

Shipping calculated at checkout.

Key features

Speaker size: 5×7″
RMS power per speaker: 50 W
Speaker impedance: 4.0 ohms
Mounting depth: 2.1 in / 53.5 mm
Frequency response: 78 Hz–20 kHz
Sensitivity (1 W / 1 m): 85 dB

Description

Product Overview

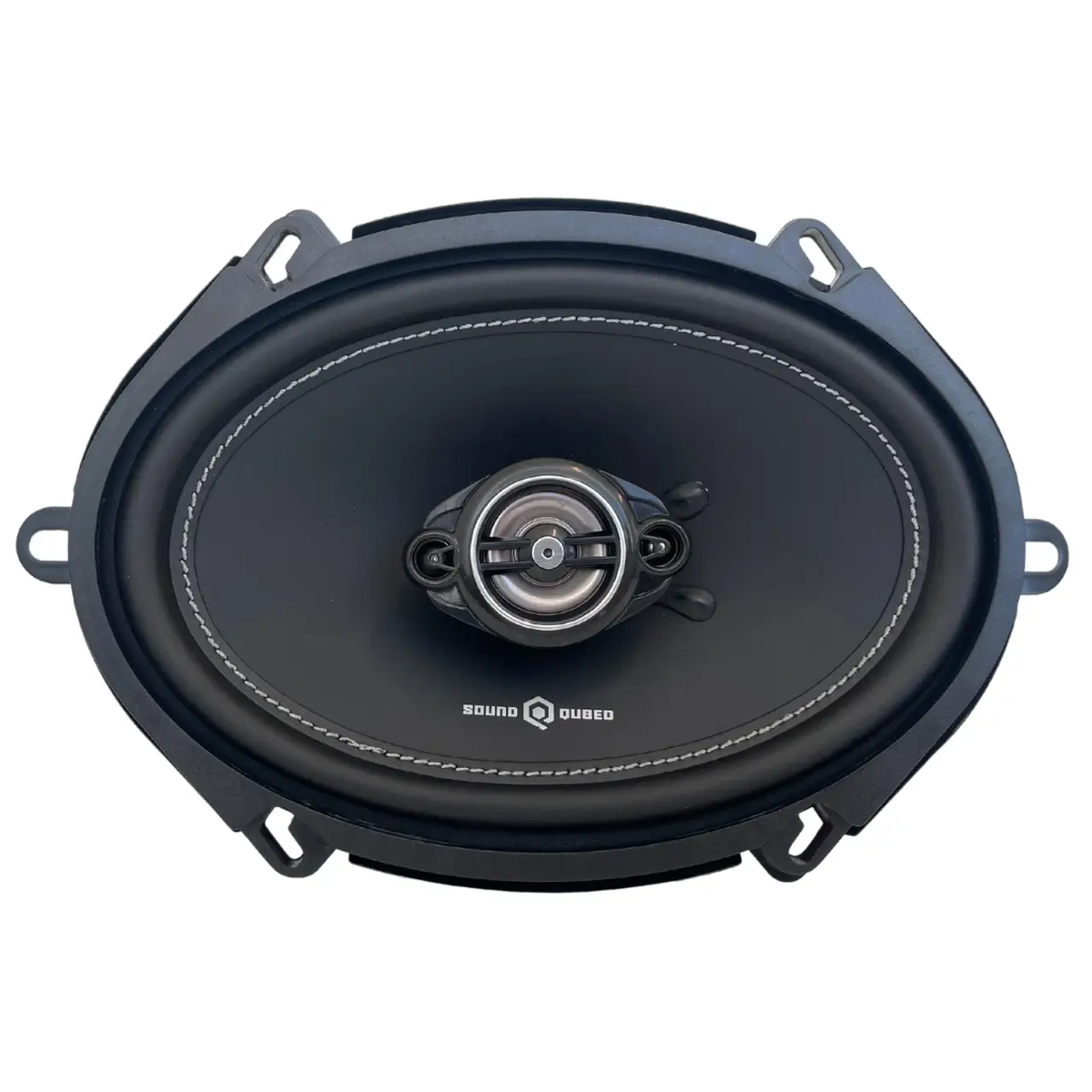

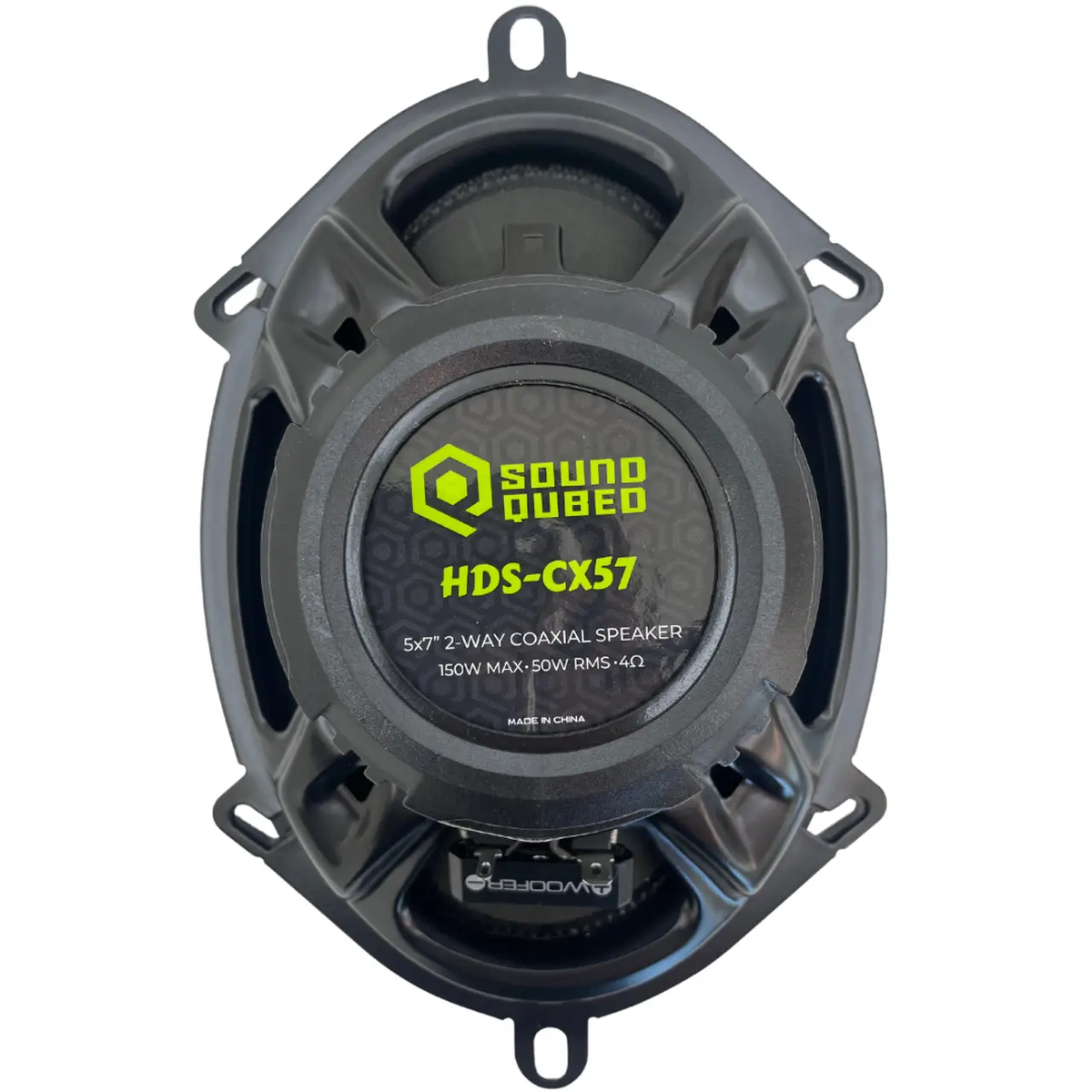

Give your factory 5x7-inch speaker locations a two-way upgrade with the SoundQubed HDS Series 5x7" coaxial speakers. Each speaker combines a paper woofer cone and rubber surround with an integrated 1-inch Mylar dome tweeter. The pair handles 50W RMS at 4 ohms and is designed for car audio door or dash installations.

Key Features & Benefits

Two-way coaxial design: The built-in tweeter provides high-frequency output in the same speaker, without a separate tweeter installation.
50W RMS power handling: Match the speakers to an amplifier with suitable output for a powered 5x7-inch setup.
Paper cone and rubber surround: These woofer materials form the speaker’s moving cone assembly.
Mylar dome tweeter: The 1-inch tweeter uses a 3g neodymium magnet.
90 Hz recommended high-pass: Use this crossover setting as a reference when configuring your amplifier.
Sold as a pair: The package includes two speakers; grilles are not included.

Technical Specifications

Specification	Value
Nominal Diameter	5x7" / 127x177mm
Nominal Impedance	4 Ohms
RMS Power Handling	50W
MAX Power Handling	150W
Sensitivity (1W/1m)	85 dB
Frequency Response	78 Hz – 20 kHz
Recommended Hi-Pass Crossover	90 Hz
Number of Ways	2-Way
Sold In	Pair
Grill Included	No

Woofer Specifications

Specification	Value
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Paper
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	226g

Thiele & Small Parameters

Parameter	Value
Equivalent Volume (Vas)	6.7L / 0.23ft³
Excursion One Way (Xmax)	2.7mm
Free Air Resonance (Fs)	76 Hz
Mechanical Factor (Qms)	2.3
Electrical Factor (Qes)	1.9
Total Factor (Qts)	1.1
Mechanical Mass (Mms)	14.2g
Mechanical Compliance (Cms)	232mm/N
BL Factor (BL)	3.87
Voice Coil Inductance (Le)	0.176mH
Cone Area (Sd)	55cm²
DC Resistance (Re)	3.7 Ohms
Mechanical Mass w/o Air (Mmd)	13.5g

Tweeter Specifications

Specification	Value
Nominal Diameter	1" / 25.4mm
Voice Coil Diameter	0.5" / 13mm
VC Former Material	KSV
Winding Material	EISVM
Diaphragm Material	Mylar
Magnet Material	Neodymium
Magnet Weight	3g

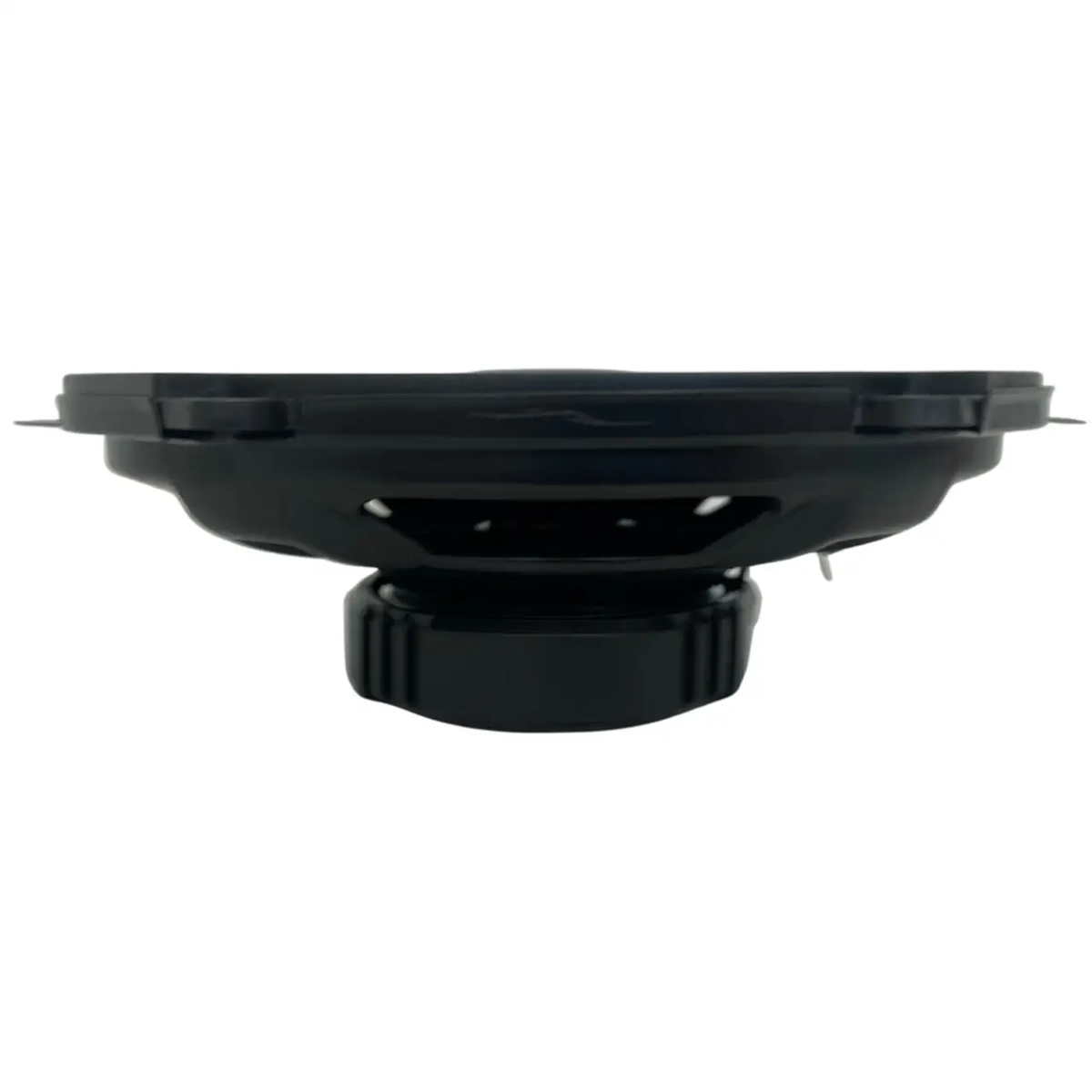

Speaker Measurements

Dimension	Value
Overall Diameter	5.5x8.6" / 140x220mm
Overall Depth	2.48" / 63mm
Front Mount Baffle Cutout	4.9x7" / 126x180mm
Mounting Depth	2.1" / 53.5mm
Motor Diameter	3.3" / 84mm

Why Choose This Product?

The HDS Series is SoundQubed’s entry-level 5x7-inch coaxial speaker, intended for shoppers planning a budget-conscious factory-speaker upgrade. Its 85 dB sensitivity is rated at 1W/1m, and its frequency response is 78 Hz–20 kHz.

If you are comparing models, the SoundQubed HDX-CX57 is listed as a step up, with 70W RMS / 210W max power handling, 91 dB sensitivity, a glass fiber cone, and a neodymium PEI tweeter. The HDS uses a paper cone and Mylar dome tweeter.

Installation & Compatibility Notes

Check the mounting location’s cutout and available depth against the listed measurements before buying. Although the speaker has a 5x7-inch nominal diameter, its overall dimensions are 5.5x8.6 inches, with a 4.9x7-inch front-mount baffle cutout and 2.1-inch mounting depth. No grille is included.

The speakers are rated at 4 ohms, with 50W RMS and 150W maximum power handling. The recommended high-pass crossover is 90 Hz. The source recommends the SoundQubed S4-100 amplifier, rated at 100W x4, for pairing with these speakers.
