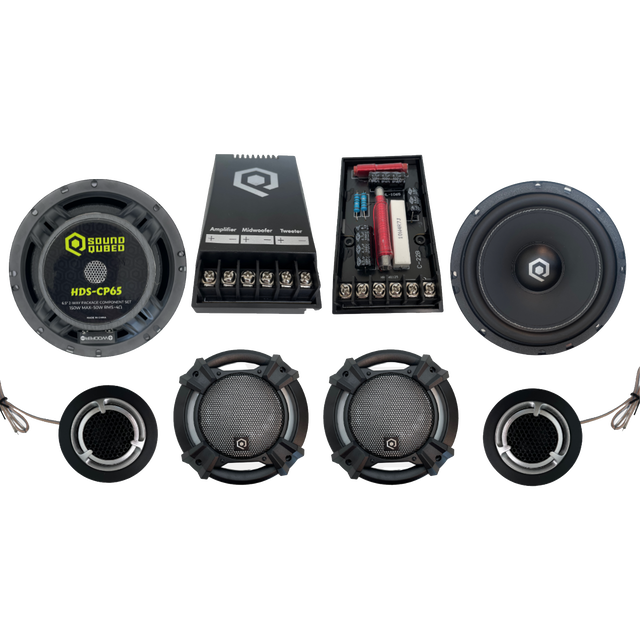

SoundQubed HDS Series 6.5" Components 2-way Speakers

Name: SoundQubed HDS Series 6.5" Components 2-way Speakers
Brand: SoundQubed
Price: 149.95 USD
Availability: InStock

$149.95 $169.99

Shipping calculated at checkout.

Key features

Speaker size: 6.5″
RMS power per speaker: 50 W
Speaker impedance: 4.0 ohms
Woofer mounting depth: 2.24 in / 57 mm
Frequency response: 35 Hz–20 kHz
Passive crossover: 3.5 kHz, 12 dB/octave

Description

Product Overview

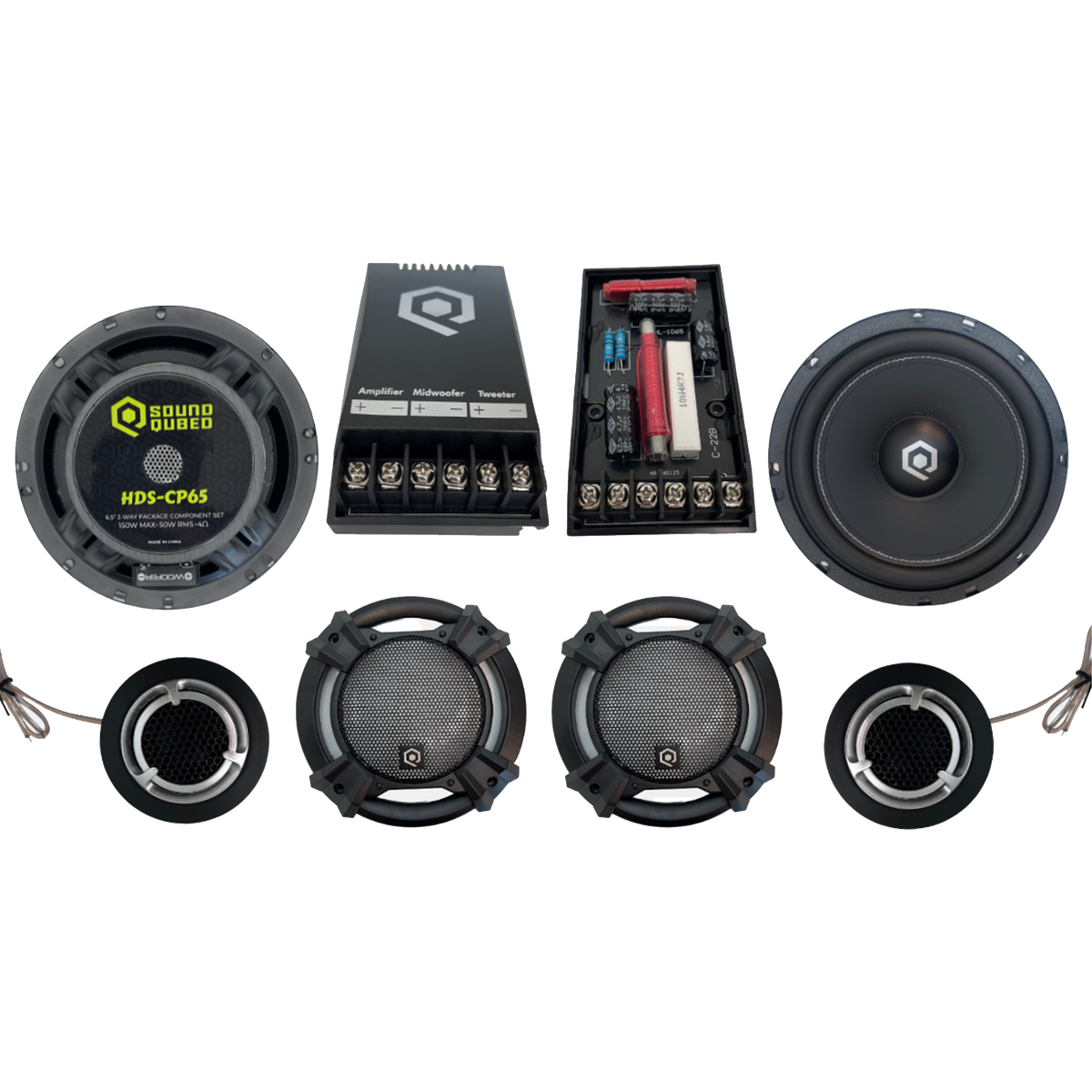

Give your car’s front stage a separate woofer and tweeter with the SoundQubed HDS Series 6.5-inch 2-way component speakers. The pair combines a paper-cone woofer, silk-dome neodymium tweeter, and included passive crossovers for a component-speaker upgrade rated at 50W RMS per set.

With a 4-ohm impedance and 86 dB sensitivity, the HDS set is designed for use with a head unit or amplifier. Grilles are included for a finished speaker installation.

Key Features & Benefits

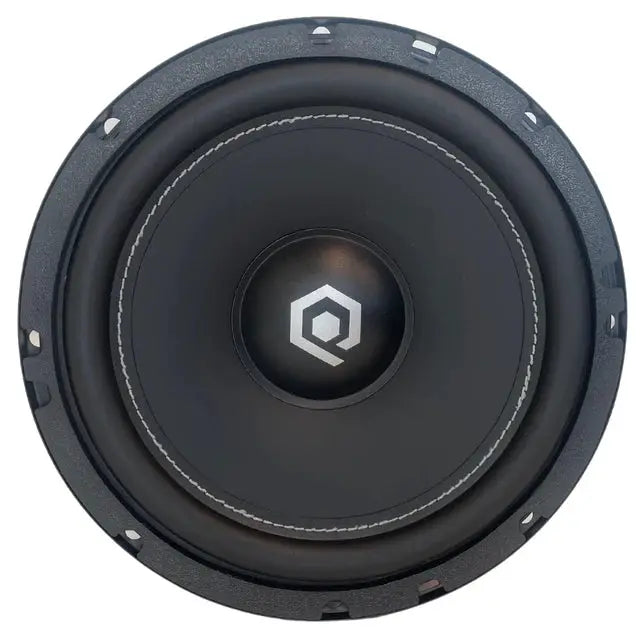

Paper cone and rubber surround: The 6.5-inch woofer uses these materials for a natural midrange character.

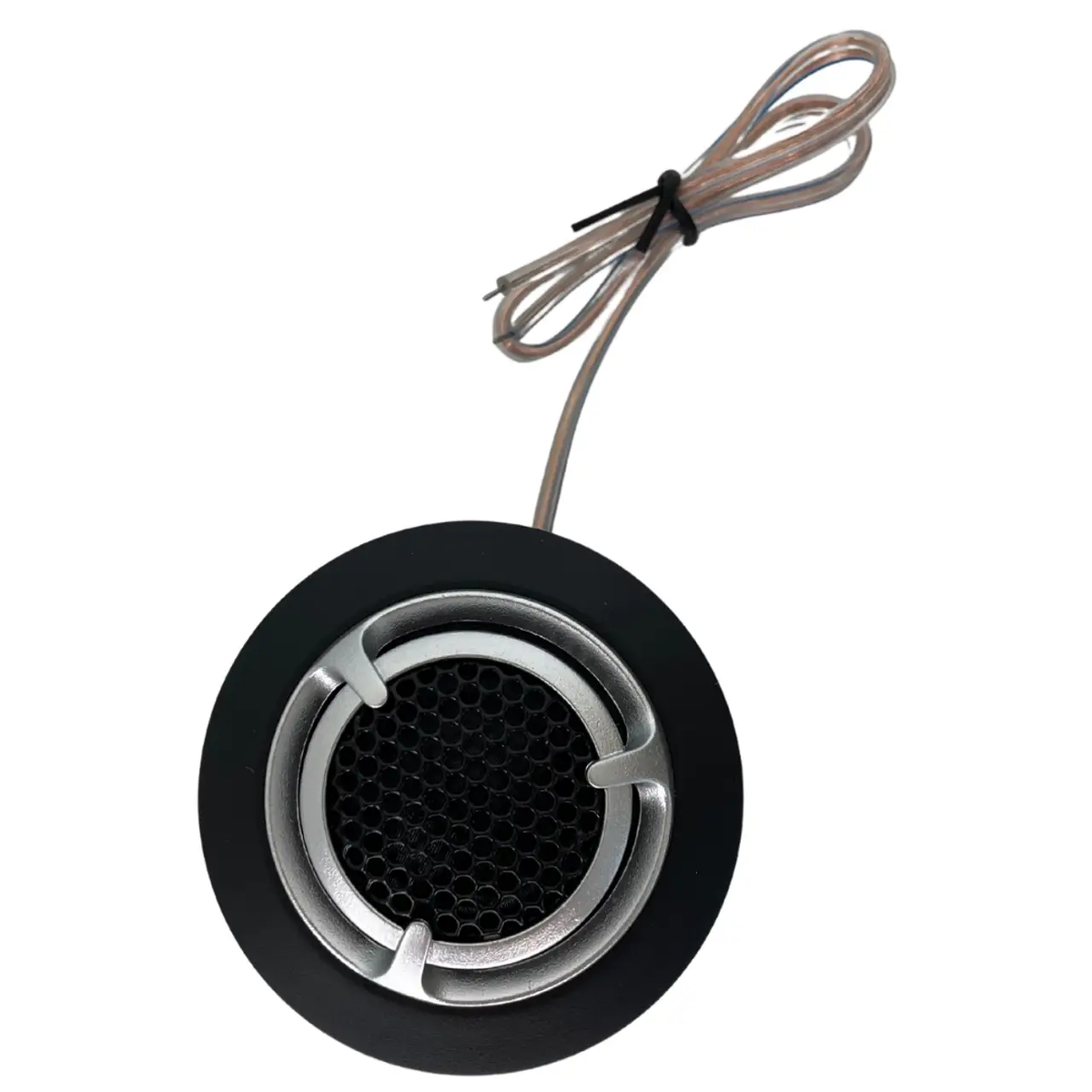

Silk-dome tweeter: A 1.75-inch neodymium tweeter handles high frequencies separately from the woofer.
Passive crossover included: The 2-way crossover divides the signal at 3.5 kHz, so an active crossover is not required for the woofer-and-tweeter split.

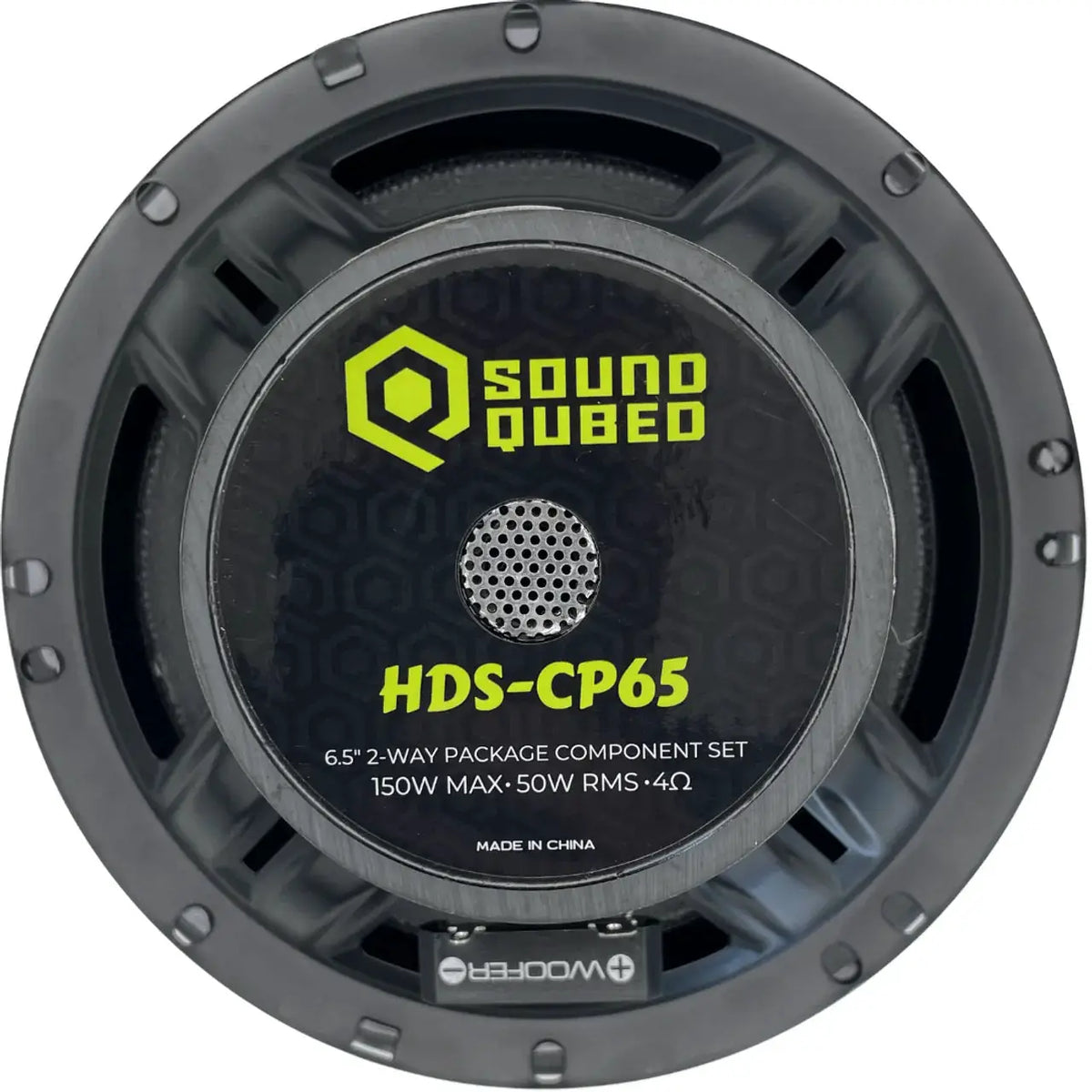

50W RMS power handling: The speakers are rated for 50W RMS and 150W maximum at 4 ohms.

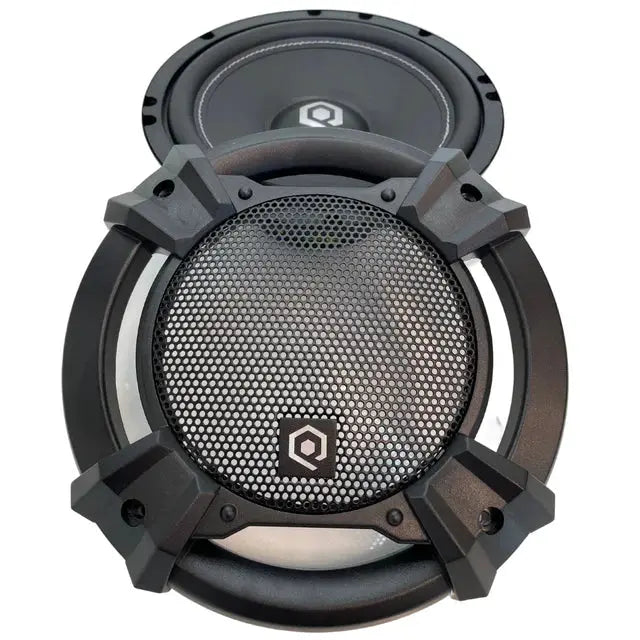

Grilles included: The pair includes grilles for a clean, finished appearance.

Technical Specifications

Specification	Value
Nominal Diameter	6.5" / 165mm
Nominal Impedance	4 Ohms
RMS Power Handling	50W
MAX Power Handling	150W
Sensitivity (1W/1m)	86 dB
Frequency Response	35 Hz – 20 kHz
Recommended Hi-Pass Crossover	60 Hz
Number of Ways	2-Way
Sold In	Pair
Grill Included	Yes

Woofer Specifications

Specification	Value
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Paper
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	280g

Thiele & Small Parameters

Parameter	Value
Equivalent Volume (Vas)	8L / 0.28ft³
Excursion One Way (Xmax)	3.3mm
Free Air Resonance (Fs)	78 Hz
Mechanical Factor (Qms)	4.02
Electrical Factor (Qes)	1.5
Total Factor (Qts)	1.1
Mechanical Mass (Mms)	13.8g
Mechanical Compliance (Cms)	295mm/N
BL Factor (BL)	3.6
Voice Coil Inductance (Le)	0.176mH
Cone Area (Sd)	138.8cm²
DC Resistance (Re)	3.7 Ohms
Mechanical Mass w/o Air (Mmd)	11.5g

Tweeter Specifications

Specification	Value
Nominal Diameter	1.75" / 45mm
Voice Coil Diameter	0.52" / 13.2mm
VC Former Material	KSV
Winding Material	EISVM
Diaphragm Material	Silk
Magnet Material	Neodymium
Magnet Weight	8.5g

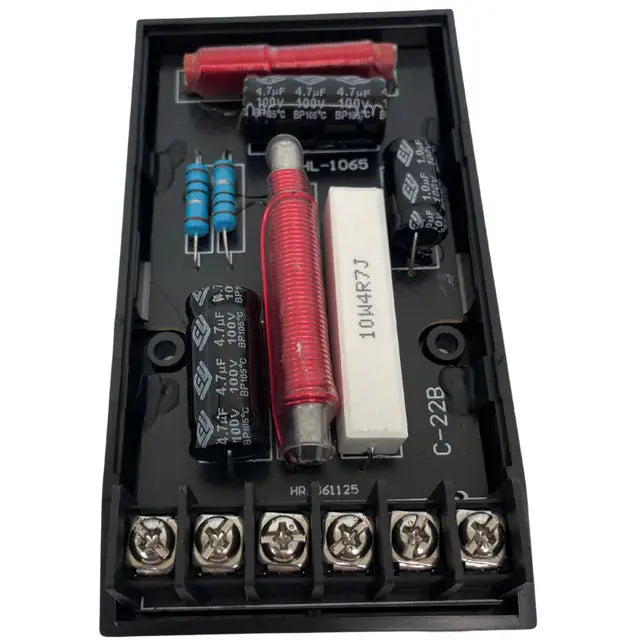

Passive Crossover Specifications

Specification	Value
Passive Crossover Ways	2 (Woofer / Tweeter)
Frequency Crossover Point	3.5 kHz
Power Handling	400W
Cut-Off Slope	12 dB/Oct
Capacitor Type	Non-Polar
Coil Type	KSV
Terminal Type	Screw
Housing Material	ABS

Woofer Measurements

Dimension	Value
Overall Diameter (With Grill)	7.28" / 185mm
Overall Depth (With Grill)	3.4" / 88.4mm
Overall Diameter (Without Grill)	6.5" / 165.5mm
Overall Depth (Without Grill)	2.48" / 63mm
Front Mount Baffle Cutout	5.6" / 142mm

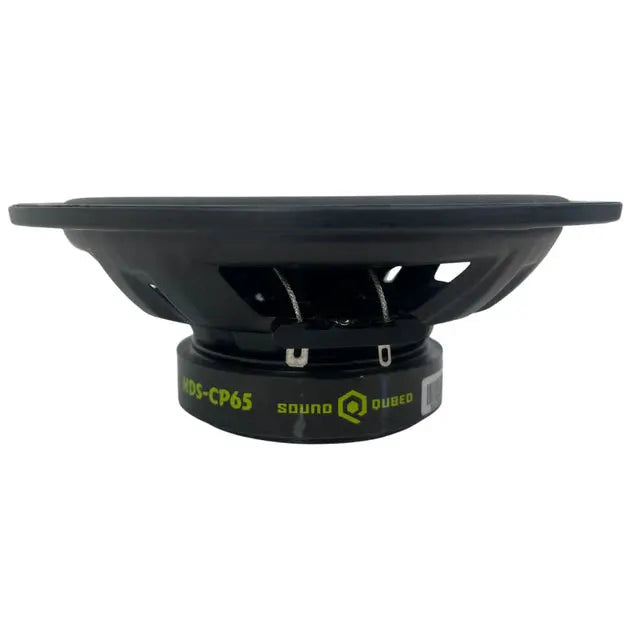

Mounting Depth	2.24" / 57mm
Motor Diameter	3.22" / 82mm

Tweeter Measurements

Dimension	Value
Overall Diameter	2.25" / 58mm
Overall Depth	1.18" / 30mm
Front Mount Baffle Cutout	2" / 51.6mm
Mounting Depth	0.8" / 20.5mm

Crossover Measurements

Dimension	Value
Overall Width	2.59" / 66mm
Overall Depth	4.7" / 120mm
Overall Height	1.31" / 33.5mm

Why Choose This Product?

The HDS set is SoundQubed’s entry-level 6.5-inch component system. Its separate woofer and tweeter give you a two-way front-stage setup, while the included passive crossover manages their 3.5 kHz division. The paper cone and silk dome pair a natural midrange character with a dedicated tweeter for high frequencies.

The 50W RMS rating and 4-ohm impedance are key considerations when matching the speakers to your audio system. The supplied product details also recommend the SoundQubed S4-100 amplifier, rated at 100W x4.

Installation & Compatibility Notes

Check the woofer’s 5.6" / 142mm baffle cutout and 2.24" / 57mm mounting depth against your installation location. Allow for the stated 7.28" / 185mm overall diameter with the grille and 3.4" / 88.4mm overall depth with the grille. The tweeter requires a 2" / 51.6mm front-mount cutout and 0.8" / 20.5mm mounting depth. Check available space for the crossover, which measures 2.59" x 4.7" x 1.31".

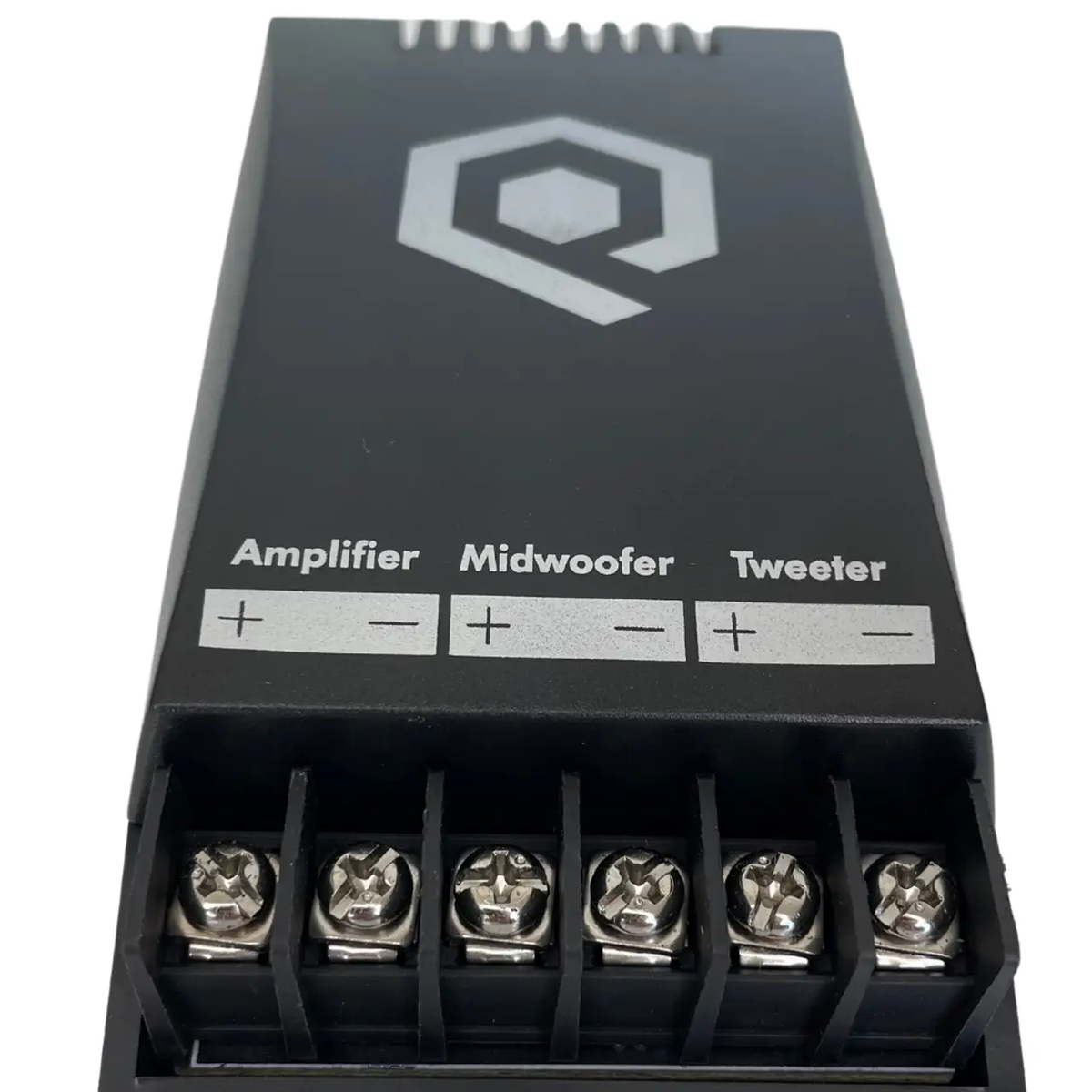

Connect the amplifier output to the passive crossover, then run separate leads from the crossover to the woofer and tweeter terminals (+W– and +TW–). The crossover handles the 3.5 kHz split at a 12 dB/oct slope; an active crossover is not required for that function. The installation guidance suggests an amplifier high-pass filter setting of 60–80 Hz, while the specifications list a recommended hi-pass crossover of 60 Hz.

Radio, amplifier, wires, and battery are not included.

Frequently Asked Questions

What are the power and impedance ratings?

The set is rated at 50W RMS and 150W maximum at 4 ohms. Match your amplifier to the RMS rating and the system’s impedance.

Do I need an active crossover or DSP?

No active crossover is needed for the woofer-and-tweeter split. The included passive crossover handles the 3.5 kHz crossover point with a 12 dB/oct slope.

What mounting space should I check?

The woofer needs a 5.6" / 142mm baffle cutout and 2.24" / 57mm mounting depth. Check the tweeter and crossover dimensions above against your available locations, too.
