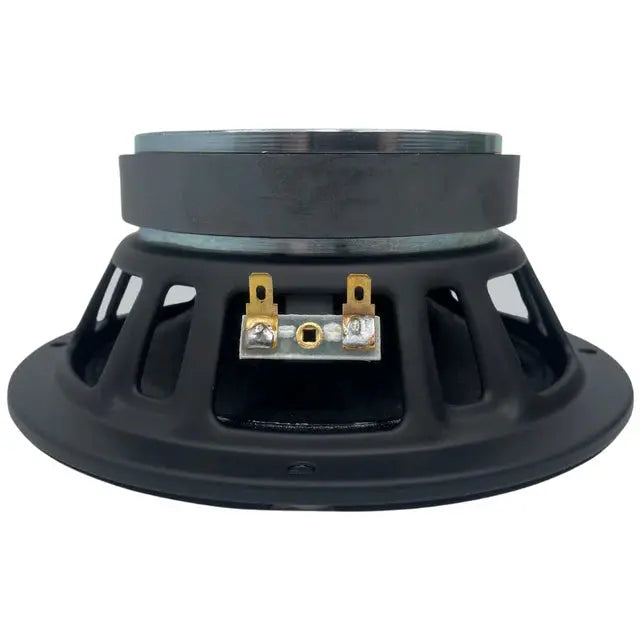

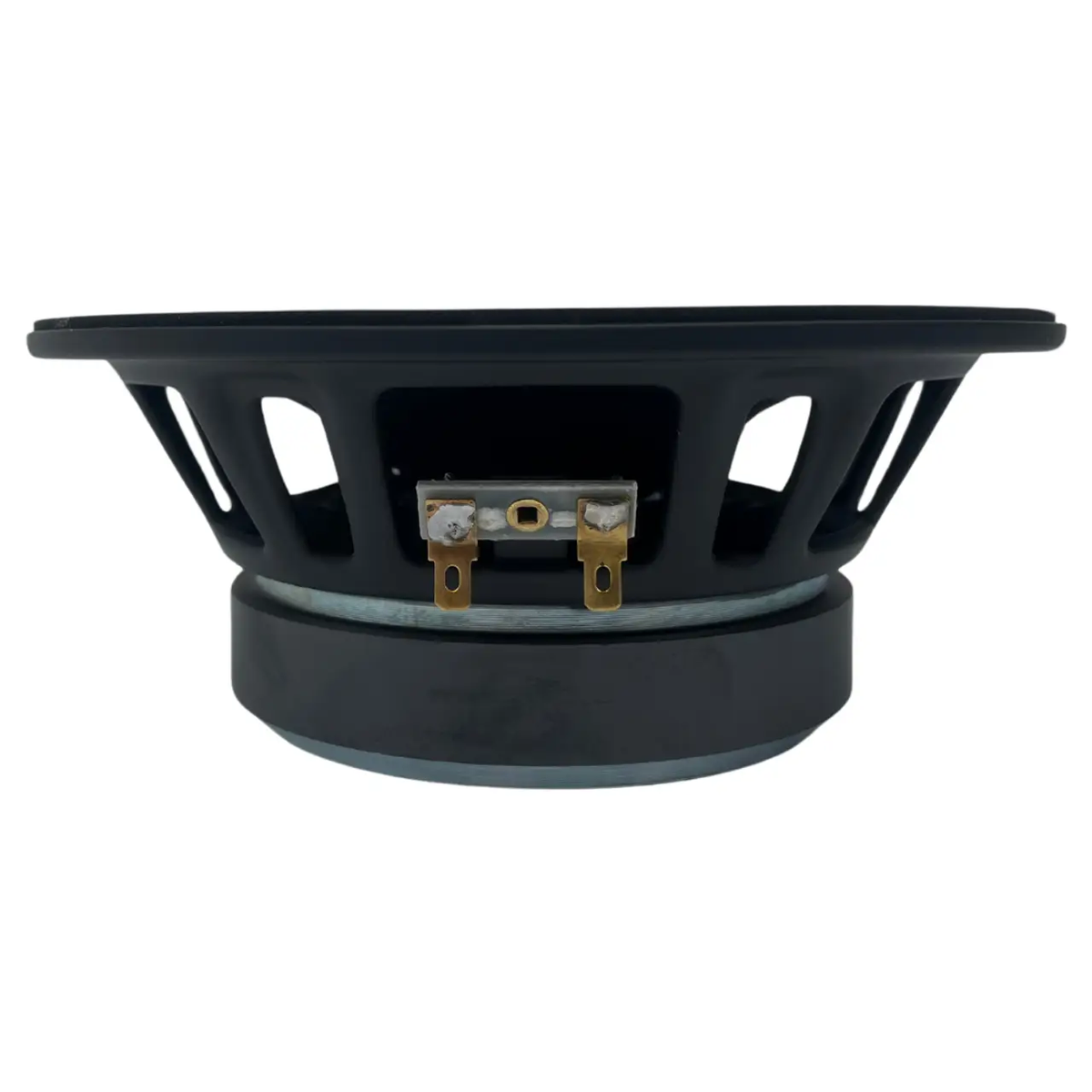

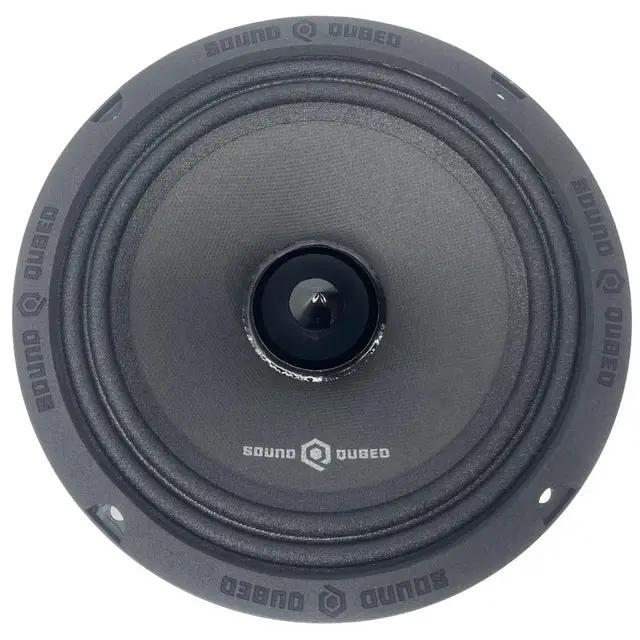

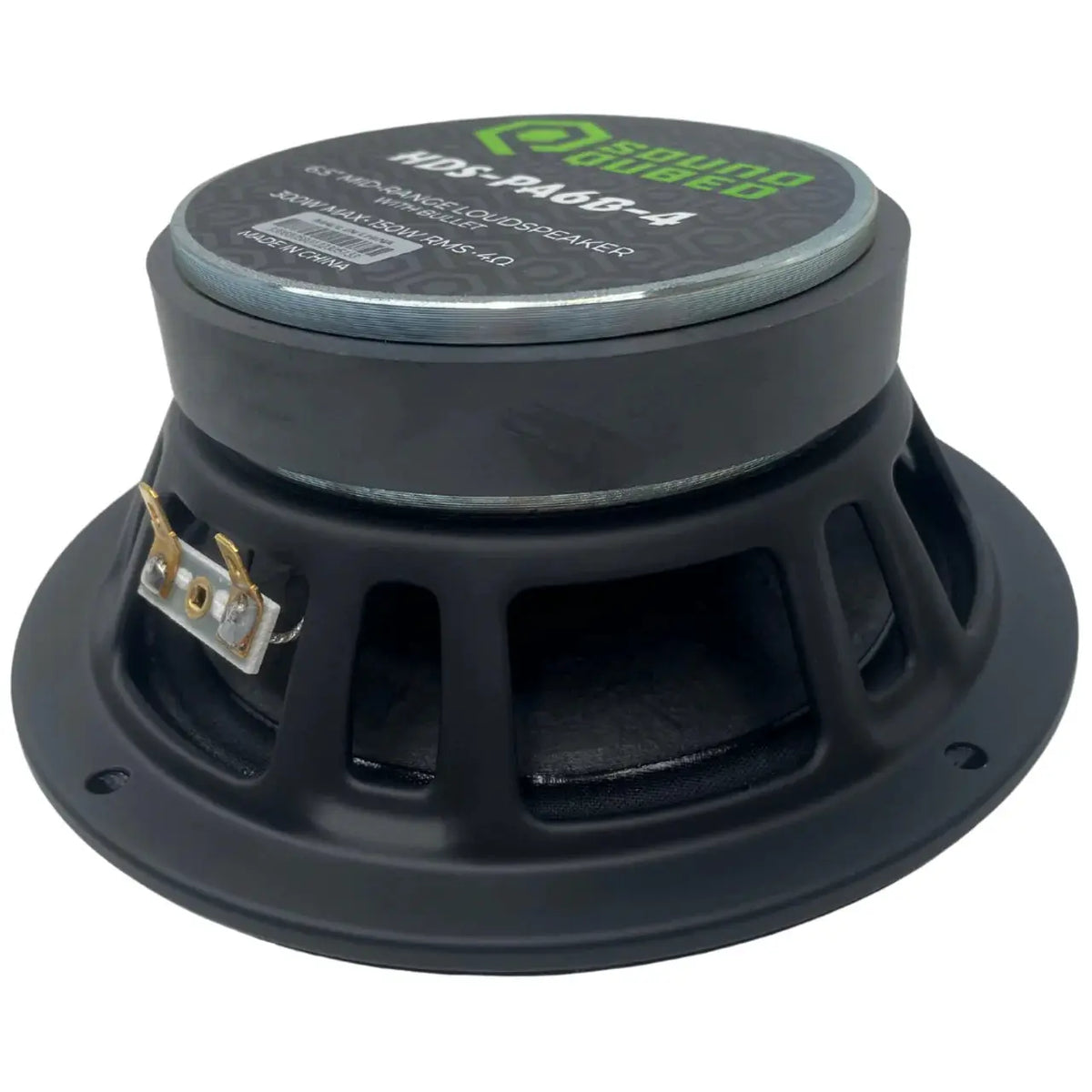

SoundQubed HDS Series Pro Audio Bullet 6.5" Speaker (each)

Name: SoundQubed HDS Series Pro Audio Bullet 6.5" Speaker (each)
Brand: SoundQubed
Price: 49.95 USD
Availability: InStock

$49.95 $59.99

Shipping calculated at checkout.

Key features

Speaker size: 6.5″
RMS power per speaker: 150 W
Speaker impedance: 4.0 ohms
Mounting depth: 2.4 in / 61 mm
Frequency response: 80 Hz–12 kHz
Sensitivity (1 W / 1 m): 96 dB

Description

Product Overview

Build a pro audio front stage around the SoundQubed HDS Pro Audio PA6B-4, a 6.5-inch midrange speaker made for dedicated midrange duty. Its 150W RMS handling, 96 dB sensitivity, and 23 oz ferrite motor give you key details to consider when planning a budget-conscious system.

Key Features & Benefits

Curvilinear paper cone: The non-pressed paper cone is designed for natural, detailed midrange reproduction.
23 oz ferrite motor: The ferrite motor supports the speaker’s stated power handling.
96 dB sensitivity: This rating indicates the speaker’s output at 1W/1m.
Standard connections: Regular spade terminals provide a familiar connection type for an installation.
Sold individually: Order one speaker or quantity two for a stereo pair.

Technical Specifications

Specification	Value
Nominal Diameter	6.5" / 165mm
Nominal Impedance	4 Ohms
Continuous Power Handling	100W
RMS Power Handling	150W
MAX Power Handling	300W
Sensitivity (1W/1m)	96 dB
Frequency Response	80 Hz – 12 kHz
Recommended Hi-Pass Crossover	160 Hz
Cone Shape	Curvilinear
Speaker Terminals	Regular Spade
Sold In	Single

Motor and construction specifications

Specification	Value
Voice Coil Diameter	1.5" / 38.1mm
VC Former Material	Kapton
Winding Material	CCAW
Cone Material	Non-Pressed Paper
Bullet Material	ABS
Bullet Color	Black
Surround Material	Cloth
Leads Connection Type	Crossed on Spider
Basket Material	Steel
Basket Color	Black
Magnet Material	Ferrite
Magnet Weight	23 oz
Displacement Volume	0.35L / 0.012ft³

Thiele & Small parameters

Parameter	Value
Equivalent Volume (Vas)	4.028L
Excursion One Way (Xmax)	7.2mm
Free Air Resonance (Fs)	150 Hz
Mechanical Factor (Qms)	11.72
Electrical Factor (Qes)	1.192
Total Factor (Qts)	1.082
Mechanical Mass (Mms)	7.597g
Mechanical Compliance (Cms)	0.268mm/N
BL Factor (BL)	3.27
Voice Coil Inductance (Le)	0.09117mH
Cone Area (Sd)	134.78cm²
DC Resistance (Re)	3.4 Ohms
Mechanical Mass w/o Air (Mmd)	6.697g

Speaker measurements

Dimension	Value
Overall Diameter	6.55" / 166.4mm
Overall Depth	2.66" / 67.6mm
Front Mount Baffle Cutout	5.65" / 143.5mm
Mounting Depth	2.4" / 61mm
Motor Diameter	4.33" / 110mm

Why Choose This Product?

The PA6B-4 is a dedicated pro audio midrange driver, not a full-range speaker. Its listed 80 Hz–12 kHz frequency response and 160 Hz recommended high-pass crossover help define its role when you plan a two-way or three-way active front stage.

Its 1.5-inch CCAW voice coil uses a Kapton former, while the speaker combines a cloth surround with a steel basket. These construction details help you compare it with other midrange options for your build.

Installation & Compatibility Notes

Use a high-pass crossover set at 160 Hz minimum. A band-pass configuration with a 160 Hz high-pass and an 8–12 kHz low-pass is recommended in the product details. An active crossover or DSP can manage crossover points.

The speaker handles 150W RMS at 4 Ohms. The SoundQubed S4-100 (100W x4) and Q4-150ABv2 (150W x4) are listed as amplifier pairing options. For a complete system, pair this dedicated midrange with a dedicated tweeter and a subwoofer or midbass driver.

Check the installation location against the 5.65" / 143.5mm baffle cutout and 2.4" / 61mm mounting depth. Allow for the listed 4.33" / 110mm motor diameter as you assess clearance.

Frequently Asked Questions

Is the HDS PA6B-4 sold as a pair?

No. Each order is for one speaker; order quantity two for a stereo pair.

What crossover setting is recommended?

The recommended high-pass crossover is 160 Hz. The product details also recommend a band-pass setup with an 8–12 kHz low-pass point.

What amplifier rating should I consider?

The speaker is rated at 150W RMS and 4 Ohms. The listed pairing options are the SoundQubed S4-100 (100W x4) and Q4-150ABv2 (150W x4).

What mounting space does it need?

Plan for a 5.65" / 143.5mm front-mount baffle cutout and 2.4" / 61mm mounting depth. Overall diameter is 6.55" / 166.4mm, and overall depth is 2.66" / 67.6mm.

How does it differ from the SoundQubed PA6B-4?

The HDS PA6B-4 is rated at 150W RMS and uses a 23 oz ferrite motor, steel basket, and Kapton former. The separate SoundQubed PA6B-4 is listed at 300W RMS, with a 30 + 3 oz ferrite and neodymium hybrid motor, aluminum basket, and glass fiber former.
