SoundQubed HDX Series 6.5" 2-Way Component Speaker Set

Name: SoundQubed HDX Series 6.5" 2-Way Component Speaker Set
Brand: SoundQubed
Price: 199.95 USD
Availability: InStock

$199.95 $219.99

Shipping calculated at checkout.

Key features

Speaker size: 6.5″
RMS power per speaker: 50 W
Speaker impedance: 4.0 ohms
Woofer mounting depth: 2.36 in / 60 mm
Woofer cone material: Glass fiber
Passive crossover: 3.5 kHz, 12 dB/octave

Description

Product Overview

Bring separate woofers and tweeters to your front stage with the SoundQubed HDX Series 6.5" 2-Way Component Speaker Set. Its glass fiber woofers, silk dome tweeters, and included passive crossovers provide a dedicated speaker system for your vehicle’s audio setup.

Each set is sold as a pair and includes woofer grilles. The crossover provides a 3.5 kHz woofer-to-tweeter split, tweeter attenuation, and built-in tweeter protection.

Key Features & Benefits

Glass fiber woofer cone: Paired with a rubber surround for the specified woofer construction.
Silk dome tweeter: The 1.94" tweeter uses a neodymium magnet and silk diaphragm.
Passive crossover: A 12 dB/oct slope and 3.5 kHz crossover point divide the woofer and tweeter signals.
Tweeter adjustment: Attenuation lets you adjust the tweeter level.

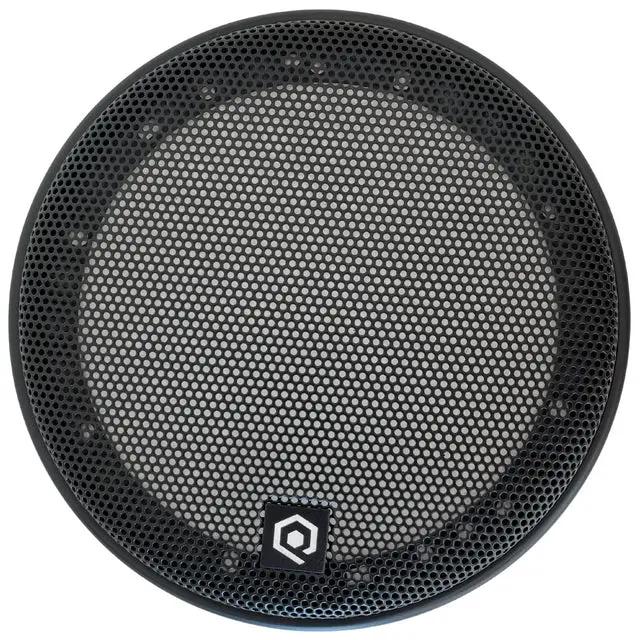

Woofer grilles included: The set includes grilles for the pair of woofers.

Technical Specifications

General Specifications

Specification	Value
Nominal Diameter	6.5" / 165mm
Nominal Impedance	4 Ohms
RMS Power Handling	50W
MAX Power Handling	150W
Sensitivity (1W/1m)	86 dB
Frequency Response	40 Hz – 20 kHz
Recommended Hi-Pass Crossover	60 Hz
Number of Ways	2-Way
Sold In	Pair
Grill Included	Yes

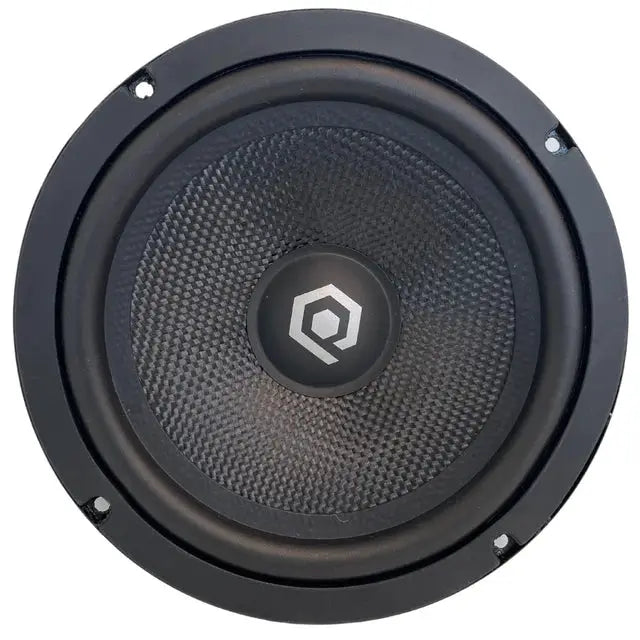

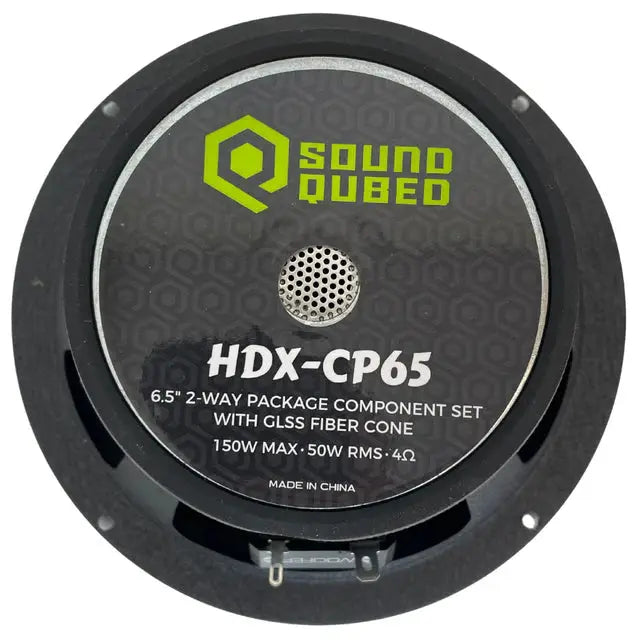

Woofer Specifications

Specification	Value
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	KSV
Winding Material	EISV
Cone Material	Glass Fiber
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	410g

Thiele & Small Parameters

Parameter	Value
Equivalent Volume (Vas)	10.36L / 0.365ft³
Excursion One Way (Xmax)	2.7mm
Free Air Resonance (Fs)	64 Hz
Mechanical Factor (Qms)	9.50
Electrical Factor (Qes)	0.85
Total Factor (Qts)	0.78
Mechanical Mass (Mms)	13.72g
Mechanical Compliance (Cms)	528mm/N
BL Factor (BL)	5.18
Voice Coil Inductance (Le)	0.174mH
Cone Area (Sd)	131cm²
DC Resistance (Re)	3.5 Ohms
Mechanical Mass w/o Air (Mmd)	12g

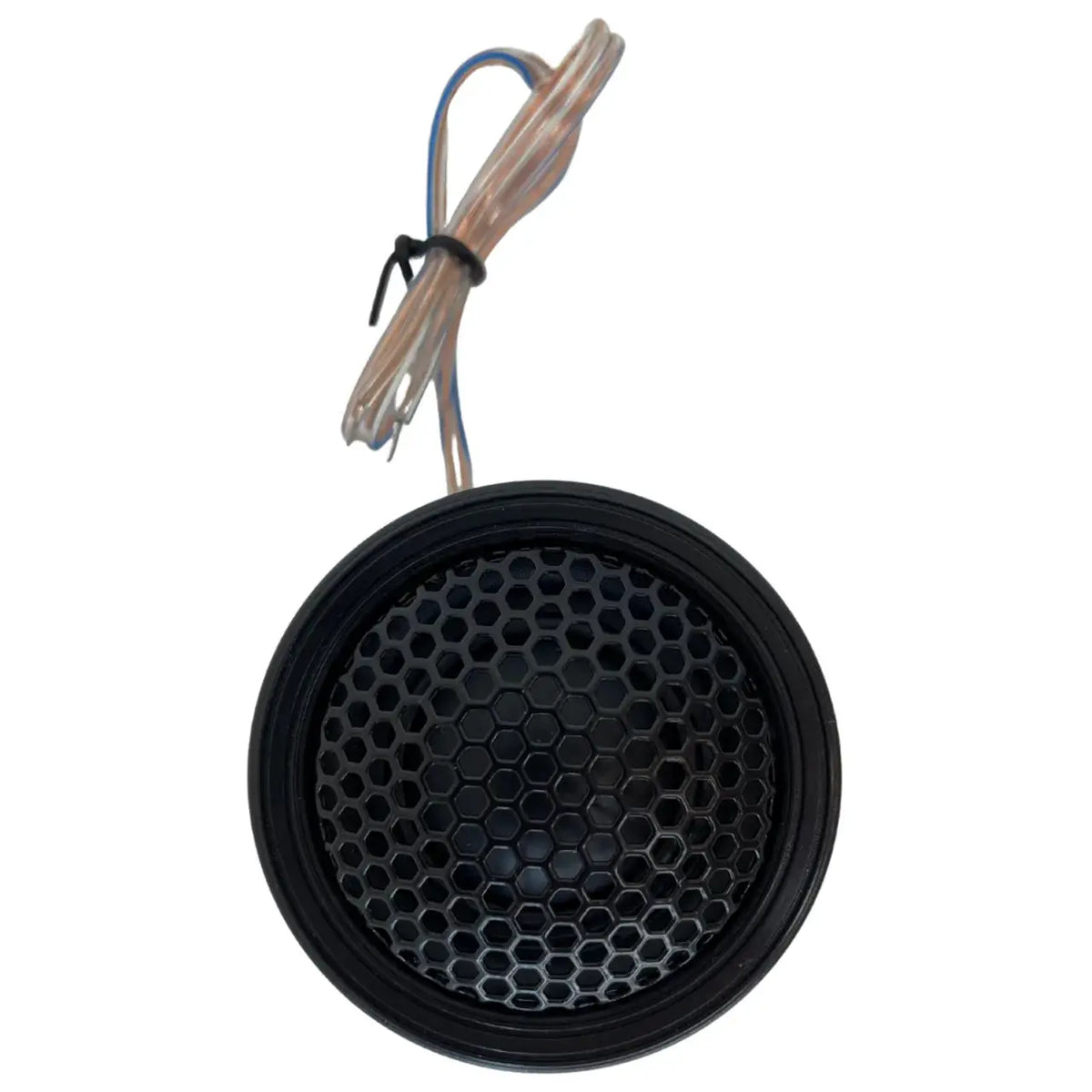

Tweeter Specifications

Specification	Value
Nominal Diameter	1.94" / 49.5mm
Voice Coil Diameter	1" / 25.5mm
Former Material	ASV
Winding Material	EISVM
Diaphragm Material	Silk
Magnet Material	Neodymium
Magnet Weight	13g

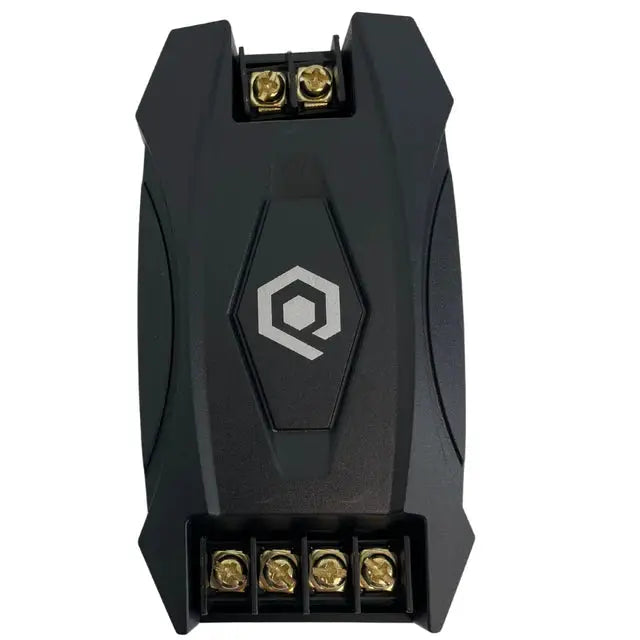

Passive Crossover Specifications

Specification	Value
Passive Crossover Ways	2 (Woofer / Tweeter)
Frequency Crossover Point	3.5 kHz
Power Handling	400W
Cut-Off Slope	12 dB/Oct
Tweeter Attenuation	Yes
Capacitor Type	Metal Film
Coil Type	ASV
Terminal Type	Screw
Housing Material	ABS
Adjustments	TW Att PT
TW Protection	Yes

Woofer Measurements

Dimension	Value
Overall Diameter (With Grill)	7.26" / 184.5mm
Overall Depth (With Grill)	3" / 76.5mm
Overall Diameter (Without Grill)	6.5" / 165mm
Overall Depth (Without Grill)	2.6" / 66.1mm
Front Mount Baffle Cutout	5.6" / 142mm
Mounting Depth	2.36" / 60mm
Motor Diameter	3.7" / 94mm

Tweeter Measurements

Dimension	Value
Overall Diameter	2.25" / 58mm
Overall Depth	1.14" / 29.2mm
Front Mount Baffle Cutout	1.9" / 48.4mm
Mounting Depth	0.82" / 21mm

Crossover Measurements

Dimension	Value
Overall Width	2.55" / 64.8mm
Overall Depth	4.72" / 120mm
Overall Height	1.19" / 30.3mm

Why Choose This Product?

This component set separates the woofer and tweeter, with the included passive crossover managing their 3.5 kHz split. Its tweeter attenuation adjustment gives you a way to balance the high-frequency level to your taste and room acoustics.

The woofer’s 50W RMS and 150W maximum ratings, 4-ohm impedance, and 86 dB sensitivity help inform amplifier selection. The set’s 40 Hz–20 kHz frequency response and recommended 60 Hz hi-pass crossover provide additional reference points when planning your system.

Installation & Compatibility Notes

Check available mounting space before installation. The woofer requires a 5.6" / 142mm baffle cutout and 2.36" / 60mm mounting depth; with its grille, overall depth is 3" / 76.5mm. The tweeter requires a 1.9" / 48.4mm cutout and 0.82" / 21mm mounting depth.

Connect the amplifier output to the passive crossover, then run separate leads from the crossover to the woofer and tweeter. The crossover handles the 3.5 kHz split; the source recommends an amplifier hi-pass setting of 60–80 Hz. Suggested amplifier models in the product information are the SoundQubed Q4-150ABv2 (150W x4), Q4-2000 (325W x4), and Q4-3200 (520W x4). Radio, amplifier, wires, and battery are not included.

SoundQubed HDX 6.5 Component Set Wiring Diagram

SoundQubed HDX 6.5 Woofer and Tweeter Measurements

SoundQubed HDX 6.5 Crossover Measurements

Frequently Asked Questions

What comes in the SoundQubed HDX 6.5" component speaker set?

Each set includes a pair of 6.5" woofers with grilles, a pair of 1.94" silk dome tweeters, and a pair of 2-way passive crossovers.

What amplifier power and impedance should I plan for?

The set is rated at 50W RMS and 150W maximum, with a nominal impedance of 4 Ohms.

Do I need a separate active crossover?

The included passive crossover manages the woofer and tweeter split at 3.5 kHz, with a 12 dB/Oct slope and tweeter protection.

What mounting space does the woofer need?

Allow for a 5.6" / 142mm baffle cutout and 2.36" / 60mm mounting depth. With the grille, overall depth is 3" / 76.5mm.

How should I connect the speakers?

Connect the amplifier to the passive crossover, then wire its separate outputs to the woofer and tweeter. Set the amplifier hi-pass filter according to your system; the product information recommends 60–80 Hz.
