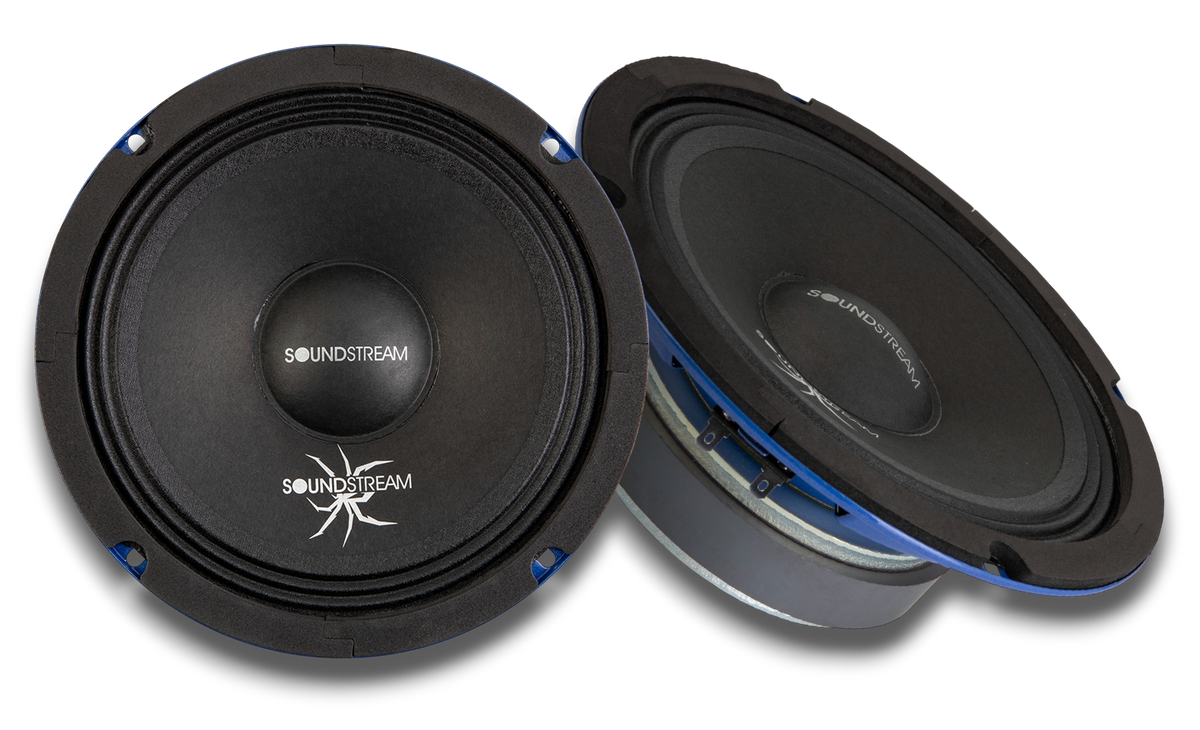

Soundstream SPM.804 8" Pro Audio Midrange Speaker (Pair)

Product Overview

The Soundstream SPM.804 is a 8-inch midrange speaker for custom audio installations. Its 100Hz–5kHz published response range and 4-ohm impedance help define where it fits in a multi-driver system. Match the crossover, amplification and mounting to the driver rather than treating the nominal size as a guarantee of factory-location fit.

Key Features & Benefits

• Nominal speaker size: 8 inches

Technical Specifications

• 8-inch midrange speaker
• Published frequency response: 100Hz–5kHz
• Impedance: 4 ohms
• Steel basket, paper cone, cloth surround, 44oz ferrite magnet, 1.5-inch EISV voice coil
• Mounting depth: 2.79 inches / 71mm
• Sold as a pair
• Published sensitivity: 95.5dB; measurement reference not specified on page
• Published cutout: 7.12 inches / 181mm; verify against physical driver before fabrication

Why Choose This Product?

The SPM.804 belongs in a dedicated midrange section, not in place of a full-range speaker or subwoofer. Work through the physical installation and crossover arrangement as carefully as the power rating so the driver is used for the job it is designed to perform. For this model, the listed feature set includes Nominal speaker size: 8 inches. Check how that feature fits your intended system rather than substituting specifications from a similar model.

Installation & Compatibility Notes

Confirm mounting depth, cutout size and clearance before installation. Use suitable crossover filtering and match amplifier output to the manufacturer’s continuous-power guidance. Maximum or unspecified input-power figures are not interchangeable with an RMS rating.

Design and installation details

The Soundstream SPM.804 is a 8-inch midrange speaker for custom audio installations. Its 100Hz–5kHz published response range and 4-ohm impedance help define where it fits in a multi-driver system. Match the crossover, amplification and mounting to the driver rather than treating the nominal size as a guarantee of factory-location fit.

• 8-inch midrange speaker
• Published frequency response: 100Hz–5kHz
• Impedance: 4 ohms
• Steel basket, paper cone, cloth surround, 44oz ferrite magnet, 1.5-inch EISV voice coil
• Mounting depth: 2.79 inches / 71mm
• Sold as a pair
• Published sensitivity: 95.5dB; measurement reference not specified on page
• Published cutout: 7.12 inches / 181mm; verify against physical driver before fabrication

Check cutout, mounting depth, fastener clearance and the space behind the grille before modifying a panel. Protect terminals from contact with metal and use appropriate crossover filtering. Confirm the listing’s stated quantity when planning left/right coverage; a pair rating must not automatically be treated as a per-driver rating.

Frequently Asked Questions

What nominal size is the SPM.804?

Nominal speaker size: 8 inches. Nominal size is a starting point; cutout and mounting depth must be checked separately.

What frequency range is specified for the SPM.804?

Published frequency response: 100Hz–5kHz. Use a crossover appropriate to the driver and application; a published response range does not guarantee equal output across the entire range.

What impedance is specified for the SPM.804?

Impedance: 4 ohms. Match the total connected load to the amplifier, accounting for all drivers on the channel.

What construction details are listed for the SPM.804?

Steel basket, paper cone, cloth surround, 44oz ferrite magnet, 1.5-inch EISV voice coil. These are model-specific construction details; they do not establish vehicle fit or replace the need for correct mounting and filtering.

Is the SPM.804 a direct-fit replacement for my vehicle?

A shared nominal speaker size is not a vehicle-fit guarantee. Compare cutout, depth, mounting pattern and grille clearance; vehicle-specific mounting brackets or wiring adapters may be required.
