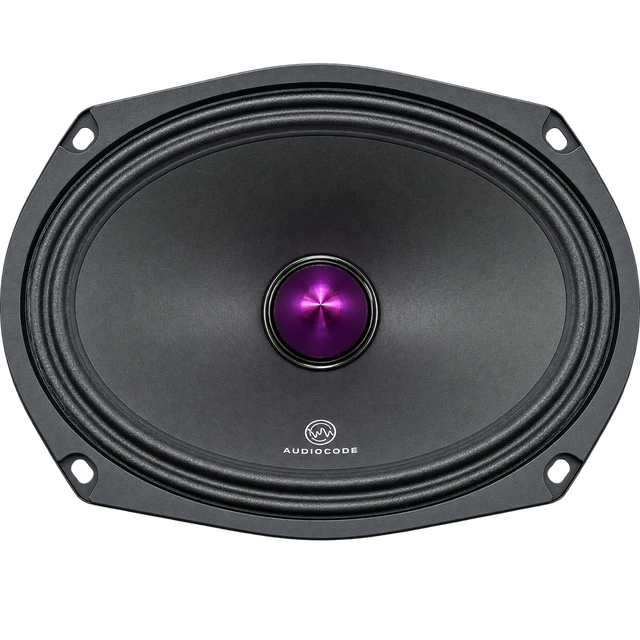

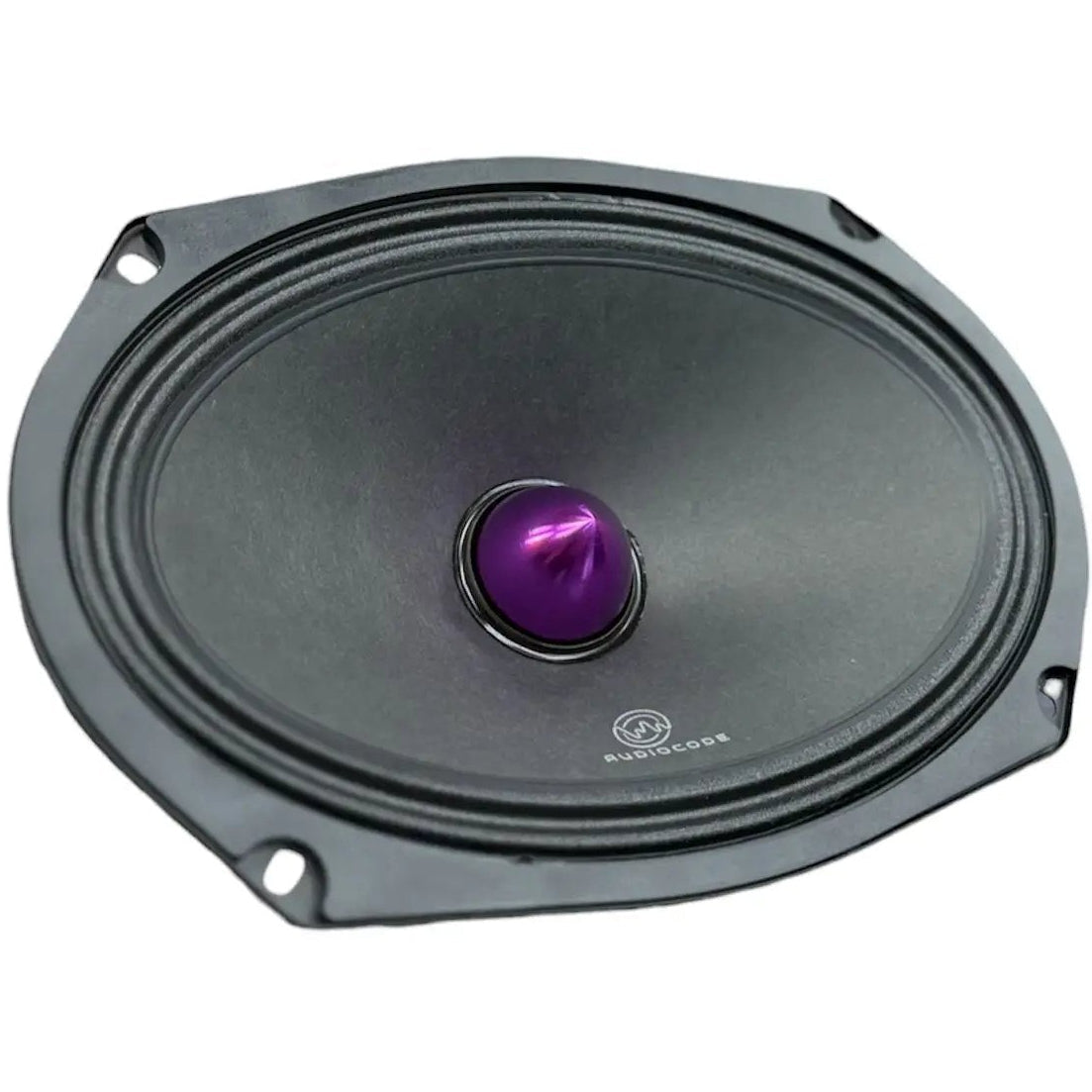

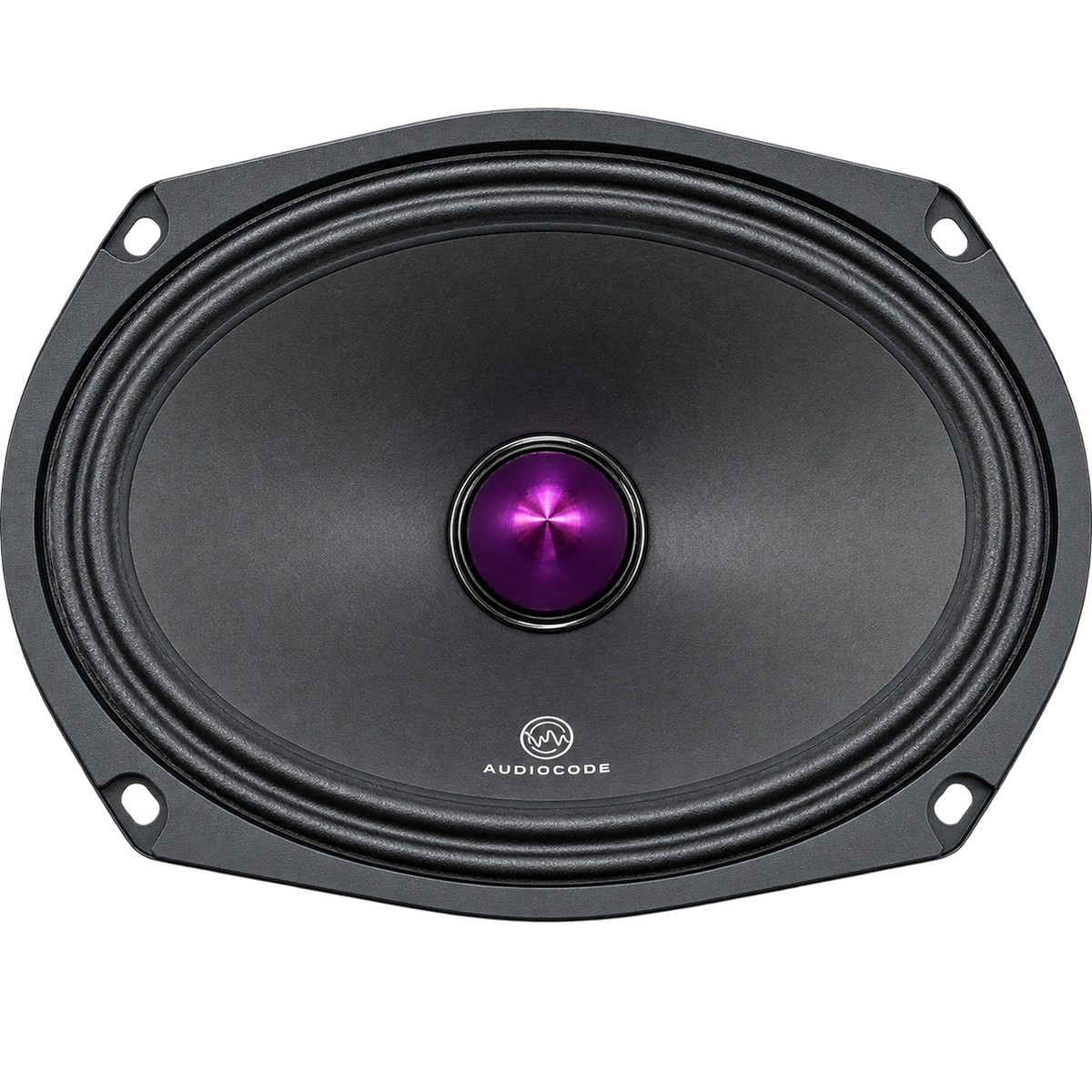

Audio Code AXC-ZRO69 6x9" Midrange Loudspeaker

Product Overview

Bring dedicated midrange output to a 6x9-inch speaker location with the Audio Code AXC-ZRO69 midrange loudspeaker. It handles 250W RMS at 4 ohms and is designed for multi-way systems that use separate midrange, tweeter, and subwoofer drivers.

Key Features & Benefits

• 6x9-inch format: Adds a dedicated midrange option for rear deck or door installations.
• 250W RMS power handling: Suits high-output system builds when matched with appropriate amplification.
• 100Hz–12.5kHz frequency response: Covers the stated midrange range, from upper bass through lower treble.
• 4-ohm nominal impedance: Makes the speaker suitable for amplifier channels intended for a 4-ohm load.
• Dedicated midrange design: Use it with a crossover and separate drivers rather than as a standalone coaxial speaker.

Technical Specifications

For a suggested active three-way setup, the source recommends a high-pass filter at 100–150Hz and a low-pass filter at 4–6kHz. It also recommends a dedicated amplifier channel rated at 125–250W RMS at 4 ohms.

Why Choose This Product?

The AXC-ZRO69 gives you a 6x9-inch dedicated midrange driver for a system built around separate frequency ranges. Pair it with a tweeter for upper frequencies and a subwoofer for low frequencies to build an active or passive multi-way setup.

Because it is sold individually, you can order one speaker for a single location or two for a stereo pair. The stated frequency response and power handling help you assess how it fits your system plan.

Installation & Compatibility Notes

Use the AXC-ZRO69 with an active or passive crossover; it is not a coaxial speaker. The suggested crossover points above are for an active three-way setup. Check your vehicle’s speaker location and mounting requirements before ordering, as a 6x9-inch size alone does not confirm fitment.

Frequently Asked Questions

Is the AXC-ZRO69 sold individually or as a pair?

It includes one speaker. Order two for a stereo pair.

Does this midrange speaker need a crossover?

Yes. Use an active or passive crossover. For an active three-way setup, the suggested high-pass range is 100–150Hz and the low-pass range is 4–6kHz.

What amplifier rating is recommended?

The source recommends a dedicated channel rated at 125–250W RMS at 4 ohms.

Will it fit my vehicle’s 6x9-inch opening?

The speaker has a 6x9-inch format, but that alone does not confirm vehicle fitment. Check the mounting requirements for your specific location.

How does it differ from the Audio Code ZRO 6?

Both models are described as 250W RMS, 4-ohm midrange loudspeakers with a 100Hz–12.5kHz response. The AXC-ZRO69 is 6x9 inches; the ZRO 6 is a 6.5-inch round driver.
