AudioControl PNW-69 6x9" Coaxial Speakers, 75W RMS, 3 Ohms (Pair)

Name: AudioControl PNW-69 6x9" Coaxial Speakers, 75W RMS, 3 Ohms (Pair)
Brand: AudioControl
Price: 259.99 USD
Availability: InStock

$259.99 $289.99

Shipping calculated at checkout.

Key features

Speaker size: 6×9″
RMS power per speaker: 75 W
Speaker impedance: 3.0 ohms
Frequency response: 50 Hz–20 kHz
Voice-coil diameters (tweeter / midrange): 20 / 35 mm
Mounting depth: 2.95 in / 75 mm

Description

Product Overview

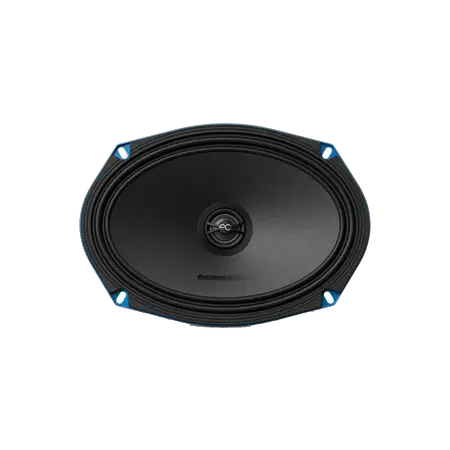

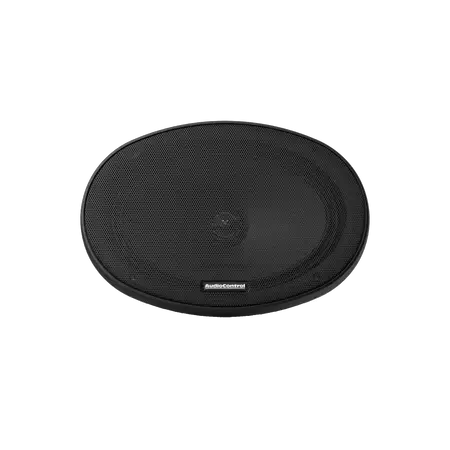

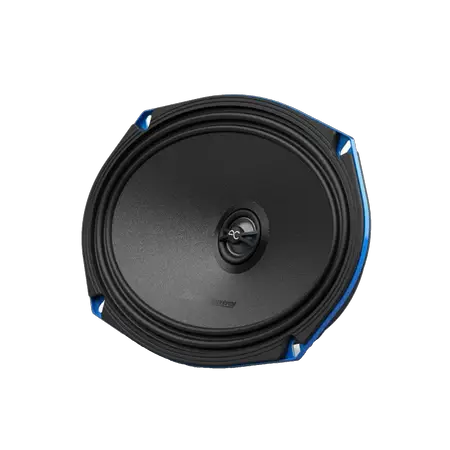

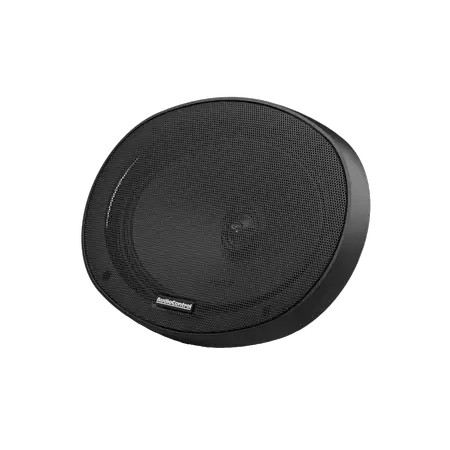

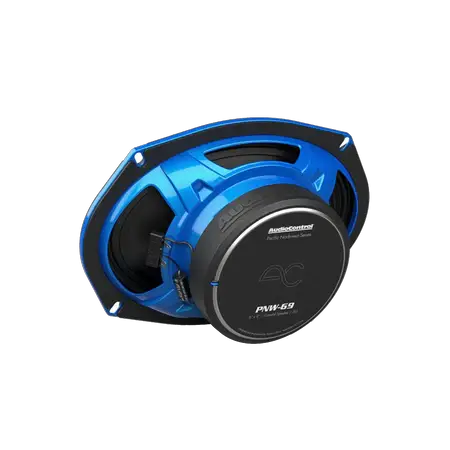

Bring a unified midrange and high-frequency soundstage to your vehicle with the AudioControl PNW-69 6x9" coaxial speaker pair. Its concentric point source design aligns the midrange and tweeter, while the hybrid silk dome tweeter and poly mica-coated cone cover a stated frequency response of 50–20,000 Hz.

Key Features & Benefits

Concentric point source design: Aligns midrange and tweeter output as a single source to support imaging and reduce lobing and timing discrepancies.
75W RMS power handling: Gives you the pair’s stated continuous power rating when choosing supporting audio equipment.
Hybrid silk dome tweeter: Rear damping, a sonic diffuser, and a radiant collar are designed to improve off-axis frequency response.
Heat-conscious construction: A black anodized voice coil former supports heat dissipation, while the edge-enhanced steel frame adds structural strength.
Controlled cone movement: The linear double-roll surround and rigid poly mica-coated cone support precise movement and accurate sound reproduction.

Technical Specifications

Product	AudioControl PNW-69 6x9" coaxial speakers, pair
Power handling	75W RMS / 100W Max per pair
Impedance	Nominal 3 ohms; DC resistance 2.6 Ω
Crossover	Butterworth type; 5,250 Hz crossover frequency; -6 dB/Octave slope
Frequency response	50–20,000 Hz
Tweeter voice coil	20 mm
Midrange voice coil	35 mm
Design and construction	Concentric point source design; edge-enhanced steel frame; black anodized voice coil former; linear double-roll surround; rigid poly mica-coated cone
Tweeter design	Rear dampened hybrid silk dome tweeter with sonic diffuser and radiant collar
Overall size	6 x 9 in
Cutout	5.74 x 8.34 in
Mounting depth	2.95 in (w/o grille)
Included hardware	Mounting hardware

Why Choose This Product?

The PNW-69 combines a 6x9" coaxial format with aligned midrange and tweeter output for a cohesive front or rear stage. Its steel frame, heat-dissipating voice coil former, and controlled surround design make construction details part of the speaker’s sound-focused approach.

Installation & Compatibility Notes

Check your mounting opening against the 5.74 x 8.34 in cutout and allow 2.95 in of mounting depth without the grille. The speakers are 6 x 9 in overall. Confirm the available space and that your receiver or amplifier is suitable for a nominal 3-ohm load before installation. Mounting hardware is included.

Frequently Asked Questions

What is the power rating for the PNW-69 pair?

The listed power handling is 75W RMS / 100W Max per pair.

What impedance should I account for?

The nominal impedance is 3 ohms, and the stated DC resistance is 2.6 Ω. Check your receiver or amplifier’s load requirements before connecting the speakers.
